A 2014 Chevy Silverado gets a Kicker audio upgrade

The Kicker VSS™ Powerstage™ enhances the sound of the factory audio gear

By

Dave Delamere

Dave was born in Buffalo, NY, but spent the majority of his life in central and northern Virginia. He began his collegiate career at Virginia Tech, but completed my education with a degree in teaching from Radford University. His Crutchfield career began in 1997 as a Sales Advisor. His father had been a satisfied Crutchfield customer since the '80s, and when Dave saw the job opening, he knew it could be a good thing. In 2013, the Crutchfield creative staff grew tired of the corrections and suggestions Dave always threw their way, so they decided to give bring him on as a copywriter for the mobile electronics division.

When not dealing with these corrections and suggestions, Dave enjoys watching and playing ice hockey. Cooking intrigues him, although cleaning up after does not. Movies, music, and art take him away. Crime and forensic shows bring him back. History makes him pause. His interest in electronics stems from fond memories of making mix tapes from vinyl, radio, and the newest format at the time, the compact disc.

More from Dave Delamere

Kicker's VSS™ Powerstage™ system enables you to keep the stock look and feel you're accustomed to, but upgrades the clarity and impact of your factory's audio system. With the Powerstage, you keep your factory radio and speakers, but add Kicker-caliber components to energize the system: a digital signal processor, an amplifier, and a subwoofer. Combined, they clean up the output from the factory radio, deliver a more powerful signal to your factory speakers, and add the bass that’s missing from the factory sound.

The best part of the system is that it’s all in a custom installation package that was designed specifically for the 2014 Chevy and GMC Crew Cab. Having vehicle-specific wiring connectors that just plug into the Chevy’s wiring and custom-fit mounting brackets simplified the installation and shortened the time required to get the job done.

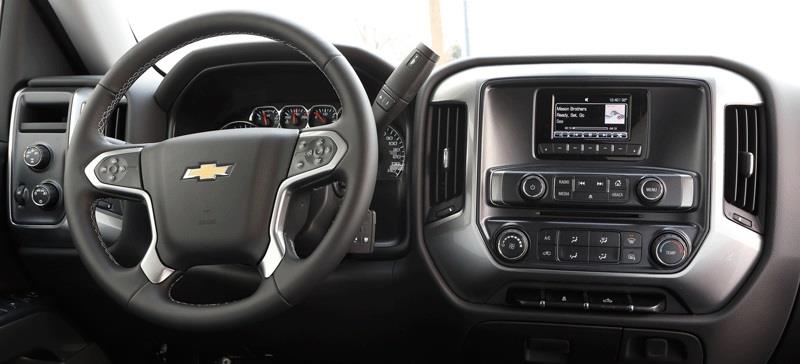

2014 Chevy Silverado dash layout

The Silverado's dash layout looks great, so some owners may not want to change the look but still want better sound.

Installing the Kicker VSS Powerstage system

Step 1. The installation of the Powerstage system really followed the trail of the factory wiring, so we began at the radio. Once we removed the thin factory radio faceplate, we gained access to the wiring connections we needed.

2014 Silverado and Wire Worm

A Wire Worm helped guide the wires behind the dash.

Kicker's creation of the "plug and play" wiring connectors meant that there was no cutting or splicing of the factory wires. Once connected, we used a Pro.Fit Wire Worm to fish the wire behind the dash panel on its way to the amp location.

Step 2. We installed the DSP/amp module under the dash on the driver's side. It included attached brackets designed to work with existing bolts under the Chevy's dash.

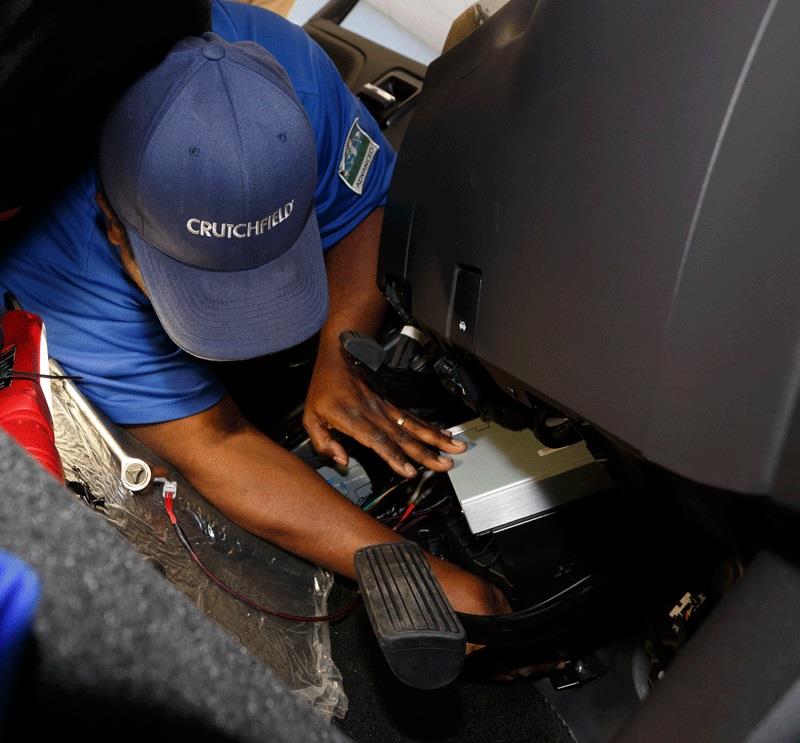

Kicker SoundGate 2014 Silverado DSP/amp

Our installer mounting the DSP/amp module under the driver's side dash.

The DSP/amp was mounted close to the grommet in the Silverado's firewall, which proved convenient for routing the power cables to the vehicle's battery in the engine compartment.

Step 3. We routed the power cable through the grommet, secured it to existing bundled cable with cable ties, and secured it to the battery terminal.

2014 Silverado Kicker SoundGate wiring

Running the SubStage wiring along the door frame

Then we moved back to the DSP/amp location, where we continued to run Kicker's wiring to the SubStage subwoofer location. After removing the trim in the door frame, we tucked the wiring inside the channel on its way to the back of the Silverado.

Step 4. Once the wiring reached the subwoofer location, it was time to mount the subwoofer. Kicker included custom brackets on the sub enclosure, so it bolted directly to the rear seat braces. The low-profile enclosure fit perfectly underneath the seat, so you won't lose leg room.

Kicker SubStage for 2014 Silverado

The Kicker SubStage subwoofer fit under the seat and pumped out strong bass.

Conclusion Kicker opens the gate to great sound

While cables had to be routed througout the cab interior and in the engine compartment, Kicker's Powerstage simply plugged into the Silverado's factory plugs. And once it was in, we checked out a few tracks we had listened to on the factory system before the installation. We noticed much better stereo separation, a wider soundstage, and a tight, strong bass response from the sub — all without replacing the factory radio and speakers.

Check out our OutfitMyCar™ tool to see if there are any factory upgrade systems available for your vehicle, and feel free to contact our advisors if you have any questions about improving your system.
