Adam Dowgielewicz's Dodge Shadow
Items installed:
- Jensen CD615X CD receiver
- JBL GTX2 electronic crossover
- JBL GTO520 2-way 5-1/4" speakers — front door
- JBL GTO7520 2-way 5"x7" speakers — rear side panels
- 2 Infinity Kappa 120.1se 12" woofers
- Q-Logic dual sub bandpass box
- JBL Power Series P80.4 amplifier (4 x 40 watts RMS)
- MTX Thunder 2300X amplifier (150 watts RMS x 2)
- Lightning Cap 1/2-farad capacitor
- Dynamat vibration-damping material
- StreetWires patch cables, power cable, and speaker wire
- Monster speaker wire
Adam installed the JBL GTO520 5-1/4" speakers in the front doors, and the GTO7520 5"x7" speakers in the rear side panels. The four speakers handle frequencies above 85 Hz, amply powered by the JBL Power Series P80.4 amplifier which is mounted under the front passenger seat. The Shadow's interior was completely insulated with Dynamat ($600 worth!), which keeps the noise level exceptionally low.
Everything below 85 Hz is handled by the subwoofer system. The MTX Thunder 2150X amplifier sends a conservatively-rated 150 watts RMS per channel to the Q-Logic dual-sub bandpass box, which houses two Infinity Kappa 120.1se 12" subwoofers. An MTX External Bass Control (mounted on the console between the front seats) gives Adam fingertip remote control over the volume of the subwoofer amp.
Adam ran 4-gauge StreetWires power cable to his amps, 14-gauge StreetWires speaker wire to the JBL speakers, and Monster 12-gauge speaker wire to the subs. A Lightning Cap 1/2-farad capacitor maintains an even flow of power to the MTX amp. At his last competition, Adam's Shadow won 1st place for Best Installation and for Best Overall Sound, illustrating the kind of performance you can achieve with an intelligently-designed, well-matched system. Smokin' setup, Adam!

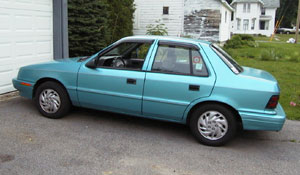

Adam Dowgielewicz's 1994 Dodge Shadow.
The Jensen CD615X CD receiver runs the show from the oversized (1-1/2 DIN) opening in the Dodge dash.
With the panel on, you see an innocent-looking door. Take the panel off, and you see JBL's GTO520

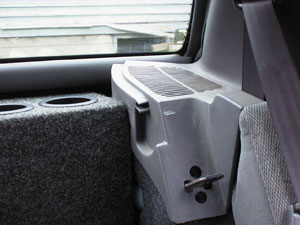

The GTO7520 5"x7" speakers and the Q-Logic bandpass box create a wall of sound in the rear of the hatchback.

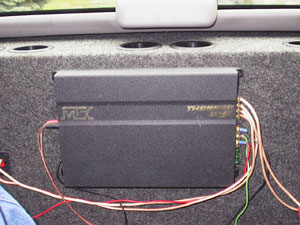

The MTX Thunder 2150X amplifier (mounted out-of-sight on the back side of the bandpass box) keeps those Infinity Kappa 12" subs busy.

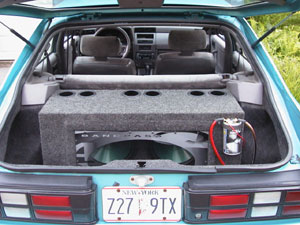

Open for business! This beautiful photo shows the Q-Logic bandpass box, the Lightning Cap, and the green Kappa subs lurking within.
At the end of the day, Adam kicks back with his Dodge Shadow.
