Audio Features
Video Features
PC/Network Functions
Remote Control
Optional Add-On Devices
Audio Features

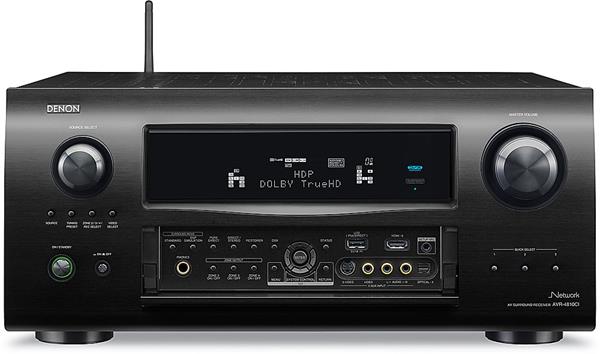

9-Channel Amplifier: The Denon AVR-4810CI features
a 9-channel discrete amplifier, supplying 140 watts RMS per channel. The nine
amplifier channels
can be used in several different configurations to accommodate your home theater
setup:
- 11.1ch Surround: standard 7.1 channel
surround sound plus Front Height (L/R) and Front Wide (L/R) channels to
accommodate Dolby Pro Logic IIz and Audyssey DSX (in this case the Front
Wide speakers must be powered by a different amplifier)
- 9.1ch Surround: standard 7.1 channel
surround plus Front Height (L/R) or Front Wide (L/R) channels, all powered
internally; you can also choose 5.1 channel surround plus Front Height (L/R)
and Front Wide (L/R) channels
- 7.1ch Surround: standard 7.1 channel
surround or 5.1 channel surround plus Front Height (L/R) or Front Wide (L/R)
channels, all powered internally; this setting leaves two amplifier channels
available to bi-amp the front speakers or power speakers in Zone2 or Zone3
- 5.1ch Surround: standard 5.1 channel
surround; this setting leaves four amplifier channels available to bi-amp
the front speakers or power speakers in Zone2 and/or Zone3
- Front Height: Dolby Pro Logic IIz requires assigning the
extra channel amplifier to power the two Front Height speakers for better
front effects
- Front Wide: Audyssey DSX processing requires assigning the
extra channel amplifier(s) to power the two Front Wide and/or the two Front
Height speakers
- Bi-Amp/Bi-Wiring: extra speaker terminals on the back
panel allow you to easily bi-wire or bi-amp the front speakers; bi-amping
requires reassignment of the extra channel amplifier
- Multi-Zone/Multi-Source Operation: the multi-zone/multi-source
function lets you independently select different audio/video sources for listening and
viewing in different locations of your home:
- Zone2: analog audio (speaker or line level output) and analog video
(component video or composite video output/no HDMI source)
- Zone3: analog audio only (speaker or line level output)
- Zone4: optical digital audio only (requires amplifier and only
plays digital sources)
Note: Zone2 and Zone3 feature both
preamp outputs and speaker terminals, so you can use this
unit or a separate amp to power speakers in another room.
When using the receiver's preamp output terminals for the
second and third rooms you need additional amplifiers to
power those speakers. The Zone4 output has only an optical
digital output and also requires another amplifier.
Minimum Signal Path Construction:
The AVR-4810CI's circuit
board layout and mechanical construction is designed to minimize audio and video
signal paths in order to maximize video and sound quality:
- Direct Mechanical Ground: The receiver's heat sink and
main transformer are located near feet to minimize mechanical vibration.
Both the heat sink and main transformer are fixed to the bottom chassis of
the receiver to reinforce Mechanical Ground. The transformer is supported by
a separate transformer and plate and the receiver's center chassis is
reinforced to add overall strength and durability to the unit.
- Separate Circuit Boards: The AVR-4810CI utilizes
separate circuit board to isolate each signal to achieve the highest quality
of audio and video. The receiver features separate digital, analog audio and
analog video circuit boards which reduces interference and lowers noise
distortion.
- Main Power Supply:
A huge capacity main transformer
provides separate power supplies for the receiver's Power Amp section,
Digital block, Analog Audio block, Analog Video block, and HD radio block
for maximum performance. The receiver also features an independent sub
transformer ensuring excellent low frequency response.
D/A Converters:
The AVR-4810CI uses highly
accurate Burr-Brown PCM-1791A Digital-to-Analog converters for each channel; 12
total. The 192kHz sampling rate and 24-bit word length capabilities of the DACs
allows you to hear the increased clarity,
detail, and dynamic range of high-resolution recordings.
AL24 Processing Plus: Denon's AL24 Processing Plus
technology dramatically improves information volume in the time axis region
using high-speed signal detection and processing technology. In addition to
expanding the original 16-bit data to 24 bits, AL24 Processing Plus
uses data interpolation along the time axis of up-converted sampling to achieve
natural interpolation without losing the original data. A digital filter is used
to further expand adaptability. The result is
reproduction of such spatial information as the delicate nuances in your music,
the positions of the performers, and the breadth, height, and depth of the
concert hall. AL24 Processing Plus is conducted for digital (PCM) input signals
of 8.1 channels or less in Pure Direct, Direct, and stereo modes.
DDSC Digital HD: The
Denon AVR-4810CI is equipped with DDSC (Dynamic
Discrete Surround Circuit) Digital HD, featuring three Analog Devices 32-bit
floating point DSP processors. All elements of the Surround Processor are
optimized to the highest standards by the use of selected high performance and
discrete components, particularly the A/D and D/A converters and the
sophisticated DSP surround decoder.
HDCD Decoding: The AVR-4810CI automatically detects and
decodes the digital bitstream from a CD that has been encoded through the
special High Definition Compatible Digital (HDCD) process. HDCD discs use 20-bit
encoding and other proprietary processing to provide improved CD
listening.
Audyssey: This receiver is equipped with an Auto Setup and
Room Equalization function, to achieve the most ideal sound field for your room.
The AVR-4810's Audyssey MultiEQ XT function is designed to optimize the sound
quality at each listening position in the room. The included DM-A409 microphone
is used to measure test tones at each listening position. This measured data is
then analyzed using a program to improve acoustic characteristics in the
listening area. For best results at least six positions should be measured,
including a main position. The main position is given more weight in the
calculations. The Audyssey EQ offers the following settings:
- MultEQ XT: the MultiEQ XT function offers the following
adjustments:
- Audyssey: optimizes the crossover point, output
level, delay time, and equalization of all speakers based on speaker
frequency response, speaker location, and room acoustics
- Audyssey Byp. L/R: optimizes all speakers except
front left and right
- Audyssey Flat: optimize frequency response of all
speakers to flat
- Manual: adjusts the tonal quality for each speaker
individually using the manual equalizer settings; adjust from -20 dB to +6
dB at 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, and 16
kHz
- Off: turns equalizer off
- Dynamic EQ: audio engineers mix music and movie
soundtracks at reference levels much louder than typical home listening
levels, at lower volumes the human ear perceives sound differently; voices
change, bass dissipates, and the surround effect becomes less enveloping;
Dynamic EQ adjusts the frequency response curve based on volume to maintain
consistent bass output, octave-to-octave balance, and surround impact,
resulting in rich sound at any volume; the reference level can be set to 0
dB (film reference), 5 dB,
10 dB, or 15 dB
- Dynamic Volume: Dynamic Volume addresses the issue of
commercials that are too loud and movie soundtracks with vast differences
between soft and loud passages; the results are more intelligible dialogue,
loud passages maintain impact, and soft whispers are clearly heard; when the
volume level changes, Dynamic EQ also adjusts the frequency response to
maintain sound quality
Note: You can also setup your speaker system manually
using the receiver; adjust speaker configuration (large/small/none),
bass setting (LFE/LFE+Main), low-pass crossover
(80/90/100/110/120/150/200/250Hz), speaker distance (0-60'), channel level
(-12 to +12dB), and high-pass crossover frequency
(40/60/80/90/100/110/120/150/200/250Hz).
Surround Modes: This receiver incorporates a wide variety of
surround modes to bring you maximum enjoyment from your audio and video software.
The unit can be set to store the most recently selected surround mode for each
input, so it is automatically activated each time that input is chosen. The
surround modes include:
- Dolby TrueHD: Dolby TrueHD is a lossless
coding technology that supports up to 8 channels of multi-channel
surround sound for the next generation optical discs, the sound
is true to the original source bit-for-bit
- Dolby Digital Plus: Dolby Digital Plus is
an improved Dolby Digital surround format, compatible with up to
8 channels of discrete digital sound, sound quality is improved
due to extra data bit rate performance
- Dolby Digital: 5.1 multi-channel digital
surround format
- Dolby Digital EX: 6.1 multi-channel digital
surround format
- DTS-HD Master Audio: DTS-HD Master Audio
is a lossless audio format compatible with up to 96 kHz and up
to 7.1-channels; the lossless audio coding technology faithfully
reproduces the sound of the studio master
- DTS-HD High Resolution: DTS-HD High
Resolution Audio is an improved version of the conventional
DTS, DTS-ES and DTS 96/24 signal formats that is compatible
with sampling frequencies of 48 or 96 kHz and up to 7.1-channels
of discrete digital sound; high data bit rate performance
provides high quality sound
- DTS Digital Surround: 5.1 multi-channel
digital surround sound format used for both commercial/theatrical
and consumer grade applications
- DTS-ES Extended Surround:
- DTS-ES Discrete 6.1: 6.1-channel
discrete digital audio format adding a surround back
channel to the DTS digital surround sound
- DTS-ES Matrix 6.1: discrete 5.1
channel digital audio format, inserting a 6th surround
back channel to the DTS surround sound through matrix
encoding
- DTS 96/24: DTS 96/24 is a digital audio
format enabling high sound quality playback in 5.1-channels
with a sampling frequency of 96 kHz and 24 bit quantization
of DVD-video
- DTS Neo:6 Surround: DTS Neo:6 is a matrix
decoding technology for achieving 6.1-channel surround playback
with 2-channel sources; choose between Neo:6 Cinema and Neo:6
Music
- Dolby Pro Logic: center and mono surround
information is matrixed into two stereo channels, then decoded
and output in 4 channel surround sound
- Dolby Pro Logic II: Dolby Pro Logic II
technology processes any high quality stereo (two-channel) movie
and music audio into five playback channels of full-bandwidth
surround sound; Dolby Pro Logic II detects the directional cues
that occur naturally in stereo content and uses them to create
a five-channel surround sound playback experience; choose from
Cinema, Music, or Game modes
- Dolby Pro Logic IIx: Pro Logic IIx expands
any existing stereo or 5.1-channel audio to 6.1- or 7.1- channel
playback, creating a seamless, natural surround soundfield that
immerses you in the entertainment experience; choose from Cinema,
Music, or Game modes
- Dolby Pro Logic IIz: Dolby Pro Logic IIz
introduces a new dimension to home entertainment through the
addition of a pair of front height channels; compatible with
stereo, 5.1ch, and 7.1ch content, Dolby Pro Logic IIz provides
enhanced spaciousness, depth, and dimension to movies, concert
video, and videogame playback while maintaining full integrity
of the source mix
- Audyssey Dynamic (DSX): Audyssey DSX extends
5.1-channel and 7.1-channel sound sources to wider and higher
dimensions; Front Height (L/R) and Front Wide (L/R) speakers
are added to improve the height and width of the front stage
- Combined Surround Modes: by combining
surround modes, surround back, Front Height, and Front Wide
channels can be added to discrete 5.1, 6.1, and 7.1 channel
signals
- Neural Surround: Neural Surround has been
adopted by XM Satellite Radio for digital radio broadcasts of
XM HD Surround recordings and live events in surround sound;
Neural Surround employs psychoacoustic frequency domain processing
which allows delivery of a more detailed sound stage with superior
channel separation and localization of audio elements
- Denon Original Surround (DSP) Modes: select
from 10 Denon original surround modes:
- Wide Screen: simulates the
atmosphere of viewing a movie on a large screen
- Super Stadium: suitable for
viewing sports programs
- Rock Arena: enjoy the atmosphere
of a live concert in an arena
- Jazz Club: recreate the atmosphere
of a live concert in a jazz club
- Classic Concert: designed for
classical concert programs
- Mono Movie: for playing monaural
movie sources with surround sound
- Video game: suited for achieving
surround sound with video games
- Matrix: add a sense of expansion
to stereo music sources
- Virtual: add surround effects
using only the front speakers or headphones
- Multi Channel Stereo: enjoy stereo
sound from all speakers
- Stereo: sound is output from the front left
and right speakers, along with a connected subwoofer
- Direct Playback: the audio signal bypasses
the tone adjustment circuitry for higher quality sound; sound is
output by the same speakers as included in the original signal
- Pure Direct: this mode recreates the original
sound most faithfully, providing extremely high quality sound
Surround Parameters: You can adjust the following surround
mode parameters:
- CINEMA EQ (Cinema Equalizer): The Cinema
EQ function gently decreases the level of the extreme high
frequencies, compensating for overly-bright soundtracks
recorded for playback in a theater. Select this function
if the sound from the front speakers is too bright. This
function works in any of the Dolby or DTS modes, Wide Screen
mode, and when using the multi-channel analog inputs.
- Dynamic Range Compression: Motion picture
soundtracks have tremendous dynamic range (the contrast between
very soft and very loud sounds). For listening late at night,
or whenever the maximum sound level is lower than usual,
compressing the dynamic range allows you to hear all of the
sounds in the soundtrack with reduced dynamic range. DRC is
not available when using the Direct feature or multi-channel
analog inputs.
- LFE: This setting adjusts the low-frequency
effects level (LFE); adjust from -10 to 0 dB.
- Center Width: This function assigns
the center channel signal to the front left and right channels
for wider sound; select from 0 to 7. This function only works
in the Dolby Pro Logic II and PL IIx modes.
- Center Image: This function assigns a
center channel signal to the front left and right channels
for wider sound; adjust from 0.0 to 1.0. This function only
works in the DTS Neo:6 mode.
- Panorama: This feature assigns front left
and right signals to surround channels for wider sound, you can
turn this feature On or Off. This function only works in the
Dolby Pro Logic II and PL IIx modes.
- Dimension: This settings shifts the sound
image to the front or rear to adjust playback balance; select
from 0 to 6. This function only works in the Dolby Pro Logic
II and PL IIx modes.
- Delay Time: This feature adjusts the delay
time to control the sound stage size. In this menu the delay time
is only adjusted for the Matrix mode.
- Effect Level: This function adjusts the
effect signal level from 1 to 15 when using the Denon Original
Surround Modes.
- Room Size: This feature allows you to set
the size of your acoustic environment when using the Denon
Original Surround Modes; select Small, Medium small, Medium,
Medium large, or Large.
- Surround Back: This setting selects the
playback mode for the surround back channels; there are separate
settings for multi-channel and 2-channel sources.
Source Level: This function adjusts the playback level of
the currently select input source's audio input. Use this feature if there are
differences in the input volume levels between different sources. You can adjust
the playback level of each input from -12 to +12dB.
Restorer: This function restores compressed audio signals
to pre-compression form, correcting the sense of bass and treble volume to obtain
a richer sounding playback; select 64, 96, or HQ based on the compression setting
of the source material.
Auto Lip Sync (Audio Delay): This feature automatically
compensates for the timing shift between the audio and video of the receiver.
If needed, the audio signal can be manually delayed to match the video signal
from 0 to 200ms.
Denon Link (4th gen): This receiver features Denon Link, an
RJ-45 jack on the back panel, for connection to a compatible Denon DVD player
equipped with a Denon Link connector. This digital connection allows the input
of Super Audio CD, DVD-Audio, or Blu-ray Audio/Video digital signals with a single
balanced cable. When connected to a Denon Blu-ray compatible with 4th generation
Denon Link, the clock in the AVR-4810CI is used to achieve jitter-less data transfer
and ultra-low noise. In this case two cables are used, the balanced Denon Link
cable and an HDMI cable.
Volume Setting: You can set a maximum volume level of 0, -10,
or -20 dB to limit the receiver's total volume output. You can also specify a
turn-on volume, from -80 to +18dB or Last (same volume setting as when the receiver
was turned off).
Muting Level Adjustment: You can set the amount of attenuation
for the audio muting circuit; -40dB or -20dB below current volume, or full mute
(sound turned off entirely).
Assignable Digital Inputs: The AVR-4810CI
features two rear panel optical digital (Toslink) inputs and three
coaxial digital inputs. Each input can be assigned to any of the
input sources except Phono and Tuner. Optical Digital Input 2 also
has a corresponding Optical Digital output for use with a CD, MD,
or other digital recording device.
7.1 Multi-Channel Input: The AVR-4810CI
is equipped with a 7.1-channel input to accommodate present
and future multi-channel formats.
Binding Post Speaker Terminals: All of the receiver's
speaker terminals are binding posts. They are not 5-way binding
posts; a plastic collar prevents their use with spade lugs and
they are positioned too far apart to be used with dual banana
plugs.
Multi-Channel Pre-Out: The receiver
features an 11.1-channel pre-out for connection to external
power amplifiers.
HD Radio Tuner: The AVR-4810CI features a built-in HD
AM/FM tuner. HD radio stations offer higher sound quality than conventional
FM/AM broadcasts. HD FM stations sound similar to CD quality and HD AM sounds
similar to analog FM stereo. It is also possible to receive data services and
select broadcasts from among up to eight multicast programs. In addition, the
AVR-4810CI receives standard analog AM/FM broadcasts. You can store up to 56
radio stations presets (8 stations each in 7 separate banks). You can name each
preset with an 8 character ID. You can delete any unused tuner banks.
Personal Memory Plus: For each input, the receiver automatically
memorizes the settings for input mode, surround mode, HDMI output mode, MultEQ, Dynamic
EQ, Dynamic Volume, audio delay, etc. When the input source is switched, the settings
last used for that source are automatically recalled. The surround parameters, tone
control settings, and playback levels for the different output channels are memorized
for each surround mode.
Back-Up Memory: The unit is equipped with a back-up memory that
provides approximately one week of memory storage when the main unit's power switch
is off and the power cord is disconnected.
Sleep Timer: This function allows you to automatically set the
power to standby after a predetermined amount of time has passed. You can se the
sleep timer to 30, 60, 90, or 120 minutes.
Video Features
Noise Shaped Video (NSV):
The NSV precision video feature
works in the digital domain to reduce noise in the video signal frequency band
in order to enhance video signal linearity, provide accurate signal
representations, and enhance the picture quality. Noise shaping techniques can
be combined with dynamic element matching techniques in order to reduce the
matching requirements of DAC elements by converting the analog mismatch into and
out of band noise. This approach of dynamic element matching and noise
shaping has been shown to allow the use of sigma delta modulation at video data
rates. NSV can achieve ultimate precision with 12-bit fidelity in both
digital-to-analog and analog-to-digital domains.
HDMI ver. 1.3a: This unit has five rear
panel HDMI version 1.3a inputs and two HDMI version 1.3a outputs.
The HDMI inputs are assignable to different input sources. The
HDMI outputs are parallel so the same video signal is output
through both. The HDMI jacks support HDCP copyright protection
and are compatible with 30 and 36 bit Deep Color and xvYCC
technology.
High-Bit i/p Converter and Scaler: The AVR-4810CI is equipped with a
flexible video switching system that converts video signals in an effort to
require only one video connection from receiver to TV. The Denon AV receiver is
equipped with a high-bit i/p converter and scaler (up to 1080p) featuring Anchor
Bay VRS processing which provides multi-cadence detection for SD and HD video
signal and offers digital noise reduction and enhancement. The 480i/480p
(SD-quality) video signals of DVD programs and other materials input through
receiver are scaled to a high quality 1080p signal and converted HDMI for output
to your HDTV:
- Composite Video: can be converted to S-Video, component
video, or HDMI
- S-Video: can be converted to composite video, component
video, or HDMI
- Component Video: can be converted to composite video,
S-Video, or HDMI (480i signals only when down converting to composite video
or S-video)
Note: Video signals input as HDMI are only output via
HDMI; they cannot be transferred to Zone2.
Component Video Inputs/Outputs: The receiver
features three component video inputs and two component video outputs
(monitor outputs for the main room and Zone2). The component video
inputs are assignable to different sources.
On-Screen Display (OSD) With GUI Menus: An OSD with GUI menus
can be displayed on your television for easy system setup. The OSD and GUI menus
are sent through all monitor outputs (composite video, S-video, component video,
and HDMI).
Picture Adjustments: The receiver allows you to make the
following picture adjustments to incoming video - Contrast, Brightness, Chroma
Level, Hue, DNR (noise reduction), and Enhancer (emphasize picture contours).
Input Name: You can change the display name of each of the
receiver's inputs; up to 8 character can be assigned.
Dimmer: The receiver features four display brightness settings;
Bright, Dim, Dark, and Off.
PC/Network Functions
USB Terminal: USB terminals behind the door on the front
panel and on the receiver's rear panel support playing music (MP3/WMA/WAV/MPEG-4
AAC/FLAC/JPEG) and still photos (JPEG) stored on a USB memory device. When a music
file includes text data or album art, it can be displayed on your connected TV while
playing the file. You can also play JPEG still picture files as a slideshow. The
AVR-4810CI is compatible with mass storage class and MTP (Media Transfer Protocol)
USB memory devices in FAT16 or FAT32 format.
Note: You cannot use the front and rear
USB ports at the same time; you must select which port you
want to use - Front or Rear.
Home Network Function: The AVR-4810CI is DLNA certified and
can connect to your home network wirelessly (802.11b/g) or using the Ethernet port on the
rear panel. Once you've connected to your home network, you can take advantage
of these functions:
- Media Player: The AVR-4810CI's Media
Player function lets you stream audio and still image files
(MP3/WMA/WAV/MPEG-4 AAC/FLAC/JPEG) stored on your PC to the
receiver. This network connection uses two standard technologies:
Windows Media Player Network Sharing Service or Windows Media
DRM10. The AVR-4810CI also supports MP3 ID3-Tag (ver.2) and
WMA META tags and plays only files that are not copyright
protected. Napster and Rhapsody are supported, both of which
are subscription music services.
- Internet Radio: Internet radio refers to
radio broadcasts distributed over the internet; internet radio
stations from around the world can be tuned in. The AVR-4810C
supports MP3 and WMA internet radio content and allows you to
search for radio stations by genre or region in alphabetical
order. The list of stations that the AVR-4810CI uses comes from
the vTuner radio station database that has been customized for
Denon. You can store up to 56 Internet radio presets and register
your favorite radio stations at the radiodenon.com web site.
Broadband internet access is necessary to use internet radio.
- Web control: This function lets you set up
and control the A/V receiver over the network using an internet
browser on your computer or portable device (smartphone, iPod
touch, etc).
- Network Party Mode: The same network audio
(Internet Radio, Media Server, or iPod Direct) can be played on
multiple Denon products (up to five) equipped with the Part Mode
function and connected in the network. Neither Napster nor Rhapsody
are available for the Party Mode.
Note: A computer with the following
specifications is recommended to use the network features:
Operating Systems include - Windows XP (SP2 or later) and
Vista; Installed Software includes - Windows Media Player
ver.11 or other DLNA-compatible server software; Internet
Browser - Microsoft Internet Explorer 6.0 or later; 300 MB
or more free disk space.
Remote Control
Learning Remote Control: The receiver's main remote control
(RC-1126) features a back-lit touch panel as well as hard-key buttons for operation
of the AVR-4810CI. If your other audio/video devices are a different brand or if
they cannot be operated with the preset memory function, the other devices' remote
control signals can be programmed into the RC-1126. The remote control is equipped
with System Call functions, allowing a series of remote control signals
to be transmitted by pressing a single button. Up to 32 sequential signals can be
stored in each of the three System Call buttons.
Sub/Multi-Zone Remote Control: The receiver's sub remote control
unit (RC-1121) is equipped with frequently used buttons, so it can be used for simple
remote control unit operations. The sub remote can also be used for multi-zone, so you
can use it to control the AVR-4810CI from other rooms via an optional IR repeater kit.
The RC-1121 will not operate devices other than the amplifier.
HDMI Control: When you make an HDMI connection with a TV or
player compatible with the AVR-4810CI's HDMI control function, certain commands
are synchronized; power, switching audio output devices, switching of audio input
devices, volume, and Playback functions.
Custom Integration: The AVR-4810CI carries the CI stamp,
which is Denon's certification to custom installers that the receiver has
advanced connectivity and control features often required for custom home
integration and theater applications using premium control systems. These
features include a RS232C jack for use with whole house control systems, remote
in/out IR command control, and assignable +12-volt triggers.
- RS-232C Port: The AVR-4810CI includes an
RS-232C port for connection to external control systems, from
companies such as AMX and Crestron.
- Remote Jacks: The receiver has a mini-jack
input for use with an optional IR repeater. The adjacent
room-to-room output is for future use.
- 12V Trigger Outputs: The AVR-4810CI has
two mini-jack outputs to send a 12-Volt DC turn-on signal to
another component that accepts a 12V trigger, such as a power
amplifier. These trigger outputs can be assigned to the Main
Zone, Zone2, Zone3, or Zone4.
Optional Add-On Devices
iPod Compatibility: Using an optional
ASD-11R iPod dock, or an
ASD-51N or
ASD-51W iPod/Network adapter dock, you can integrate your iPod with the
AVR-4810CI. Song titles appear on the receiver's display panel and the iPod can
be controlled using the buttons on the main unit and the remote control.
Sirius Satellite Radio Ready: The AVR-4810CI can be
connected to the optional SiriusConnect home tuner kit (item numbers
607SCH1 or
220SCH2P, sold separately), allowing you to receive Sirius Satellite Radio
through the receiver. The display shows channel name, number, category, artist,
or song title. Sirius channels are stored as presets and recalled in the same
way AM and FM stations are. A subscription to Sirius Satellite Radio is
required.
XM Satellite Ready: The optional XM Direct 2 Home Tuner
(220XHD2H1, sold separately) lets you enjoy XM Satellite Radio through the
XM-ready receiver. Simply connect the XM direct 2 Home Tuner to the XM jack on
back of the receiver, place and aim the included antenna for optimum reception,
and you are ready to start enjoying commercial-free music, plus live sports,
new, talk, and exclusive entertainment. The channel number, channel name, artist
name, and song title are listed on the receiver's display and on the connected
TV monitor. XM stations are stored as presets and recalled in the same way AM
and FM stations are.
Note: In addition to the XM Direct 2 Home Tuner and the
XM-ready receiver, you will need a subscription to XM Satellite Radio to
receive XM programming.
