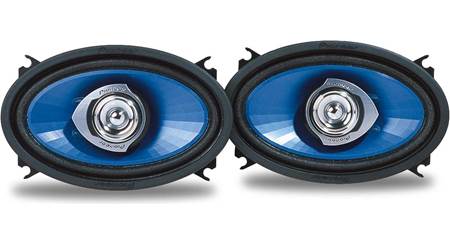

Pioneer TS-G4640R

4"x6" 2-way car speakers
For standard and metric 4"x6" openings

Zoom Pioneer TS-G4640R
Front
Video loading and will display in just a moment.
Photos
Pioneer TS-G4640R

Videos


Item# 130TSG4640 offer details

Item# 130TSG4640

Review Sumary


DISCONTINUED

This item is no longer available to purchase.

Contact us for other options

Call   Email

In-stock Alternative





Pioneer

Our take on the Pioneer TS-G4640R

Pioneer's bold and blue TS-G4640R 4"x6" speakers lay down great sounds when you crank 'em up! These affordably-priced Pioneers feature beefy IMPP composite woofers that belt out satisfyingly full bass. Warm and clear high-frequency response is a given, thanks to the film cone tweeters. These speakers are versatile, too — they'll work equally well in regular and metric 4"x6" applications.

The combination of great sound and solid power handling makes these speakers a fine choice when you're ready to ditch the worn-out factory speakers in your ride. Grilles are not included. (Factory grilles are appropriate for most installations.)

Get more info on this product

Highlights:

  • 2-way 4"x6"/4"x6"m speakers (pair)
  • injection-molded polypropylene (IMPP) composite woofer with treated cloth surround
  • 1-3/8" PET silver film cone tweeter
  • frequency response: 45-22,000 Hz
  • recommended power range: 2-20 watts RMS
  • peak power handling: 100 watts
  • sensitivity: 90 dB
  • top-mount depth: 1-11/16"
  • warranty: 1 year
  • Our 60-day money-back guarantee

Priced per pair



Hands-on research from the Crutchfield Labs (what are the Labs?)

Features and Specs

Features and Specs
General
Design
Loading...
2-way
Tweeter Design
Loading...
1-3/8" Cone
Tweeter Composition
Loading...
PET silver film
Woofer Composition
Loading...
IMPP composite
Woofer Surround
Loading...
Treated cloth
Parts Warranty
Loading...
1 Year
Labor Warranty
Loading...
1 Year
Specifications
Sensitivity
Loading...
90 dB at 1 watt
Frequency Response
Loading...
45 - 22k Hz
RMS Power Range (Watts)
Loading...
2-20
Peak Power Handling (Watts)
Loading...
100
Impedance (Ohms)
Loading...
4
Top-mount Depth (Inches)
Loading...
1 11/16
Bottom-mount Depth (Inches)
Loading...
N/A

Product Research

Product Research
What's in the box?

Download owner's manual

  • Two 2-way speakers
  • 2 Plastic metric-to-standard adapter rings
  • Two 13" lengths of speaker wire (each length of speaker wire has quick-slides on one end and bare wire on the other end)
  • 8 Machine screws
  • 8 Nuts
  • 8 Flat washers
  • Warranty sheet

Our Product Research Team

At Crutchfield, you'll get detailed, accurate information that's hard to find elsewhere. That's because we have our own in-house Product Research team — they open the box, verify contents, check the owner's manual, and record dimensions, features and specs. We stay on top of new products and technologies to help people make informed choices.

Features

Injection-molded Polypropylene (IMPP) Composite Woofers: Each composite woofer is constructed from injection-molded polypropylene. This process of cone molding assures a uniform cone thickness for superior linearity and clarity. In addition, the cones are lightweight and rigid for decreased distortion and superior bass response.

Treated Cloth Surrounds: Each woofer uses a treated cloth surround for improved durability.

1-3/8" PET Silver Film Cone Tweeters: Each speaker features a 1-3/8" PET silver film cone tweeter for crisp, clear highs.

Mounting: The speakers can be top-mounted in a metric 4"x6" opening, or, using the supplied adapter rings, the speakers can be top-mounted in a U.S. standard 4"x6" opening.



Product Reviews

Review this product

Thanks for taking the time to share your experiences about this product. Please be sure to focus your comments on the product itself. Read our Review Guidelines for more information.

Review title
* Email
Your email won't be visible
Display name
(e.g., JohnD) Your review will be signed using the display name and location
* Your location
(e.g., Charlottesville, VA)
* Your rating
Click on a star to rate the overall product on a scale of 1-5
1500 characters left * Your review
Attach a YouTube Review
Crutchfield Video Review Guidelines
  • Only submit videos that you made or are authorized to use.
  • Do not submit videos that contain music, video or visuals that are copyrighted and belong to someone else.
  • Please see our Review Guidelines for more information.
Submit the URL of your YouTube™ video review or product demonstration. e.g., http://www.youtube.com/v/o79TWHh598U
500 characters left Pros
500 characters left Cons
* Agree to Terms
By checking this box you agree your review becomes the property of Crutchfield, that you are over 18 years of age, that you own or have owned this product, and that you are located within the United States or its territories. Please see our Review Guidelines for more information. We reserve the right (but are not obligated to) review all submissions and edit or remove any review in any manner which we deem necessary. Your review should be posted within seven days.
Share this product

1-7 of 7 items Sort Results By: Date Reviewed | Rating | Helpfulness

5 out of 5

Great speakers!!

Written By Luke, NY on Saturday, January 21, 2006

I bought these for the front of my '90 Lumina and after listening to my old torn paper cones I am impressed! I usually don't turn speakers up until a few hours after listening to let the surround/spider parts(suspension) loosen up. You won't get the most bass by blaring them from the start. People are expecting bass from these like subwoofer quality when its just not gonna happen. These are small speakers. Anyway, I have a Sony head with 23 watts RMS and Audiobahn 6x9s in the rear. I have 4 12" subs(2 MTX 4500s and 2 Audiobahn AW121T) being powered by a Jensen 720 watt and a Sony 1200 watt amp. So as you can see I didn't reallt need these for bass. I have been listening to different speakers over the past few years and I have to say that these Pioneers are some of the best I've ever tried! When I turn the bass down a few clicks, I can turn my Sony head unit up to around 28/34 (volume) and these don't distort!!!
Was this review helpful?    Yes | No

4 out of 5

Pioneer TS-G4640R

Written By Big Mike, Woodland Park, Co on Tuesday, January 03, 2006

I bought these from a car audio store, and installed them myself, i have a 1995 pontiac Grand Am, they said that they didnt fit into the car, funny mine fit perfectly in the speaker mount, but to the speakers, i love them they give great highs and high-mids, but if i didnt have 2 MTX RT5500's in the trunk i dont think that they could handel the bass, but i have a high pass fillter on them so, they are great little speakers and cheap to, if your only after the high and high-mid range, you really need a good pair of 6x9's and subs to really apreciate these speakers
Was this review helpful?    Yes | No

1 out of 5

Not durable

Written By john, Kansas City on Wednesday, July 20, 2005

I installed these speakers in my silverado. After time I heard some rattling. I thougt it might be installation, but the speaker had come apart. The outer ring was detached. The product used to adhere the material to the frame was not working. I now have a useless speaker, that has a vibrating noise.(woofer not attached) Time for new speakers!!!
1 out of 4 people found this helpful
Was this review helpful?    Yes | No

4 out of 5

there 4 X 6s, not subwoofers

Written By Mike, Mendham, NJ on Friday, July 08, 2005

Pioneer is a great brand and these speakers are no different. And the high and mid tone are amazing and crystal clear. U cannot expect bass from these because they are just too small to make any. But in a complete system with a sub these can't be beat.
3 out of 5 people found this helpful
Was this review helpful?    Yes | No

3 out of 5

91 S-10 Standed Cab

Written By Mike, Monroe, WI on Wednesday, July 06, 2005

they're better than stock. they have a tiny thump to them but ur other speakers will need to provide bass. If u paired them w/ Kenwood 4x10s and a pair 10" MTX Road Thunders subs in the back they do the job of the high end
2 out of 3 people found this helpful
Was this review helpful?    Yes | No

3 out of 5

Pioneer TS-G4640R

Written By Mike, Carver, MA on Tuesday, May 31, 2005

Bought these speakers to replace my blown stock ones in my 2000 Pontiac Grand Am coupe. They are nothing amazing. But for the price they are ok. They don't put out much bass.
6 out of 9 people found this helpful
Was this review helpful?    Yes | No

3 out of 5

Clear, but that's all!

Written By david, Scottsdale, Arizona on Tuesday, May 31, 2005

I installed these in my Chevy Silverado. Installation went quick once I juggled the plate and speaker to mark the holes to drill. The sound however leaves something to be desired. I was expecting more bass. Not like a subwoofer can deliver or even 6x9's, but at least some bass. There is none. What I wasn't expecting was the flapping noise I heard when I turned up the bass control. Wow! I should have ordered some bass blockers. At first I thought they just couldn't handle any power, then I realized they can't handle any bass...none. The overall sound is clear and as long as you don't push them with more than 15 clean watts they should fill out the upper mid range. What do you want for $50.00 anyway.
23 out of 29 people found this helpful
Was this review helpful?    Yes | No
