About the JL Audio 13TW5v2-2
Fit huge bass into tight spaces
Fit huge bass into tight spaces
You can get great-sounding, big bass in your sports car, truck, or any other compact vehicle. JL Audio rises to the challenge of compact spaces with their TW5 thin-line subwoofers. Engineered for use in extremely small boxes, these subs fit in places where only 6-1/2" or 8" subs would previously go, for astoundingly deep, resonant bass without the large enclosure.
A super-thin sub that rivals bulkier speakers
The 13TW5v2-2 13.5" subwoofer handles up to 600 watts RMS, while boasting a 2-5/8" mounting depth that makes it ideal for tight spaces. The cast-alloy frame provides a rock-solid platform for the mica-filled polypropylene cone and its resilient Santoprene™ rubber surround — you'll enjoy consistent, full-bodied bass output that won't distort under heavy excursion. The sub's 2-ohm impedance draws maximum power from your mono amp.
Product highlights:
- 13.5" 2-ohm subwoofer
- radical shallow-mount design with extremely small airspace requirements
- mica-filled polypropylene cone with Santoprene rubber surround
- cast alloy basket
- top-mount depth: 2-5/8"
- power range: 250-600 watts RMS
- peak power handling: 1,200 watts
- frequency response: 20-200 Hz
- sensitivity: 85.51 dB
- sealed box volume: 0.8 cubic feet
- grille not included
- warranty: 1 year
- MFR # 92182
What's in the box:
JL Audio 13TW5v2-2 owner's manual
- 13.5" Thin-Line subwoofer
- Owner's manual
- Grille note
Customer reviews for JL Audio 13TW5v2-2
Loading...
Loading reviews...
Average review:
5.0 out of 5 starsThanks for submitting your review

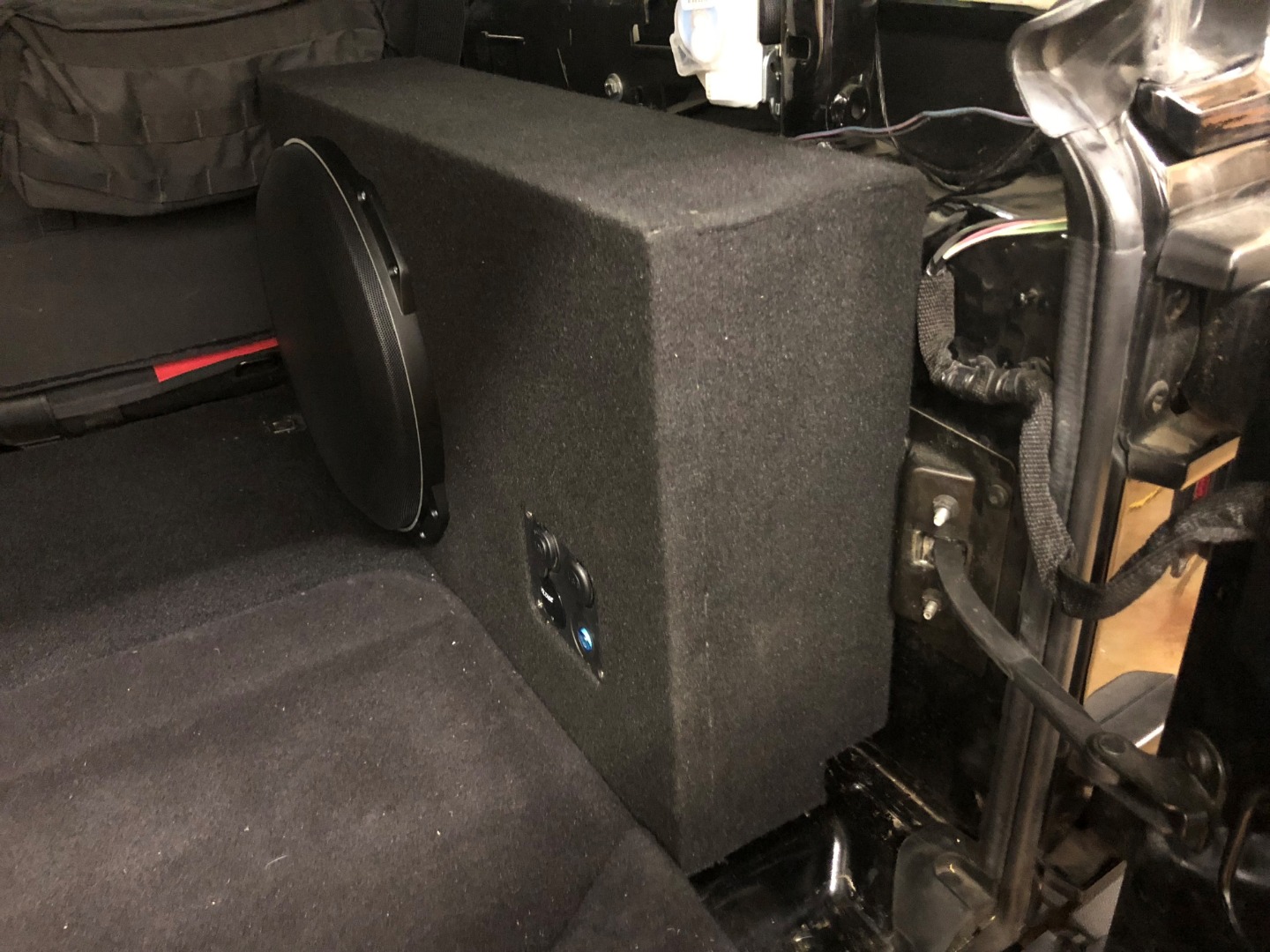

Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the JL Audio 13TW5v2-2
Features & specs
Features and Specs | ||
---|---|---|
Size | 13.5 -inch | |
Impedance (Ohms) | 2 | |
Cone Material | Mica-filled polypropylene | |
Surround Material | Santoprene | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
85.51 dB at 1 watt | |
Frequency Response | 20 - 200 Hz | |
Max RMS Power Handling | 600 | |
Peak Power Handling (Watts) | 1200 | |
Top Mount Depth (inches) | 2 5/8 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 12 7/16 | |
Frame Width | 14.189 | |
Frame Length | 14.189 | |
Vas (liters) | 64 | |
Fs (Hz) | 25.95 | |
Qts | 0.479 | |
Xmax (millimeters) | 11 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | 0.8 | |
Minimum Sealed Box Volume (cubic feet) | N/A | |
Maximum Sealed Box Volume (cubic feet) | N/A | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | N/A | |
Maximum Ported Box Volume (cubic feet) | N/A |
Product Research
Features
Thin-Line Design: The patented thin-line woofer technology compresses the architecture of the JL Audio 13TW5v2-2 subwoofer and allows it to deliver great bass performance in tight space applications, requiring only 2-5/8" depth. Central to the technology is the Concentric Tube structure that supports the oversized voice coil and the suspension attachments. This permits placing the motor structure much further forward in the speaker than in conventional designs, while maintaining excellent linear excursion capability. Equally important, the design is optimized for extremely small box volume applications.
Concentric Tube Suspension: A challenge in any low-profile woofer design is to permit enough mechanical clearance for the speaker to handle power and generate good output at low frequencies. JL Audio's patented solution employs a molded structure which spans over the edge of the motor system, supporting the spider on the outside of the motor's boundaries and the large diameter voice coil on the inside. The large voice coil permits the magnet to sit inside it, rather than surrounding the coil as is typical in most woofers. The concentric tube structure and the elimination of a conventional top-plate helps JL Audio move the motor structure into the cone body's space to further compress depth, while still permitting substantial mechanical excursion.
Dynamic Motor Analysis (DMA): DMA is JL Audio's proprietary method of improving dynamic motor behavior. As a result of DMA optimization, the 13TW5v2-2 motor maintains a linear force over a long excursion range and stable, fixed magnetic field in the gap over a wide power range. The result is reduced distortion, faithfully reproduced transients, and tight, clean, articulate bass.
Floating Cone Attachment Method (FCAM): JL Audio's patented FCAM technology is a method of attaching the surround/cone assembly to the voice coil/spider assembly to maintain proper surround geometry, thus improving excursion control and dynamic voice coil alignment.
Voice Coil: To counteract the efficiency tradeoff of small box volume, the 13TW5v2-2 is designed to handle very high power levels thanks to the use of a very large 7-inch diameter voice coil.
Recommended Sealed Box Volume: JL Audio recommends a sealed box size volume of 0.8 ft³, resulting in a -3dB point of 41.18 Hz. A diagram is provided in the owner's manual for a sealed box with external dimensions of 19" W x 15" H x 7.75" D, assuming 3/4" thick MDF. (If using 5/8" thick MDF, subtract 1/4" from each dimension.)
Shallow Mount Design: The JL Audio 13TW5v2-2 only requires a mounting depth of 2-5/8" (top mounted).
The JL Audio 13TW5v2-2 replaces these items
JL Audio 13TW5-3
- mica-filled polypropylene cone with Santoprene rubber surround
- 20-200 Hz frequency response
- 100-600 watts RMS power range
