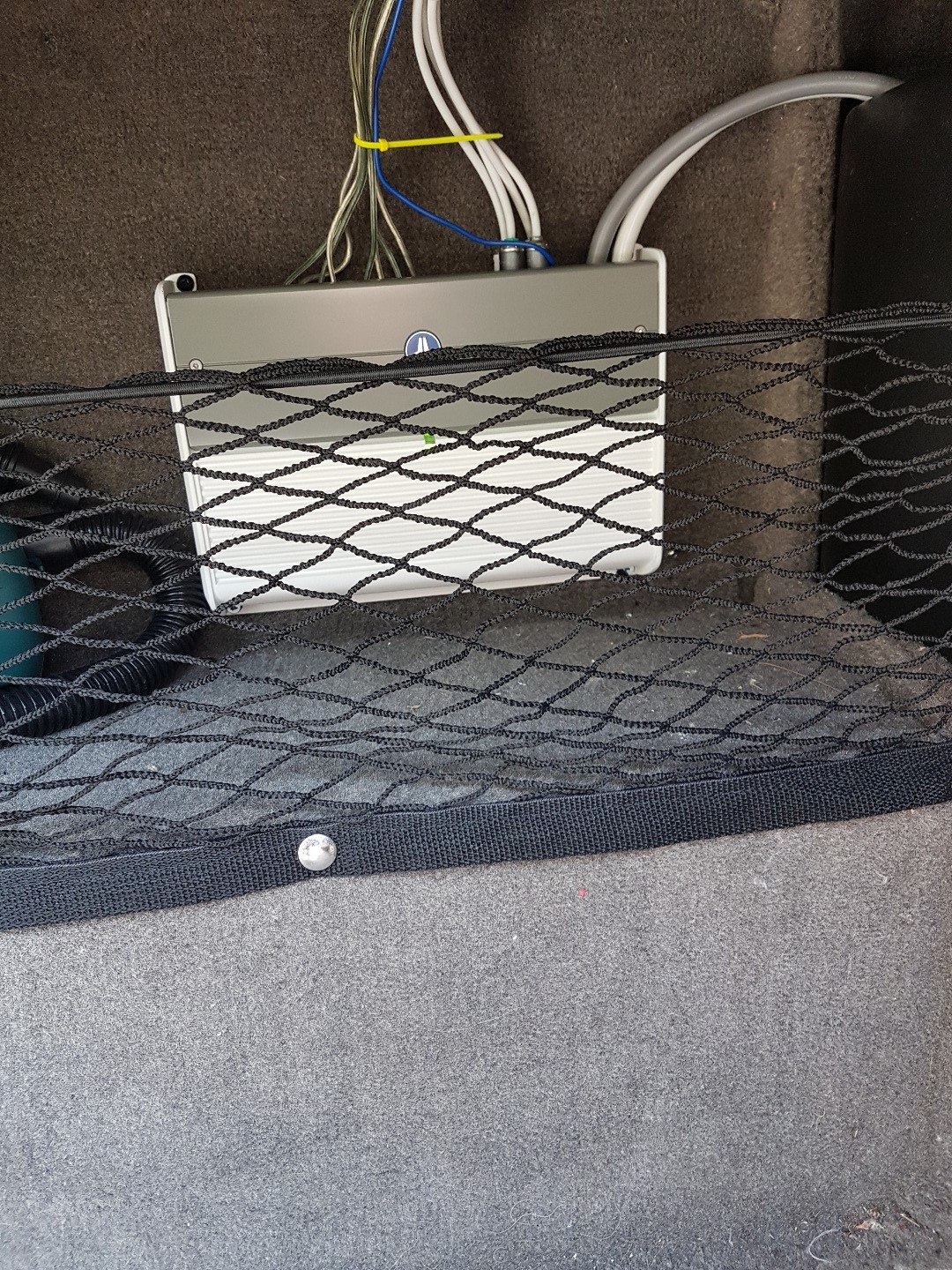

6-Channel Full-Range Amplifier:

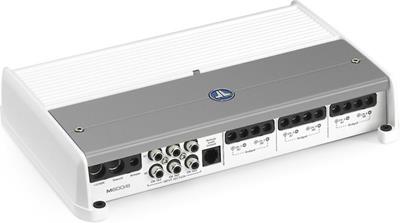

The JL Audio M600/6 is a six-channel, Class-D marine amplifier utilizing
NexD ultra-high speed switching technology to deliver outstanding fidelity and
efficiency. The M600/6 can be operated with a wide variety of source units and
Marine Amplifier: The JL Audio M-series marine amplifiers
are specifically designed for marine applications. These amps are not
waterproof, however, and should not be mounted where they are likely to get wet.
Amplifier Rating: The JL Audio M600/6 Class D marine
amplifier is rated at 75 Watts RMS x 6-channels in
4-ohm at 20 to 20,000Hz with a signal-to-noise-ratio of 104 dB and a total
harmonic distortion of 1% while receiving 14.4 Volts.
NexD Class D Technology: NexD is a state-of-the-art switching
amplifier design that combines exceptional audio quality with excellent
efficiency and less complexity. This results in an affordable compact
amplification with exceptional audio quality and unsurpassed total efficiency.
Advanced Rollback Protection: The M-Series amplifiers employ advanced
thermal and low-impedance protection to virtually eliminate annoying amplifier
shut-down events. Should any M-Series amplifier ever overheat, its intelligent,
unregulated power supply reacts by limiting available peak voltage until the
amplifier returns to a safe temperature range. Likewise, if an impedance lower
than optimal for the amplifier is present at the outputs, the M-series amplifier will
roll back peak voltage to protect itself without shutting down.
Differential-Balanced Inputs: The JL Audio amplifier features
differential-balanced input architecture to effectively control noise and ensure
compatibility with a wide variety of source units, including many OEM
systems. Without resorting to line output converters, you can directly connect
most OEM source units to the JL Audio amplifier without creating any noise or
compatibility issues. Unlike conventional single-ended inputs, the
differential-balanced design does not connect one side of the audio signal to
chassis ground. This eliminates any voltage sensitivity between one input
terminal and ground and greatly reduces the incidence of alternator whine in a
typical 12-volt audio installation.
Note: You will need three speaker wire-to-RCA adapters (136XDCLR2S,
sold separately) to connect this amplifier to your headunit via speaker level.
Protection Circuitry With Status Indicator Lights: There is
a single multi-color LED on the top panel of the amplifier to indicate the
amplifier's operating status.
- Flashing Green: When
the LED is flashing green, the amplifier is powering up and audio output is
- Constant Green: This LED lights green to indicate that the
amplifier is turned on and operating normally.
- Constant Red: This Red LED lights to indicate that the amplifier
has exceeded its safe operating temperature, putting the amplifier into a
self-protection mode, which reduces the power output of the amplifier. The
red light will shut off and the amplifier will return to normal, full-power
operating mode if the heat sink temperature drops back to a safe level.
- Constant Amber (Yellow): The Amber (Yellow) LED light indicates that an over-current condition has occurred and is accompanied by a muting of the amplifier's output.
Over-current condition can be caused by a speaker impedance lower than the
optimum load impedance range for the amplifier or a short-circuit in the
- LED Off: The only condition that will shut down an undamaged
M600/6 completely is if battery voltage or remote turn-on voltage drops
below 10 Volts. The amplifier will turn back on when voltage climbs
back above 11 Volts.
Cooling System: The outer shell of the JL Audio amplifier is designed
to remove heat from the amplifier circuitry. For optimum cooling performance,
this outer shell should be exposed to as large a volume of air as possible.
Enclosing the amplifier in a small, poorly ventilated chamber can lead to
excessive heat build-up and degraded performance.
Control Panel Cover: The
M600/6 features a Control Panel Security Cover which protects and hides the
amplifier's controls. When installed, the cover ensures that the amplifier's
settings are not accidentally changed while creating a clean aesthetic look for
the amplifier and your installation. The control panel security cover is
pre-installed at the factory and must be temporarily removed for access the
amplifier's controls. The security cover is secured by two 2.5mm hex-head
Simplified Gain Setting: The M-series amplifier makes
setting the gain level of the amp via the input sensitivity control very simple.
All you need is Digital AC Voltmeter (142TK12V, sold separately) and a Test CD Disc (503CD104,
sold separately) with a sine-wave test-tone recorded at 0 dB reference level in
the frequency range to be amplified for that set of channels (50 Hz for
subwoofer channels, 1 kHz for a midrange application).
Note: The M600/6 is equipped with a independent gain controls for
channels 1&2, 3&4, and 5&6.
Flexible Input Section And Active Crossover Network: The JL
Audio M-series amplifier provides a flexible input section and a comprehensive
crossover network to fine tune your system effectively and accurately. The
variable filter design employed in the JL Audio M-series amplifier crossover sections
allow you to seamlessly switch slopes, easily change filter frequencies and
address what frequencies the preamp inputs will pass. The M600/6 offers the
following independent crossover adjustments for the front, rear, and subwoofer channels
along the unit's top panel, behind a removal cover plate.
- Input Mode: This switch allows operation of all six
amplifier channels with only one pair of input signals (2ch); with
independent front and rear input signal pairs (4ch); or with discrete front,
rear, and subwoofer signal pairs (6ch).
- Filter Mode: The amplifier allows you to select either
a Low Pass, High Pass or Full-Range operation of the amplifier's 1&2
channels, 3&4, and 5&6 channels.
- Variable Frequency: You can set the amplifier's Low
Pass or High Pass crossover from 50 to 200 Hz for channels 1&2, channels 3&4,
and channels 5&6.
The amplifier features set-screw terminals for the power, ground, and remote
- Power and Ground:
The JL Audio amplifier's set-screw Power and Ground
connections are designed to accept 8 to 4 AWG power wire.
A 2.5mm Allen wrench is supplied for making connections.
- Remote Turn-On: The JL Audio M-series amplifier's set-screw turn-on lead
accept 18 to 8 AWG wire. The same 2.5mm Allen wrench is supplied for making
Note: The Amplifier is not equipped with a fuse. An
external 50-amp AFS, AGU, or MAXI fuse (not included) must be installed on
the power wire. If a wiring kit is used which includes a fuse with a value
other than 50-amps, the original should be replaced with a 50-amp fuse.
Speaker Output Terminals: The M600/6 amplifier's twelve
set-screw speaker terminals will accept 16 to 8 AWG speaker wire. A 2.5mm
Allen wrench is supplied for making connections.
Preamp Inputs: The amplifier features 3 sets of
differential-balanced RCA jack inputs. The amplifier features a dedicated Input
Sensitivity gain control for the front 1&2, 3&4, and 5&6 channels of the amplifier. These
controls are designed to match the input sensitivity of the M600/6 to the
specific signal source that is feeding it. The amplifier's input level can be
set independently for the front and rear channels between 100mV-4V.
Remote Level Control: The amplifier features a standard
telephone connector for adding an optional wired remote level control. With the
addition of the optional wired Remote Level Control (136HDRLC,
sold separately), you can control the volume of 2, 4, or 6 channels of the
M600/6 from the front of your vehicle. This is useful for subwoofer level
control or even as a master volume control for your system. If desired, multiple
M-series amplifiers can be controlled from a single HD-RLC controller using a simple
phone line splitter and multiple phone cables (all sold separately).
Note: All inputs and outputs are located on the rear
side of the amplifier to make installation of the amplifier simple and neat.
