Garmin echo 150 Bundle

Fishfinder with 4" grayscale display, plus carrying case

Zoom
  • Garmin echo 150 Bundle

    Front

  • Garmin echo 150 Bundle

    Back

  • Garmin echo 150 Bundle

    Base/handle

  • Garmin echo 150 Bundle

    Base/handle

  • Garmin echo 150 Bundle

    Carrying case

  • Garmin echo 150 Bundle

    Carrying case

  • Garmin echo 150 Bundle

    Carrying case

  • Garmin echo 150 Bundle

    Carrying case with echo

  • Garmin echo 150 Bundle

  • Garmin echo 150 Bundle

    Rechargeable battery

  • Garmin echo 150 Bundle

    Rechargeable battery and AC charger

  • Garmin echo 150 Bundle

    Side view

  • Garmin echo 150 Bundle

    Sunction cup mount and foam float

Item #: 150ECHO15B

DISCONTINUED

This item is no longer available to purchase.

Contact us for other options

Call   Email






Our take on the Garmin echo 150 Bundle

by Jon Paulette
Garmin

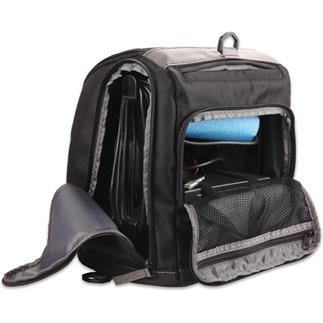

Handy carrying case for your echo 150

echo kit carrying case included

Find those fish!

If you want to catch fish, you need to be where the fish are. A Garmin fishfinder will give you a clear, accurate picture of what lies below, so you'll know where to drop your line every time. The rest is up to the fish, of course, but at least you've done your part.

Coverage up to 1300 feet

Ideal for small boats, Garmin's echo 150 fishfinder will help you catch a big one. This Garmin uses HD-ID™ technology and a dual-beam transmitter with 200 watts of sonar power to scan depths of up to 1300 feet in fresh water or 500 feet in salt water. With a viewing angle of up to 120 degrees, you can see fish well beyond the sides of your boat. And whether you're fishing in morning mist or afternoon sun, every fish arc will be clearly visible on the fast-refreshing 4" grayscale display. You'll also appreciate the audible alarm.

Hardware included

The echo 150's compact, portable design makes it the perfect solution if you're heading out in a small boat. Plus, its quick-release tilt mount and transducer are easy to install and remove. The tilt/swivel mounting bracket can be installed on your boat's trolling motor or transom.

Handy carrying case and more

This bundle also includes a storage bag, a sealed AGM rechargeable battery with smart charger, built-in transducer cable management and storage, and a suction-cup transducer mount and float.

See more info on this item

Highlights:

    Garmin echo 150
    • 4" grayscale display
    • accurate to 1300 feet deep in fresh water, 500 feet in salt water
    • 200 watts (RMS) sonar transmitting power
    • dual-beam 200 KHz transmitter
    • beam width to 120 degrees
    • compact design for smaller boats
    • audible alarm
    • tilt/swivel mount, transducer, trolling motor clamp and transom mount
    • dimensions: 4.1" x 5.8" x 2.8"
    • warranty: 1 year
    Garmin echo kit

    Hands-on research from the Crutchfield Labs (what are the Labs?)

    Product Research
    What's in the box?

    Download owner's manual

    • Fishfinder display
    • Carrying bag
    • WP7-12 (28W) rechargeable sealed lead-acid battery (12V 7Ah)
    • AC adapter/battery charger with attached 60' DC output cord (DC output: 12V 0.7A)
    • Swivel mount
    • Portable mount
    • Mount handle
    • 22" Power cable
    • Transducer with 20' attached cable
    • Foam float
    • Transducer mounting arm
    • Suction cup (3.25" diameter)
    • Three M4 x .07 x 10 screws
    • Two M4 x .07 x 40mm screws
    • Two M4 x 7 mm Nylock nuts
    • One 10-32 x 1.75" screw
    • Two 5mm flat washers
    • Rubber washer
    • Plastic spacer
    • One 10-32 wing nut
    • One M6 x 1.0 screw
    • Three 16" hook-and-loop straps
    • Owner's Manual (English)
    • Owner's Manual (French)
    • Owner's Manual (Spanish)
    • Owner's Manual (Portuguese)
    • Portable Echo Kit Instructions
    • Important Safety and Product Information

    Our Product Research Team

    At Crutchfield, you'll get detailed, accurate information that's hard to find elsewhere. That's because we have our own in-house Product Research team — they open the box, verify contents, check the owner's manual, and record dimensions, features and specs. We stay on top of new products and technologies to help people make informed choices.

    Features

    Overview: The Garmin echo 150 Portable Bundle includes the echo 150 compact fishfinder, a portable base with handle, 12-volt rechargeable lead-acid battery with charger, and carrying bag. The display features a 4" grayscale display and a 200-watt, dual-frequency sonar transducer to help you locate fish in up to 1300 feet of fresh water (500' of salt water).

    HD-ID: Garmin's exclusive HD-ID target tracking technology provides enhanced separation and definition of the images on the screen. The unit can be set to show suspended targets with a fish symbol with (or without) target depth information.

    Display: The echo 150 features a 4" (diagonal) FSTN display with 160 x 256 pixels. The 8-level grayscale display has a vertical orientation with 4-level backlighting, and is mounted to a 3" diameter swiveling base that can tilt from 0° to 90° (7 positions) and lock into place. Scrolling from right to left, the display will show a full-view graph of sonar readings from the transducer. It shows the bottom depth in large numerals, along with the water temperature. The unit has an adjustable depth range (Auto or manual 5' to 1300'), and the depth scale is shown at the bottom of the screen, along with the transducer frequency.

    Transducer: The dual-frequency (200 kHz/77 kHz) transducer transmits sound waves through the water and receives them to relay information to the display. You can show data from a 200 kHz sonar signal or data from a 77 kHz sonar signal. The 200 kHz frequency shows better detail, has a narrower beam (60°) and is typically used in shallower waters. The 77 kHz frequency penetrates deep water more effectively, and has a wider beam (120°), so it can be used to cover a larger area. The transducer has an attached 20' cable to accommodate large or small boats. The transducer comes with a suction cup mount and a float.

    Beeper/Alarms: The echo 150 has a beeper that will sound to confirm each button press, or can be set to sound only for alarms, or turned off completely. There are several audible alarms that can be independently set in the menu:

    • Shallow: The unit will alarm when the water depth is shallower that the set value (0 to 1300').
    • Deep: The unit will alarm when the water depth is deeper than the set value (0 to 1300')
    • Battery: The unit will alarm when the battery voltage is lower than the set value (8V to 20V)
    • Fish: The unit will alarm when the device detects a suspended target.
