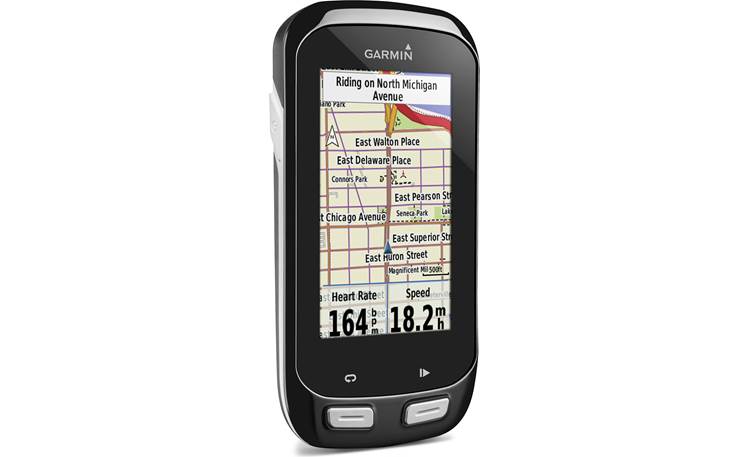

Overview: The Garmin Edge 1000 is a compact, GPS-enabled
advanced bicycle computer with connected features, such as live tracking and social
media sharing via Garmin Connect, weather, and the ability to send and receive
courses. It contains a pre-loaded Garmin Cycle Map, and has the option to add detailed maps via
microSD card. The
Edge 1000 is waterproof (IPX7 rated), and comes with two standard handlebar mounts
and the Extended Out Front Bike mount so you
can mount it on multiple bikes.
Touchscreen Display: The Edge 1000 has a 3" diagonal backlit color
touchscreen LCD (1.5"W x 2.6"H), with a display resolution of 240 x 400 pixels.
The unit can also be turned 90° for viewing in landscape mode. You can maneuver through the
menus and make selections directly on the touchscreen display. The display can
show navigation maps along with your speed and distance, or show your elapsed
time, speed, distance, elevation, and total ascent. With available accessories,
your pedaling cadence, calories burned, and heart rate can also appear on the
GPS Navigation: The Edge 1000 has a built-in
high-sensitivity GPS receiver. The time of day and the date are automatically
set by the GPS receiver. The device has preloaded Garmin Cycle Maps, showing
on-road and off-road routes and points-of-interest. The
device is also compatible with optional detailed street maps and topographical
maps available on microSD card. The maps, in combination with the GPS, can guide
you while you're touring, commuting, competing, or working out.
Smartphone Compatible: You can wirelessly link your device
to a smartphone (Android or iOS) using the Garmin Connect Mobile app. At the end
of your ride, you can transfer the ride data directly to your phone via
Bluetooth. Using the app, you can analyze the details of your ride, or share it
with others. You can also search out courses and workouts stored at Garmin
Connect, download them to your smartphone, and send them to your Edge 1000
wirelessly. Real-time weather updates and alerts can be sent from your
smartphone to your device.
Live Tracking: Another connected feature of the Edge 1000,
Live Tracking, allows your friends and family to follow your races and training
activities in real time. You can invite your followers via email or social media
to view your live data on the Garmin Connect tracking page. Once they see your
invitation, they can click to follow your progress on a map and see your stats.
Controls: Most of the controls are located on the
touchscreen. On the Home screen, you can access your bike profile, change your
activity profile, manage your history, courses, and workouts, and start a new
ride. During your ride, you can use the front panel buttons to start/stop the
timer and mark a new lap without having to look at the screen. The power button
is located on the side.
Waterproof: The Edge 1000 is waterproof to IEC Standard 60529 IPX7. It
can withstand immersion in 1 meter of water for up to 30 minutes. The casing is
totally sealed, including the front-mounted controls, and the microSD card slot
and USB port have a
water-resistant cover to prevent corrosion.
ANT+: ANT+ is a wireless technology that allows certain
accessories to communicate with the Edge 1000. ANT+ sensors generally work within
10 feet of the unit. In addition, an increasing number of health clubs and
fitness centers have ANT+ compatible equipment in their facilities, so you can
use the same accessories separate from your device. Compatible Garmin ANT+
- Heart Rate Monitor: When the Edge 1000 is paired with
Premium Heart Rate Monitor, the unit tracks your heart beats per minute
and calculates your calorie consumption as you train. You can train in a
certain heart rate zone to improve your fitness level or compare your pace
and heart rate to past performances.
- Speed/Cadence Sensor: The
GSC 10 Speed/Cadence Sensor measures your speed and pedaling strokes per
minute. The Edge 1000 has a Non-Zero Averaging option to let you include or
exclude the zero values (when you're not pedaling) when calculating your
Auto Pause: The built-in timer will pause automatically when it
detects you're not moving. The timer will restart when you resume your ride.
Auto Lap: The Auto Lap feature lets you automatically mark the lap at
a specific position. This helps you compare your performance over different
parts of a ride (i.e. a long climb or training sprints). You can also use Auto
Lap to mark laps at a specific distance.
Data Storage: The Edge 1000's built-in memory (approximately
50 MB) stores at least 180 hours
of ride data. The unit not only has an odometer to keep track of your mileage,
but includes data on your last ride, longest ride, fastest ride, and all rides.
Ride data can be sent to your smartphone via Bluetooth using the Garmin Connect
User Profile: The Edge 1000 allows you to enter data about yourself to
create a User Profile. This data (gender, birth year, weight, and height) is
used to calculate accurate ride data.
Activity Profiles: In addition to User Profiles, the Edge 1000
allows you to customize ten activity profiles. You can create separate activity
profiles for training, racing, and mountain biking. Each activity profile
contains such data as activity totals, alerts, training zones (heart rate and
speed), training settings (AutoPause and AutoLap), and navigation settings.
Garmin Connect: Free web-based
Garmin Connect software
lets you store your workout data for comprehensive analysis. Garmin Connect is
used by cyclists worldwide, and presents your data in an easily understood
manner, with maps, reports, and suggested activities. You can create fitness
goals and send them to your device. As you complete activities toward your
goals, they are tracked on both the device and on Garmin Connect. In addition,
the Garmin Training
Center software lets you track and analyze your fitness activities and
create workouts to send to your device, without requiring Internet access after
the initial download.
Courses: The Edge 1000 can save your ride data as you train. From that
saved data, you can use Garmin Connect software to create courses that you can
follow in the future. Each time you follow the course, the unit will compare
your time to previous rides, or to other riders, and let you set performance
goals. As you ride along the course, the display will indicate distance and time
to upcoming maneuvers.
Virtual Partner: During your workout, you can use the
Virtual Partner to help you meet your goals. The Virtual Partner rides along
with you and provides incentive for you to keep up or stay ahead. If necessary,
you can adjust the speed of the Virtual Partner during the ride.
USB Port: A Micro-USB port is provided on the back of the
unit for charging and connecting to your computer, using the included Micro USB
cable. A water-resistant plug keeps moisture out.
Power Requirements: The unit is powered by a built-in
Lithium-Ion battery. It charges via the included USB cable when connected to
your computer or an optional AC adapter. The battery charge level is expressed
as a percentage on the display. Under typical usage, the battery life is
approximately 15 hours. Extremely cold temperatures will also reduce battery
Mounting: The Edge 1000 can be mounted to your bicycle's handlebars or
stem. Two sizes of O-rings are included for best fit. Two complete standard mounts
and the Extended Out-Front Bike Mount are
included to allow you to use the unit on multiple bikes.
