Sound Ordnance™ P-52CB P-Series 5-1/4" component speaker system

Item # 777P52CB

Find what Fits your vehicle

Remove

Checking fit...

California customers:
Please click here for your Proposition 65 warning.

5 questions - 8 answers

Item # 777P52CB

Other options

About the Sound Ordnance™ P-52CB

Alexander H.

Battle strong

The Sound Ordnance line has proven to be a Crutchfield customer favorite and reliable choice in the battle for great sound. With the Sound Ordnance P-52CB component system in your car, you're armed and ready for serious knob-cranking when the mood strikes you. The 5-1/4" polypropylene woofers make powerful replacements for low-functioning factory speakers, giving your music plenty of punch for the long haul. Mount the separate silk dome tweeters in ideal spots to lift you out of the fray with smooth, natural-sounding highs.

Sound Ordnance includes external crossovers systems to direct the right frequencies to the right speakers for a more accurate sound blitz. Bundle all of that with rugged design touches and a solid steel speaker basket, and everyone will know that you don't mess around when it comes to car audio.

Rock with confidence

As always, Sound Ordnance's impressive 3-year warranty gives you plenty of time to get comfortable with this kind of firepower in your vehicle.

Installation note: You'll need a pair of our universal backstraps to install the tweeters in the factory locations.

Product highlights:

  • component speaker system includes two 5-1/4" woofers, 2 tweeters, 2 external crossovers
  • polypropylene woofer with rubber surround
  • 3/4" silk dome tweeter
  • black steel basket
  • power range: 2-50 watts RMS (100 watts peak power)
  • frequency response: 60-22,000 Hz
  • sensitivity: 86 dB
  • woofer top-mount depth: 1-15/16"
  • woofer grilles included
  • warranty: 3 years
  • MFR # P-52CB

What's in the box:

  • Two Woofers
  • 2 Tweeters (each has a 28" Length of wire attached)
  • 2 Crossovers
  • 2 Woofer grilles
  • 2 Plastic grille rings
  • 2 Foam woofer gaskets
  • 2 Flush-mount tweeter housings
  • 2 Surface-mount tweeter housings
  • 2 Flat surface-mount bases
  • 2 Angled surface-mount bases
  • 6 Adhesive surface mount pads
  • Two 18" Lengths of speaker wire for the woofers (each with female quick slides on one end and bare wire on the other)
  • Two 18" Lengths of speaker wire (bare wire on both ends)
  • Eight 1-1/8" Self-tapping screws
  • Four 3/4" Flat head self-tapping screws
  • Four 5/8" Flat head self-tapping screws
  • 12 Large speed clips
  • 4 Small speed clips
  • Grille putty
  • Owner's manual
  • Warranty information
  • Woofer template on box

Customer reviews for Sound Ordnance™ P-52CB

Loading reviews...

Average review:

4.5 out of 5 stars
72 reviews

Thanks for submitting your review

Filter by rating

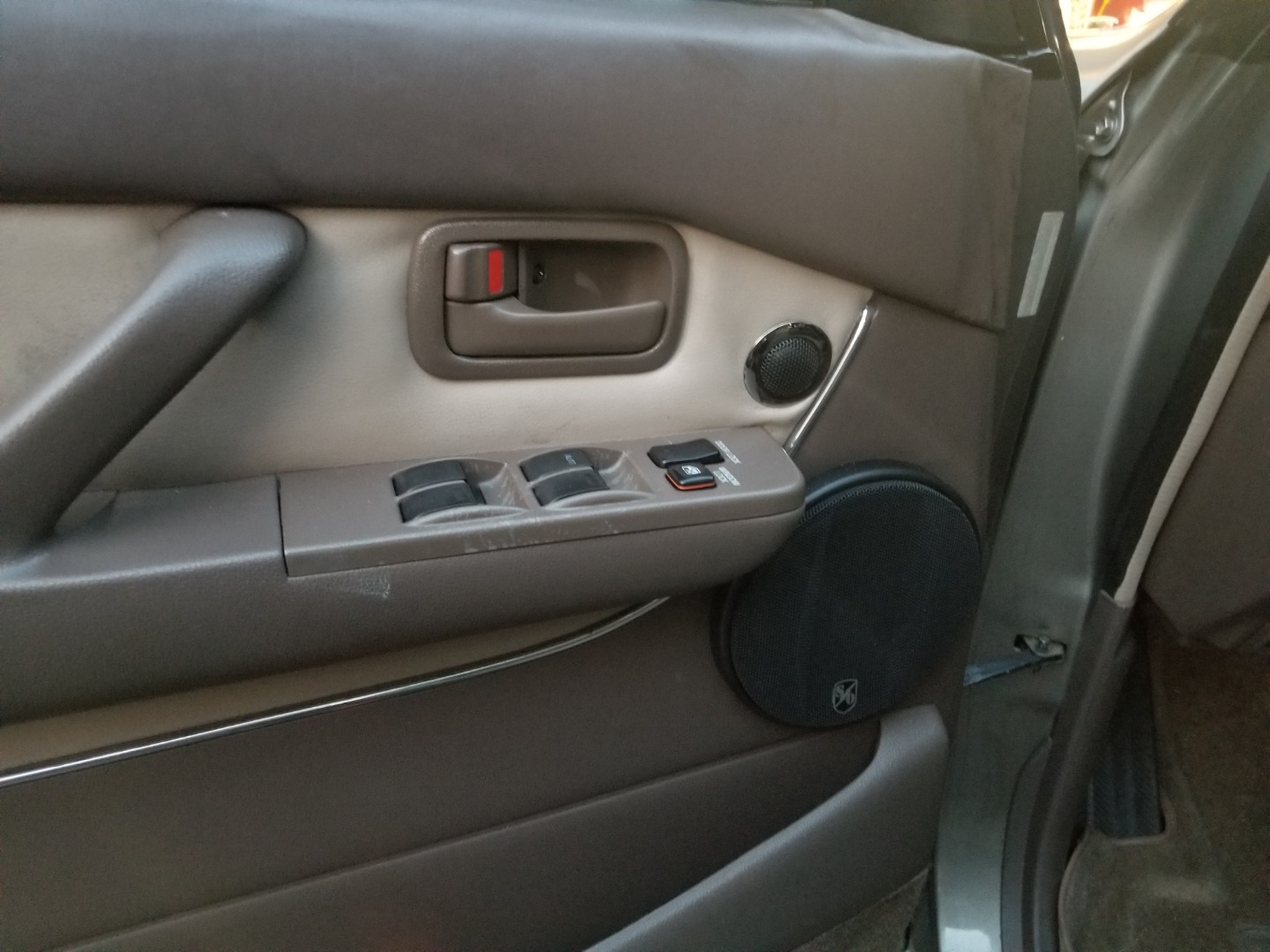

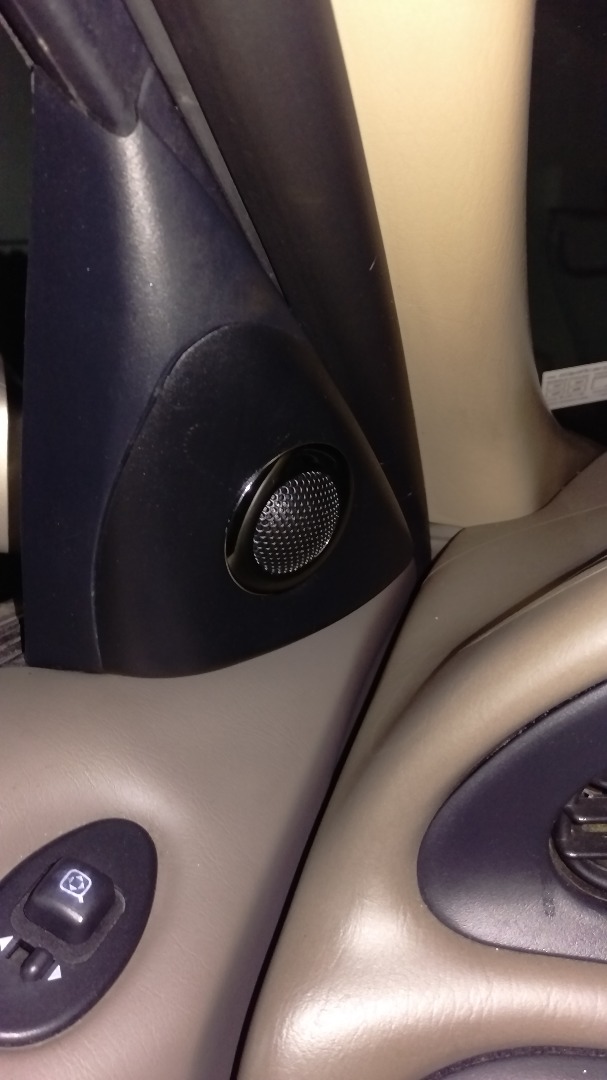

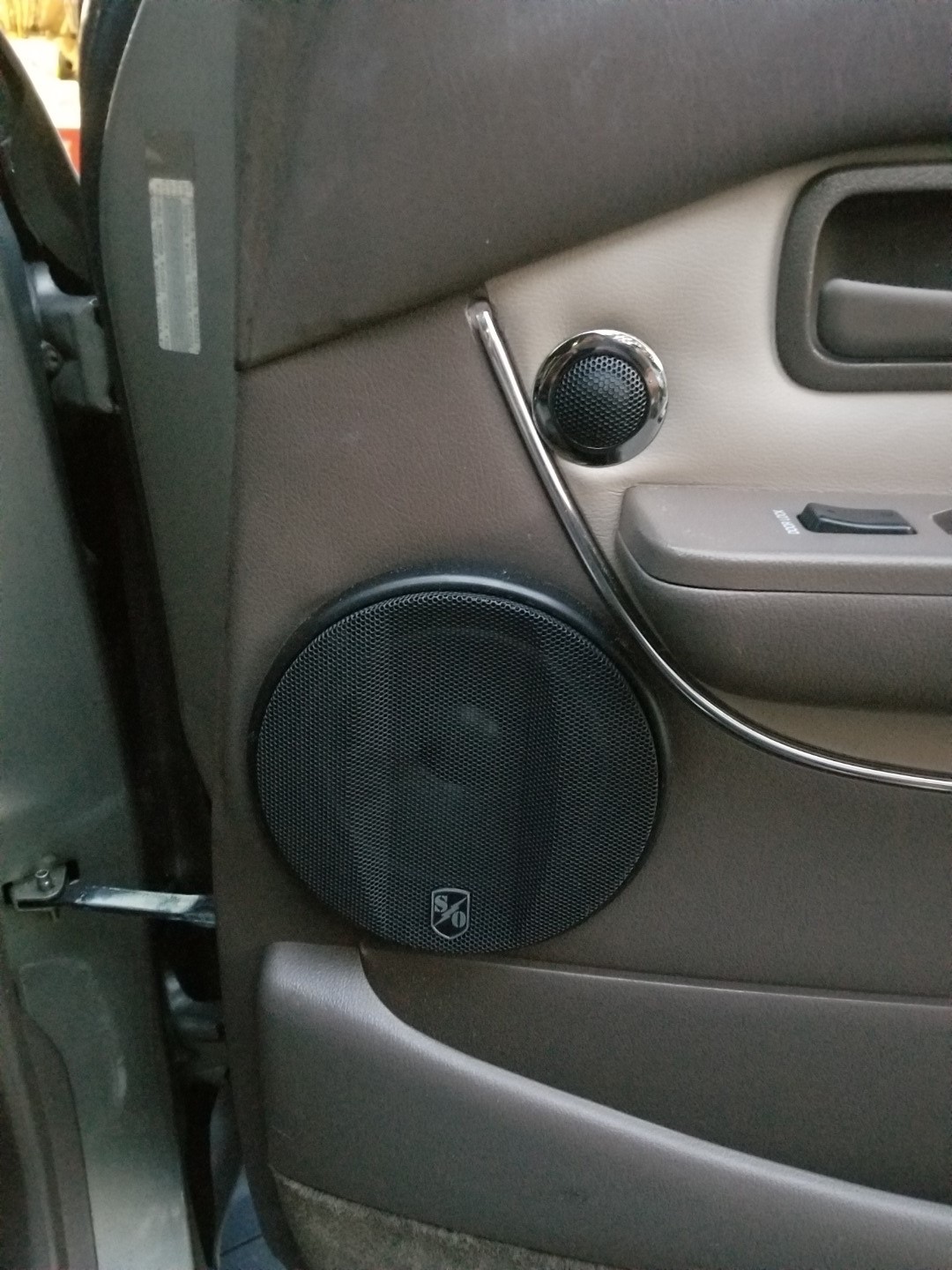

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Sound Ordnance™ P-52CB

Pat M.

Features & specs

General
Speaker Size 5 1/4
Design 2-way
Tweeter Design 3/4" Dome
Impedance (Ohms) 4
Tweeter Composition Silk
Woofer Composition Polypropylene
Woofer Surround Rubber
Parts Warranty 3 Years
Labor Warranty 3 Years
Specifications
Sensitivity (1W at 1 meter) 86
Sensitivity at 2.83 volts N/A
Frequency Response 60 - 22k Hz
Minimum RMS Wattage ---
Maximum RMS Wattage 50
Peak Power Handling (Watts) 100
Top-mount Depth (Inches) 1 15/16
Bottom-mount Depth (Inches) 2
Cutout Diameter or Length (inches) 4 5/8
Mounting Height (Inches) 0.175
Frame Width 5.134
Frame Length 5.134

Product Research

Woofers
Tweeters
Crossovers

Woofers

Woofers: The woofers use a durable vacuum formed polypropylene cone with a rubber surround. They are designed to fit standard 5-1/4" applications; please check the Crutchfield Vehicle Selector to confirm compatibility with your vehicle.

Tweeters

Tweeters: The 3/4" Silk dome tweeters output smooth, accurate highs.

Tweeter Mounting Options: Using the supplied housings the tweeters can be flush mounted, surface mounted flat, or surface mounted at an angle. Once mounted in the appropriate housing, the tweeters have these dimensions:

  Flush Mount Surface Mount Angled Surface Mount
Mounting Depth 0.85" mounting screw depth mounting screw depth
Mounting Height 0.3" 1.2" 1.5"
Cutout Diameter 1.506" N/A N/A
Frame Diameter 1.811" 1.5" 1.7"
Crossovers

Crossover Network: The 2-way crossovers have a 3.5 kHz high-pass filter for the tweeters and a 3.5 kHz low-pass filter for the woofers.

Connections: The passive crossovers feature screw terminal inputs and outputs; they will accommodate bare wire or spade connectors up to 0.3" wide.

Tweeter Level: A switch on each crossover allows you to adjust the output level of the tweeter; choose 0 dB or -3 dB.

Mounting: Each crossover can be mounted using two of the included screws through two holes in the base.

Dimensions:

  • Length: 4.75"
  • Width: 3.25"
  • Height: 1.35"

Loading accessories...

Customer Q&A

5 questions already asked

Q
What is the diameter and depth of tweeter without mounting brackets?
ben  Aug 02, 2021
1 answer
A
The tweeter frame diameter is 1.312" with a height of 0767". Hope this helps.
kenneth  Aug 04, 2021 (Staff)
Q
Where to mount crossover in my 98 trans am?
danny ray  Jan 21, 2018
2 answers
A
I mounted my crossovers one on each side of my sub woofer box. Works well for me in my 1998 s10
henry j.  Jan 25, 2018
A
I have a 2015 Dodge Ram. I know it's not the same at all but when I removed the door panel to mount the speakers I found a place behind the panels to mount the crossovers. I had to do some small modification to the inner panel but overall it was a simple install.
chris  Jan 22, 2018
Q
Is it necessary to use bass blockers to protect component speakers or does the integral crossover do that already?
timothy  Jan 05, 2018
1 answer
A
Bass blockers can still be used with component speakers. The crossover that is included with them does not block those deepest of bass notes from the woofer. This means that bass blockers can help improve the sound you get from component speakers too. HTH! My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=101
jason  Jan 15, 2018 (Staff)
Q
I'm buying a auto speaker system it has 2 woofers ,2 tweeters,and 2 external crossovers.What are external crossovers?
daniel  Oct 04, 2017
3 answers
A
They are a Cigarette pack sized box that wires between your radio/amp and the tweeters and woofers. They control which signals or sounds go to which speaker. Bass to woofer and highs to tweeters. You will need to Carefully! Locate them near the speakers say in a door or desk. I say carefully because they can rattle if not placed correctly.
stephen  Oct 05, 2017
A
This allows you to drive two speakers from one channel
chester  Oct 04, 2017
A
This is quite possibly the worst component set I have ever purchased. Bought two sets for my doors and they lasted about 2 months.
jeremy  Oct 04, 2017
Q
What is the depth of the woofer?
raguusauce  May 17, 2016
1 answer
A
The woofer's top-mount depth is 1-15/16" (or roughly 2"). I hope that helps. My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=159
david  May 20, 2016 (Staff)
