Velbon GEO E540

Tripod for digital cameras and camcorders

  • Velbon GEO E540


  • Velbon GEO E540

    Adjustable rubber or spike leg tips

  • Velbon GEO E540

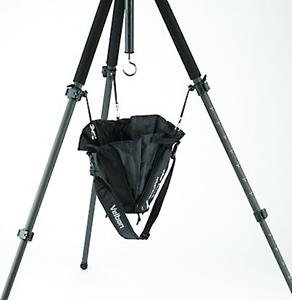

    Carrying bag used as a stone bag

  • Velbon GEO E540

    Center column quick release lever

  • Velbon GEO E540

    Multi-purpose carrying bag

  • Velbon GEO E540

    Spiral-etched surfaces

Item #: 780E540
This item is no longer available to purchase.
Contact us for other options
Call   Email

Our take on the Velbon GEO E540

by Kristen Schaub

Versatile, innovative design for professional photographers

Velbon's GEO series tripods are the best of the best. These carefully crafted, high-performance tripods let you take stunning photos from just about any angle and in just about any shooting condition. The GEO E540 positions your camera a mere 5-1/2" high, for low-to-the-ground macro shots. Or you can extend it all the way up to 55-1/2" for everyday shooting. And when you're ready to take it on the road, the whole thing folds down to just 16" for easy traveling. Mount your favorite tripod head or choose one of Velbon's professional ball heads, and you'll be set to start capturing the next award-winning landscape or travel photo.

stone pouch

Exceptional construction

Velbon's GEO series tripods use a unique carbon-fiber, basalt, and magnesium composite material, which gives the legs added strength and rigidity. The legs also feature spiral-etched surfaces for smooth, fast extension, and lever-locking sections for a more secure platform for your camera. And each leg is fitted with a rubber foot and retractable spike.

The GEO E540 also uses a quick release lever on the center column, which allows for fast adjustment to the height. You can also split the two-section center column to get down low to the ground and take steady macro shots. And the included carrying pouch is pretty nifty: it doubles as a ballast bag for added support in windy conditions.

See more info on this item


  • maximum height: 55-1/2" with center column fully extended
  • minimum height: 5-1/2"
  • supports cameras and camcorders weighing up to 16 lbs.
  • requires tripod head, not included
  • three-position legs help you steady the tripod on uneven ground
  • quick release lever on the center column
  • carbon-fiber/basalt/magnesium composite construction
  • lever-locking legs for added stability
  • rubber feet and retractable metal spikes
  • multi-purpose carrying pouch — can be used as a ballast bag for added stability
  • folded: 16"
  • weight: 2.76 lbs.
  • warranty: 1 year
  • Our 60-day money-back guarantee

Hands-on research from the Crutchfield Labs (what are the Labs?)

Product Research
What's in the box?

  • GEO E540 Carbon Fiber tripod (no head included)
  • Adjustable nylon strap (attached)
  • Nylon zippered pochette
  • Center end hook
  • 3mm Allen wrench
  • GEO Series info card
  • Operating Instructions (English/Japanese)

Our Product Research Team

At Crutchfield, you'll get detailed, accurate information that's hard to find elsewhere. That's because we have our own in-house Product Research team — they open the box, verify contents, check the owner's manual, and record dimensions, features and specs. We stay on top of new products and technologies to help people make informed choices.


Overview: The Velbon GEO E540 is a high quality Carbon Fiber tripod leg assembly that can be used with cameras and camcorders up to 16 pounds. There is no head included in this package. A standard ball socket or pan head can be attached, using the 1/4" head screw.

Spiral-etched Carbon Fiber Legs: The 3-section legs on the GEO E540 are made of spiral-etched Carbon Fiber and Basalt. The upper legs sections have a diameter of 25 mm (1"). The quick lever leg locks can secure the legs at any length. The legs each have a length scale at 2.5 and 5 centimeters. The leg angles can be set at a semi-low or full-low position. The legs have 2-way adjustable tips, which provide the option of a metal spike for rougher terrain, or rubber foot for slippery surface.

Split Center Column: The GEO E540's center column can be manually lifted for an additional 12" of height. The center column is split into two sections, allowing you to remove one section for shooting at the semi-low or full-low positions. The tripod has a new design release lever with a safety lock to allow for quick and easy center column height adjustments.

Center End Hook: The GEO E540 includes a hook that screws into the end of the center column. You can hang your camera bag on the hook to give the tripod a lower center of gravity, thus provide more stability in windy conditions.

Pochette: The included vinyl pochette has multiple uses. When attached to all three legs, you can use it as a stone bag, to give the tripod additional weight for stability in windy conditions. When the shoulder belt is connected, the pochette can be used as a pouch or as a carrying bag for the tripod.


  • Folded Length: 16"
  • Minimum Operating Height: 5.5"
  • Maximum Operating Height: 55.5"
  • Load Capacity: 16 pounds
  • Weight: 2.76 pounds
