UpLift Sycamore

Hidden lift cabinet for TVs up to 56" wide

Zoom

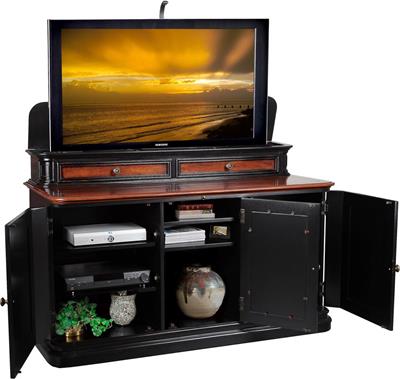

  • UpLift Sycamore

    (TV not included)

  • UpLift Sycamore

    (TV and components not included)

  • UpLift Sycamore

    Lift tray detail

  • UpLift Sycamore

    Schematic

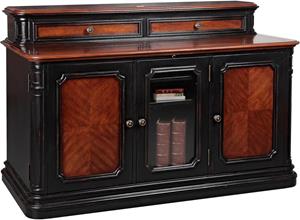

  • UpLift Sycamore

    With optional center door glass panel

  • UpLift Sycamore

    With optional center door speaker cloth panel

  • UpLift Sycamore

    With optional wood center door panel

Item #: 784SYCAMRE

DISCONTINUED

This item is no longer available to purchase.

Contact us for other options

Call   Email






Our take on the UpLift Sycamore

by Ralph Graves
Uplift TV Scyamore

The Sycamore can easily hold 6 components and more. Note the curved outer doors.

Keep your TV out of sight when not in use

Flat-panel TVs sre beautiful to behold when they're on, but when they're off... maybe not so much. With the Sycamore TV lift cabinet, you can keep your flat-panel's big blanks screen from dominating your room's décor.

Read more

This quality-built cabinet has a powerful motorized lift fitted with a TV mount. At a touch of the included remote control, your flat-panel display descends smoothly and quietly into the cabinet, and the top closes over it. Your TV stand is now simply another attractive piece of furniture in your room.

A dependable lift mechanism

The Sycamore can accommodate a TV with a maximum width of 56". A rugged, heavy-duty rack and pinion lift comes pre-installed in the cabinet. Welded steel construction ensures solid support for your TV, and smooth and nearly silent lift motion.

Fine furniture craftsmanship

This cabinet has the lookand feel of a vintage piece of Edwardian furniture. The Sycamore features three spacious compartments behind hinged doors. The two outer doors are curved, to allow greater access. The cabinet is built from hand-selected hardwood and mahogany veneers. the two-toned hand-layered stain is carefully applied to give a lusterous and scratch-resistant finish.

Uplift TV Sycamore

The center door comes with interchangeable wood, glass, and speaker cloth panels. (Glass panel shown)

Room for your system

You can easily store a total of six components in the right and left compartments. Each compartment features two adjustable shelves with space for cable connections. The center compartment also has two adjustable shelves, and room for a small center channel speaker. The center door comes with  interchangeable solid wood, glass, and speaker cloth panels.

Built-in remote control wiring

Keeping your home theater gear behind closed doors can make things look organized and uncluttered, but running all the wires necessary to control it can be a chore. That's why the Sycamore comes with the necessary remote control infrared blasters and sensor pre-wired and installed. Even with the doors closed, you can control all your gear with whatever remotes you normally use.

Highlights:

  • accommodates TVs up to 56" wide and weighing up to 80 lbs. (maximum TV dimension: 56"W x 32-3/4"H x 5-1/2"D)
  • pre-installed heavy-duty motorized rack and pinion TV lift
  • storage for 6 components
  • built-in infrared control system
  • made with solid hardwood and mahogany veneers
  • hand-applied stain
  • cabinet top:
    • usable surface area in front of TV lift compartment: 60-1/4"W x 16"D
  • left and right side component compartments (each):
    • 2 adjustable shelves
    • enclosure dimensions: 19-7/8"W x 25-1/8"H x 16"D
    • solid wood door
  • center accessory compartment:
    • 2 adjustable shelves
    • enclosure dimensions: 16-1/4"W x 25-1/8"H x 16"D
    • hinged door
    • interchangeable wood, glass, and speaker cloth door panels
  • wire management to keep cables out of sight
  • ventilation to keep components cool
  • remote control
  • 61-1/4"W x 39-1/2"H x 28-3/4"D
  • warranty: 1 year
  • Our 60-day money-back guarantee
