Outdoor All-Weather TV: The SunBriteTV outdoor LCD
television has been designed to withstand the rigors of the outdoor environment
and provide many years of optimum viewing. This TV can be permanently mounted
outdoors. Its ASA outdoor rated high-impact resin exterior is engineered to
protect internal components from rain, dust, insects, humidity, and salt air.
- Weather-Proof Materials: Weather-proof materials are
used in every component of SunBriteTVs. Stainless steel and galvanized metal
parts are used throughout the TV to resist the corrosive effects of water
and humidity. Protective gaskets, stripping, and grommets are specially
selected to resist the harmful effects of salt air and sunlight. All models

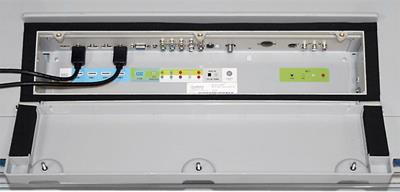

utilize an innovative watertight cable entry system and cable pass-through
design that protects the cables and inputs from the elements. Even the
powerful built-in two-way 20-watt speakers are sealed against rain and
- Internal Climate Control System: All SunBriteTV models
are designed for permanent outdoor installation in extreme heat (up to 122°F)
and cold weather (-24°F). The TVs
feature an internal climate control system which consists of temperature
sensors and a filtered multi-fan airflow system that quietly keeps the unit
cool to provide protection and long-life to the internal components.
Anti-Glare Bright LCD Panels: The SunBriteTV outdoor
television features an anti-glare LCD panel. Ever try to watch an indoor TV with
the sun streaming through a window? If you sit close enough to the screen you
can often see your reflection-like looking in a mirror. This is because most
indoor TVs have a high gloss finish that enhances color performance. In the
bright light of the outdoors, this reflective effect of the screen is greatly
multiplied making it a challenge to see any picture at all. That's why
SunBriteTV outdoor TVs are equipped with LCD panels that have a high haze factor
that help absorb the ambient light, making them resistant to this glare.
HDTV Tuner: The outdoor LCD TV has built-in over-the-air HDTV (ATSC) and
Digital Cable (QAM) tuners, so you don't need a separate set-top box to receive
and decode over-the-air HDTV/SDTV or unencrypted Digital Cable signals.
1080p Resolution: The SunBriteTV outdoor LCD television has a
display resolution of 1920 x 1080. All of the television's video inputs are
displayed at 1080p.
Video Inputs: The SunBriteTV outdoor television is equipped with
high-definition (HDMI/Component) and standard-definition (Composite/S-video)
- HDMI: The two HDMI inputs can be used to connect a DVD
player, Blu-ray player, or Satellite/Cable box with an HDMI output. The HDMI
jack will accept 1080i/p, 720p, and 480i/p video signals.
- Component Video: The two Component Video inputs will
accept 1080i, 720p, and 480i/p signals.
- Composite Video: The TV is also equipped with a composite video
input (480i only).
- S-Video: In addition, the TV is equipped with an S-video input
Note: The TV's composite and S-video in put share the same stereo
PC Compatible: A 15-pin HD15 jack allows you to connect your
personal computer to the display. There is also a corresponding stereo mini-jack
(3.5mm) for the computer's audio signal. The PC input can accept up to a 1920 x
1080 signal. The TV's HDMI inputs can also be used to connect your computer.
Audio Outputs: The SunBriteTV outdoor television offers analog and digital audio
- Analog Output (variable): The TV's 3.5mm analog audio output is
used to connect your home theater receiver or soundbar system. You will need
a minijack-to-RCA adapter (119MCON2M,
sold separately) to make a stereo RCA connection between the television and
your AV receiver. The TV's analog audio output terminal will output 2ch
audio from any of the television's source inputs.
- Digital Audio Output: A optical digital output is
provided to allow you to connect the unit to a surround processor. The TV's
digital audio output terminal outputs a Dolby Digital or 2-channel
down-mixed PCM signal for use with an external Dolby Digital decoder or
other external audio system with an digital audio input.
Picture Settings: This menu changes the picture settings for
all of the television inputs.
- Picture Mode: Contrast, Brightness, Color, & Sharpness
- Advanced Video controls: Color Temperature, Zoom Mode, Noise
Reduction & Adaptive Contrast.
Audio Settings: This menu manages the audio settings; such
as Bass, Treble, Balance, AVC (Automatic Volume Control), Digital Output, and
Audio Language (En/Fr/Sp).
Parental Control: You can select a viewing limitation based
on TV and movie ratings (protected by a 4-digit passcode).
Close Captions (CC): The SunBriteTV television provides
Analog Closed Captions and Digital Closed Captions.
Sleep Timer: The sleep timer switches the television off
after a specified amount of time. The sleep timer can be set to 10, 15, 30, 45,
60, 90, 120, 180, or 240 minutes.
Water-Resistant Remote Control: The outdoor LCD TV includes a
water-resistant IR remote control. remote is designed for outside use and has a high output transmitter to provide reliable operation in an outdoor environment. "Water-resistant" means that the remote
control can be in water for short periods of time without damaging the internal
workings of the unit. It can be left in the rain, and even dropped in water, as
long as it is retrieved quickly. The remote control should not be left floating
IR Emitter Input: The outdoor TV features a 3.5mm IR emitter input
which can be used to connect an optional IR emitter cable (sold separately).
RS232 Control: The RS232 control feature maximizes system integration
and programming security.
Mounting Options: The outdoor TV
can be wall mounted using SunBriteTV's optional wall-mount brackets (817SBWM46/817SBWM46N,
sold separately). The TV has 4 threaded screw holes with a horizontal spacing of
600mm and a vertical spacing of 200mm. The screw holes all accept M6 (6mm)
screws. The TV weighs 65.0 lbs without the stand.
Note: When using the TV outdoors, you must use a GFI
protected AC outlet with "in-use" waterproof cover.
Placement: The TV must be installed at least 5' from
pool, spa, or other body of water. The TV should
be installed so the screen is not facing direct sunlight, or can be easily
turned away from direct sunlight. Ideal placement is in an area where the TV is
shaded by trees, landscape and/or structures, or under a patio cover or gazebo. Adequate ventilation must be maintained to ensure reliable and continued operation and to protect the television from overheating. Do not block
ventilation slots and openings with objects, or install the television in a
place where ventilation may be hindered. There must be at least 1.5" of space on
Note: If the sun
shines directly on the screen for long periods of time, dark areas may
develop on the screen. This is a normal reaction for the LCD panel, and will
not cause damage to the screen. Either turn the screen away from the sun, or
apply shade to the TV, and the dark areas will quickly disappear.
Auto Standby: The outdoor LCD TV features a power saving mode which
will automatically turn off the TV if there is no signal provided for more than
