ClearView Eagle View Expandable 16-Channel Kit

Surveillance system with digital video recorder and 8 cameras (expandable to 16)

Item #: 834E164D4B

Be the first to write a review

This item is no longer available.

Original Price: $1,399.95

Shop all Camera Packages

A clear view of up to 16 zones

ClearView's dependable, secure Eagle View surveillance kits let you record smooth, full-motion video of the areas you want to cover. If you've got a large home or building to keep an eye on, this expandable kit maybe just what you need. It comes with cameras for 8 zones, but you can expand to 16 zones with additional cameras, available separately. ClearView's robust, highly tweakable system lets you view real-time video either on directly connected monitors or TVs (not included), or remotely via the Internet or a local network using a computer, tablet, or smartphone. The included DVR gives you a range of configurable recording options for saving and reviewing your surveillance footage. The DVR's built-in dual-core processor allows it to capture video at 30 frames per second from all connected cameras at once, for clear motion.

Mount your cameras inside our out

The included cameras let you monitor areas in and around your home, including exterior doorways, foyers and hallways, your garage, and more. This Eagle View kit includes four dome cameras (usually ceiling-mounted) and four bullet cameras (usually wall-mounted) for flexible placement options. Both camera models provide DVD quality color images, and they're dustproof and waterproof for safe use in outdoor environments. Low-light conditions are not a problem, either, thanks to the cameras' built-in IR (infrared) emitters, which allow night vision monitoring and recording at a range of up to 65 feet in total darkness.

Highly configurable recording and monitoring

ClearView DVR systems can be programmed to record continuously, or at scheduled times, or when triggered by motion detection. Recording quality is adjustable, with six selectable settings to choose from. Use higher quality settings for better video clarity and detail, or lower settings for more recording time. The system comes with a replaceable 1TB hard drive which can store up to thousands of hours of video, depending on your settings. ClearView's Eagle model DVR has two SATA hard drive bays, so you can upgrade to as much as 8 terabytes of storage with optional hard drives (not included).

Watch all 16 surveillance zones, or zoom in on a single zone. You can configure the system to send you emails to alert you to specific events, like motion being detected, alarms being activated (requires optional compatible alarms, not included), or the DVR running out of hard disk space. A handy pre-record buffer captures between 1 and 30 seconds of video prior to motion detection being activated — great for actually getting a view of whatever or whoever is moving around in your monitored zone.

Powered by IC Realtime®

ClearView surveillance systems are designed and built by IC Realtime, a company with a well-established name in business and government surveillance camera systems. Their products are engineered to work in demanding applications, offering a high degree of flexibility for installers and end-users. ClearView also offers their own highly qualified in-house technical support, if you ever have any questions about an installation.

Product Highlights:

    • professional security monitoring system with digital watermarking
    • includes Eagle 16-channel DVR with smooth 30 frame-per-second video recording, four dome cameras, and four bullet cameras
    • monitor remotely via the Internet on a computer, tablet, or smartphone
    • ClearView apps for Apple® and Android™ devices available for purchase and download
    • motion detection alerts by text or email can be sent to one or more computers or cell phones
    • system control available via network
    • kit includes eight 60-foot lengths of paired BNC video/power cable for connection to video cameras
    • mouse and wireless remote control included
    • power supply and 8-port power splitter for cameras included
    • warranty: 7 years
    • Our 60-day money-back guarantee
    • Consult local authorities regarding video surveillance before installing security cameras in public areas.

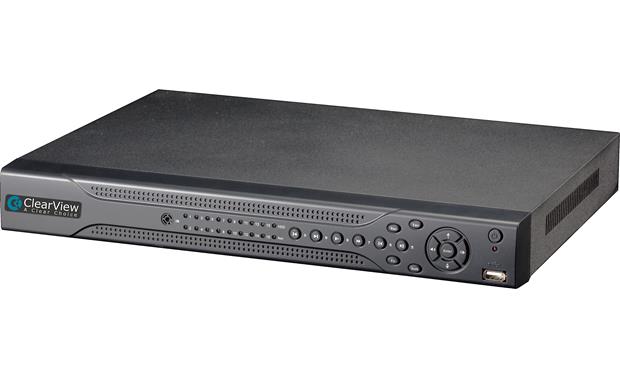

    Eagle 16-channel DVR:
    • dual-core processor allows smooth 30 frame-per-second video recording with all connected cameras simultaneously
    • embedded Linux operating system for secure, reliable operation
    • two SATA hard drive bays
    • includes 1TB hard drive for storing video (upgradable to 8TB using two higher-capacity drives, not included)
    • integrates with third-party home automation systems including RTI, Universal, and Control4
    • adjustable video recording quality with 6 selectable levels
    • frame-by-frame playback feature for analyzing video
    • pre-record buffer lets you capture from 1 to 30 seconds of video prior to motion activation or scheduled recordings
    • front-panel alarm indicator for use with external alarms (not included)
    • supports PTZ (pan, tilt, zoom) control with PTZ-equipped cameras (not included)
    • can back up surveillance data via USB port to a flash drive or portable hard drive (external storage devices not included)
    • compatible with ClearView's cloud-based subscription backup service (not included)
    • 1 HDMI output, 1 VGA computer monitor output, and 1 BNC 75-ohm composite video output
    • supports simultaneous video playback via all three outputs
    • 4 BNC audio inputs allow audio capture in monitoring zones using optional microphones
    • supports two-way audio between DVR and remote location
    • 14-13/16"W x 2-1/4"H x 13-1/8"D
    TD-81 indoor/outdoor night vision mini-dome camera (x 4):
    • 1/3" HDIS (High Definition Image Sensor)
    • 3.6mm fixed lens
    • 65-foot IR (infrared) night vision range with "Smart IR" for clearer images
    • dustproof, waterproof design (IP66 rated)
    BL-71 indoor/outdoor night vision bullet camera (x 4):
    • 1/3" SONY Super HAD (Hole Accumulated Diode) low-noise image sensor
    • 3.6mm fixed lens
    • 65-foot IR (infrared) night vision range with "Smart IR" for clearer images
    • dustproof, waterproof design (IP66 rated)
    • privacy masking-capable to limit surveillance or motion detection area

    ClearView Eagle View Expandable 16-Channel Kit Reviews

    Hands-on research

    What's in the box?

    Download owner's manual

    • Eagle-16 16-channel DVR
    • AC adapter with attached 5' DC output cord (DC output: 12V 5A)
    • 5' AC power cord
    • Wireless remote control
    • Mouse with attached 56" USB cable (Type A USB terminal)
    • Eight 60' lengths of camera power/signal cable (composite BNC and red power plugs at each end)
    • AC adapter with attached 51" DC output cord (DC output:12V 5A)
    • Two 14" PWR-SPIDER-4 power splitters for cameras (1 Female barrel connector on one end and 4 male barrel connectors on the other end)
    • 10" HDD connection cable (for optional second HDD)
    • 80" Ethernet cable (RJ-45 plugs on each end)
    • 2 AB cable connectors
    • Ten 7mm hex-head screws
    • CD-ROM containing User's Manual and Quick Start Guide
    • Register online sheet
    • Self-adhesive warning stickers
    • Four separately boxed TD-81 Dome Cameras
    • Each box contains:
    • TD-81 dome camera with attached 18" power (DC barrel connector) and 21" video cable (BNC connector)
    • 4 Self-tapping screws (length=3/4")
    • 4 Wall anchors
    • User's Manual
    • Self-adhesive mounting template
    • Four separately boxed BL-71 Bullet Cameras
    • Each box contains:
    • BL-71 bullet camera with attached 17" power (DC barrel) and video cable (BNC)
    • 3 Self-tapping screws (length=3/4")
    • 3 Wall anchors
    • 2.5mm Allen wrench
    • User's Manual

    Product Research


    Overview: The ClearView Eagle View DVR kit comes with a 16-channel DVR (digital video recorder) with a built-in 1 TB HDD (hard disk drive). The package also includes eight cameras: four TD-81 dome cameras and four BL-71 bullet cameras. The DVR lets you simultaneously record video from up to 16 connected cameras. It has an analog output port (BNC), VGA port, and an HDMI port to let you monitor the system in real time. This system is ideal for use in home or retail settings.

    1 TB Capacity: The Eagle-16 DVR includes a built-in 1 TB HDD (hard disk drive) that gives you thousands of hours of storage. You can expand the capacity of the DVR by adding a second SATA HDD, if desired. The DVR can accept up to 8 TB of total storage.

    Operating System: The Eagle-16 has an embedded LINUX operating system to maintain stable operation.

    Included Cameras: The Eagle View DVR kit includes eight cameras: four TD-81 dome cameras and four BL-71 bullet cameras. The package also includes a 60' cable (for power and video signal) for each camera. Camera features include:

    • TD-81 Dome:
      • 1/3" HD image sensor with a resolution of 600 lines (color) and 720 (H) x 480 (V) effective pixels
      • IR Range: 65 feet
      • Minimum Illumination: 0.1 Lux @F1.2, 0 Lux with IR LED on
      • 3.6mm lens
      • Dimensions: 4.438" diameter x 3.5" height
    • BL-71 Bullet:
      • 1/3" color Super HAD CCD II image sensor with a resolution of 520 lines (color) and 510 (H) x 492 (V) effective pixels
      • IR Range: 65 feet
      • Minimum Illumination: 0.1 Lux @F1.2, 0 Lux with IR LED on
      • 3.6mm lens
      • Dimensions: Width=2.345", Height=2.15", Length=6.1"

    Eagle-16 DVR: The component-style DVR lets you monitor and record video (at up to 30 fps) up to sixteen channels of video from the remotely-mounted cameras. The unit also has four audio inputs for use with optional microphones. (The included cameras are not audio capable.) The system uses H.264 video compression and G.711 audio compression. You can set up the DVR to perform motion detection recording, scheduled recording, alarm recording, and manual recording. Each recording can be up to 120 minutes in length, with the default set to 60 minutes.

    Monitoring: You can monitor all sixteen cameras at the same time, or any of the cameras individually.

    Privacy Masking: If there are areas in the camera's view that you do not wish to show, you can use privacy masking to obscure those areas. Up to 4 zones per camera can be selected for privacy masking.

    Pan Tilt Zoom: When PTZ-capable cameras are connected, you can set up each camera to pan and tilt up/down/left/right in a constant pattern, or when an alarm is triggered. You can also control the panning speed, zoom, focus, and iris. None of the included cameras are PTZ-capable.

    Network Operation: The Eagle-16 supports real-time monitoring via a network connection. You will be able to monitor on a PC as a web viewer, as part of a CMS (central management system), or on a smartphone app (iPhone, iPad, Android, or Windows Phone). In addition, you can perform video recording searches remotely, and control the pan, tilt, and zoom (PTZ) action on compatible cameras.

    Video Playback: When you are ready to play back recordings, you can search by time, type, or channel. Videos can be played back at normal speed, fast play, slow play, manual frame-by-frame playback, and reverse play. You can switch to the previous or next file, or any file in the current play list. If there are files from another channel recorded at the same time, you can immediately switch to that file. All channel synchronous real time playback is also available. In continuous play mode, the next file automatically plays when the current file ends.

    Backup: The Eagle-16 allows you to backup your HDD via the provided USB ports. You can use a flash drive, portable HDD, or a disk burner. You can also perform backup to the cloud via network download for off-site storage.

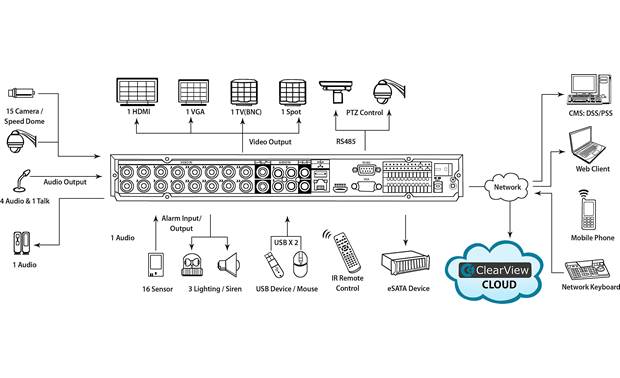

    Connections: The Eagle-16 DVR has the following connections:

    • Front Panel: USB port (Type A) for connecting supplied optical mouse
    • Rear Panel:
      • Audio In: BNC x4
      • Video In: BNC x16
      • Video Out: BNC (composite video)
      • Video Spot: BNC
      • Audio Out: BNC
      • Mic In: BNC
      • USB Port (Type A)
      • Network Port: RJ-45
      • HDMI
      • RS232 port (for connecting keyboard)
      • Video VGA Output: Female DE-15
      • Alarm Input/Output: RS485 port
      • Power Socket: DC 12V (Tip +)
      • Ground Screw
      • Power Switch
