Features

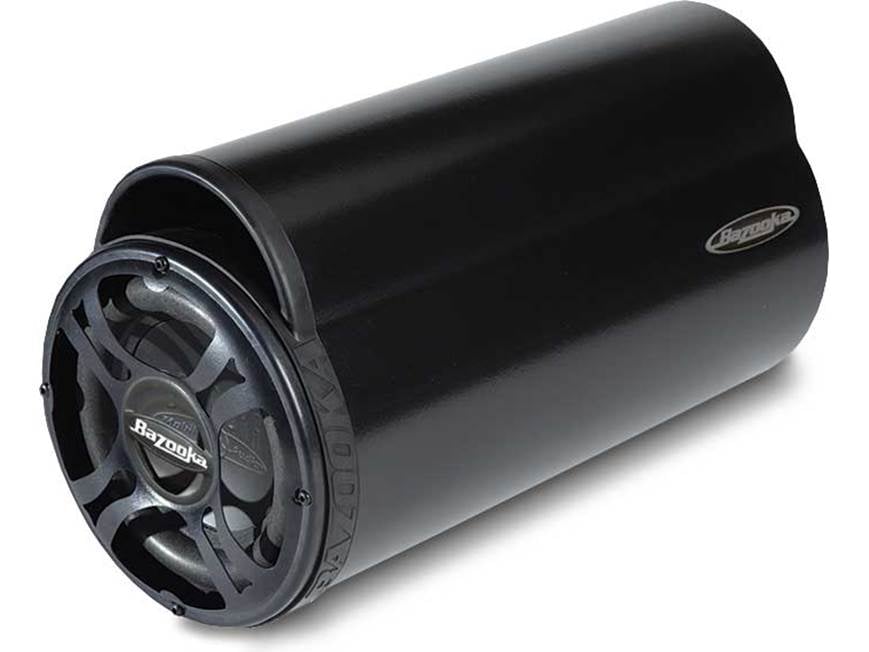

Overview: The BT1024DVC features a water-resistant poly enclosure that houses a 10" poly woofer with a foam surround. The patented Bass Tube enclosure design eliminates bass standing waves for high accuracy, and superior efficiency.

Dual 4-ohm Voice Coils: This tube features dual 4-ohm voice coils that offer flexibility in wiring. When the voice coils are wired in parallel with each other, the tube presents a 2-ohm mono load. When the voice coils are wired in series with each other, the tube presents an 8-ohm mono load. In addition, each coil may be connected to a different amplifier channel and each channel will see a 4-ohm load. Each coil can handle 250 watts RMS, so the combined power handling is 500 watts RMS.

5-Way Binding Posts: The 5-way binding posts will accept bare wire, pin connectors, spade lugs, banana plugs, and dual banana plugs.

Installation: Each mounting strap has an attached mounting base that can be secured to your vehicle using the supplied self-tapping screws. Once the mounting bases are installed, the tube is held in place by the mounting straps. For best results, the tube should be mounted facing into a corner, and there should be 2" to 4" between the woofer and the corner into which the woofer is pointing.
