On-Q 4-port 10/100 Double-bay Router

Zoom
  • On-Q 4-port 10/100 Double-bay Router

    Front

  • On-Q 4-port 10/100 Double-bay Router

Item# 717DA1004 offer details

By buying this product you'll earn up to 100 Rewards points.

When you sign up for a Crutchfield account, you’ll be enrolled in Crutchfield Rewards. You’ll earn one point for every dollar you spend on gear from us. You can turn your points into Rewards Cards that you can use toward future purchases. You can sign up for an account now, or after you complete your purchase (you’ll get credit for the points either way).

Share this product:

On-Q

Our take on the On-Q 4-port 10/100 Double-bay Router

by Tara W.

This router allows you to create a home network of up to four computers, or even more when you add an optional Ethernet switch. It connects to your broadband modem to distribute Internet service, configuring your computers' IP (Internet Protocol) addresses automatically for easy setup. The router installs in an On-Q structured wiring enclosure using the supplied bracket.

See more info on this item

Highlights:

  • On-Q part # DA1004
  • built-in switching for up to four computers
  • DHCP (Dynamic Host Configuration Protocol) automatically configures IP addresses for easy setup
  • requires 15-volt power supply (sold separately)
  • installs in an On-Q structured wiring enclosure (mounting bracket included)
  • warranty: 1 year
  • Our 60-day money-back guarantee
Shop all On-Q Networking


    Hands-on research from the Crutchfield Labs (what are the Labs?)

    What’s in the box? | In-depth notes

    Product Research

    Product Research
    What's in the box?

    Download owner's manual

    • One 4-port Fast Ethernet Router/Switch (mounted in double-bay metal bracket)
    • Owner's Manual on CD-ROM (3" CD)
    • User's Guide

    Our Product Research Team

    At Crutchfield, you'll get detailed, accurate information that's hard to find elsewhere. That's because we have our own in-house Product Research team — they open the box, verify contents, check the owner's manual, and record dimensions, features and specs. We stay on top of new products and technologies to help people make informed choices.

    Features

    Product Overview: The On-Q DA1004 4-Port Fast Ethernet Router/Switch is a flexible hardware configurable switch/router, designed to be used as a router with an integrated 4-port Fast Ethernet switch, or just as a switch for use with a 3rd party external router. It includes four LAN ports and one WAN port. You can connect a small group of PCs to a high-speed broadband Internet connection. Up to 253 users can be supported on a single Internet line (via cable or xDSL modem). The module is installed in a double-bay metal mounting bracket, allowing you to mount it into a standard On-Q enclosure.

    Configuration: You can use a configure your PC's network interface card to talk to the Router/Switch. With your PC connected to one of the local ports on the Router/Switch, and the front panel routing switch set to "On", you can configure the Router/Switch to your system using the Setup Wizard.

    Power Supply: The module requires a 12-volt, 4 watt power supply (not supplied).

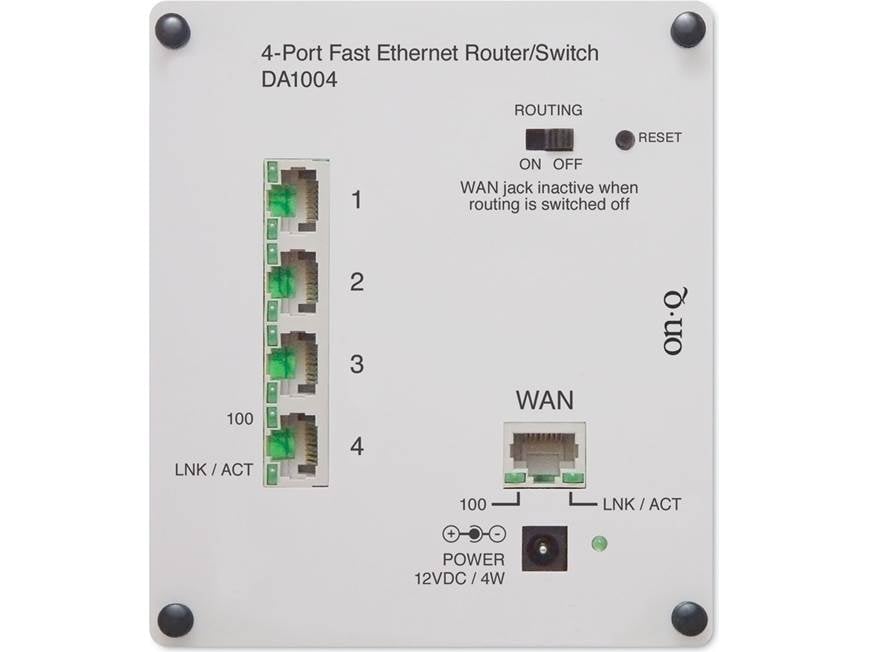

    Connections: The DA1004 has 5 RJ45 jacks: 4 Local Switch ports and 1 WAN Port.

    LED Indicators: Each RJ45 jack has two green LEDs: one lights to indicate 100 Mbps operation, while the other lights to indicate a valid Ethernet link and/or data activity.
