Features

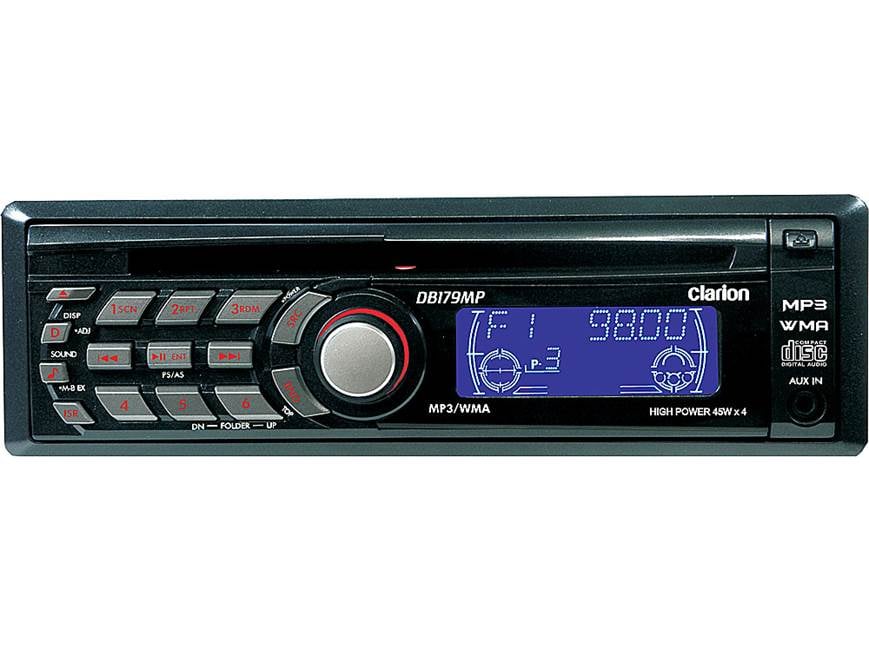

Ergonomic Face Design: The Clarion DB179MP features an
easy-to-use rotary volume control and raised illuminated buttons on the face
which are laid out in an asymmetrical design to place the most used features
within a specific area for ease of use and less user distraction.
Digital LCD Display:
The high visibility digital LCD display, with blue
background and white characters, on the DB179MP allows numbers and characters
to be displayed clearly in all lighting conditions.
Detachable Face: The Clarion DB179MP features a detachable face-plate
to deter theft. The unit comes with a hard-plastic carrying case to store the
face plate when detached to prevent scratches.
Disc Compatibility: The unit features a single disc player
that will playback CD and finalized CD-R/CD-RW audio discs.
MP3/WMA Playback: The unit can
play MP3 and WMA files recorded onto CD-R and CD-RW discs using ISO9660 Level 1
or 2, Joliet, or Romeo formats. The player can recognize up to 8 hierarchical
levels, 128 folders, and 254 files per folder. Bit rates for MP3 are 8-320 kbps,
plus VBR (Variable Bit Rates). Bit rates for WMA are 32-192 kbps. This unit is
compatible with, and will display MP3 and WMA ID3 tags up to 64 characters.
Disc-In-Play-Function: This feature allows you to turn the
power to the unit "on" and start playing the disc automatically when the disc is
inserted even if the unit is not powered up, as long as the ignition key is
turned to the "on" or "acc" position.
Top Function: The Top Function resets the CD player to the first track
of a CD-audio disc. In the case of an MP3/WMA disc, the first track of a
folder being played will be reset.
Last Position Memory: If you turn off the unit while a disc
is playing, it will resume playback at the stopping point when it is turned on
again.
Scan Play: This function allows you to locate and play the first 10
seconds of all the tracks recorded on a CD or the first 10 seconds of the first
track of all the folders on an MP3/WMA disc.
Backup Eject: The headunit allows you to eject a disc, even when the
headunit is turned off.
Auto Reload: When a CD is ejected and left sticking out of the CD slot for 15 seconds, the
unit automatically reloads the CD to protect if from damage.
AM/FM Tuner: The headunit features a built-in AM/FM tuner which offers
18 FM station presets and 6 AM station presets. Presets can be stored by the
user or automatically stored by the headunit.
Instant Station Recall (ISR): You can store one radio station in Instant Station Recall (ISR) memory and
recall it from any mode (except Power Off). Once the ISR station has been
recalled, you cannot tune to another station without first disengaging the ISR
function. You can, however, switch to another source.
CEA2006 Compliant: The power specifications for the Clarion
DB179MP are compliant with the CEA2006 Mobile Amplifier Power Testing and
Measurement standards from the Consumer Electronics Association (CEA). These
standards were developed as a way to equitably compare power specs from model to
model and between manufacturers. The power output specs for the DB179MP are as
follows:
- CEA2006 Specs: 21 watts RMS x 4 channels (at 4 ohms,
20Hz-20kHz, 1% THD-N)
- Maximum Power Output: 45 watts x 4 channels (180 total
watts)
Z-Enhancer: Z-Enhancer features four equalization
selections (B-Boost, Impact, Exite, and Off). Along with 2 bands of parametric
equalization, the Z-Enhancer circuitry enables sound adjustments with more
flexibility than the basic Bass and Treble tone controls.
- B-Boost: Bass
is emphasized
- Impact: Bass and treble are emphasized
- Excite: Bass and treble emphasized, while mid
de-emphasized
- Off: Allows you to adjust the Bass and Treble
independently from -7 to +7
Magna Bass EX (Extend): The Magna Bass Extend feature does not adjust
the low frequencies like the normal sound adjustment function, but emphasizes
the deep bass frequencies to provide you with a dynamic sound. The Magna Bass EX
circuit boosts bass at 50Hz. This creates a rich, deep, defined bass rather than
the muddy, booming bass of a standard loudness control. The Magna Bass EX boost
levels are dependent on the system volume, which results in balanced system
response and dynamic bass reproduction
1.8-Volt Preamp Outputs:
The DB179MP is equipped with a pair of 1.8-volt preamp outputs for connecting an
external 2-channel amplifier.
Auxiliary Input: The DB179MP feature a front panel 3.5mm
auxiliary input so you connect your external portable audio player or portable
satellite radio receiver to this headunit. You can adjust the Auxiliary input
sensitivity level from Low, Mid, to High to match the volume output of your
connected external audio device.
Illumination Dimmer: The
receiver's display automatically dims to a preset brightness when the vehicle's
headlights are turned on. The wiring harness includes an orange/white lead that
should be connected to the vehicle's parking light circuit in order for the
dimmer feature to operate.
Screen Saver: This unit is provided with a Screen Saver function which
allows you to show various kinds of patterns and characters in the operation
status indication area of the display in a random order. You can turn this
function on or off. If the button operation is performed with the screen saver
function on, the operation display corresponding to the button operation is
shown for about 30 seconds and the display returns to the screen saver display.
Wireless Remote: The DB179MP is equipped with the RCB-176
infrared wireless remote control for wireless operation of the headunit.
Mounting: You can install the unit within 30-degrees of
horizontal. When ISO-DIN mounting, you will need to use your vehicle radio's
original factory ISO screws.
