About the Q-Forms Kick Panel Enclosures
Many award-winning sound-off competitors put their mid-woofers and tweeters in custom-built kick panel enclosures to get concert-quality stereo imaging. But why pay hundreds of dollars to an installer when you can do it yourself? Just mount your 6-1/2" component system in Q-Logic's Q-Forms kick panel enclosures, and your car speakers will deliver competition-quality imaging without the expensive price tag.
Q-Forms enclosures hold your speakers in an ideal position, angling them to maximize sound quality. Since the Q-Forms are located near your feet, the distance from your ears to each speaker becomes closer to equal, creating a superior soundstage. The driver's seat becomes the "sweet spot" for great stereo sound. Warranty: 1 year.
Note: The Q-Forms do not come with pre-cut holes, so you must cut holes in order to install your component speakers in the enclosures. Installing the Q-Forms panel enclosures in your vehicle may require relocation of the parking brake pedal or other vehicle parts. Please enter your vehicle information or call an Advisor at 1-888-955-6000 to find out if this model is compatible with your vehicle.
What's in the box:
Q-Forms Kick Panel Enclosures owner's manual
- 2 Black plastic Q-Forms
- 2 Pieces of Poly-fil batting
- Roll of foam tape
- 4 Screws (#8 x 3/4")
- Installation instruction sheet
- Q-Forms "C-series" instruction sheet
Customer reviews for Q-Forms Kick Panel Enclosures
Loading...
Loading reviews...
Average review:
4.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Q-Forms Kick Panel Enclosures
Product Research
Features

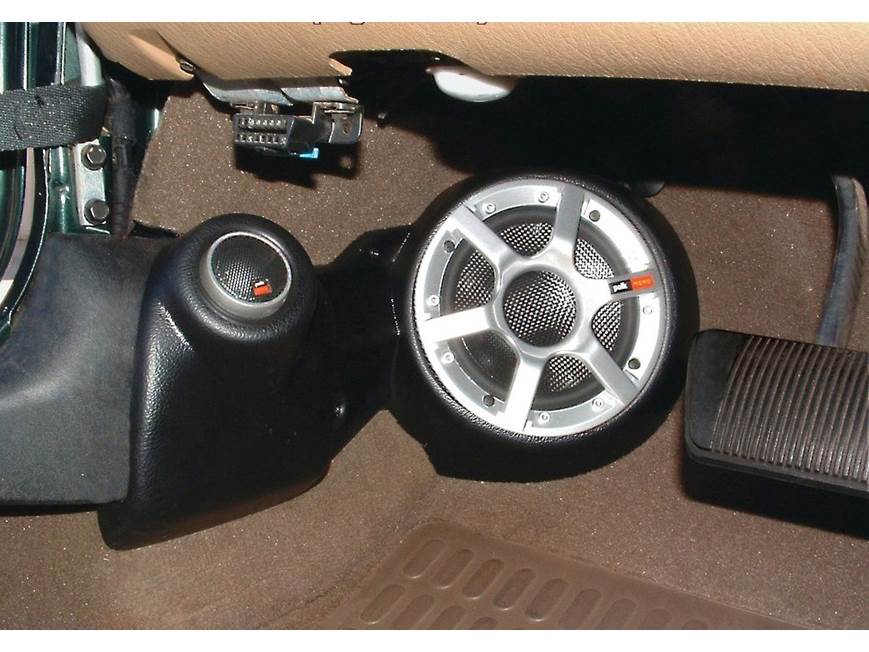

Product Overview: Q-Logic C-Series Q-Form custom kick panels are designed to hold a 2-way component speaker system consisting of a woofer (up to 6-1/2") and a tweeter (up to 2" diameter). They are fabricated of durable ABS plastic, color matched to the factory interior colors, and replace the factory kick panels. The positioning and angle of the speakers provide optimum stereo imaging and staging.
No Grilles: Because no grilles are included with the Q-Forms, you must use the grilles supplied with the component system. In some cases, the grille could slightly overlap the mounting surface for the woofer. In this case the cutout can be made so any overlap occurs at the back bottom edge where it will not be visible.
Note: One of the included installation guides states that two Q-grilles are included. That is not the case for the C-series Q-Forms.
Compatibility: These Q-Forms are designed to fit select 1997 to 2006 Jeep Wranglers. They match the factory Black interior trim.
Note: Please enter your vehicle information to verify compatibility.
Installation Notes
Installation Overview: You will need to cut out the mounting holes in the designated areas of the plastic Q-Form. A roll of foam tape is provided for sealing the woofer in the kick panel. The tweeter can be flush or surface mounted. Giving exact mounting depths is not possible, since it will depend to some extent on the space available behind the factory kick panel. (Q-Logic advertises 4" minimum.)
