Features
Specifications
Features

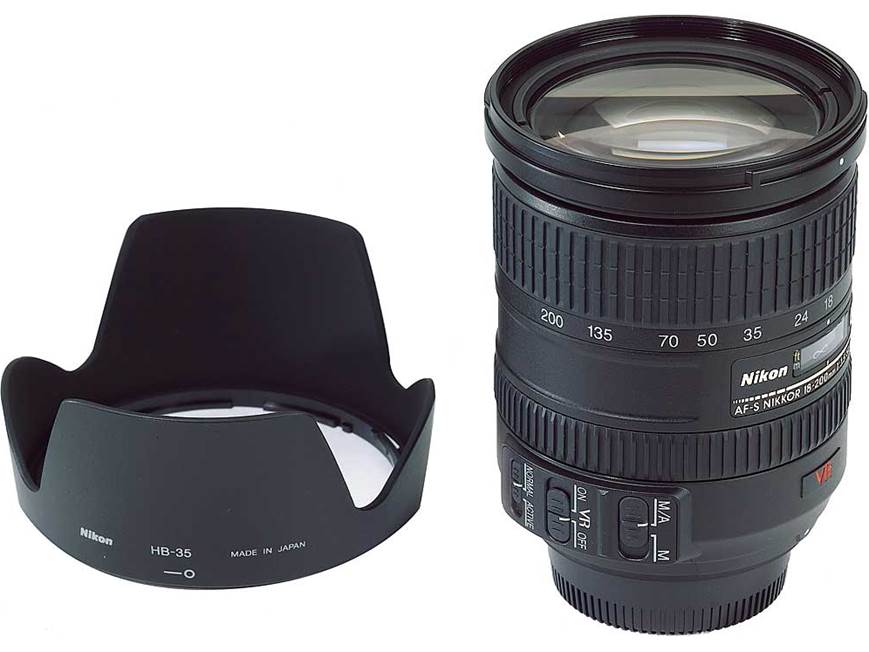

Product Overview: This item is
a 18-200mm, f/3.5-5.6G IF-ED (Extra-low Dispersion glass), AF-S DX VR
Zoom-Nikkor lens, compatible with the Nikon DX formatted Digital SLR cameras
(like the D-50). The lens includes a 72mm snap-on front lens cap (LC-72), a rear
lens cap (LF-1), and a bayonet hood (HB-35). Auto Focus-Silent Wave (AF-S) is a
type of focusing motor used in a number of AF-Nikkor lenses; the AF-S motor is
very fast and quiet. AF-S lenses also have an M/A mode selector which allows the
user to switch from automatic to manual focus with almost no lag time.
Focus Range: The lens has
a
broad 18-200mm focal range for use in a variety of situations (equivalent to a
27-300 lens in 35mm format).
Vibration
Reduction:
The VR II system offers a reduction of vibration while the
shutter is button is slightly pressed and at the instant the shutter is
released. This is the equivalent of using a shutter speed 4 stops faster.
Silent Wave Motor (SWM): New
compact rod-type motor enables ultra-high speed autofocusing with exceptional
accuracy and super-quiet operation.
AF G-type lens: Lenses that
use D-Type technology provide the camera with precise distance information for
flash and ambient light exposure processes.
ED Glass Elements: There are
two of these elements which minimize color imperfections and achieve superior
optical performance.
Coating: Lenses are coated with
Nikon Super Integrated Coating which minimizes ghosting affects and flare, so
that you can get even higher contrast and vivid images, even in challenging
light operation.
Zoom Control: The lens features
a large, textured manual zoom ring for ultimate zooming control.
Auto Focus with Manual Override
(M/A): In the autofocus mode you can instantly switch to manual focus using
the focus ring, for easy adjustment. Note: Because there is no aperture
ring on this lens, the aperture must be set on the camera.
Diaphragm: The lens is equipped
with a fully-automatic, 7-bladed diaphragm that produces a nearly circular
aperture. Out-of-focus images in front of or behind the subject are rendered as
pleasing blurs.
Bayonet Hood: The supplied
HB-35 bayonet hood extends approximately 1-3/4" beyond the front of the lens,
and shades the aperture opening from direct sunlight that causes flaring. When
not in use, the hood can be stored on the lens by mounting it in reverse
position.
Optional Accessories (available
from Nikon): Compatible optional accessories include 72mm screw-in filters.
Specifications
- Type of Lens:
G-type AF-S DX VR Zoom-Nikkor lens
- Type of Mount:
Nikon bayonet type
- Filter Diameter:
72mm
- Focal Length:
18mm to 200mm
- Maximum Aperture:
f/3.5-5.6
- Minimum Aperture: f/22-36
- Minimum Focus Distance: 20
inches
- Lens Construction:
16 elements in 12 groups (3
aspherical lenses and 2 ED glass lens elements)
- Picture Angle:
76°-8°
- Focal Length Scale:
18, 24, 35, 50, 70, 135, and 200mm
- Physical Dimensions:
- Without Lens Hood or Lens
Caps:
- Length:
4.194" to 6.729"
- Diameter:
3.034"
- With Lens Hood and Lens
Caps:
- Length:
6.145" to 8.680"
- Diameter:
3.871"
- Weight:
approximately 19.8 ounces
