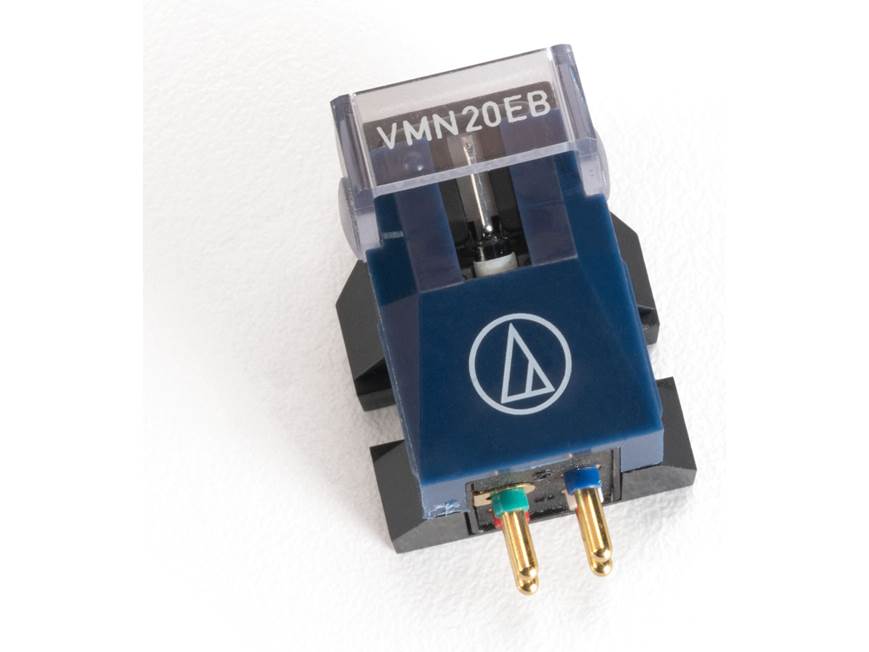

About the Audio-Technica VM520EB
Great stereo separation, plus an elliptical stylus
The Audio-Technica VM520EB has two moving magnets inside, matching the left/right separation of a stereo record groove. The elliptical bonded stylus tracks record grooves with high accuracy for outstanding audio reproduction. It's designed to fit a standard 1/2" mount for compatibility with a wide range of turntables.
Product highlights:
- dual moving magnet design for excellent stereo separation
- center shield plate between the left and right channels reduces crosstalk
- 0.3 x 0.7 mil elliptical stylus
- all-metal cantilever
- frequency response 20-23,000 Hz
- output voltage: 4.5 mV
- stereo separation: 27 dB
- channel balance: 1.5 dB
- tracking force range: 1.8-2.2 grams
- recommended tracking force: 2.0 grams
- load impedance: 47k ohms
- cartridge weight: 6.4 grams
- 11/16"W x 11/16"H x 1-1/8"D
- warranty: 1 year
- MFR # AT-VM520EB
What's in the box:
Audio-Technica VM520EB owner's manual
- Dual moving magnet stereo phono cartridge
- 2 Long screws
- 2 Short screws
- 2 Nuts
- 2 Washers
- User Manual
- Disposal Note
Customer reviews for Audio-Technica VM520EB
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Audio-Technica VM520EB
Features & specs
Type | MM | |
Mounting | Standard | |
Stylus shape | Eliptical | |
Frequency response (Hz) | 20-23k | |
Tracking grams | 2.0 | |
Stereo separation (dB) | 27 | |
Output voltage (mV) | 4.5 | |
Load Impedance (Ohms) | 47,000 | |
Load Capacitance (pF) | 100-200 |
Product Research
Features
Dual Moving Magnet Stereo Cartridge: The VM520EB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica's new VM cartridge line. Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction.
- VM dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
- Aluminum cantilever
- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Durable low-resonance polymer housing
Specifications:
- Frequency Response: 20-23,000 Hz
- Channel Separation: 27 dB (1 kHz)
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Output: 4.5 mV (at 1 kHz, 5 cm/sec)
- Channel Balance: 1.5 dB (1 kHz)
- Stylus Shape: 0.3 x 0.7 mil eliptical
- Cantilever: Aluminum pipe
- Mount: 1/2"
- Replacement Stylus: Part # VMN20EB
- Coil Impedance: 2,700 ohms (1 kHz)
- DC Resistance: 800 ohms
- Load Capacitance: 100-200 pF
- Coil Inductance: 460 mH (1 kHz)
- Static Compliance: 35 x 10-6 cm/dyne
- Dynamic Compliance: 8 x 10-6 cm/dyne (100 Hz)
- Vertical Tracking Angle: 23°
Dimensions: 0.75" (w) x 0.75" (h) x 1.125" (d)
Weight: 6.4 g (0.2 oz)
