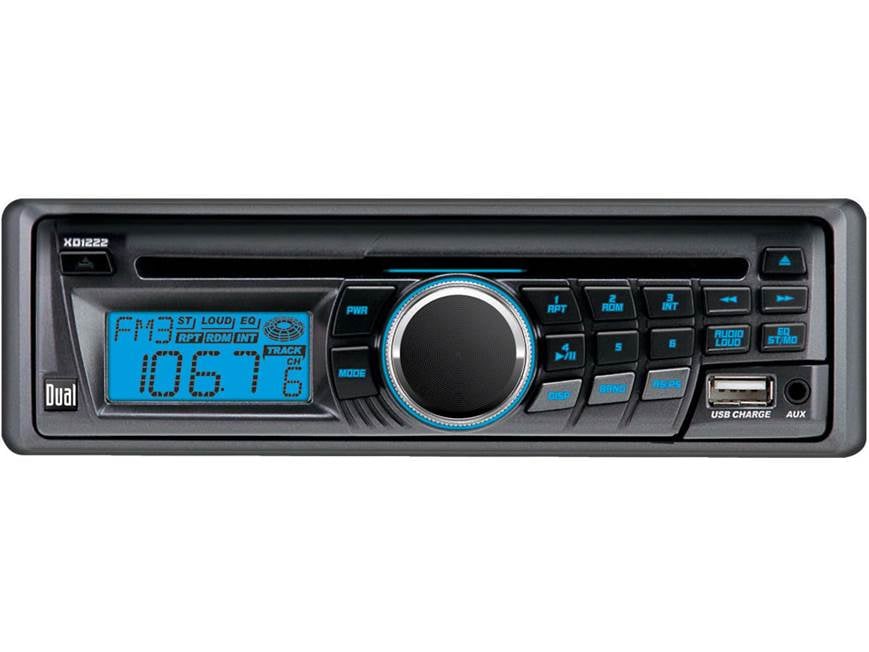

About the Dual XD1222
Talk about bang for your buck — Dual's XD1222 CD receiver gives you a slew of handy features for a fraction of the cost of most other stereos. Its user-friendly controls, detachable face, and solid tone make it a nice upgrade from many factory radios.
Play all your store-bought or recordable CDs, and you can tweak the sound to your liking with the bass and treble controls or by choosing from three preset EQ curves. Use the handy front-panel auxiliary input to listen to your iPod®, MP3 player, or Dock & Play satellite radio. You can also connect an amp or a powered sub to the set of preamp outputs.
Dual adds another handy feature — a front-panel USB charging port. It'll charge most USB-equipped devices, including MP3 players and cell phones, so your important devices won't go dead during a long road trip.
Product highlights:
General features:
- CD receiver with built-in amplifier (5 watts RMS CEA-2006/15 peak x 4 channels)
- plays CDs, CD-Rs, and CD-RWs
- detachable face
- front-panel USB charging port
Audio features:
- three preset EQ curves
- bass and treble controls
- loudness
Expandability:
- front-panel auxiliary input
- 2-channel preamp outputs
Other features:
- CEA-2006 compliant
- warranty: 1 year
- MFR # XD1222
What's in the box:
- AM/FM/CD receiver (2 transport screws installed on top of unit)
- Sleeve
- Face
- Vinyl face case
- Trim ring
- Wiring harness (with 5A fuse on constant 12V wire)
- Spare 5A AGC fuse
- 2 Radio removal tools
- Metal support strap
- Rear-support bolt
- 4 Pan-head screws
- 4 Counter-sunk screws
- Machine screw (has 1 flat washer/1 lock washer and 1 nut)
- Phillips head bolt with nut attached
- Star washer
- 2 Face-fixing screws
- Installation/Owner's Manual (Eng)
- Installation/Owner's Manual (Spanish)
- "FCC Compliance" note
- "Attaching Front Panel" note
- Transport Screws Removal note
Customer reviews for Dual XD1222
Loading...
Loading reviews...
Average review:
3.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Dual XD1222
Features & specs
| Expandability | ||
|---|---|---|
| AUX Input | Front | |
| Audio/video Input | --- | |
| USB Input | Charger | |
| USB Port Power | --- | |
| Backup Camera Input | No | |
| Second Camera Input | No | |
| CarPlay | No | |
| Android Auto | No | |
| Siri Control | No | |
| Alexa Voice Control | ||
| Android Control | No | |
| Memory Card Slot | No | |
| Bluetooth Compatible | No | |
| Satellite Radio Ready | No | |
| HD Radio | No | |
| Navigation | --- | |
| iPod Compatibility | ||
| Full size | No | |
| Nano | No | |
| Touch | No | |
| iPhone | No | |
| General | ||
| RMS Power (CTA-2006) | 5 watts | |
| RMS Power (Manufacturer) | --- | |
| Peak Output | 15 watts | |
| RMS Power Bandwidth | 20-20kHz | |
| Preamp Outputs | 2-channel | |
| Sub Preamp Outputs | No | |
| Switchable Rear Preamp Outputs | No | |
| Video Screen | No | |
| Navigation App Compatible (iOS) | ||
| Navigation App Compatible (Android) | ||
| Preamp Voltage | 2 volts | |
| Screen Size | --- | |
| Screen Type | --- | |
| Display Color | Blue/black | |
| Key Button Color | Blue | |
| EQ Bands | None | |
| Wireless Remote | No | |
| Steering Wheel Control Compatible | No | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Tuner | ||
| FM Sensitivity | 12 dBf | |
| European Tuning | Yes | |
| Seek/Scan | Seek | |
| Radio Data System | No | |
| File Playback | ||
| Music File Playback | ||
| High-res Playback | ||
Product Research
Display Features
Audio Section
AM/FM Tuner
CD Playback
External Device Connection
Display Features
Detachable Face: The Dual CD Receiver features a detachable face-plate and comes supplied with a vinyl carrying case to store the receiver's face when detached. The unit comes with two face-fixing screws if you would like to prevent the face-plate from detaching.
LCD Display: The XD1222 features a blue/black dot-matrix type LCD display for easy viewing during the day or nighttime.
12/24 Hour Clock: The unit's built-in clock will display 12-hour AM/PM time in USA frequency spacing mode. In European frequency spacing mode, the clock will display 24-hour time.
Audio Section
Preset EQ Curves: The Dual CD Receiver features the following preset EQ curves to customize your music listening - Classic, Pop, Rock or Off.
Bass And Treble: The Bass and Treble and be independently adjusted from -6 to +6. Bass and Treble settings are retained for each mode individually. Any adjustments to the Bass or Treble settings automatically cancel the current EQ curve.
Loudness Curve: Activating this feature will enhance the bass and treble frequencies when listening to music at low volume.
Preamp Outputs: The XD1222 is equipped with a pair of rear preamp outputs for connecting an external amplifier.
AM/FM Tuner
AM/FM Tuner: The Dual XD1222 features a built-in AM/FM tuner.
Preset Tuning: You can store up to 18 FM station presets and 12 AM station presets.
Seek Tuning: In addition to preset tuning, XD1222's tuner allows Seek and Manual tuning of AM/FM stations.
CD Playback
CD Compatibility: The Dual XD1222 headunit supports CD-Audio, CD-R, and CD-RW playback.
Note: The headunit does not support MP3 or WMA playback.
External Device Connection
Auxiliary Input: The XD1222 features a front-panel 3.5mm auxiliary input for connecting an external portable audio device such as a portable MP3 player.
USB Charging Port: The XD1222 features a front-panel USB type-A port for charging of a battery powered USB device (5V/1A).
Note: This unit does not offer any audio playback or control through the USB port.
