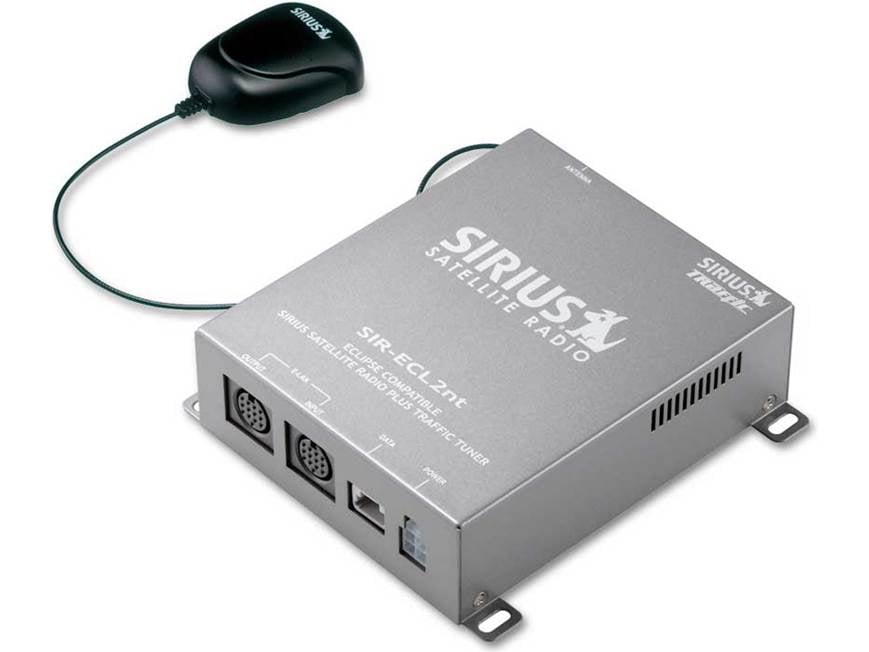

Eclipse SIR-ECL2NT SIRIUS Traffic tuner for the Eclipse AVN-6610

Item # 099SIRECLT

The SIR-ECL2NT tuner delivers SIRIUS Traffic service to your Eclipse AVN-6610 navigation system.

Find what Fits your vehicle

Remove

Checking fit...

The SIR-ECL2NT tuner delivers SIRIUS Traffic service to your Eclipse AVN-6610 navigation system.

Item # 099SIRECLT

About the Eclipse SIR-ECL2NT

Ken Nail
The SIR-ECL2NT tuner delivers SIRIUS Traffic service to your Eclipse AVN-6610 navigation system. With your SIRIUS Traffic subscription, you'll receive continuous updates on traffic conditions along the programmed routes you drive.

The SIR-ECL2NT tuner delivers SIRIUS Traffic service to your Eclipse AVN-6610 navigation system. With your SIRIUS Traffic subscription, you'll receive continuous updates on traffic conditions along the programmed routes you drive.

While your navigation system guides you, SIRIUS Traffic keeps an eye on accidents, scheduled road closings, traffic flow, and delays along your route, and warns you in time to make adjustments. In some areas, it even informs you of the speed of traffic flow on the roads ahead.

The SIR-ECL2NT not only receives SIRIUS Traffic service, it's also a SIRIUS satellite radio tuner — so you can tap into the entire range of SIRIUS entertainment and music with your subscription.

Note: You can pay $9.95 per month for the required SIRIUS Traffic subscription, or $16.95 monthly if you bundle Traffic with a regular SIRIUS subscription. SIRIUS Traffic service is currently available in over 30 cities — go to www.sirius.com/traffic for current offerings.

READ LESS

Product highlights:

  • SIRIUS Satellite Radio/SIRIUS Traffic tuner
  • for use with the Eclipse AVN-6610 navigation receiver
  • subscription required
  • antenna included
  • dimensions: 5-7/16"W x 1-7/16"H x 4-3/16"D
  • warranty: 1 year
  • MFR # SIR-ECL2NT

What's in the box:

  • Sirius Satellite Radio plus Traffic Tuner
  • 3' Power harness (has in-line noise filter and 1A fuse)
  • 11' E-LAN cable (has a round 13-pin connector on each end)
  • 11' Data cable with 4-pin connector on each end
  • Antenna with attached 20.75' cable (has a right-angle SMB connector)
  • One 5.5" rubber antenna cable cover/tail
  • 4 Self-tapping screws
  • 1 Cleaner pad
  • Installation Guide

Customer reviews for Eclipse SIR-ECL2NT

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Eclipse SIR-ECL2NT

Research Team

Product Research

Features
Inputs and Outputs

Features

Overview: When used with a compatible Eclipse navigation head unit, this tuner allows you to receive SIRIUS satellite radio and SIRIUS real-time traffic programming in your vehicle. In addition to this tuner and antenna, you must have a separate subscription to both SIRIUS Radio and SIRIUS Traffic to receive SIRIUS digital satellite radio signals and real-time traffic information.

Note: It is possible to activate only the SIRIUS radio or SIRIUS Traffic portion of the tuner. The Tuner has two SID numbers located on the bottom of the unit used for activation. One is labeled "Audio" which is used to activate SIRIUS's radio service and the other is labeled "Data" which is used to activate SIRIUS's traffic service.

SIRIUS Traffic: SIRIUS Traffic provides navigational traffic information for 22 major metropolitan areas in the continental USA. SIRIUS Traffic conveys navigations traffic information for visual display on a compatible navigation system. Using a navigation system (such as the Eclipse AVN6610), traffic data from SIRIUS is displayed either superimposed on a navigation map or in a list type format displayed on the headunit's navigation screen. The data provides traffic speed and flow information as well as scheduled and unscheduled incidents, alerting you to congestion, accident, road construction, detours, and other traffic related information as you drive. The SIRIUS Traffic data is updated frequently enabling you to be up-to-date regarding traffic situations. Based on the information from SIRIUS Traffic, your navigation system can then plan alternate routes before you get caught in traffic and if you make a wrong turn, the system can recalculate your route and get you back on track in seconds without traffic delays.

Auto Avoid: When you select Auto Avoid Traffic on your compatible headunit the system checks for the best route every 5 minutes based on traffic congestion.

Traffic Flow Information: When the system receives information about traffic flow (congestion), you can choose whether to display the traffic flow information on your navigation unit's map screen. You can choose to view or not to view the following - Free Flowing Traffic, Traffic Jams or Stationary Traffic.

SIRIUS Satellite Radio: SIRIUS Satellite Radio features more than 120 streams of original programming beamed coast-to-coast, including 65 streams of commercial-free, digital-quality music, plus news, talk, sports, entertainment, and children's programming.

Note: Satellite radio service is available only within the contiguous United States. Service is not available in Alaska and Hawaii.

Compatibility: This Sirius and Traffic tuner is compatible with the Eclipse AVN6610 navigation headunit through the unit's E-LAN and Data port connection.

CD Changer Pass-Thru: The SIRIUS radio + Traffic tuner uses the CD changer and Data input on the Eclipse head unit. If you also want to use a CD changer, there is a CD changer pass-through connection on the SIRIUS radio tuner, so they can be daisy chained together.

SIRIUS Antenna: The SIRIUS antenna has a powerful magnetic base that allows you to mount the antenna on the roof or trunk lid of your vehicle. The antenna needs to be positioned in such a way that it will be free of mechanical and line-of-sight obstructions.

Inputs and Outputs

Front Panel of Tuner:

  • E-LAN Output: 13-pin jack that connects to the head unit using the supplied E-LAN cable
  • E-LAN Input: 13-pin jack that connects to an optional CD changer
  • Data Port: 4-pin jack that connects to the head unit using the supplied Data cable
  • Power: 4-pin jack for use with supplied power harness

Back Panel of Tuner:

  • Antenna: single SMB input
