XS Power BIG3XS 350-amp Big 3 wiring upgrade kit

Item # 122BIG3XS

 If your aftermarket audio system is putting a strain on the rest of your car's electronics, you might want to...

Find what Fits your vehicle

Remove

Checking fit...

 If your aftermarket audio system is putting a strain on the rest of your car's electronics, you might want to...

California customers:
Please click here for your Proposition 65 warning.

8 questions - 14 answers

Item # 122BIG3XS

Ships free

On backorder
Expected: 6/4/2024
$124.99

About the XS Power BIG3XS

Jon Paul

The one-step "Big 3" upgrade kit

 If your aftermarket audio system is putting a strain on the rest of your car's electronics, you might want to upgrade your factory wiring. Rated to 350 amps, this "Big Three" grounding kit will boost your electrical system's performance.

The one-step "Big 3" upgrade kit

 If your aftermarket audio system is putting a strain on the rest of your car's electronics, you might want to upgrade your factory wiring. Rated to 350 amps, this "Big Three" grounding kit will boost your electrical system's performance.

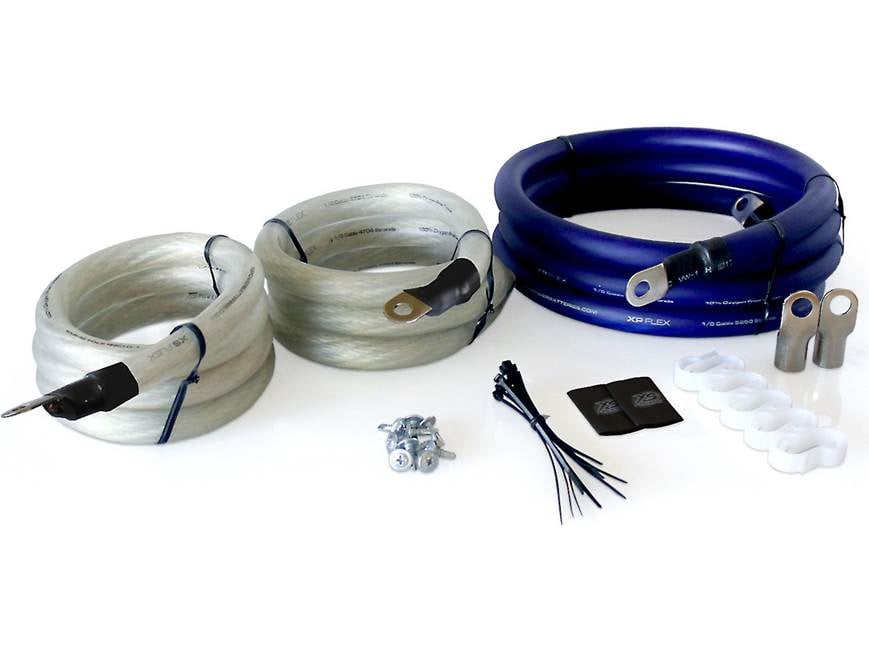

XS Power's Big3XS kit includes heavy-duty 1/0-gauge oxygen-free copper cables that replace (or augment) your vehicle's battery ground-to-chassis wire, the chassis-to-engine block wire, and the wire connecting the alternator's positive output to the battery's positive terminal.

Another bonus is that the 8.5 mm ring terminals are already crimped to the wires, so you won't have to replace the stock grounds unless you want to improve them or double up. Extra ring connectors are included, so you'll be able to trim the wires to length and replace the terminals if needed.

The Package

The 350-amp Big3XS kit includes:

  • 1 6-foot XSFLEX 1/0-gauge power cable
  • 2 4-foot XSFLEX 1/0-gauge ground cables
  • 8 XS Power heat shrink tubes
  • 8 1/0-gauge crimp  crimp terminals (already crimped on the wires)
  • 10 wire clamps
  • 10 zip ties
  • 10 screws
Warranty: 1 year
READ LESS

Product Highlights:

  • MFR # BIG3XS

What's in the box:

  • One 6-foot XSFLEX 1/0-gauge power cable with ring terminals on both ends (blue)
  • Two 4-foot XSFLEX 1/0-gauge ground cables (pearl)
  • Two extra 1/0-gauge crimp-on ring terminals
  • 2 Heat shrink terminal protection tubes
  • 10 wire clamps
  • Ten 3" Zip-ties
  • Ten 1/2" Self-tapping screws
  • Instructions on the box

Customer reviews for XS Power BIG3XS

Loading reviews...

Average review:

5.0 out of 5 stars
24 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the XS Power BIG3XS

Mark G.

Product Research

Features

Contents: The BIG3XS kit contains the following:

  • Power Wire: One 6' length of 1/0 gauge multi-strand power wire in a blue jacket (4704 strands/100% oxygen free copper ). Both ends have ring terminals attached; 0.715" wide and 0.330" inner diameter.
  • Ground Wires: Two 4' lengths of 1/0 gauge multi-strand ground wires in translucent pearl colored jackets (4704 strands/100% oxygen free copper). Both ends of each wire have ring terminals attached; 0.715" wide and 0.330" inner diameter.
  • Installation Accessories:
    • Two additional 1/0 AWG crimp-on ring terminals
    • Two XS Power heat shrink tubes (used with the extra ring terminals to protect exposed surface)
    • Ten wire clamps
    • Ten 1/2" Self-tapping screws
    • Ten 3" Wire ties

Loading accessories...

Customer Q&A

8 questions already asked

Q
I am about to install a high output alternator rated @ 270 amps in a 2002 Lexus IS300. I purchased the XS Power Big3XS 350amp kit from Crutchfield. I noticed the Big3 Kit did not come with an amp fuse box or the fuse. Is the fuse recommended to purchase and installed with the Big3 kit or not recommended? Anyone with experience in this field, I sincerely appreciate your assistance.Thank you!
george antranik  May 03, 2023
1 answer
A
Thank you for your question, George. Since you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the installation on this kit product. Our toll-free Tech Support number is printed on your invoice and is also available under the "My Orders" tab in the "My Account" section of our website.
andrea  May 03, 2023 (Staff)
Q
Where should I run the engine ground to chassis wire in a 2013 suburban? I already done the alternator to positive and the negative to chassis but don't know where I should run the engine to chassis.
phil  Apr 15, 2023
1 answer
A
Greetings Phil, and thank you for your question. For wiring assistance, please contact technical support. If you purchased the Big 3 from Crutchfield there will be a direct number on your shipping confirmation email. If you purchased this elsewhere, you can also contact XS Power at 865-688-5953.
hogan  Apr 15, 2023 (Staff)
Q
Can I install this 0Gauge wire if my aftermarket alternator is only 240 amps ?
david  Aug 12, 2021
4 answers
A
Absolutely. Just make sure that your lug fits the o ring or whatever connection you use properly.
ryan  Aug 15, 2021
A
Absolutely. No minimum amp required. I did this.
patrick  Aug 14, 2021
A
Yes you can, it will help overall power transfer from the alt to the battery.
leon  Aug 14, 2021
A
I would suggest..gett'n HO ALTERNATOR...THEN INSTALL 0ga..wire
timothy  Aug 14, 2021
Q
Do I replace the wires in the car with this or should leave them connected and just connect these on top? I figure this way there will be an extra connection on each line so maybe better?
amer  Oct 20, 2015
4 answers
A
Leave the original cables connected.
eric  Oct 23, 2015
A
Leave the current wires and use the XS wires as extra. You'll have more current with the more wire you have. Think of it as a bridge, the bigger the bridge the more traffic that can flow threw same thing applies with the wires. The more and/or bigger the wires the more electricity can flow threw it.
james  Oct 21, 2015
A
The instructions state that either way is OK. But if in doubt as to what else may be wired up, add these in addition, and leave the original wiring connected.
jonathan  Oct 20, 2015
A
I added to the existing wires.
rick  Oct 20, 2015
Q
On my 2008 impala it is a pcm controlled voltage. And there is a sensor near the battery that controls the voltage will I need to run the 0 gauge wire through that?
cody w  May 28, 2014
3 answers
A
How To Install Big Three Upgrade... look for big 3 upgrade on you tube
eric  Oct 23, 2015
A
It's fine to hook as described the only difference it that I would fuse the power from the alternator to the battery with the according fuse for your system.
robert  Jul 30, 2015
A
I'm not sure I took mine to a shop and got it done. Sorry I can't help you.
rob  May 29, 2014
