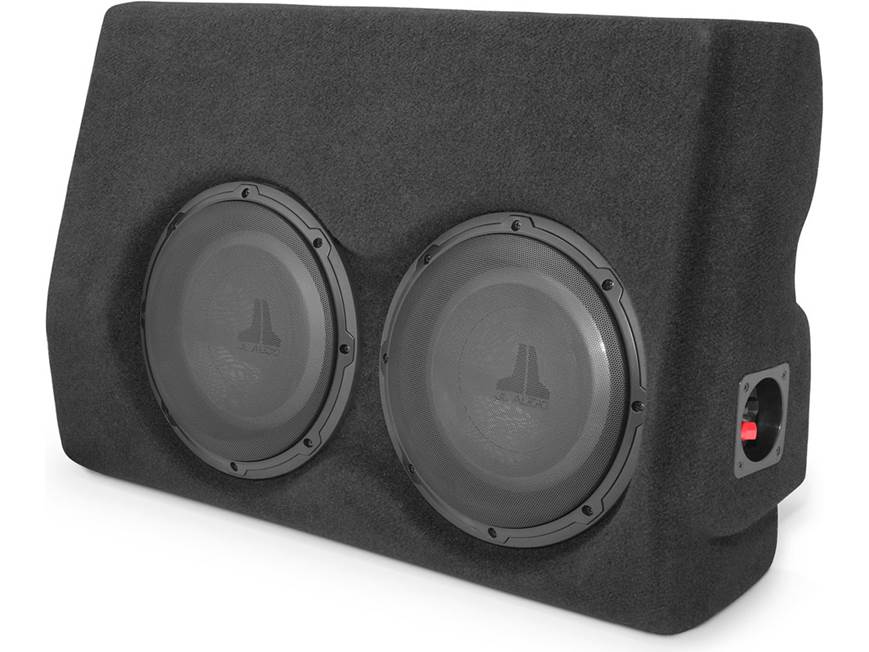

JL Audio Stealthbox® Custom-fit fiberglass enclosure with two 10" W1v3 subwoofers
Fits 2005-up Toyota Tacoma Double Cab

Item # 13694312

The JL Audio Stealthbox® custom-fit subwoofer delivers incredible bass in a package that takes up minimal space...

Find what Fits your vehicle

Remove

Checking fit...

The JL Audio Stealthbox® custom-fit subwoofer delivers incredible bass in a package that takes up minimal space...

California customers:
Please click here for your Proposition 65 warning.

8 questions - 9 answers

Item # 13694312

$1,199.99

About the JL Audio Stealthbox®

Dominic DeVito
The JL Audio Stealthbox® custom-fit subwoofer delivers incredible bass in a package that takes up minimal space and blends in with your vehicle's interior. JL Audio designs Stealthboxes to fit in specific vehicles, then loads them with appropriate subwoofers for optimal performance. Pair the system with an appropriate amp and wiring for stellar concealed bass.

JL Audio Built In USA The JL Audio Stealthbox® custom-fit subwoofer delivers incredible bass in a package that takes up minimal space and blends in with your vehicle's interior. JL Audio designs Stealthboxes to fit in specific vehicles, then loads them with appropriate subwoofers for optimal performance. Pair the system with an appropriate amp and wiring for stellar concealed bass.

Perfect sound to go with the perfect fit
JL Audio puts months of research and design into each Stealthbox® custom-fit subwoofer to ensure not only that it fits, but that it sounds better than any other custom enclosed system. First, JL Audio determines the ideal shape and mounting location for each enclosure, so that it looks like an original part of the vehicle it's designed for. Next, they mount each high-performance subwoofer so it delivers amazing firepower from within its unique enclosure, without sacrificing clarity or musical depth.

The fiberglass enclosure offers superior rigidity while allowing more interior volume, so the sub can turn out louder, deeper bass. JL Audio craftsmen then laminate, grind, join, and finish each Stealthbox® by hand. The end result: full-bodied, distortion-free bass from an impressively stealthy enclosure.

Enjoy enhanced, custom-fit sound
This Stealthbox® enclosure fits 2005-up Toyota Tacoma Double Cab pickups. It installs behind the passenger side rear seat. This Stealthbox® includes two W1v3 10" 4-ohm subwoofers from JL Audio, wired for 2-ohm mono. A pair of steel-mesh grilles are included to protect the subs. Please check with us before purchasing by using the vehicle selector on our site, or calling a Sales Advisor at 1-888-955-6000 to verify fit information.

JL Audio has rated the difficulty of this Stealthbox® installation as moderate or high. Crutchfield recommends using a car audio professional to install this enclosure, unless you have extensive experience installing car audio gear.

READ LESS

Product highlights:

  • Stealthbox® custom-fit subwoofer
  • sealed fiberglass enclosure
  • two W1v3 10" 4-ohm subwoofers (wired for 2-ohm mono)
  • installs behind passenger side rear seat
  • power handling: 100-600 watts RMS (300 watts per speaker); 1,200 watts peak power
  • warranty: 2 years
  • MFR # 94312

What's in the box:

  • Custom subwoofer box
  • Socket cup set-screw
  • Split-lock washer
  • Flat washer
  • Hex nut
  • Fender washer
  • 3" x 3" Wax sheet
  • Installation Guide
  • Warranty sheet

Customer reviews for JL Audio Stealthbox®

Loading reviews...

Average review:

4.5 out of 5 stars
7 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the JL Audio Stealthbox®

Pat M.

Product Research

Features

Overview: JL Audio's Stealthbox subwoofer systems are designed to hide away in a specific vehicle. Please enter your vehicle information to confirm compatibility.

Construction: Stealthboxes are hand-crafted from fiberglass and/or Advanced Molded Composite (AMC) materials. Fiberglass delivers a level of enclosure rigidity and dimensional stability not possible with other enclosure materials, allowing wall thickness to be reduced compared to a typical wood enclosure. This gives you more interior box volume for a given external volume. Fiberglass and AMC materials are very strong and can be molded into very complex shapes; giving JL Audio the ability to design your Stealthbox to fit perfectly into tight spots and minimize intrusion into your vehicle's useful space. Each Stealthbox is laminated, ground, joined, and finished by hand in the USA. Proprietary techniques and materials developed by JL Audio through years of fiberglass manufacturing experience ensure consistent quality and performance.

Woofers: Two 10" JL Audio W1v3-4 subwoofers are loaded in this sealed enclosure and wired as a 2Ω load at the enclosure's 5-way post speaker terminal. The JL Audio W1v3 subwoofers feature an injection-molded polypropylene cone woofer with an embossed metallic JL Audio logo with a rubber surround for added durability, woofer excursion and bass response.

  • Dynamic Motor Analysis (DMA): DMA is JL Audio's proprietary method of improving dynamic motor behavior. As a result of DMA optimization, W1v3 motors remain linear over a long excursion range, and also maintain a highly stable fixed magnetic field in the gap over a wide power range. The result is reduced distortion, faithfully reproduced transients, and tight, clean, articulate bass.
  • Floating Cone Attachment Method (FCAM): JL Audio's patented FCAM technology is an innovative method of bonding the surround/cone assembly to the voice coil/spider assembly. This assembly technique ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
  • Vented Reinforcement Collar: The Vented Reinforcement Collar (VRC) is a composite structure that addresses two issues related to reliability:
    • Stress Relief: By reinforcing the critical junction between the cone, voice coil and spider, the VRC greatly reduces failures due to glue breakdown or material weakness. It does this by increasing adhesive contact area and providing stress relief to the spider material at excursion extremes.
    • Air Flow: The VRC also features slots that facilitate air flow directly onto the voice coil windings, thus reducing thermal compression effects and enhancing reliability.
  • Insert Molded Suspension/Coil/Terminal Sub-Assembly: The W1v3 features a unique spider, coil and terminal subassembly, assembled prior to installation in the speaker frame for optimum alignment and glue-joint integrity. This type of assembly ensures precise lead wire length, lead wire entry and exit angles, and coil/spider alignment.
  • Elevated Frame Cooling System: The elevated frame design of the W1v3 delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.

Loading accessories...

Customer Q&A

8 questions already asked

Q
Does it come with power cables ?
stephen  Oct 26, 2023
1 answer
A
The JL Audio Stealthboxes do not come with any speaker or power wiring, Stephen. The Stealthbox is also passive, meaning it does not have an amplifier built-in and would require one to be added for a complete setup. This specific model can handle 600-watts RMS and the JL Audio XDM600/1 mono amp in the first link below is a perfect match. The JL Amplifier also does not come with any power/ground wiring, so make sure to add the Crutchfield CK4 4-gauge wiring kit in the second link below and some extra 12-gauge speaker wire in whatever length is right for your install! https://www.crutchfield.com/p_13698683/JL-Audio-XDM600-1.html https://www.crutchfield.com/p_007CK4/Crutchfield-CK4.html
bo  Oct 27, 2023 (Staff)
Q
What is the dimensions?
dustin  Apr 25, 2023
1 answer
A
Hi Dustin, thank you for your question. We do not have dimensions on this custom subwoofer enclosure since it's vehicle specific. If you're looking for a subwoofer to fit into your vehicle, I recommend giving one of our Advisors a call at 1.800.324.9695 or by online chat.
andrea  Apr 25, 2023 (Staff)
Q
Does it come with an amp?
zachary  Feb 18, 2021
2 answers
A
No, you have to add a separate amp to run this.
carlos  Feb 19, 2021
A
No, unfortunately this unit is a passive sub enclosure. Meaning it will require an external amplifier. I have a JL Audio amplifier and love it!
billy  Feb 19, 2021
Q
How many days does it take to receive a stealth box?
code  Aug 13, 2020
1 answer
A
Well I ordered mine about 2 weeks ago and I still haven't received any shipping information. I think since it ships directly through the manufacturer, they're supposed to send me shipping information at some point. But so far like I said, it's been 2 weeks and I've heard nothing, but I'm sure it's from all of the COVID delays. I'm giving it another day or so before I contact Crutchfield about this issue.
corey  Aug 13, 2020
Q
Will this box fit my 2014 double cab Tacoma?
leonard  Feb 16, 2016
1 answer
A
You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
kristina  Feb 17, 2016 (Staff)
Q
can you put the seat back up after installation and use the seat?
john  Nov 10, 2014
1 answer
A
Yes, the seat will be able to be used after the installation.
jeff  Nov 11, 2014 (Staff)
Q
Can two of these boxes fit behind the seat or is it specific for the passenger side? I want four tens!
george  Feb 02, 2014
1 answer
A
For details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
kristina  Feb 02, 2014 (Staff)
