Features
Inputs and Outputs
Specifications
Features

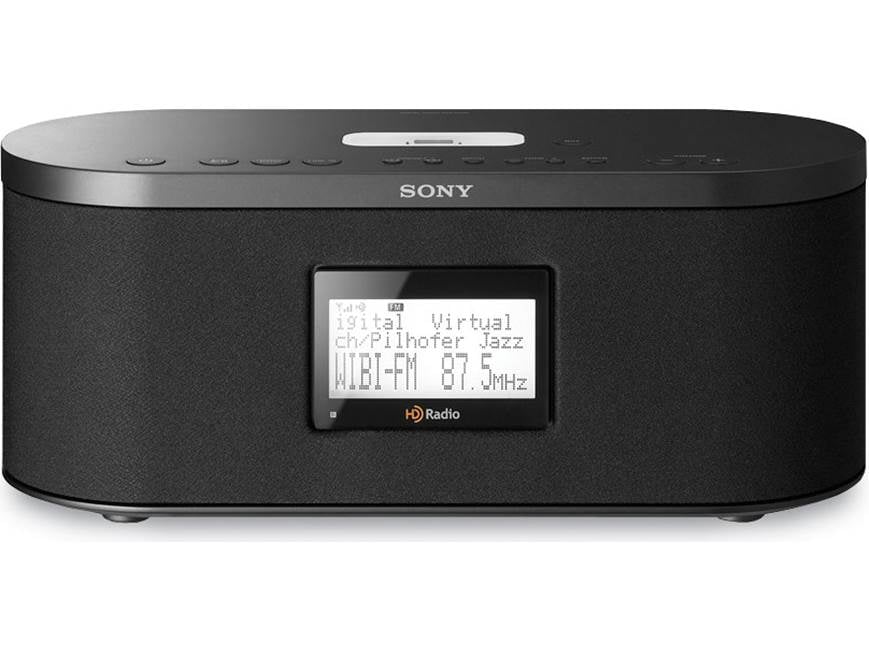

Overview: The Sony XDR-S10HDiP Table Radio is a high
fidelity FM/AM/HD Radio with a dock on top for an iPod. The radio has an LCD display with dark characters, a lit background,
and adjustable brightness and contrast. HD Radio delivers crystal-clear,
all-digital fidelity HD FM/AM broadcasts including HD multicasting which brings
near CD quality sound to FM, and current FM sound quality to AM. HD Radio
signals are already broadcast by more than 1,000 stations nationwide in hundreds
of markets to the majority of the U.S. population.
Note: There is no
subscription fee required to receive HD Radio broadcasts.
iPod Dock: The XDR-S10HDiP features a built-in dock for your
iPod on the top of the unit. You have basic transport function control using the
buttons on the top of the radio, and complete control using the included remote.
Your iPod remains fully functional so you can operate your iPod's advanced menu
functions from the iPod itself. The unit charges your iPod when docked, even
when the power is turned off (when listening to the tuner at volume 25 or
higher, the iPod is not charged). Compatible iPods currently include iPod classic
(80/120/160GB),
iPod touch (1st/2nd gen), iPod nano (1st/2nd/3rd/4th gen), iPhone/iPhone 3G,
iPod video (5th gen), iPod photo (4th gen), and iPod mini (1st/2nd gen).
Note: This unit will not charge the iPhone 3G, iPod touch (2nd
generation), or iPod nano (4th generation).
Alarm: The alarm will sound
with your choice of an AM radio preset, an FM radio preset, the line input, the
docked iPod, or a
buzzer. When not using the buzzer, you can also select the alarm volume.
Sleep Timer:
You can set the sleep timer to turn the radio off after 15, 30, 45, or 60
minutes.
Full-Range Speakers: The
XDR-S10HDiP radio uses two 2-5/8" full
range speakers. The radio is also magnetically shielded, so it can be placed next to a
CRT television.
iTunes Tagging: The iTunes Tag function allows you to mark
songs you like when they are broadcast by HD Radio stations. Information about
these tagged songs is stored by the receiver and transferred to your iPod. When
you connect your iPod to your computer, iTunes automatically presents the songs
in a new tagged playlist so you can preview, buy, and download them. The
XDR-S10HDiP can save the data of up to 50 songs.
Note: iTunes Tagging requires iTunes 7.4 or later and is
currently compatible with 5th generation iPods, 3rd generation iPod nanos,
and iPod classics.
Inputs and Outputs
- Line Input: stereo mini-jack input
on the rear panel; allows you to listen to external audio sources
- 75 Ohm FM Antenna:
threaded F-connector for one of the included external FM antennas
- AM Antenna:
spring terminals for the included AM loop antenna
Specifications
Clock: 12-hour display with
AM/PM indicators
Power Output:
3 watts x 2 into 8Ω, measured from 150
Hz-10 kHz with no more than
10% THD
Approximate Weight: 6 lbs 13.3 oz,
including power supply
Remote: the included remote
is powered by 2 "AAA" batteries which are not included
Tuning Range:
- FM: 87.5 - 108.0 MHz (0.1 MHz increments)
- AM: 530 - 1710 kHz (10 kHz increments)
