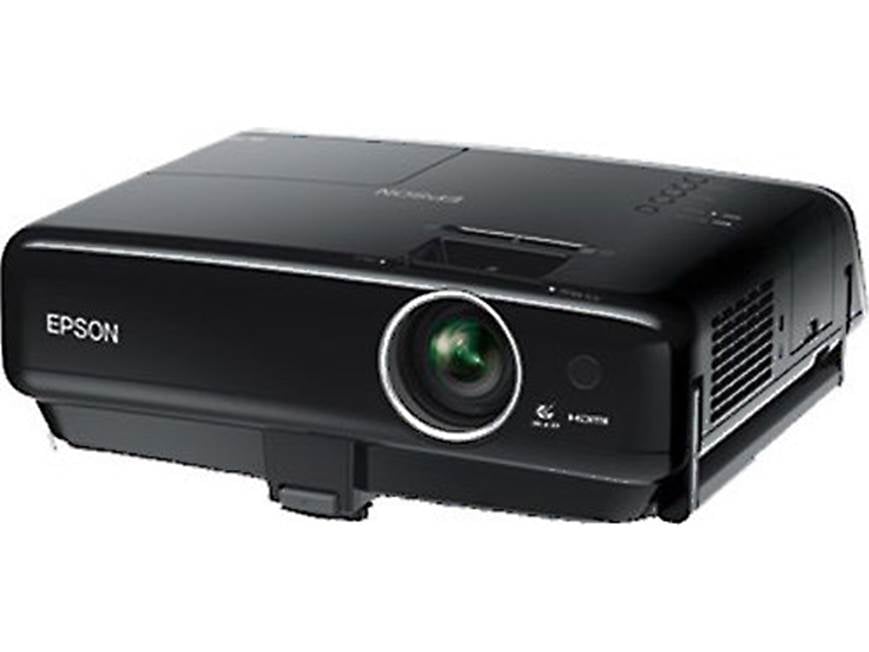

Epson MegaPlex MG-50 3-LCD 540p projector with built-in dock for iPod®/iPhone®/iPad®

Item # 278MPMG50

Epson's MegaPlex MG-50 is the first projector we've seen with a built-in dock for connecting an iPod, iPhone, or iPad.

Epson's MegaPlex MG-50 is the first projector we've seen with a built-in dock for connecting an iPod, iPhone, or iPad.

Item # 278MPMG50

Shop all Epson Projectors

About the Epson MegaPlex MG-50

Steve Kindig

Got an iPhone or iPad filled with videos and photos? Set them free!

Epson's MegaPlex MG-50 is the first projector we've seen with a built-in dock for connecting an iPod, iPhone, or iPad. You can share all of the fun video clips and photos stored on your device on a much bigger screen, with a much bigger audience. You'll also enjoy the larger, brighter view with your favorite movie streaming and game apps, or even just web-surfing.
Epson MegaPlex MG-50 with docked iPhone

There's a slide-out dock on the back of the projector. (iPhone not included.)

Got an iPhone or iPad filled with videos and photos? Set them free!

Epson's MegaPlex MG-50 is the first projector we've seen with a built-in dock for connecting an iPod, iPhone, or iPad. You can share all of the fun video clips and photos stored on your device on a much bigger screen, with a much bigger audience. You'll also enjoy the larger, brighter view with your favorite movie streaming and game apps, or even just web-surfing.

Take your show on the road — and be prepared for wild applause

The MG-50's portable design lets you share the impact and excitement of projector viewing not just at home, but wherever you can plug into power. Epson's tried-and-true 3-chip LCD imaging system delivers dependably great image quality. Separate red, green, and blue LCD image chips ensure smooth, accurate, vivid colors. And you don't need a totally darkened room, either — the MG-50 has the light power to produce a bright, crisp picture even in rooms with some lights on. DVD movies look terrific — the projector's pixel count is a perfect match for DVDs.

Super easy to set up and use

You get three inputs for video sources like a disc player, cable or satellite box, and a game console, plus a dedicated PC input. The projector's remote puts every function at your fingertips, including easy playback control of iPad or iPhone media. Two small built-in speakers supply modest sound, and a microphone input lets you get your karaoke on.

For optimum performance, a separate projection screen is recommended.

Learn about the ins and outs of HDMI connections at the Crutchfield Learning Center.
Shop our selection of HDMI cables.

READ LESS

Features:

  • portable projector (digital TV reception requires a separate HDTV tuner)
  • built-in back-panel dock for iPod®, iPhone® and iPad® (also charges them while docked)
  • widescreen 16:9 aspect ratio (can also display 4:3 material)
  • 3-LCD, 3-chip technology (960 x 540 pixels each)
  • 5000:1 dynamic contrast ratio
  • light output: 2200 lumens
  • auto iris for improved contrast and black level
  • 1.35X lens with manual focus and zoom (zoom is digital)
  • keystone correction (auto vertical, manual horizontal)
  • 200-watt UHE lamp (lasts up to 5000 hours in Eco mode)
  • quiet cooling fan (29 dB in Eco mode)
  • built-in stereo speakers (10 watts x 2)
  • remote control
  • picture settings memory for each video input
Connections and Dimensions:
  • 3 video inputs, including:
    • 1 composite video
    • 1 component video
    • 1 HDMI v1.3
  • PC input
  • full-sized microphone input
  • detachable power cord
  • built-in carry handle
  • 13-3/8"W x 5-1/8"H x 11-1/2"D
  • weight: 8.4 lbs.
  • warranty: 2 years parts & labor — in-home or carry-in service (90 days on lamp)
  • Note: front projectors don't include any type of built-in TV tuner, but they can display signals from an HDTV tuner, satellite receiver or cable box
  • MFR # V11H445020

What's in the box:

  • Black LCD video projector with iPod dock
  • 10' AC cord (IEC 3-prong type)
  • Wireless remote control (155625600)
  • 2 "AAA" batteries
  • iPad bracket
  • Projector Manual link on CD-ROM
  • Quick Setup sheet
  • PrivateLine card with attached information sheet
  • Extra Care Home Service sheet (English/French)
  • Declaration of Conformity/Limited Warranty
  • "Important--Please Stop and Read" sheet

Customer reviews for Epson MegaPlex MG-50

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Epson MegaPlex MG-50

Stacey B.

Features & specs

Native Resolution (pixels) 960 x 540
Resolution with Pixel Shift N/A
Picture Size Range 30 to 350 inches
Display Technology 3-LCD
3D-Capable No
Aspect Ratio 16:9, 4:3
Contrast Ratio 5000:1
Dynamic Iris Yes
Brightness (in ANSI Lumens) 2200 lm (1760 ECO)
Mounting Options and Design
Ceiling Yes
Tabletop Yes
Ultra Short Throw No
Portable Design No
HDR (High Dynamic Range)
HDR10 No
HDR10+ No
HLG No
Dolby Vision No
Next-gen Gaming Features
VRR (Variable Refresh Rate) No
ALLM (Auto Low Latency Mode) No
4K/120Hz HDMI Inputs None
eARC No
Smart TV Features
Apple TV App ---
Apple AirPlay 2 ---
Android TV ---
Chromecast Built-in ---
Connections
HDMI Inputs 0
HDMI Version N/A
Audio Return Channel No
Wireless HDMI Input No
Audio Output ---
USB Media Port No
RS-232 Port None
Built-in Speakers ---
Wireless Features
Bluetooth ---
Wi-Fi ---
Other Info
Light Source ---
Approximate Lamp Life 4000 hrs (5000 ECO)
Bulb Wattage 200 Watts
Vertical Lens Shift No
Horizontal Lens Shift No
Vertical Keystone Correction Yes
Horizontal Keystone Correction Yes
Fan Noise 35 dB Normal 29dB EC
Width (inches) 13-3/8
Height (inches) 5-1/8
Depth (inches) 11-1/2
Weight 8.4 lbs
Parts Warranty 2 Years
Labor Warranty 2 Years
Type of Warranty Service In-home or Carry-in

Product Research

Features

Overview: The Epson Megaplex MG-50 is a portable LCD projector with a built-in digital dock for your Apple iPod, iPhone, or iPad. You can also connect your smartphone, tablet, gaming console, or PC, as well as a DVD or Blu-ray player. With the MG-50, you can project movies, videos, games, slideshows, and presentations up to 350" (diagonally). The MG-50 also has built-in 10-watt stereo speakers, and comes with a wireless remote control. The side-mounted handle lets you carry the projector anywhere.

3LCD, 3-chip Technology: The MG-50 features 3LCD, 3-chip technology to give you rich, vibrant images for enjoying spectacular movies, games, and sporting events in your home, or to deliver sizzling business presentations at the office. This technology requires 25% less electricity per lumen of brightness when compared to 1-chip DLP projectors.

Projection Lamp: The projector uses an energy-efficient E-TORL 200-watt Ultra High Efficiency (UHE) lamp with a life span of approximately 4000 hours in the Normal Mode. In the ECO mode, the life span is increased to approximately 5000 hours. The lamp (Part # V13H010L67) and air filter (Part # V13H134A37) are the only user-serviceable parts.

Fan Cooled: The projection lamp is kept cool by a fan. The fan noise level is 35dB in Normal mode and 29dB in ECO mode. If the projector is to be used at an altitude above 4921 feet (1500 meters), the High Altitude Mode should be turned on so the fan can properly cool the projector at the high altitude air pressure.

Light Output: In the normal mode, the Megaplex MG-50 outputs 2200 lumens of white light and 2200 lumens of color light for bright, balanced colorful images. The white light output is measured using ISO 21118, a more rigid standard than the ANSI lumens rating used by many competitors. Light output in the ECO mode is 1760 lumens. The projector is capable of a dynamic contrast ratio up to 5,000:1 (auto iris on).

Native Resolution: The Megaplex MG-50 has a native resolution of 540p: 960 x 540 pixels (16:9 aspect ratio). The total number of pixels is 518,400 dots (960 x 540) x 3. You can resize the picture by changing the aspect ratio to 4:3 or 16:10.

Lens: The MG-50 features a F1.44 lens with a focal length of 16.7mm. It has a manual focus and a digital zoom ratio of 1.0 to 1.35. The projector automatically compensates for vertical keystone distortion (+/- 30°) when it is tilted upward or downward. Manual horizontal keystone adjustments (+/- 30°) can be made using the top-mounted slide control. The projector does not have a lens shift feature.

Multiple Sources: The Megaplex MG-50 has inputs for multiple sources to give you lots of choices. For connecting to your video equipment, the unit features one HDMI (Ver.1.3) input, a component video input, and a composite video input. You can also connect your computer to the projector via the VGA input (D-Sub 15-pin). The unit also has a stereo RCA audio input.

Input Signals: The projector will accept the following input types:

  • Composite: NTSC, NTSC 4.43, PAL, M-PAL, N-PAL, PAL60, SECAM
  • Component: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
  • External Source: Blu-ray, HD-DVD, DVD (Region Code 1)

Microphone Input: You can connect a microphone into the projector's 3.5mm mic input on the side of the projector. Audio from the microphone can be output from the projector's speakers. When using a condenser microphone or other microphone that requires plug-in power, you will need to set the Plug-In Power mode to On in the projector's menu.

USB Port: The MG-50 has a Type B USB port on the rear panel. This port is for maintenance only. It does not support USB mass storage or other USB devices.

Built-in Dock: The MG-50 features a built-in retractable dock that allows you to connect an iPod, iPhone, or iPad for playing back music and video files. A self-adhesive plastic bracket is included for use with the iPad. The device will charge while docked, even when the projector is in standby. While the iPod is docked, you can control it with the projector's remote to select music and video files. The MG-50 is compatible with:

  • iPad/iPad 2: OS 4.3.3 and later
  • iPhone 3G/3GS/4G: OS 3.1.3 and later
  • iPod touch 2G/3G/4G: OS 3.1.3 and later
  • iPod nano 3G/4G/5G:
    • OS 3G 1.1.3 and later
    • OS 4G 1.04 and later
    • OS 5G 1.02 and later

Note: Displaying photos and videos taken on the device and YouTube videos require switching playback control to the device.

Color Modes: The Megaplex MG-50 offers five color modes to optimize viewing for different environments and image content. The Color Mode adjusts the brightness, contrast, and color for the best possible picture. A different color mode can be selected for each input source. You can select from these Color Modes:

  • Auto: automatically adjusts to the brightness of your surroundings
  • Dynamic: for projecting the brightest picture available
  • Living Room: for watching television programs during the day
  • Cinema: for viewing movies in a dimly lit room
  • Game: for playing video games in a bright room

Image Fine-tuning: In addition to the color modes, there are several other adjustments you can make to fine-tune the image. The brightness, contrast, color saturation, tint, and sharpness can be adjusted. You can select the color temperature (high, medium, low), and individually adjust the color level of red, green, and blue. The Auto Iris can be turned on or off, as desired.

Sound Modes: You can change the sound mode to optimize the sound for your media. You can select a Standard sound mode, in addition to a mode optimized for vocals, music, and movies.

Adjustable Image Size: The Megaplex MG-50 projector can produce an image that is adjustable between 30" and 350" (measured diagonally).

Lens Projection Distance: The projector's adjustable lens provides a wide range of placement possibilities for a given screen size. The projection distance (distance from lens to screen) range is 3' to 35.7'. The distance for several screen sizes at 16:9, 4:3, and 16:10 aspect ratios are given below:

Screen Size
(diagonal)
Projection Distance (in feet)
16:9 4:3 16:10
30" --- 3.08 to 3.71 ---
35" 3.25 to 3.93 --- 3.18 to 3.84
40" 3.74 to 4.49 4.13 to 4.98 3.64 to 4.4
60" 5.64 to 6.82 6.23 to 7.52 5.51 to 6.62
80" 7.57 to 9.12 8.37 to 10.04 7.38 to 8.86
100" 9.48 to 11.42 10.47 to 12.57 9.22 to 11.09
120" 11.42 to 13.72 12.57 to 15.12 11.09 to 13.35
150" 14.25 to 17.16 15.75 to 18.93 13.91 to 16.7
200" 19.09 to 22.93 21.03 to 25.26 18.57 to 22.31
280" --- 29.49 to 35.4 ---
310" 27.96 to 35.57 --- ---
320" --- --- 29.76 to 35.72

Sleep Mode: The projector turns off automatically when no video signal is received for a preset amount of time. You can set the sleep mode to 5, 10, or 30 minutes.

Remote Control: In addition to the control panel, the projector can be controlled by the supplied wireless remote control, which has a range of approximately 20 feet. The projector has infrared receivers on the front and rear to give you control from most anywhere in the room.

Mounting Options: The Megaplex MG-50 can be placed on a tabletop or inverted and mounted on the ceiling. It can be used for front or rear projection. For tabletop use, you can adjust the image position by raising or lowering the front foot. For ceiling mounting, you will need an optional projector ceiling mount. Three 4mm threaded screw holes are provided on the bottom for a ceiling mount. A commercially-available Kensington security lock can be attached to the unit to prevent theft when installed in a public location.

Warranty and Extra Care Home Service: The projector is covered by a 2-year parts and labor warranty, while the lamp is covered for 90 days. Included with the warranty, Epson offers Extra Care Home Service. A replacement unit (in most cases, a refurbished unit) will be shipped to you immediately. (A credit card is required for security deposit.) If it's important that you receive your original projector back, you should use the basic carry-in service instead of Home Service.
