General Features

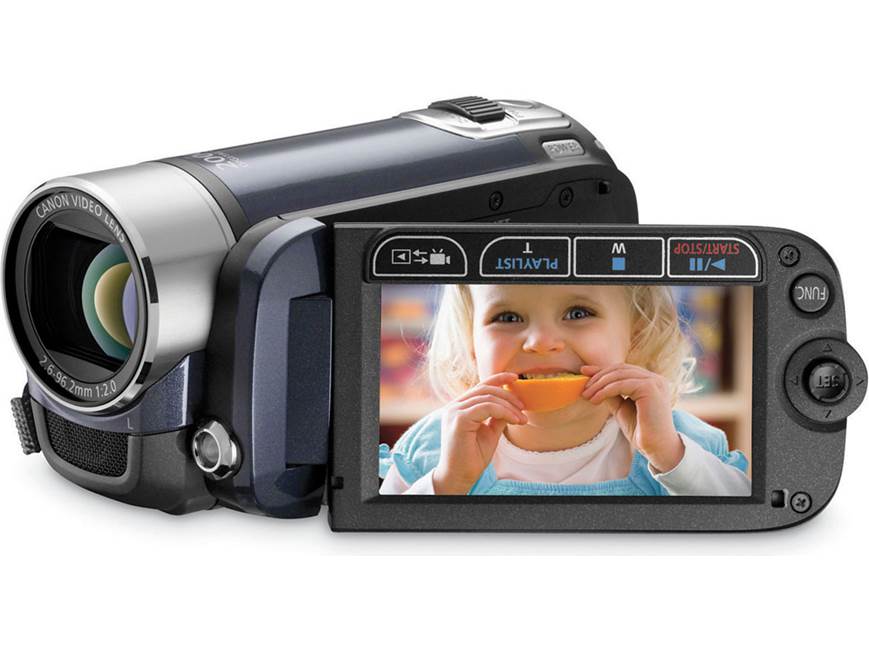

2.7" Widescreen LCD Screen: The FS200 features a 2.7" TFT, color widescreen LCD screen (123,000 pixels) to make it easy to compose and review your shots. The bright screen lets you see exactly what your camcorder is recording, and what your widescreen TV will display later. You can rotate the LCD screen 90-degrees downward and 180-degrees toward the lens allowing the subject to monitor the LCD screen. The LCD screen also features an adjustable brightness control. The LCD Screen's frame contains zoom, playback and menu controls for added convenience.

Note: This camcorder does not feature a separate viewfinder.

SD/SDHC Memory Card Recording: The Canon FS200 camcorder captures video and still-image footage onto an SD or SDHC Memory card (not included). Flash memory offers quick response time for recording and playback. By recording onto flash memory, the camcorder's power consumption rate is reduced, allowing the battery to last longer. In addition, by using flash memory, the camcorder is more shock resistant and is less likely to lose data because there are no moving parts. A Class 2 or higher SD card (64MB-2 GB) or SDHC card (4 GB to 32 GB) is recommended. Movie recordings require cards with 128 MB of memory or more.

Image Sensor: The FS200 features a 1/6" (3mm) CCD imager with 680,000 gross pixels for excellent detail and clarity when recording video and exceptional digital still photography performance. The zoom setting effects the effective pixel count in 16:9 and 4:3 mode:

• 16:9 Movie Mode:
  • Advanced Zoom: 360,000 (telephoto) and 450,000 (wide-angle) pixels
  • Optical Zoom: 360,000 pixels
• 4:3 Movie Mode:
  • Optical Zoom: 340,000 pixels
• Still Images (4:3): 450,000 pixels

DIGIC DV II: DIGIC DV II ensures optimal video image quality. It also ensures optimal image quality for still images, even though video and still images have different color requirements. The DIGIC DV II image processing produces video with improved color reproduction; especially in skin tones, and dark and light scenes. It also uses a hybrid noise reduction system that employs two types of noise reduction for high definition images that are crystal clear. Plus, DIGIC DV II features faster processing of your images to your memory card, and helps lower power consumption for longer battery life.

Genuine Canon Video Lens: The FS200 comes with a Genuine Canon video lens with a 37x Optical zoom and 2000x total digital zoom. The camcorder offer three types of zoom - Optical, Advanced and Digital zoom.

• 37x Optical Zoom: The zoom range is limited to the optical magnification ratio of the lens which is 37x.
• 41x Advanced Zoom: In addition to the optical zoom range, the camcorder processes the image digitally to obtain a larger zoom range without any deterioration in image quality. 41x Advanced Zoom is used for 16:9 aspect ratio images.
• 2000x Digital Zoom: When this option is selected, the camcorder will switch to digital zoom. With digital zoom the image is processed digitally so image quality will deteriorated the more you zoom in.

Note: The zoom speed can be set to variable or one of three fixed speeds. In the variable position, the zoom speed depends on how far you push the lever. The purpose of the three fixed zoom speeds is a smoother zoom transition, at your choice of speeds.

Image Stabilizer: A high quality electronic image stabilization system corrects camera shake instantly, giving you smooth, stable pictures. It enables you to record shake-free images, even on long telephoto shots without a tripod.

16:9 High Resolution: This Canon FS200 uses the entire width of its image sensor to record video in true 16:9 format. By capturing more pixels, you get better image quality. If you generally play your camcorder footage on a widescreen TV, use the WideScreen mode to record video in the 16:9 aspect ratio. The full width of the CCD imager is used to capture video in true 16:9 format. When playing widescreen footage with the camcorder output set for a 4:3 screen you'll have the letterbox black bars on the top and bottom of the screen.

Focus Modes: The Canon FS200 features a Manual, Auto and Infinity Focus modes:

• Manual Focus: With manual focus, you can manually adjust the focus of the camcorder using the touch panel. Manual focusing also allows you to control the focus in difficult situations where either the environment or the subject does not allow the camcorder's auto focus to perform optimally, such as when shooting through a window or in a crowded environment.
• Auto Focus: Auto Intelligent Auto Focus ensures sharp images and gives creative flexibility. Even when your subject isn't in the center of the frame, the FS200's 9 Point AiAF will bring it into sharp focus.
• Infinity Focus: Use this function when you wish to focus on far away subject such as mountains or fireworks.

Exposure Mode: The Canon FS200 allows you to select from the following exposure modes:

• Manual Exposure Adjustment: At times, backlit subjects may appear too dark (underexposed) or subjects under very strong lights may appear too bright or glaring (overexposed). To correct this, you can manually adjust the exposure from neutral (±0) to +11 or -11.
• Easy Recording: Camcorder will adjust focus, exposure and other settings, leaving you free to point and shoot
• Program AE: the camcorder automatically adjust the aperture and shutter speed to obtain the optimal exposure for the subject
• Shutter-Priority AE: the camcorder automatically sets the appropriate aperture value while you set the shutter speed:
  • Video Mode: 1/8, 1/15, 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, and 1/2000
  • Photo Mode: 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/250, and 1/500
• Special Scene Recording Modes: The FS200 features the following Preset Scene Recording Modes to match special conditions:
  • Portrait: camcorder uses a large aperture, achieving a focus on the subject while blurring other distracting details
  • Sports: use this mode to record sports scenes or fast moving events
  • Night: use this mode to record in low-light conditions
  • Snow: use this mode to record in bright ski resorts, it prevents the subject from being underexposed
  • Beach: use this mode to record on a sunny beach, it prevent the subject from being underexposed
  • Sunset: use this mode to record sunsets in vibrant colors
  • Spotlight: use this mode to record spotlight scenes
  • Fireworks: use this mode to record fireworks

Auto Backlight Correction: With this feature turned on, you can have the camcorder automatically correct for the backlight with the press of a single button when shooting subject with a strong light source behind them.

Auto Slow Shutter: In this mode, the camcorder automatically uses slow shutter speeds to obtain brighter recordings in places with insufficient lighting.

White Balance: The camcorder's auto white balance system compensates for a wide range of lighting conditions. Additionally the white balance can be set manually or using one of the two preset modes, Daylight (recording outdoors on a bright day) or Tungsten (recording under tungsten and tungsten type 3-wavelength fluorescent lighting).

Image Effects: The FS200 allows you to record with the following saturation and contrast color effects:

• Vivid: emphasizes the contrast and color saturation to record in crisp colors
• Neutral: tones down the contrast and color saturation to record in neutral hues
• Soft Skin Detail: softens the details in the skin tone area for a more complimentary appearance

Mini Video Light: You can turn on the camcorder's built-in mini video light to shoot video or take photos in dark places.

Self-Timer: This feature allows the camcorder to start recording after a 10-second countdown.

Level And Grid Markers: Capturing level, well-composed shots is simple with the FS200. Line up the horizon or other horizontal lines with the Level Marker in the viewfinder for level landscapes. Or, use the Grid Marker to help compose the perfect shot. Both markers can be set to white or gray for enhanced visibility, no matter what the background.

Menu Languages: You can set the menu language to English, German, Spanish, French, Italian, Polish, Russian, Chinese, or Japanese.

Video Camcorder Features

Compatible Media: The FS200 captures MPEG-2 video with 2ch Dolby Digital audio onto an SD or SDHC memory card (sold separately). The camcorder supports SD cards up to 2GB and SDHC memory cards up to 32GB. A 128MB or larger SD card is required for recording video content.

Recording Modes: The camcorder offers three video recording modes. Changing the recording mode will change the recording time available on the memory card. Select the XP mode for better movie quality, SP mode for standard quality, and LP mode for longer recording times. You can capture the following video recording times using these modes:

Faders: You can select one of the following faders:

• Fade Trigger: When you start recording, the scene gradually fades in from a black screen. When you stop recording, it gradually fades out.
• Wipe: When you start recording, the picture begins as a thin vertical line in the center of the screen which gradually expands sideways until it fills the whole of the screen. When you end a scene, the image is wiped from both sides of the screen.

Video Snapshot: The camcorder's Video Snapshot mode lets you shoot a series of short 4-second video clips, then combines them with a pre-recorded music track or your own favorite music track, to create an entertaining movie.

Wind Screen: The camcorder automatically reduces the background sound of wind when recording outdoors when Wind Screen is turned "On".

Built-in Speaker: The camcorder has a built-in speaker so you can review the soundtrack alongside the picture when you're using the LCD screen to playback a recording. The built-in speaker is monaural.

Playback Functions: The camera uses the following special playback modes - Fast Playback, Reverse Playback, Frame-by-Frame Playback, Slow Playback and Scene Skip. During these playback modes there is no sound.

Date Search: You can locate video on the inserted SD memory card by searching changes in the date and time.

Movie Timeline: You can display a timeline of the scene and select where to begin the playback. This is very convenient when you want to play back a long scene from a specific point.

Playlists: You can create a playlist to play back only the scenes you prefer and in the order of your choice. Moving or deleting scenes in the playlist will not affect the original recordings.

Digital Still Camera Features

Still Image Recording: The flash memory camcorder is also a high performance digital camera capable of capturing stunning 4:3 JPEG still images on an SD/SDHC Memory Card (sold separately). You can record in the following still image sizes - Large (L): 1024 x 768, or Small (S): 640 x 480. There are three Photo Quality (compression) settings for each image size: Super Fine, Fine, and Normal. The number of still images that can be recorded on a memory card are as follows:

Note: The maximum number of remaining still images displayed on the screen is 9999.

Automatic Focus Priority: When the focus priority is activated, the camcorder records a still image only after the focus has been adjusted automatically. You select from the following Auto-Focus Priority modes.

• AiAF: depending on the shooting conditions, one or more AF frames out of the nine frames available are automatically selected and the focus is fixed on them
• Center: a single focusing frame appears in the center of the screen and the focus is automatically fixed on it; this is convenient for making sure the focus is exactly where you want it
• Off: select this option if you wish to record a still image as soon as you press Record without Auto-Focus

Digital Effects: You can select from the following effects:

• Black and White: makes the image black and white
• Sepia: makes a monochrome image with a brownish tint

Histogram Display: The FS200 comes with a Histogram Display. The display allows you to see the brightness information of your still images, so you can adjust your exposures as you shoot.

Review: You can select the time to display a still image after it has been recorded to Off, 2 seconds, 4 seconds, 6 seconds, 8 seconds or 10 seconds.

Viewing Still Images: There are 3 ways to view still images: Single image, Slide show (one after the other automatically in order of recording), or Index screen showing six images at once.

Magnify Playback: During playback still images can be magnified up to 5 times. You can also select the area of the screen to be magnified.

Image Jump: You can jump ahead to a specific image without having to browse all images one by one. You can jump ahead 10 or 100 images.

Protect Still Images: You can protect still images from accidental erasure.

Print and Share Button: Print & Share allows you to simply connect your camcorder directly to select Canon printers or any PictBridge-compatible printer with the supplied USB cable. Then, with a simple touch of the Print & Share button, print directly from your FS200 without going through a computer. Print & Share also makes it easy to transfer your still images to your computer. Simply connect your FS200 and your computer, press the Print & Share button and your photos are downloaded to your computer.

PictBridge Printing Capability: PictBridge is a standard that allows you to connect a PictBridge compliant camera directly to a PictBridge compliant printer and make prints, regardless of brand.

Exif Print (Exif 2.2): The Canon FS200 conforms to "Exif Print", a worldwide standard. Vital camera settings (such as: exposure mode, white balance, exposure time) and scene data are recorded to the image file when it is captured. Printers compatible with "Exif Print" are able to use this information to produce high quality photographs, exactly the way they were intended at the time of capture. This intelligent communication process also allows the printer to correct for poor lighting or mistakes, resulting in photos which can be even better than the originals.

DPOF (Digital Print Order Format) Settings: On the memory card, you can select which image or images you want to print and how many copies you want. This is convenient for printing images all at once on a Canon Direct Print function compliant printer or printing at participating photo labs. You can set print orders for up to 998 still images.

Battery Information

Li-ion Battery Pack: The Canon FS200 comes supplied with a rechargeable Lithium-ion Battery Pack (BP-808). The camcorder also comes supplied with an AC power adapter and charger (CA-570 S). The battery recording and playback times are as follows:

Note: The supplied BP-808 battery pack requires 140 minutes to fully charge the battery in the camcorder using the supplied charger.

Auto Power Off: After 5 minutes without any operation when powered by the battery, the camcorder automatically powers off. Approximately 30 seconds before the camcorder automatically turns itself off, a warning message appears in the display.

Quick Start: When you press the Quick Start button on the side of the camcorder, the camcorder powers up and gets ready to record within approximately 1 second. The Quick Start function helps prevent you from missing out on fleeting opportunities to take a video or picture.

Inputs And Outputs

AV Output: The camcorder features an AV output to playback audio and video on your television using the supplied composite video/stereo audio RCA cable. You can select between a 4:3 aspect ratio or a 16:9 aspect ratio for the video out based on your television's aspect ratio.

USB 2.0 Connection: The camcorder features a USB 2.0 High Speed terminal for fast transfer of photos.

SD-Card Slot: The FS200 records still images and video onto SD and SDHC memory cards.

Microphone Input: In addition to the camcorder's built-in microphone, the FS200 features a 3.5mm microphone input for connecting an external microphone (sold separately).

Software Requirements

Included Software: The Canon FS200 camcorder comes supplied with four CD-ROM application discs: Digital Video Solution Disk Ver.32.0, PIXELA Application Discs 1 and 2, and the Instruction Manual/Music Data disc.

Digital Video Solution Disk Ver. 32.0:

• Zoom Browser EX 6.2 (Windows) and ImageBrowser 6.2 (Macintosh): Allow you to:
  • View and organize downloaded still images
  • Edit downloaded still images: Red-eye correction, color & brightness, sharpness, trimming and inserting texts on images
  • Print still images and contact sheets
  • Add sound to still images

PIXELA Application Disc Ver.1 (2 Discs):

• Disc One:
  • ImageMixer 3 SE Ver.4 Transfer Utility: Software for saving and transferring movies
  • Music Transfer Utility Ver.1: Software for transferring music for Video Snapshot playback to the camcorder
• Disc Two:
  • Video Tools: Software for saving, managing, editing, and playing back movies

Instruction Manual/Music Data Disc: This CD-ROM contains the full-version Instruction Manual of the camcorder and music data for Video Snapshot and Slideshow playback.

Windows System Requirements:

Macintosh System Requirements:
