Video Features
Audio Features
PC/USB/Network Functions
Convenience Features
Remote Control
Mounting Options
Video Features
LED Technology: Samsung's LED technology allows for an
amazing 3,000,000:1 dynamic contrast ratio, and ultra-sharp blacks by allowing
multiple LEDs to turn on an off automatically based on the image. The LED
backlight also provides more natural color representation and deep reds and
greens because Samsung uses white LEDs that produce 105% of the broadcast color
gamut. The television's white LEDs are arranged along the left and right edges
of the screen and a proprietary light guide is used to focus its luminance
inwards towards the middle of the screen for a more uniform brightness. Overall,
this LED Backlight system produces contrast with stronger blacks and whites, and
greater subtlety of every gradation in between.
Ultra Clear Panel: With Samsung's Ultra Clear Panel colors
are more vibrant, brighter, and clearer. This ultra clear panel technology also
enhances contrast and reduces reflection so you can enjoy an overall outstanding
viewing experience.
HDTV Tuner: The TV has built-in over-the-air HDTV (ATSC) and
Digital Cable (QAM) tuners, so you don't need a separate set-top box to receive
and decode over-the-air HDTV/SDTV or unencrypted Digital Cable signals.
Native Resolution: The LED television displays all inputs at
a resolution of 1080p (1920 x 1080). The television's HDMI and component video
inputs will accept 1080p, 1080i, 720p, 480p and 480i video signals.
4 HDMI Inputs: The four rear-panel HDMI inputs can be used to connect a DVD
player, Game console, HDTV or Satellite Set-top box with an HDMI output. The
HDMI 1 input can also be used to connect a device with a DVI output (a
DVI-to-HDMI adapter cable is necessary). If a DVI-equipped device is used,
a separate audio cable will also be needed from the device to TVs PC audio input. No audio cables are needed for an HDMI-equipped device. The
HDMI input can also be used to connect a PC to this TV. The HDMI jack will
accept 1080p, 1080i, 720p, 480p and 480i signals.
Component Video: The rear-panel Component Video jack will accept 1080p,
1080i, 720p, 480p, and 480i signals. The component video inputs can also
be used as a composite video input.
Mega Contrast Ratio: This TV has an 3,000,000:1 dynamic contrast
ratio, giving you brilliant brightness and contrast for superior picture and
detail from both PC and TV images.
Advanced Color Processing: Advanced Color Processing ensures that
every image is as vibrant and colorful
on screen as it was when it was filmed.
Auto Motion Plus 120Hz: Auto Motion Plus 120Hz technology
virtually eliminates any motion blur and creates smooth transitions between
frames. Auto Motion Plus calculates the image between frames and inserts it,
creating a non-repetitive transition from one to the next. The result is a
clearer picture than ever before. You can select from 5 Auto Motion Plus 120Hz
settings
- Clear: Sets Auto Motion Plus 120Hz to minimum.
- Standard: Sets Auto Motion Plus 120Hz to medium.
- Smooth: Sets Auto Motion Plus 120Hz to maximum.
- Custom: Adjusts the blur and judder reduction level to suit your
personal preference.
- Off: Switches Auto Motion Plus 120Hz off.
Screen Sizes: You can choose
one of the following picture sizes:
-
16:9: Sets the picture to 16:9 wide mode.
-
Zoom 1:
Vertically enlarges the size of the picture and allows you to move the
enlarged picture using the arrows on the remote.
-
Zoom 2:
Vertically enlarges the size of the picture more than Zoom 1 and allows you
to move the enlarged picture using the arrows on the remote.
-
Wide Fit:
Proportionally enlarges the picture to fit the entire screen without
changing the aspect ratio.
-
4:3: Sets the
picture to 4:3 normal mode with pillars on the left and right of the screen.
-
Screen Fit: See the full image with no resizing when an HDMI input (720p/1080i/180p),
Component (1080i/1080p), or DTV (1080i) signal is used.
Note: Screen Size settings can be stored for each external device
you have connected to an input of the TV.
Picture Control: You can make the following adjustment for
an optimum picture:
- Automatic Picture Settings:
- Standard: for the optimum display in a normal
environment
- Dynamic: for high-definition in a bright room
- Natural: for optimum and eye-comfortable display
- Movie:
for viewing movies in a dark room
- Manual Picture Settings:
- Backlight: adjusts the brightness of the LED backlight
- Contrast: adjusts the contrast level of the picture
- Brightness: adjusts the brightness level of the picture
- Sharpness: adjusts the edge definition of the picture
- Color: adjusts the color saturation of the picture
- Tint: adjusts the color tint of the picture
- Advanced Picture Settings:
- Black Tone: adjusts the black level on the screen to adjust the
screen depth
- Dynamic Contrast: adjusts the screen contrast so that the optimal
contrast is provided
- Gamma: adjusts the primary color (red, green, blue) intensity
from -3 to +3
- Color Space: color space is a color matrix composed of
red, green and blue colors, you can select your favorite color space to
experience the most natural color; you can choose from Auto, Native, or
Custom (Red/Green/Blue)
- Color Tone: adjusts
the overall color tone of the televisions using one of four presets: Cool,
Normal, Warm 1, Warm 2
- Flesh Tone: emphasize the pink flesh tone in a picture
- White Balance: adjusts the color temperature for more natural
picture colors
- Edge Enhancement: emphasize object boundaries in the picture
- xvYCC: provides a wider color space when used with xvYCC-compatible
video components and content; using HDMI or component video connections; you
can turn this feature On or Off; Picture Mode must be set to Movie to use
this feature
HDMI Black Level: You can select the black level on the screen to
adjust the screen depth when you have a component connected via HDMI to the
television. You can select either Normal or Low.
Digital Noise Reduction: If the broadcast signal received by
your TV is weak, you can activate the Digital Noise Reduction feature to help
reduce any static and ghosting that may appear on the screen. You can select
Low, Medium, High, Auto, or Off.
Film Mode: The TV can be set to automatically sense and
process film signals from all sources and adjust the picture from optimum
quality.
Game Mode: When connecting
the television to a game console, you can enjoy a more realistic gaming
experience when selecting Game Mode.
BD Wise: BD Wise provides the optimal picture quality setting for
Samsung DVD, Blu-ray, and Home Theater products which support the BD Wise
feature for a richer picture.
Blue Only Mode: This function displays the blue signal only
by removing the red and green signals from the video signal so as to provide a
Blue Filter effect that is used to adjust the Color and Tint of video equipment
such as DVD players and Home Theaters. Using this function, you can adjust the
Color and Tint to preferred values appropriated to the signal level of each
video device using the Red/Green/Blue/Cyan/Magenta/Yellow Color Bar Patterns,
without using a additional Blue Filter.
Audio Features
Auto Volume: Auto volume
automatically adjusts the volume of the desired channel, lowering the sound
output when the modulation signal is high or raising the sound output when the
modulation signal is low. This reduces the difference in volume when changing
channels.
Sound Modes: You can choose from
the following sound settings:
-
Standard:
Resets the standard factory settings.
-
Music:
For watching music videos and concerts.
-
Movie:
For watching movies.
-
Clear Voice:
For watching a show that is mostly dialogue.
-
Custom: Adjust the 5-band EQ; 100 Hz, 300 Hz, 1 kHz, 3 kHz, and 10 kHz.
SRS
TruSurround HD:
SRS TruSurround HD is a patented SRS technology that solves the problem of
playing 5.1 multichannel content over two speakers. TruSurround delivers a
compelling, virtual surround sound experience through any two-speaker playback
system, including the internal television speakers. It is fully compatible with
all multichannel formats.
Digital Audio: The optical digital output (with plastic
cover) on the rear panel will output Dolby Digital (when available) or 2 channel
PCM.
PC/USB/Network Functions
Media Play: Media Play enables you to view photos (JPEG) and
movie (MPEG1/2/4, Motion JPEG, DivX, XviD) files, as well as listen to audio files (MP3) saved on a USB
Mass Storage Class (MSC) device using the television's side panel USB type-A
port. The television's Media Play function will only support MP3 music files
with a high sampling frequency of 32, 44.1, or 48 kHz. The television's USB port
will support video resolution from 720 x 576 to 1920 x 1080. The maximum
supported JPEG resolution is 15360 x 8640 pixels. Your JPEG and MP3 files
must be formatted in FAT 16 or FAT 32. The TV's USB port can recognize up to
10,000 files. You can use the television's remote control to operate basic
playback functions of your JPEG or MP3 files.
- MP3 Playback: The
television displays an on-screen list of your MP3 files to scroll through
and select from. You can sort your music by title, artist, mood, genre,
folder, or favorite. You can also select from a Repeat and Random playback mode.
- JPEG Playback: The
television displays a thumbnail index of your photos to select from (15 per
page). You can sort your images by date, color, folders, and favorites. When you have single image displayed, you can zoom (1x, 2x, 4x) and
rotate (0, 90, 180, 270-degees) the photo. You can also view your images as
a slide show. You can choose the slide show speed (Fast, Normal, Slow),
slide show effect (None, Fade, Blind, Spiral, Checker, Linear, Stairs, Wipe,
Random), and
select an MP3 audio file as background music.
- Movie Playback: The movies stored on your USB Mass Storage Device
can be sorted into the following categories - Date, Title, Folder, and
Favorites. You can also control basic playback functions such as Play,
Pause, Stop, Fast Forward, Rewind, Skip Next/Previous and Repeat. In
addition, you can configure picture and sound settings. If you stop your
movie, you can pick up where you left off using the Resume Play function.
Note: The TV features two rear-panel USB ports. One USB
type-A port is used for firmware updates, displaying the E-Manual from the
supplied USB thumb-drive,
and playing music or picture/video files. The other USB type-A port is used for
connecting to Samsung's network wirelessly using the proprietary Samsung Wireless LAN
adapter (305Link, sold separately). Both USB HDD and
HUB are not supported. MTP (Media Transfer Protocol) is not supported)
InfoLink RSS Service: The Samsung LED TV features a
rear-panel Ethernet port which allows you to connect the television to your home
PC's network with or without a router so you can use the InfoLink RSS function
of the television. The InfoLink RSS feature gathers up-to-the-minute content
from USA Today and displays it on the television screen so you can always stay
connected to the News, Weather and Stock Reports while watching TV at home.
PC-Capable: This unit has a
15-pin D-Sub (RGB) input that allows you to use it as a high-resolution computer
monitor. Any HDMI input can also be used with a computer. The TV can be set to automatically adjust to the video signals
received, or you can use the setup menu to adjust the screen quality and
position. No cables are supplied for connecting the TV to a PC.
PC Input: This rear-panel input consists of a stereo mini-jack and an analog
RGB (D-Sub 15-pin) jack. This jack allows you to connect a personal computer
with a D-Sub 15-pin output. When using the RGB (D-Sub 15-pin) jack, you must use
the PC Audio 3.5mm input for your audio connection.
Convenience Features

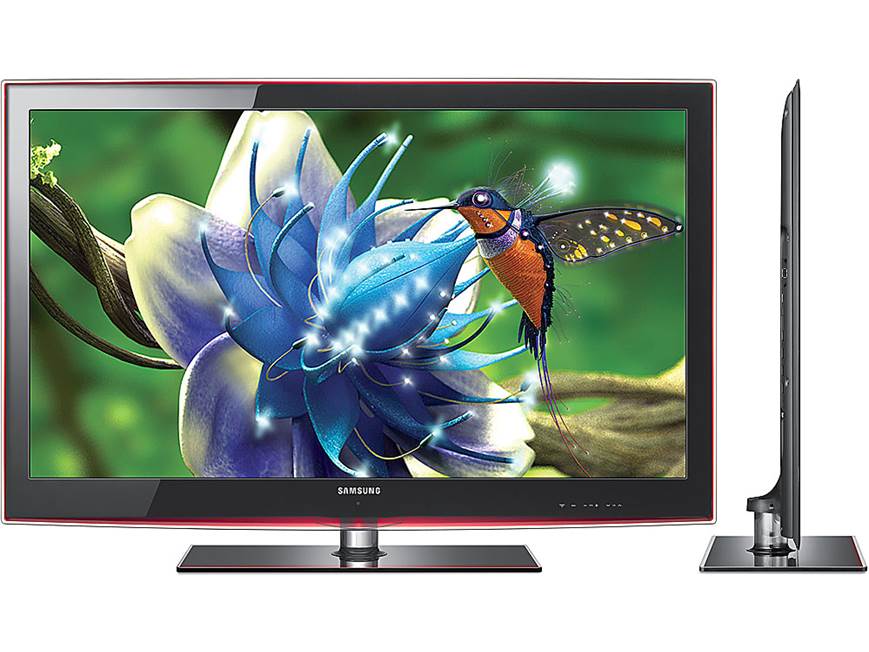

ToC (Touch of Color): Samsung's new Touch of Color design
features a hint of amber color naturally blended into the traditional piano
black frame of the Samsung 6000 Series LED television.
Slim Design: The Samsung LED TV features a slim flat-panel design that
measures only 1.8125" deep (with cord).
1-Tuner PIP: This TV has one built-in tuner, which does not
allow PIP to function in the same mode. You can only watch an analog TV
broadcast in the sub picture window while watching a different video source
from the Component, HDMI or PC input on the TV's main window. You can change the
size of the PIP window and even view the two pictures as a 4:3 or 16:9 split
screen. You can also move the PIP window to each corner of the screen. In
addition, you can switch the audio over to sub PIP picture window.
Note: While the V-chip is in operation, the PIP function
cannot be used.
Input Source Names: You can
assign a pre-programmed name to each of the inputs. When input
naming is completed, you will no longer have to remember which component is
connected to each input when selecting a source to watch. Source names include
VCR, DVD, Cable STB, Satellite STB, PVR STB, AV Receiver, Game, Camcorder, PC,
TV, DVI PC, DVI, IPTV, Blu-Ray, HD-DVD, and Digital Media Adapter.
Channel Labels: Each analog channel programmed into
memory can be labeled with a name.
Digital channels names are already assigned and cannot be edited.
Favorite Channel: You can
create a list of your favorite channels and recall the list using the FAV.CH
button on the remote.
Digital Signal Strength Meter: The digital signal strength meter can be used to help you find the antenna
position that delivers the highest HDTV digital signal strength.
Analog Channel Fine Tuning: The
fine tuning feature allows you to manually adjust analog channels for optimal
reception. A separate fine tuning setting may be put into the TV's memory for
each analog channel.
V-Chip: The V-Chip automatically locks out programs that are
deemed inappropriate for children. You can set up the parameters for the V-Chip
using the TV Parental Guidelines, MPAA (movie) ratings, Canadian French, or
Canadian English ratings systems. The V-Chip function is protected by a 4-digit
PIN.
Sleep Timer: The
sleep timer switches the television off after a specified amount of time. The
sleep timer can be set to 30, 60, 90, 120, 150, or 180 minutes.
On/Off Timer: The
three On/Off timers allow you to program the television to turn itself on and off by
selecting a specific on time and a specific off time. You also choose the On
Timer's channel and Volume. The on and off timers work independently of one
another.
Melody: A
unique melody plays when the TV is turned on and off. The melody volume is
adjustable (Low/Medium/High), or you can turn this feature
off if you prefer.
Energy Saver: This feature adjust the brightness of the TV
in order to reduce power consumption. When watching TV at night, set the Energy
Saver feature to High to reduce eye fatigue as well as power consumption. You
can set this feature to High, Medium, Low or Off.
Remote Control
Illuminated Remote: The supplied remote control is designed
to only operate the Samsung LED television and Anynet+ connected components. You
can use the remote control up to a distance of about 23 feet from TV with a
direct line of sight. The remote's buttons are backlit and will light up with a
press of a button.
Anynet+: Anynet+ is a function that enables you to control all
connected Samsung devices that support Anynet+ with the Samsung television's
remote control. The Anynet+ system can be used only with Samsung devices that
support the Anynet+ features. The Anynet+ feature must be turned on in the menu
to function.
Mounting Options
Pedestal Stand: The TV is shipped with the pedestal stand
attached. The pedestal stand allows the TV to swivel left to right +/-
20-degrees. The television weighs 60.8 lbs with the stand.
Wall Mounting: The TV has four threaded inserts on the
back-panel for use with an optional wall-mount bracket. The spacing of the
mounting holes is VESA 400 x 400 (400mm horizontal x 400mm vertical) in
accordance with the industry standards set by the Video Electronics Standards
Association. The threaded inserts require M8 (8mm) machine screws (not
supplied). The television weighs 49.4 lbs without the stand.
Note: The four supplied plastic ring-holders should be used when
installing an optional wall-mount bracket.
Kensington Lock: When mounting the monitor in a public
place, you can secure it with an optional anti-theft device called a Kensington
Lock. This TV has a slot on the rear panel to accommodate a Kensington Lock
device.
