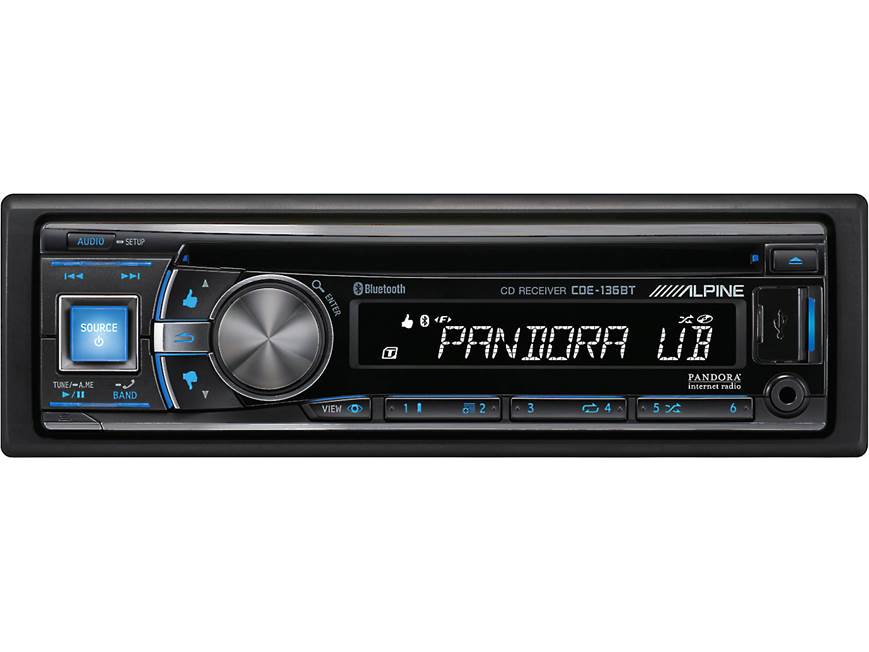

Alpine CDE-136BT CD receiver

Item # 500CDE136B

Pandora® plus hands-free calling Alpine puts Pandora® Internet radio in your dash with the CDE-136BT CD...

Find what Fits your vehicle

Remove

Checking fit...

Pandora® plus hands-free calling Alpine puts Pandora® Internet radio in your dash with the CDE-136BT CD...

Item # 500CDE136B

Shop all Alpine Car Stereos

About the Alpine CDE-136BT

Zak Billmeier
Pandora® plus hands-free calling
Alpine puts Pandora® Internet radio in your dash with the CDE-136BT CD receiver. With the help of your iPhone, you can skip tracks, change stations, and rate songs right from your dash while you're connected via USB. Android™ and BlackBerry users get basic Pandora control over the Bluetooth® connection — play, pause, track up.
Alpine Authorized Online Dealer

Pandora® plus hands-free calling
Alpine puts Pandora® Internet radio in your dash with the CDE-136BT CD receiver. With the help of your iPhone, you can skip tracks, change stations, and rate songs right from your dash while you're connected via USB. Android™ and BlackBerry users get basic Pandora control over the Bluetooth® connection — play, pause, track up.

your description goes here

Great for your iPod® and iPhone®
Just plug your phone or player into the convenient front-panel USB input, and you can use the CDE-136BT's controls to dive into your music library. The person riding shotgun will love Passenger Control Mode, which lets them play DJ while you focus on driving. And let's not forget about what made Alpine famous in the first place — great sound quality. You can adjust your sound to taste with one of the ten equalizer presets or by using the 3-band parametric EQ.

Music streaming
No iPhone? That's OK — if your phone or another device supports Bluetooth music streaming, you can beam your tunes and control playback with the CDE-136BT. You won't get full control this way, but you can perform some basic functions like track up and track down.

Advanced Bluetooth features
Have you ever tried to talk to someone, but been unable to understand them because their in-car Bluetooth just didn't cut it? Your callers will hear you loud and clear with the CDE-136BT fielding your calls. First, you can mount the included microphone in a good spot in front of you so it'll have no problem picking up your voice. Next, the receiver lets you adjust the mic's gain to best match your speaking voice. You can also tweak the phone output and ring volume, so you won't go diving for the volume knob every time someone calls. And, last of all, this Alpine downloads up to a thousand names from your phonebook, and allows you to search by alphabet to find the number you want.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

READ LESS

Product highlights:

    General features:
    • CD receiver with AM/FM tuner
    • built-in MOSFET amplifier (18 watts RMS CEA-2006/50 peak x 4 channels)
    • built-in Bluetooth for hands-free calling and audio streaming
    • full Pandora® control via iPhone
    • basic Pandora control for Android and BlackBerry over Bluetooth
    Audio features:
    • 3-band parametric equalizer with ten presets
    • built-in high- and low-pass filters
    Expandability:
    • inputs: front USB port, front auxiliary input
    • outputs: 6-channel preamp outputs (2-volt front, rear, subwoofer)
    Other features and specs:
    • compatible with most factory steering wheel audio controls (adapter required)
    • CEA-2006 compliant amplifier
    • warranty: 1 year
    • MFR # CDE-136BT

    What's in the box:

    • AM/FM/CD receiver (with 10A ATC fuse inserted in chassis)
    • Face (attached)
    • Sleeve (installed)
    • Trim ring (installed)
    • Wiring harness
    • Microphone (with attached 13' cable terminated by a right-angle 3.5mm connector)
    • Visor clip
    • Hard plastic face case
    • 4 Flat-head ISO-DIN screws (M5 x 8mm)
    • 2 Radio removal tools
    • Face-fixing screw
    • Owner's Manual CD-ROM
    • Quick Reference Guide (Eng/Fre/Spa)
    • System Requirements (for CD-ROM)
    • Online Product Registration card

    Customer reviews for Alpine CDE-136BT

    Loading reviews...

    Average review:

    4.5 out of 5 stars
    31 reviews

    Thanks for submitting your review

    Filter by rating

    Customer photos

    Customer provided image, click to load a larger version.
    Customer provided image, click to load a larger version.

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Verified customer (What's this?)
    Verified employee review (What's this?)

    Reviewed on Samsung.com

    This review was collected as part of a promotion

    Pros:

    Cons:

    Crutchfield response
    Customer provided image, click to load a larger version.
    << >>

    More details on the Alpine CDE-136BT

    Stacey B.

    Features & specs

    Expandability
    AUX Input Front
    Audio/video Input ---
    USB Input Front
    USB Port Power ---
    Backup Camera Input No
    Second Camera Input No
    CarPlay No
    Android Auto No
    Siri Control No
    Alexa Voice Control
    Android Control Yes
    Memory Card Slot USB memory
    Bluetooth Compatible Built-in
    Satellite Radio Ready No
    HD Radio No
    Navigation ---
    iPod Compatibility
    Full size Classic/5Gen
    Nano 7/6/5/4/3/2/1
    Touch 5/4/3/2/1
    iPhone 5/4S/4/3GS/3G/2G
    General
    RMS Power (CTA-2006) 18 watts
    RMS Power (Manufacturer) ---
    Peak Output 50 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 6-channel
    Sub Preamp Outputs Yes
    Switchable Rear Preamp Outputs No
    Video Screen No
    Navigation App Compatible (iOS)
    Navigation App Compatible (Android)
    Preamp Voltage 2 volts
    Screen Size ---
    Screen Type ---
    Display Color White
    Key Button Color Blue
    EQ Bands 3
    Wireless Remote Optional
    Steering Wheel Control Compatible Adapter required
    Parts Warranty 1 Year
    Labor Warranty 1 Year
    Tuner
    FM Sensitivity 9.3 dBf
    European Tuning No
    Seek/Scan Seek
    Radio Data System No
    File Playback
    Music File Playback MP3
    High-res Playback
    The Alpine CDE-136BT replaces these items:

    Product Research

    Built-in Bluetooth
    USB/iPod/Aux Connectivity
    Disc Playback
    Audio Section
    Radio Functions
    Display Features
    Remote Control

    Built-in Bluetooth

    Bluetooth Technology (powered by Parrot): The Alpine CDE-136BT features built-in Bluetooth technology (v3.0), powered by Parrot. Parrot is the global leader in wireless devices for mobile phones, for expanded compatibility for many Bluetooth wireless technology enabled cell phones. The head unit's built-in Bluetooth allows you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit.

    Bluetooth Profiles: In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

    • Hands-Free Communication: HFP (Hands Free Profile), HSP (Head Set Profile), OPP (Object Push Profile), PBAB (Phone Book Access Profile).
    • Audio Streaming: A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile).

    Pairing: The Alpine CDE-136BT can be paired to up to five Bluetooth enabled mobile devices (only one device can be used at a time). Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Alpine CDE-136BT. Parrot software updates provide support for future phones.

    External Microphone with Noise Cancellation: The included external microphone (with visor-clip) allows you to speak to the other party on the telephone call hands-free, while the other party's voice is played through your car stereo speakers. The external microphone is tuned and engineered to reduce noise interference and feedback. This allows optimal placement in your car, for the best possible sound quality. You can adjust the microphone's volume level; and even mute the microphone, so your voice will not be heard by the caller. The external microphone measures 0.5625" (diameter) x 1.625" (deep); and features an attached 13' cable terminated by a right-angle male 3.5mm connector.

    Receiving Calls: The Alpine CDE-136BT provides a couple ways to answer your phone calls without picking up your mobile phone. Incoming calls are announced by a caller ring tone through your vehicle's speakers (music will be muted) & a Caller ID message across your Alpine head unit's display.

    • Manual Answer: Manually answer an incoming call by pressing the "Phone" button on your Alpine head unit.
    • Automatic Answer: Set the Alpine head unit to answer the incoming call automatically; when a call is received, it is answered automatically after approximately 5 seconds.
    • Call Waiting: If a second call is received during a current call, you can have the first caller wait momentarily while you take the second call. When you are finished with one call, you can switch to the other.

    Placing Calls: The Alpine CDE-136BT provides a variety of functions for placing a phone call without using your mobile phone. The Alpine CDE-136BT features full phone book access, call history, voice tag dialing, and redial with compatible phones.

    • Voice Dialing: If you have a voice-dial capable phone, you can dial a phone contact by simply speaking the name of your contact.
    • Phonebook (with ABC search): Up to 1,000 entries (5 telephone numbers for each name) can be downloaded from your compatible mobile phone. You can select the first 3 call letters (ABC) to search for a desired name in your phonebook.
    • Preset Dialing: You can assign phone numbers that you dial frequently to presets (1-6) for quick recall. You can assign up to six frequently called phone numbers. A total of 18 phone numbers can be stored in the preset memory (6 numbers for each mobile phone paired).
    • Call History: The 80 previously dialed, received, or missed numbers can be retrieved and dialed from memory.

    Call Switch: This function allows you to initiate the transfer of audio between your mobile phone and your car's speakers.

    Audio Streaming: The Alpine CDE-136BT can stream music from you Bluetooth A2DP/AVRCP mobile device. Not only can it control & stream your music through Bluetooth, it can process your music using its built-in DSP Sound Expansion to ensure you get the best sound. Basic playback functions include - Play, Pause, & Skip (Previous/Next).

    Note: Bluetooth Firmware Update v01.27.00 is required for Bluetooth control and song information display from an Apple iOS 6.0+ device.

    Bluetooth Sound Quality Adjustments: You can customize the sound of your Bluetooth hands-free experience to fit your own preferences. You can adjust the CDE-136BT's mic gain, phone output, & ring tone volume. If that's not enough, there are 5 sound quality settings to choose from to get the balance just right for you. This flexibility will make your phone calls a pleasurable experience.

    • Volume Adjustments: You can emphasize or weaken the volume level of phone call, the ring tone, and the microphone input to fit your own preference. The Phone Talk Level, Ring Tone, & Mic Gain are all adjustable between -5 to + 5 dB.
    • Sound Types: This unit provides 5 methods to improve the sound quality of your calls. You can choose the type according to your own preference - Type 1 (standard mode), Type 2 (enhances noise reduction), Type 3 (enhances echo-cancellation), Type 4 (enhances both noise reduction & echo cancellation), & Type 5 (weakens both noise reduction & echo-cancellation).

    Speaker Output: You can select which car speaker outputs the audio from your Bluetooth-enabled mobile phone/device.

    • All: The audio will be output from all of the speakers in the car
    • F-L: The sound is only output from the front left speaker.
    • F-R: The sound is only output from the front right speaker.
    • F-LR: The sound is output from the front left and front right speakers.
    USB/iPod/Aux Connectivity

    USB Port: The Alpine CDE-136BT features a front-panel USB (type-A) port, so you may connect a USB mass storage class memory device to this head unit. Your connected USB (msc) memory device may contain MP3 (8-320 kbps) music files formatted in FAT 12/16/32. ID3 tags (v1, v2) are supported; track title, artist name, and album name ID3 tag data can be displayed. The unit offers the following USB playback functions.

    • Bank Function: This unit has a "Bank" function that automatically divides every 1,000 songs stored on a USB memory device into individual banks to make searching and playing back a song easier. A maximum of 1,000 songs/100 folders for one bank can be stored according to the order stored in the USB memory device. A maximum of 20 banks (20,000 songs) can be recognized.
    • File/Folder Search: You can search each stored "Bank" by file (tag info)/folder name or number.
    • Category Search: You can also search each stored "Bank" of music by Playlist, Artist, Album, Song, Genre, or Composer.
    • ABC Search: You search the contents in the above categories alphabetically (A-Z).
    • USB Skip: You can skip forward/backward 1, 10, 20, 50, or 100 files/folders at one time within a stored "Bank".
    • Repeat/Random: In addition, the head unit offers Repeat (File/Folder/Category) and Random (Folder/Category/All) playback modes for your USB memory device's stored music.
    • Charging: USB portable audio players that can be charged via USB will be charged when plugged into the CD receiver's USB port (max. 1A), and the vehicle's ignition switch is set to ACC or On.

    Note: Not compatible with WMA/AAC files.

    iPod/iPhone Direct Connection: You can connect your iPod or iPhone to the head unit's front-panel USB port using the Alpine KCU-445i iPod/iPhone cable (500KCU445I, sold separately) or the iPod dock-connector cable which came with your iPod/iPhone to get access to all of your iPod/iPhone's stored music, right from the head unit. If you have an iPod nano (7th gen), iPod touch (5th gen), or iPhone 5; use the Lighting-to-USB cable that came with your Apple device to connect to the head unit. The Alpine CDE-136BT offers audio playback, music navigation, information display, & charging of select iPod/iPhone models.

    iPod/iPhone Audio Playback (with DAC bypass): The Alpine CDE-136BT supports audio playback of music, podcast, and audiobook files stored on your iPod or iPhone; as well as music apps streamed to your iPod/iPhone. The USB connection allows your iPod/iPhone's large music libraries to be loaded instantly to the Alpine head unit and sound quality to be maximized through the head unit's 1-bit D/A converter (bypassing iPod/iPhone DAC), allowing for a Signal to Noise ratio up to 105dB.

    iPod/iPhone Control: Once your iPod/iPhone is connected, you get convenient control of your iPod/iPhone's music library from the head unit. You can also choose to control your iPod/iPhone from its clickwheel or touchscreen.

    • Head Unit: The Alpine CDE-136BT lets you navigate your iPod/iPhone's music library by Playlist, Artist, Album, Song, Genre, Composer, Podcast, or Audiobook. You can then search each category alphabetically (A-Z). For especially big music libraries, the Percentage Search function uses the head unit's preset buttons for quick jumps to specific parts of the a Category (Preset 1: 0% to 16%, Preset 2: 17% to 32%, Preset 3: 33% to 49%, Preset 4: 50% to 66%, Preset 5: 67% to 82%, Preset 6: 83% to 100% of the song library). The head unit also offers three Shuffle playback functions (All/Album/Category) and Repeat playback function (song).
    • iPod Passenger Control: In iPod Passenger Control mode, you can navigate the stored music on your iPod/iPhone from its clickwheel or touchscreen. You can also listen to your favorite music apps (such as iHeartRadio, SiriusXM, Last.fm, Rhapsody, & Slacker) from your iPhone (iOS 3.0+) through the Alpine head unit and your vehicle's speakers. You will continue to use your iPhone's touchscreen to navigate your apps. Not all apps will be compatible.

    Note: Access to your iPhone's downloaded applications will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone to connect to the Internet.

    iPod/iPhone Display: The Alpine CDE-136BT will display your iPod/iPhone's stored music file information in Head Unit or iPod Passenger Control mode. The head unit will display Track number, Elapsed playing time, Artist name, Song title, & Album label. The unit will not display music app information (other than Pandora).

    Pandora App: The Pandora App (free) lets you play music from the Pandora music service through the Alpine CDE-136BT using your connected Apple iPhone, via your iPhone's included iPod dock-connector cable. The Alpine CDE-136BT provides control over the Pandora music service and displays Artist, Album, and Song information (your iPhone's touchscreen will be locked). You can select Pandora stations from your station list, and skip song tracks within a station. You can also create QuickMix playlists based on two or more of your Pandora stations. You can even give songs a thumbs up/down and bookmark songs/artists. In addition, you can create a new station based on a currently playing song or artist. You can independently adjust the Pandora source volume level to better match the volume level of other sources. To access Pandora you must have an Apple iPhone (iOS3 or later) with the latest version of the Pandora application from Apple's iTunes App Store. Your iPhone will need an active Data Plan account with connection to the Internet via 3G, EDGE, or WiFi. You will also need a Pandora music service account.

    Note: Access to the Pandora service will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone to connect to the Internet. Pandora is not supported in Canada and only available in the United States.

    iPod Charging: The head unit's USB connection provides 1A of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position. This unit does not charge the iPad.  If your iPod/iPhone has no initial battery charge, then the unit will not recognize it.

    iPod/iPhone Compatibility Chart: The Alpine CDE-136BT is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 9/27/2012):

    Apple Device Generation Tested Version Media Type Control Type Display Type Pandora App Charge
    Audio Video Head Unit iPod/iPhone Artist/Song Text Track Info
    iPhone 2G 3.1.3 Y N Y Y Y Y Y Y
    3G 4.2.1 Y N Y Y Y Y Y Y
    3GS 5.1.1 Y N Y Y Y Y Y Y
    4 6.0 Y N Y Y Y Y Y Y
    4S 6.0 Y N Y Y Y Y Y Y
    5 6.0 Y N Y Y Y Y Y Y
    touch 1st 2.2.1 Y N Y Y Y Y N Y
    2nd 4.2.1 Y N Y Y Y Y N Y
    3rd 5.1.1 Y N Y Y Y Y N Y
    4th 6.0 Y N Y Y Y Y N Y
    5th 6.0 Y N Y Y Y Y N Y
    nano 1st 1.3.1 Y N Y N Y Y N Y
    2nd 1.1.3 Y N Y Y Y Y N Y
    3rd 1.1.3 Y N Y Y Y Y N Y
    4th 1.0.4 Y N Y Y Y Y N Y
    5th 1.0.2 Y N Y Y Y Y N Y
    6th 1.1 PC Y N Y Y Y Y N Y
    7th 1.2 Y N Y Y Y Y N Y
    classic 80GB 1.1.2 Y N Y Y Y Y N Y
    120GB 2.0.1 Y N Y Y Y Y N Y
    160GB 2.0.4 Y N Y Y Y Y N Y
    video 5th 1.3 Y N Y N Y Y N Y
    iPad 1 5.1.1 Y N Y Y Y Y Y N
    2 6.0 Y N Y Y Y Y Y N
    3 6.0 Y N Y Y Y Y Y N
    Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

    Auxiliary Input: The unit is equipped with front-panel minijack (3.5mm) auxiliary input. You can input audio from an auxiliary source unit; such as a portable MP3 player. You can turn the Auxiliary Input on or off. You can also adjust the gain level of the head unit's Aux input (from High or Low) to better match the output level of your external audio source. In addition, you can change the name on the display to match the type of device connected to the front-panel input; Auxiliary, TV, DVD, Portable, or Game.

    Disc Playback

    Disc Compatibility: The unit features a single disc player that will playback CD-Audio, CD-Text, and finalized CD-R/CD-RW audio discs.

    MP3 Playback: This unit can play CD-R and CD-RW discs containing MP3 audio files recorded using the ISO 9660 Level 1 or Level 2 formats. MP3 files with bit rates from 8-320 kbps are supported. Variable bit rates are also compatible. Up to a maximum of 255 folders and a maximum 510 files can be read from one disc. ID3 tags (v1, v2) are supported; track title, artist name, and album name ID3 tag data can be displayed.

    Note: The head unit does not support WMA/AAC file playback.

    Text/File/Folder Quick Search: When you are playing a disc with CD Text or ID3 tags, you can easily search for a track, file, or folder by its title. Once you have activated the search mode, you can use the rotary encoder to quickly scan through the titles to locate the desired track. For discs without CD Text or ID3 tags, searches are made using the track numbers associated with each song.

    Playback Modes: The Alpine CDE-136BT offers Repeat and Random playback modes.

    • Repeat: Repeat Play (repeats playback of current track/file), Folder Repeat (repeats only files in current folder).
    • Random: Random Play (all tracks/files on disc are played in random order), Folder Random (only files in current folder are played back in random order).

    Off Insert/Eject: A CD disc can be inserted or ejected with the power off. When a disc is inserted with the power off, the unit will automatically power up and begin playback.

    Auto Reload: When a CD is ejected and left sticking out of the CD slot for 20 seconds, the unit automatically reloads the CD to protect if from damage.

    Angle Mounting: For proper CD playback, Alpine recommends mounting the CDE-136BT no more that 35° above horizontal.

    Audio Section

    CEA-2006 Compliant: The specifications given by Alpine for the built-in amplifier comply with the CEA-2006 mobile amplifier power testing and measurement standards from the CEA (Consumer Electronics Association). All manufacturers who comply with the standard can display the CEA-2006 logo on their product.

    • CEA-2006 Power Rating: 18 watts x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
    • Max Power Output: 50 watts x 4 channels

    Head Unit Power Pack (optional): Add the KTP-445A (500KTP445A, sold separately) Head Unit Power Pack to deliver 45 watts x 4-channel RMS of power. The KTP-445A is compact enough to install behind the Alpine CD receiver. It plugs in-line with the head unit's wiring harness, so you don't even need additional wires.

    Preset EQ: You can select from 10 different EQ presets to get the best sound from all your sources. You can choose from Flat, Pops, Rock, News, Jazz, Electric Dance, Hip-Hop, Easy Listening, Country, or Classical. You can also select the User EQ preset to customize Bass, Mid, and Treble.

    3-Band Parametric Equalizer: If the Equalizer presets aren't enough for your listening taste, there's a 3-Band Parametric Equalizer (in User mode) you can adjust for a better sound response curve. Bass, Mid, & Treble can be adjusted in the 3-Band Parametric mode.

    • Treble Control:
      • Center Frequency: 7.5kHz, 10kHz (default), 12.5kHz, or 15kHz
      • Width Q: Wide 0.75 or Narrow 1.25
      • Level: -7 to +7 (+/-14dB in 2dB steps)
    • Midrange Control:
      • Center Frequency: 500Hz, 1.0kHz, 1.5kHz, or 2.5kHz
      • Width Q: Wide 0.75, Medium 1.0, Medium 1.25, or Narrow 1.5
      • Level: -7 to +7 (+/-14dB in 2dB steps)
    • Bass Control:
      • Center Frequency: 60Hz, 80Hz (default), 100Hz, or 120Hz
      • Width Q: Wide 0.5, Medium 1.0, Medium 1.5, or Narrow. 2.0
      • Level: -7 to +7 (+/-14dB in 2dB steps)

    Loudness: Loudness introduces a special low & high frequency emphasis at low listening levels to compensate for the ear's decreased sensitivity to bass and treble sound at low volume.

    6ch/2V Preouts: The CDE-136BT has three sets of 2-Volt RCA pre-outs (Front/Rear/Sub) for connection of external amplifiers. The unit's front and rear preamp output can be faded (front/rear), while the subwoofer preamp output is non-fading.

    Note: When an external amplifier is connected sound quality can be improved by stopping the power supply of the built-in amplifier.

    Subwoofer Control: When the non-fading subwoofer preamp output is activated, you can adjust the subwoofer's volume, low-pass filter, & phase.

    • Volume: There are two volume (system) modes for the unit's subwoofer output.
      • System 1: Subwoofer level changes according to the main volume setting.
      • System 2: Subwoofer level change is different from the main volume setting (0-15); even at low volume settings, the subwoofer is still audible.
    • Low Pass Filter: The unit's subwoofer output low-pass filter can be set to 60Hz, 80Hz, 120Hz, 160Hz, or Off (through).
    • Subwoofer Phase: The subwoofer output phase can be set to Normal (0°) or Reverse (180°).

    High Pass Filter: The Alpine head unit is equipped with a high-pass filter for its speaker-level output and front-channel preamp output (when activated). You can set the unit's high-pass filter to 60Hz, 80Hz, 120Hz, 160Hz, or Off (through).

    Interrupt Feature: When a device having the interrupt feature (such as a cellular telephone) is connected to the receiver, the audio signal will be automatically muted whenever the interrupt signal is received from the device. The supplied wiring harness contains a pink/black Interrupt lead that needs to be connected to the device's interrupt signal connection.

    Radio Functions

    AM/FM Tuner: The Alpine CDE-136BT features a built-in AM/FM tuner with manual, seek, and preset tuning.

    Preset Tuning: The built-in tuner provides 12 FM and 6 AM preset stations. Stations can be preset manually or automatically.

    Local/Distance Tuning: Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception. Distance seek tuning allows both strong and weak stations to be tuned.

    Display Features

    Detachable Face: The unit features a single front loading CD face that detaches from the chassis to deter theft. The CD player comes supplied with a hard plastic face case to protect the detachable face when you have it off the chassis. A face-fixing screw is supplied for making the face non-detachable, if desired.  An optional soft face case (142DFC1X, sold separately) can also be purchased for this unit.

    1-Line LCD Display: This unit is equipped with a 1-Line white-backlit LCD, so you can easily view AM/FM stations, CD-Text, & ID-3 tag information.

    Text Display: Text information, such as the disc name and the track name, will be displayed if playing a CD text compatible disc. It is also possible to display the folder name, the file name,& the tag information, while playing a MP3 disc or USB memory device.

    Text Scroll: This unit can scroll the disc & track names recorded on CD-Text disc, as well as the text information of MP3 files, folder names, and tags. There are two Text Scroll settings.

    • Auto: The CD text information, the information of folder and file names, and the tags are scrolled automatically.
    • Manual: The display is scrolled when a disc is loaded or when a track is changed.

    Auto Dimmer: This unit is equipped with an illumination lead; when the unit's dimmer mode is set to Auto and the illumination lead is connected to your vehicle's headlight circuit, the display and button illumination will dim to a fixed, preset level whenever the headlights are turned on. If preferred, you may choose the Manual dimmer mode setting, so the display and button illumination is dim at all times.

    Demo Mode: This unit has a demonstration feature for its display which can be turned On or Off in the menu.

    Remote Control

    Steering Wheel Remote Compatibility: The head unit features an OEM steering wheel remote control input on the rear of the unit that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately). Please consult Crutchfield's Outfit My Car to see if your vehicle is compatible.

    Optional Wireless Remote: The Alpine CDE-136BT is wireless remote control ready. Simply add on the Alpine RUE-4202 IR remote (500RUE4202, sold separately) to make it even easier to control the head unit's functions.

    Loading accessories...

    Customer Q&A

    Loading articles...

    Compare the sound
