About the PS Audio Digital Link III
Digital music sources make it easy for us to hear more music in more places, but they can also rob music of its realism. One culprit is the cheap digital-to-analog converter, or DAC, hidden away inside our CD players, DVD players and computers. It's the DAC's job to convert digital bits back into music, and how well it performs can mean the difference between thin, threadbare sound and a richly detailed musical presentation. This is where PS Audio's amazing Digital Link III DAC comes in.
You've never heard CDs sound this good
The Digital Link III connects to your disc player's digital output and it will re-connect you with your favorite CDs. Even long-familiar tracks may surprise you, opening up to reveal a spacious, three-dimensional soundstage alive with warmth and rhythmic energy. The sound is built on a rock-solid foundation of taut, tuneful bass. This DAC has impressed many of Crutchfield's veteran audiophiles.
Turn your computer into a high-end music source
You can hook up your computer to the Digital Link III's USB input and enjoy the same sonic benefits with the music stored on your PC. This DAC works wonders with uncompressed WAV and AIFF files, as well as lossless files. And even low-res files sound more fleshed out not just listenable but actually enjoyable. The Digital Link III performs much better than even high-quality sound cards, which are handicapped by having to operate in the noisy environment inside your PC.
More ways to enjoy more music
Want to enjoy unbelievable sound quality from your iPod®? Just combine the Digital Link III with the Wadia 170iTransport iPod dock, which allows you to bypass the iPod's built-in DAC. Think about the hundreds or thousands of songs on your iPod. Now think about hearing them anew. The Digital Link III also opens the door to dramatically better sound from music streaming devices like Sonos®, Squeezebox, and Apple TV.
Product highlights:
- 3 digital audio inputs optical, coaxial, and USB (Type B)
- RCA outputs and balanced XLR outputs
- built-in driver for USB connection
- Texas Instruments (formerly Burr Brown) PCM1798DB DAC
- 192kHz/24-bit processor with 8X oversampling filter
- user-selectable 96kHz or 192kHz sample rate
- FET-based discrete output stage
- built-in high-end power supply with oversized toroidal transformer
- THD: 0.0005%
- dynamic range: 123 dB
- detachable power cord
- weight: 10 lbs.
- 8-9/16"W x 2-13/16"H x 15-15/16"D
- warranty: 3 years (with product registration)
- MFR # Digital Link-III
What's in the box:
PS Audio Digital Link III owner's manual
- Digital to analog converter
- 75" AC power cord
- Owner's manual
Customer reviews for PS Audio Digital Link III
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the PS Audio Digital Link III
Features & specs
Design | ||
---|---|---|
Type | --- | |
Built-in Rechargable Battery | --- | |
Built-in Headphone Amplifier | ||
Output Power | --- | |
Output Impedance (Unbalanced) | --- | |
Output Impedance (Balanced) | --- | |
Audio Specs | ||
Bit Depth (USB) | 16 | |
Max Sampling Rate (USB) | 48 kHz | |
Bit Depth (S/PDIF) | 24 | |
Max Sampling Rate S/PDIF | 192 kHz | |
S/N Ratio (Unbalanced, in dB) | --- | |
S/N Ratio (Balanced, in dB) | --- | |
THD (Unbalanced) | --- | |
THD (Balanced) | 0.005% | |
Supported File Types | ||
PCM | --- | |
DSD | --- | |
DXD | --- | |
MQA | --- | |
Inputs | ||
Total Inputs | 3 | |
USB | Type B | |
Optical Digital | 1 | |
Coaxial Digital | 1 | |
3.5mm Digital | None | |
Stereo RCA Analog | None | |
Stereo 3.5mm Analog | None | |
Stereo XLR Analog | --- | |
Headphone Outputs | ||
3.5mm Unbalanced | --- | |
1/4-inch Unbalanced | --- | |
4.4mm Balanced | --- | |
XLR4 Balanced | --- | |
Other Headphone Outs | --- | |
Line Level & Digital Outs | ||
RCA Line Out | 1 | |
3.5mm Line Out | None | |
XLR Line Out | --- | |
Subwoofer Out | None | |
Optical Digital Out | None | |
Coaxial Digital Out | None | |
Wireless Connectivity | ||
Bluetooth | --- | |
Wi-Fi | --- | |
Apple-compatible | --- | |
Android-compatible | --- | |
General Info | ||
Width (inches) | 8-9/16 | |
Height (inches) | 2-13/16 | |
Depth (inches) | 15-15/16 | |
Weight | --- | |
Parts Warranty | 3 Years w/ registration | |
Labor Warranty | 3 Years w/ registration |
Product Research
Features
Inputs: There are three digital inputs; coaxial, optical, and USB (type-B). Any or all of them can be connected simultaneously. A button on the front panel is used to select a source. When powered up the Autoscan feature selects the first input with an active signal. The PS Audio DLIII will improve the two-channel performance of your CD player, DVD player (stereo output only), computer, or just about any source with a digital output.
Main Power Switch: There is a main power switch on the rear-panel of this unit. Though, it's designed to be left on all the time.

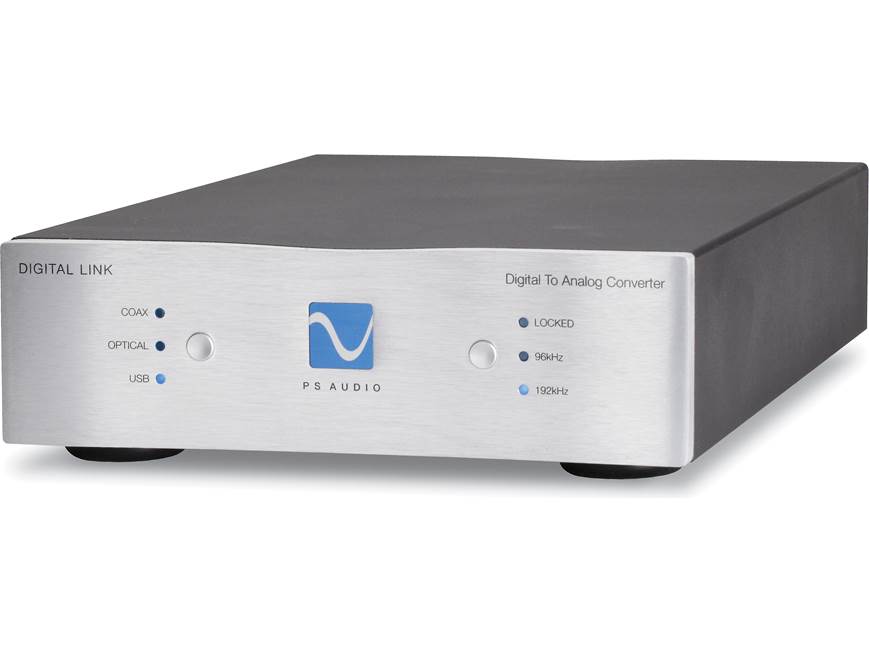

Illumination: There are six blue LEDs on the front panel; one of three lights to indicate the input (coax, optical, or USB), one of two others lights to indicate the sampling frequency (96 kHz or 192 kHz), and the sixth light to indicate an input is locked in.
Line Output: The DLIII has two pair of line outputs; balanced XLR and RCAs. The outputs are both live simultaneously but PS Audio doesn't recommend using them at the same time.
Warranty Note: Out of the box the warranty is 90 days. If you register your purchase on PS Audio's web site, the warranty is extended to 3 years.
Specifications
Specifications:
- Single-ended Outputs: 1 pair RCA
- Balanced Outputs: 1 pair XLR
- Output Impedance:
- RCA: 50 Ω
- XLR: 100 Ω
- Output Voltage:
- RCA: 2.75 volts
- XLR: 5.5 volts
- THD: 0.0005%
- Resolution: 24 bit
- Sampling Rate: 96 kHz or 192 kHz
- Oversampling: 8x
