Features
Overview:
The Battery Brain Marine III is a patented innovative
accessory that easily installs to any marine battery to ensure your boat or
vessel
starts every time. Using unique micro-electronic technology it continually
monitors your boat or vessel battery's power. When the Battery Brain Marine III detects
power falling below the level required to start your engine, it automatically
isolates the battery from the electrical system. It is specially designed to
protect accessory memory and presets. The Battery Brain Marine III system
ensures you always have enough battery power to start your engine.
Battery Protection: The Battery Brain
Marine III module monitors you boat or vessel's battery and automatically disconnects it
from the electrical system if the battery charge is at the point of being too
low to start the engine of your boat or vessel. When you return to the boat or vessel, the
battery can be reconnected with the push of a button on the supplied wireless
remote control and you will be able to start your boat or vessel and ride away. All
electronic settings in the boat or vessel will be maintained.
Anti-Theft: The Battery Brain module also can be used as an
anti-theft device to prevent someone from stealing your boat or vessel. You can
push a button on the supplied wireless remote control when you leave your boat
or vessel to disconnect the battery from the electrical system so it will not
start until you reconnect the battery to the electrical system by pressing
another button on the remote control.
Wireless Remote Control:
The Battery Brain Marine III comes supplied with two wireless remote controls
for operation of the system. The remote controls allow you to Arm, Disarm,
Connect or Disconnect the Battery Brain as well as test the operation of the
unit.
Manual Reset: The Battery Brain module
features a manual reset control knob under a removable protective plastic cap.
This allows you to bypass the Battery Brain Marine III so that it will not
function when the engine is turned off. The reset knob must be set to On for the
Battery Brain to function.

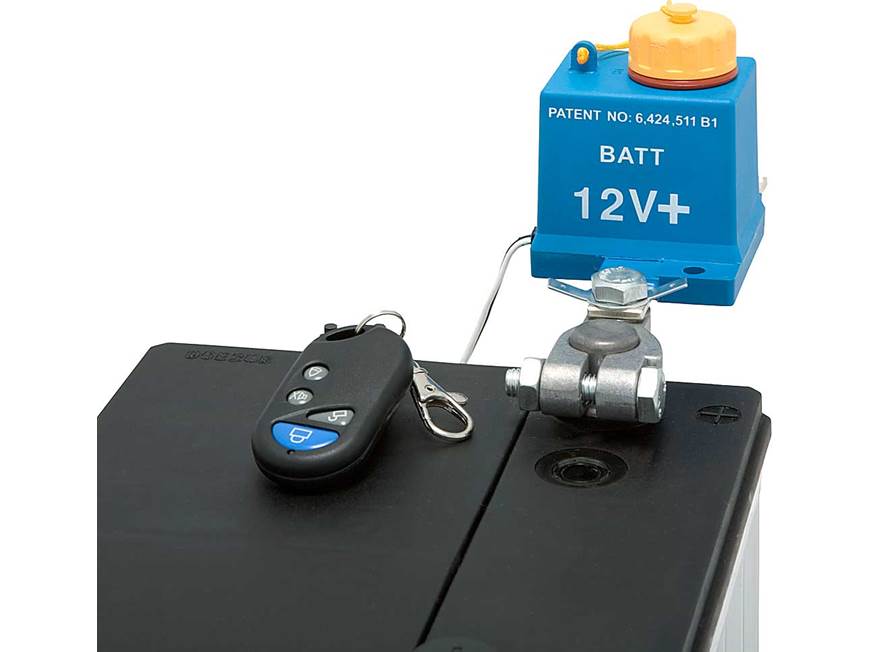

Installation: The
Battery Brain Marine III module is installed on the positive (+) battery post
with the post clamp provided (top, side and chassis mounts included). The clip
end of the black ground wire attached to the Battery Brain Marine III module is
fastened to the negative (-) post clamp bolt.
Multi-Battery Installation: The Battery
Brain Marine III can be mounted to any battery configuration. However, any primary
live positive posts must have their own Battery Brain. If two or more batteries
are connected in series then only one Battery Brain is required. If two or more
batteries are connected in parallel, then it will require two Battery Brains to
ensure that the batteries are effectively isolated from the electrical system
once the activation threshold is reached.
Dimensions:
- Battery Brain Marine III Module: Width
= 2.365", Height = 2.815", Depth = 4.355"
- Remote Controls: Width = 1.175",
Height = 2.265", Depth = 0.449"
