Features
Inputs and Outputs
Features

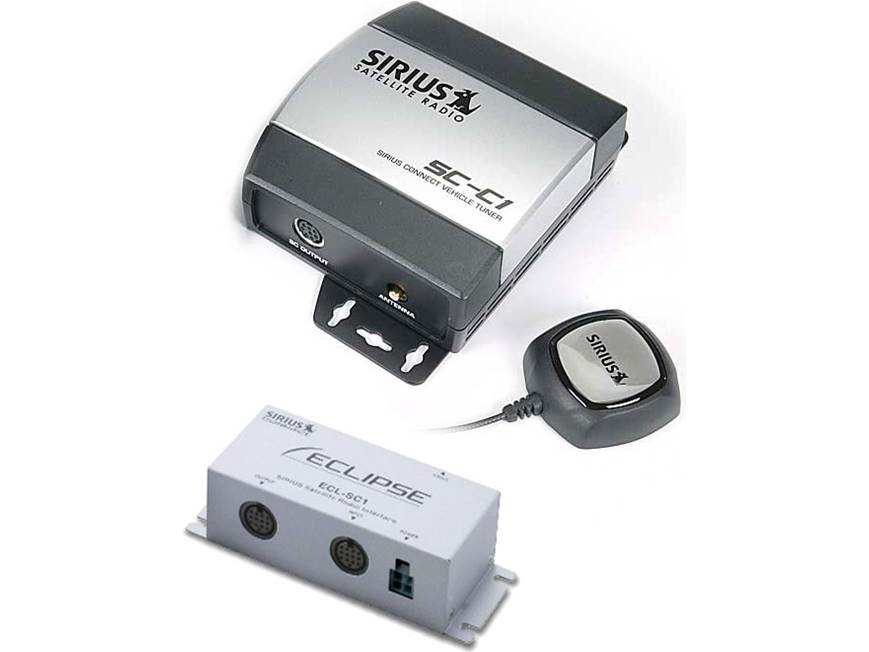

Package Overview: This package contains the SIRIUS SC-C1 SIRIUS
Connect Universal Vehicle tuner and the Eclipse ECL-SC1 SIRIUS Satellite Radio
Interface. Together, they allow you to add SIRIUS Radio to a 2005 and up Eclipse
E-Lan head unit. In addition to the tuner, interface, and compatible
head unit. You will also need a subscription to SIRIUS Satellite Radio.
SIRIUS Satellite Radio: SIRIUS Satellite Radio features more than 120
streams of original programming beamed coast-to-coast, including 65 streams of
commercial-free, digital-quality music, and news, talk, sports, entertainment,
and children's programming.
Note: Satellite radio service is available only within the
continental United States. Limited service is available in Alaska. Service
is not available in Hawaii or U.S. Territories.
Compatible Eclipse Head Units: The ECL-SC1 is compatible
with 2005 and newer Eclipse E-Lan head units that are designated as
"SIRIUS-ready" or "SAT-ready" when used with the supplied SC-C1 Sirius Tuner:
| |
2005 |
2006 |
2007 |
| CD head units |
CD5415
CD5425
CD5435
CD8445
CD8455 |
CD2000
CD3000
CD4000
CD5000
CD7000 |
CD3100
CD5100
CD7100 |
| AVN head units |
AVN30D
AVN5435
AVN5495 (w/update)
AVN7000 |
AVN5500
AVN6600
AVN20D
AVN50D
AVN70D |
AVN5510
AVN6610
AVN52D
AVN2210p |
| AVX head units |
AVX5000 |
--- |
--- |
Pass-Through: The ECL-SC1 interface has a pass-through jack
that allows you to daisy-chain other E-Lan components, such as the IPC-106 iPod
interface and/or the CH3083 CD changer.
SIRIUS Antenna: The compact SIRIUS antenna has a powerful magnetic
base that allows you to mount the antenna on the roof or trunk lid of your
vehicle. The antenna needs to be positioned in such a way that it will be free
of mechanical and line-of-sight obstructions. The attached antenna cable is 21'
long. The antenna measures 1.605" wide x 0.505" tall x 2.005" deep.
Mounting: The hide-away interface features built-in flanges
and comes with four self-tapping screws to secure the unit to a flat surface of
your vehicle. The power harness provided is 3' long while the E-Lan cable is
11.5' long, so keep that in mind when selecting a location for the module. The SC-C1 comes supplied
with a removable metal mounting plate with three pre-drilled holes on either
side and four self-tapping mounting screws to secure the device to a solid, flat
surface. The mounting plate can be removed allowing the unit to be mounted
directly to a smooth, flat, clean surface using either double stick tape, Velcro
or other adhesive material (not supplied).
Inputs and Outputs
Eclipse ECL-SC1 Interface:
- Output: female E-Lan pass-through jack for adding E-Lan
accessories, such as IPC-106 iPod interface or CH3083 CD changer
- Input: female E-Lan jack for connecting to Eclipse E-Lan
head unit
- Power: 4-pin square female Molex connector for the
supplied power/ground harness
- SIRIUS: 8-pin round female connector for SIRIUS Connect
cable (supplied with SC-C1 tuner)
SCC-1 Sirius Tuner:
- SC Output: female 8-pin DIN-port for supplied Sirius Connect
cable
- Antenna: single SMB input
