About the Wadia 151 PowerDAC mini
Get stunning sound from this compact, high-performance DAC/amp combo
Get stunning sound from this compact, high-performance DAC/amp combo
When your entire music collection resides on your iPod® or your laptop computer, and your radio comes from the Internet, a traditional A/V receiver makes little sense. You no longer need a big, heavy box with a full array of analog audio inputs.
All you need is what you get with the Wadia 151 PowerDAC Mini: An audiophile-grade amplifier, a high-end digital-to-analog converter, and a few digital audio inputs (including USB) in a small, lightweight box.
The 151 PowerDAC mini is the perfect companion to Wadia's 170iTransport iPod® dock.
Stacks with Wadia's acclaimed iPod® dock
Add Wadia's matching 170iTransport iPod dock and a pair of good bookshelf speakers, and you've got a great-sounding audio system that's at home in your office, den, bedroom, or kitchen.
For compatibility with ultra-high resolution music files, the USB input accepts 24 bit/96 KHz data, and the other inputs accept 24 bit/192 KHz data. All input signals are upsampled to 24 bit/384 KHz to create a more spacious and natural musical presentation.
Product highlights:
- 50 watts x 2 channels into 4 ohms
- digital amplifier design
- proprietary digital-to-analog converter (DAC) design, used only in the 151 PowerDAC mini
- digital audio inputs: 1 USB (Type B), 1 optical (Toslink), and 2 coaxial (S/PDIF)
- heavy-duty binding-post speaker connectors
- detachable power cord
- remote control
- weight: 6 lbs.
- 8-1/16"W x 2-5/8"H x 9-1/4"D
- warranty: 1 year
- MFR # 151 PowerDAC Mini-BK
What's in the box:
Wadia 151 PowerDAC mini owner's manual
- Mini digital integrated amplifier
- 6' AC power cord
- Remote control
- 2 "AAA" batteries
- Cloth pouch
- Owner's Manual
- Online Product Registration card
Customer reviews for Wadia 151 PowerDAC mini
Loading...
Loading reviews...
Average review:
4.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Wadia 151 PowerDAC mini
Features & specs
| Performance Specs | ||
|---|---|---|
| Watts RMS per Channel (8-ohms) | 25 | |
| Watts RMS per Channel (6-ohms) | Not given | |
| Watts RMS per Channel (4-ohms) | 50 | |
| Frequency Bandwidth | 20-20k | |
| THD | 0.03% | |
| Minimum Impedance | 4 ohms | |
| Amplifier Class | D | |
| Signal to Noise Ratio | 103 | |
| DAC Bit Depth | --- | |
| DAC Sample Rate | --- | |
| Features | ||
| Built-in DAC (Digital to Analog Converter) | Yes | |
| Wi-Fi | ||
| Built-in Radio Tuner | None | |
| Room Correction | --- | |
| High-res Audio Playback | ||
| From Network | No | |
| From USB Thumb Drive (USB-A) | No | |
| From Computer (USB-B) | No | |
| Bluetooth | ||
| Version Info | --- | |
| Receiver Mode | No | |
| Transmitter Mode | No | |
| AAC Playback | No | |
| aptX Playback | No | |
| aptX-HD Playback | No | |
| LDAC Playback | No | |
| Connections | ||
| RCA Line-level Inputs | --- | |
| XLR Line-level Inputs | --- | |
| Phono Input | No | |
| Optical Digital Inputs | 1 | |
| Coaxial Digital Inputs | 2 | |
| USB Input | 1 Type B | |
| HDMI Inputs | --- | |
| Stereo Preamp Outputs | --- | |
| Subwoofer Outputs | No | |
| Recording Output | No | |
| HDMI Output | --- | |
| Home Theater Bypass | No | |
| Pre-out/Main-in Loop | No | |
| Headphone Output | No | |
| Removable Power Cord | --- | |
| Streaming Compatibility | ||
| Apple AirPlay | No | |
| Apple AirPlay 2 | No | |
| DTS Play-Fi | No | |
| Chromecast built-in | No | |
| Roon | No | |
| HEOS | No | |
| BluOS | No | |
| Dimensions and Warranty | ||
| Width (inches) | 8-1/16 | |
| Height (inches) | 2-11/16 | |
| Depth (inches) | 9-1/4 | |
| Weight (pounds) | 6 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
Product Research
Features
Overview: The Wadia 151PowerDAC mini is an all-in-one digital amplifier solution. The Wadia 151PowerDAC combines a high-performance DAC, robust amplifier, and variety of digital inputs.
Aluminum Chassis: The Wadia 151PowerDAC mini features an aluminum chassis with a small, lightweight footprint.

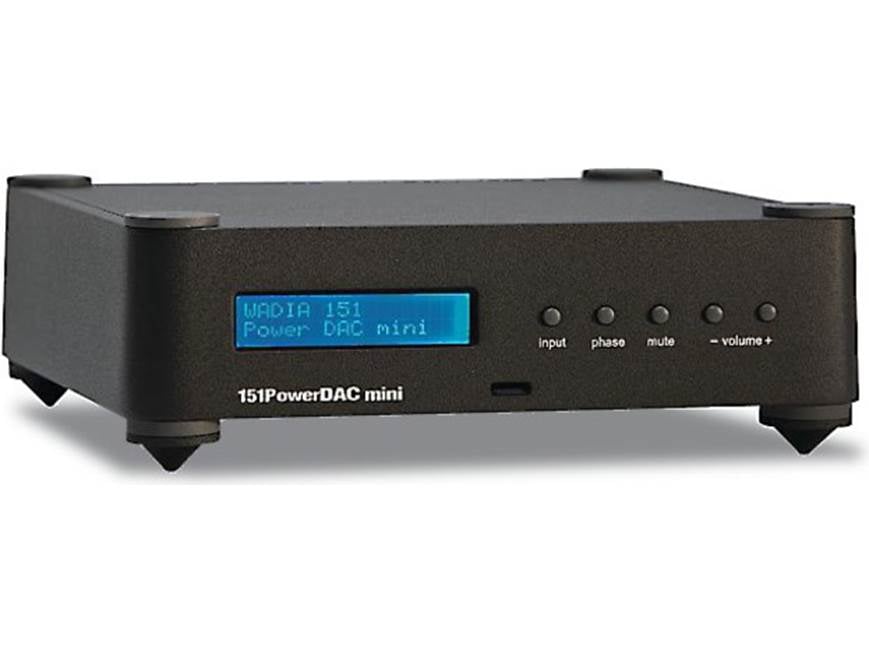

LED Display: The Wadia 151PowerDAC mini is equipped with a front-panel LED blue-backlit display and discrete control buttons (input, phase, mute, volume +/-).
Integrated DAC: All audio signals fed into the Wadia 15PowerDAC mini are processed exclusively in the digital domain throughout the entire signal path from input to speaker outputs.
24-bit/384kHz Upsampling: The unit's digital inputs are directly fed into a powerful digital signal processor (DSP). The toslink and coax digital inputs, can accept up to a 24-bit/192kHz input data rate (USB: 24-bit/96kHz). Once the data enters the system, Wadia's data sampling technology uses a spline interpolation algorithm to up-sample all incoming data to 24 bit/ 384kHz for high performance conversion. The algorithm reduces interpolation error and creates highly accurate representations of the original performance.
DirectConnect Digital VolumeControl: The high resolution digital audio signal is modulated into Pulse Width Modulation (PWM) output using a proprietary digital algorithm. Up-sampled and filtered data is sent to the digital amplifier stage and managed by the DirectConnect digital volume control. This allows the data to still remain in the digital domain while additional current is applied to the signal in a manner that optimizes transient response and minimizes distortion.
50-Watt Amplifier: The high-resolution digital audio signal is amplified and delivered to your connected loudspeakers by a conservatively rated 50-watt x 2-channel @ 4-ohm (or 25-watt x 2-channl @ 8-ohm) digital amplifier.
4 Digital Inputs: Four selectable digital inputs including USB (type-B), Toslink, and (2) coax S/PDIF, allow you to connect your computer, game system, iPod dock (such as the Wadia 170iTransport), and other streaming audio sources.
5-Way Binding Posts: The Wadia 151PowerDAC mini features two pair of 5-way insulated gold-plated binding posts.
Remote Control: The Wadia 151PowerDAC mini includes an aluminum full-function IR remote control for wireless operation of the unit. The remote operates off of two "AAA" batteries (included).
Specifications
Power Rating: 50 watt x 2-channel in 4-ohm @ 1kHz, 25 watt x 2-channel in 8-ohm @ 1kHz
Dynamic Power: 100 watt x 2-channel in 4-ohm @ 1kHz
Distortion (THS+N): 1kHz @ 1 watts = 0.03%, 1kHz @45 watts = 0.11%
Signal-to-Noise Ratio: 103dB (signal on), 105dB (signal off)
Frequency Response: 20Hz to 20kHz +/-07 dB
Power Requirements: AC 90 - 264V, 50/H60Hz, 1.2 - 0.5A
Dimensions: 8.0625" (w) x 2.6875" (h) x 9.25" (d)
Weight: 6 lbs.
