About the Concertone ZW150B
Worried about losing your iPod in the recesses of your RV as you travel? This handy Concertone iPod wall plate makes it easy to play music from your iPod through your Concertone DVD receiver. It works with and charges most conventional docking iPod models, but not the iPhone® or iPod touch®. The wall plate includes adapters to match different iPod body styles to ensure that your iPod is firmly in place. See "Details" for iPod compatibility.
The Concertone ZW150B wall plate features a push-to-lock-and-release cradle that holds your iPod and allows access to its controls. Mount the plate to a 12-volt power supply, then run an audio cable from the plate to your Concertone DVD receiver, and you'll be rocking your RV with your favorite on-the-road playlist in no time. Warranty: 1 year.

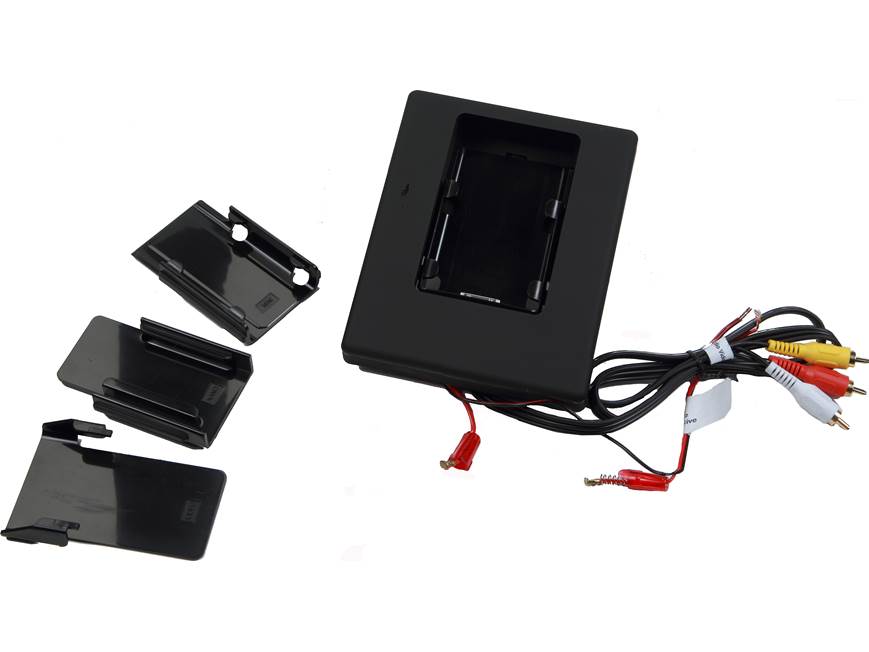

What's in the box:
Concertone ZW150B owner's manual
- iPod dock/wall plate
- Trim ring
- 2 Amp fuse
- iPod video adapter insert
- iPod nano adapter insert
- iPod mini adapter insert
Customer reviews for Concertone ZW150B
Loading...
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Concertone ZW150B
Product Research
Features
iPod Compatibility: The ZW150B dock is compatible with the following iPods for audio playback and charging (as of December 2011):
iPod/iPhone Model | Generation | Tested Version | Media Type | Control Type | Charge | ||
---|---|---|---|---|---|---|---|
Audio | Video Out | Remote | iPod/iPhone | ||||
dock connector | 3rd | N/A | N | N | N | N | N |
clickwheel color | 4th | 3.1.1 | Y | N | N | Y | Y |
mini | 1st | 1.4.1 | Y | N | N | Y | Y |
2nd | 1.4.1 | Y | N | N | Y | Y | |
video | 5th | 1.3 | Y | Y | N | Y | Y |
classic | 80GB | 1.1.2 | Y | N | N | Y | Y |
120GB | 2.0.1 | Y | N | N | Y | Y | |
160GB | 2.0.4 | Y | N | N | Y | Y | |
nano | 1st | 1.3.1 | Y | N | N | Y | Y |
2nd | 1.1.3 | Y | N | N | Y | Y | |
3rd | 1.1.3 | Y | N | N | Y | Y | |
4th | 1.0.4 | Y | N | N | Y | Y | |
5th | 1.0.2 | N | N | N | N | N | |
6th | 1.1 PC | N | N | N | N | N | |
touch | 1st | 2.2.1 | N | N | N | N | N |
2nd | 4.2.1 | N | N | N | N | N | |
3rd | 4.3.5 | N | N | N | N | N | |
4th | 4.3.5 | N | N | N | N | N | |
iPhone | 2G | 3.1.3 | N | N | N | N | N |
3G | 4.2.1 | N | N | N | N | N | |
3GS | 4.3.5 | N | N | N | N | N | |
4 | 4.2.7 | N | N | N | N | N | |
4S | 5.0 | N | N | N | N | N |
Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset your iPod to regain functionality. If this doesn't work, you may need to revert to the older software version or wait until an newer software update is available.
Control: The controls on the iPod are used. The ZW150B doesn't provide any control capability to the connected Concertone receiver.
Video Playback: The ZW150B has a composite video output, but only the 5th generation iPod (video) is compatible with the video output.
Display: The display on the iPod remains active. The ZW150B doesn't transfer any display information to the connected Concertone receiver or TV.
Connections: The ZW150B connects to your Concertone receiver using the attached 32" stereo audio and composite video RCA cables (male). The dock also requires 12 volt DC and ground wiring.
Charge: The ZW150B iPod dock will charge your docked iPod's battery while connected.
Dimensions:
- Dock:
- Width: 5-1/8"
- Height: 6-1/4"
- Depth: 1-5/8"
- Trim Ring:
- Width: 5-1/8"
- Height: 6-1/4"
- Depth: 1/4"
- Cutout:
- Width: 3"
- Height: 5-1/8"
- Depth: 1"
- Protrusion: 1-5/8" (mounting height above wall, including the iPod when tilted outward)
Mounting: The ZW150B is mounted using six screws, three on each side. The horizontal screw spacing is approximately 4-3/8", vertical approximately 2-5/8".
