Power protection buying guide

What's the best way to protect your gear?

In this article: We’ll talk about how power protection can prevent damage and extend the life of your AV gear…

  1. Why you need power protection
  2. What do you need to protect?
  3. Surge protectors vs. power strips
  4. Line conditioners vs. surge protectors
  5. Types of power protection devices

...and give you some tips to help you get started shopping.

Not many people are aware of just how much damage voltage fluctuations and power surges do to home electronics. To my dismay, a lot of people seem to think “If wall power is good enough for my coffee maker, it’s good enough for my stereo.” That line of thought is okay until a storm rolls through and fries that coffee maker or, worse, your expensive TV.

Why you need power protection

Home theater receivers, TVs, gaming computers, and sound bars are expensive investments. I think most folks would agree that those assets are worth protecting as much as possible. But what do they need to be protected from? The power coming from your home AC outlets, of course. The voltage leaving those wall outlets can be very unpredictable and unstable.

Burned electrical outlet

Smell something crispy after a power spike? It doesn't take much for one to fry electrical outlets and the devices attached to them.

Power spikes and how they affect performance

Voltage spikes, power spikes, power surges: All different names for the number one fryer of home electronics. Larger spikes caused by lightning strikes can fry your equipment in an instant, but smaller spikes can cause electronics to degrade over time.

Spikes have no trouble finding their way into your equipment and wreaking havoc without some form of power protection in the way to soak up excess voltage.

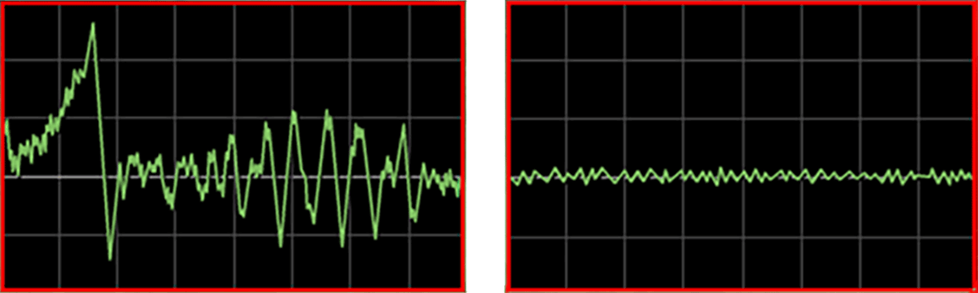

a graph showing Furman's Linear Filtration Technology (LiFTT). LIFT employs a finely tuned low-pass filter to reduce the differential AC noise coming through your line, reducing the AC noise in a linear fashion across an extremely wide bandwidth.

The graph on the left shows dirty power coming in through a normal wall outlet. The graph on the right shows the corrected voltage that Furman's Linear Filtration Technology provides.

Dirty electricity

Whereas large power surges often suddenly damage your gear, dirty power is a slow-burning, silent equipment killer that happens when the voltage from your wall outlet fluctuates above and below 120 volts (which happens more often than you'd think.)

Power supplies and electronics are rated for a specific voltage (120 volts is the US standard.) Any deviation up or down from 120 volts slowly chips away at the stability of sensitive components. Over time, the integrity of the electronics inside degrades to the point of failure. It’s not a matter of “if” it happens, but “when”.

You'll notice your components failing when you start hearing speaker channels going in and out or your speakers suddently start sounding faint. Both are tell-tale signs that your amplifier is on its last legs. Video-wise, your receiver or TV's HDMI ports may be intermittent or non-functional or you may see flickers on your TV screen.

What to protect?

You'll want to protect the following:

  • TVs and monitors
  • Desktop computers and laptops connected to chargers
  • CD players, turntables, and NAS drives
  • DVD and Blu-Ray players
  • Cable boxes and DVRs
  • Gaming consoles
  • Streaming sticks/devices (like Roku, AppleTV, and the like)
  • Routers and modems
  • Receivers, amplifiers, pre-amplifiers, and external digital-to-analog converters
  • Sound bars and wireless speakers
  • Powered speakers and subwoofers

a home theater system

Home theater systems and TVs are expensive investments. It's best to protect them as much as you can.

Connected equipment warranties

If your equipment gets damaged while connected to a surge protector with a connected equipment warranty, the manufacturer will provide up to the amount specified in the warranty to replace the gear that was damaged. The more expensive the surge protector, the higher the replacement value. It's a nice safety net to have since your surge protector’s performance has a big impact on the life of your gear

What's the difference between power strips and surge protectors?

Power strips you buy at big box stores are more or less glorified power distributors. They're often cheaply made and don't offer much in the way of protection, shy of a circuit breaker or an on/off switch.

On top of that, power strips don't have anything to filter out power noise, like EMI (ElectroMagnetic Interference) and RFI (Radio Frequency Interference), that may be lurking in the line.

Surge protectors, on the other hand, do offer protection against voltage spikes and noise. Their internal resistors, called varistors, absorb excess voltage and only allow the right amount through.

photo showing the internal components of a power strip and power protection

The difference between a regular power strip (left) and a Panamax surge protector (right). The Panamax has more heavy-duty parts on the inside to soak up excess power and keep your gear safe.

How do you know you've picked the right surge protector? All surge protectors have a joule rating that tells you how much of a spike they can handle without failing. The higher the joule rating, the better protected your equipment is, so it's best to get the highest rating possible within your budget.

You should never plug a surge protector into a power strip or another surge protector. Daisy-chaining things together like that will overload the protection circuit, rendering the surge protector useless and leaving your gear exposed to harmful spikes.

Do you need a line conditioner?

While surge protectors protect your gear against harmful power spikes, a line conditioner cleans up dirty power by correcting voltage fluctuations and removing electrical noise. Line conditioners help to keep your wall power at a stable 120 volts.

Looking under the cover of the AudioQuest Niagrara 3000

A peek inside AudioQuest's Niagara 3000 component-style power line conditioner and surge protector shows its solid construction.

I strongly recommend getting one. You can go with a dedicated one, like iFi's AC iPurifier. Combo surge protector/line conditioners like Panamax's SP8-AV or Furman's M-8x2, are more common overall, and their dual-purpose nature makes them inherently more handy to have around.

Line conditioners do an excellent job at extending the lifespan of your gear. They help to maintain the constant voltage your equipment looks for. On top of that, a line conditioner will help to keep noise out of your signal, which will improve the sound quality of your tunes and the picture quality of TV shows and movies.

Find the right power protection device

Now that we’ve covered why wall power is harmful, it’s time to go over things you can use to protect your gear. Line conditioners and surge protectors come in many shapes and sizes. No matter their form factor, all are designed to keep your gear from receiving otherwise lethal voltage spikes and some also have a line conditioner built in.

Strip-style surge protectors

Strip surge protectors are the most common and often the most affordable. They have six to eight protected outlets you can connect your gear to. Some even have coaxial outlets to protect cable lines and phone inlets/outlets to protect landline telephones.

There's also an extension cord available for Panamax's strip surge protectors. The extension is ten feet long, so you'll have loads of placement flexibility no matter the outlet layout of your home.

Panamax PM8-AV Power line conditioner and surge protector

Strip surge protectors, like Panamax's PM8-AV, have lots of outlets for connecting equipment and ample power protection.

On-wall surge protectors

Worried about not having space for a traditional surge protector? On-wall surge protectors are built to save space and to protect what matters most. Most have two to six outlets. Some offer nifty USB ports for charging phones and a useful front-panel protection indicator.

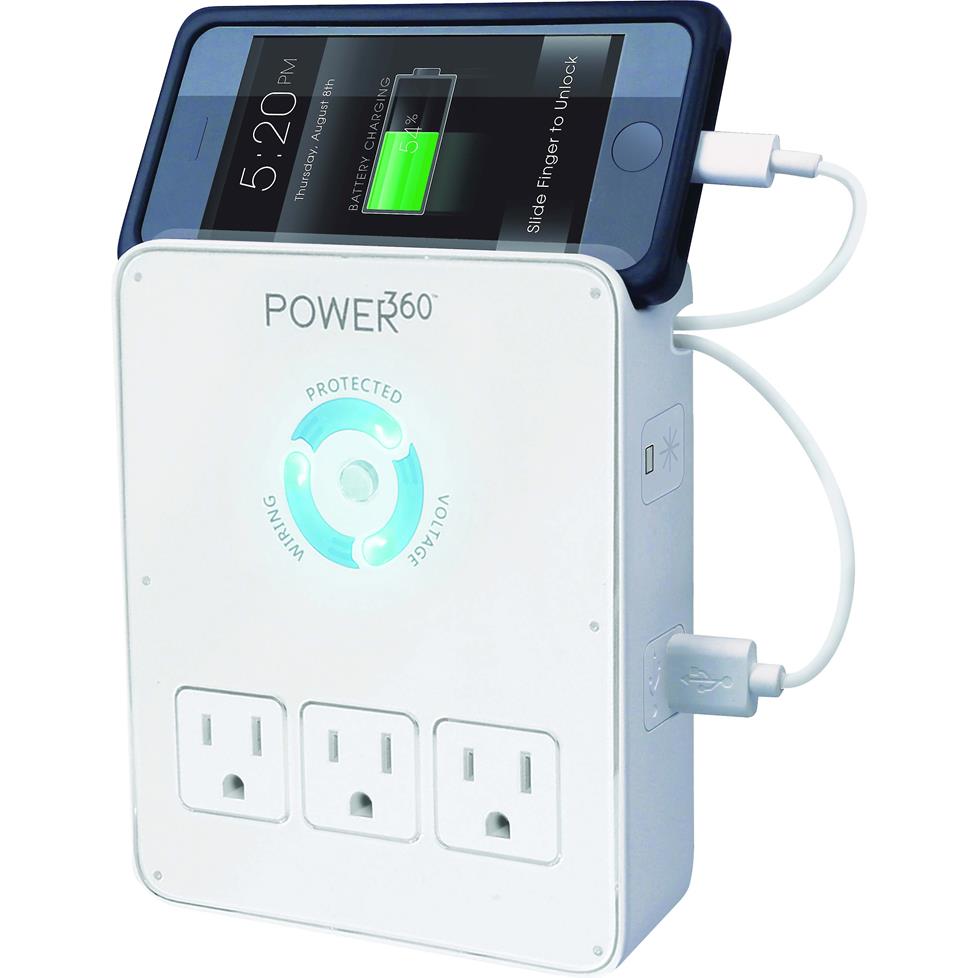

Panamax Power360 P360-Dock Space-saving surge protector with built-in USB charging

Panamax's Power P360-Dock is a space-saving on-wall surge protector with USB ports for charging phones and other devices.

In-wall surge protectors

In-wall surge protectors are the sleekest, most space-saving option and are great for tight spaces. They can replace your existing wall outlets and fit behind most wall plates for a seamless look. We recommend getting them installed by a professional.

Panamax MIW-SURGE-1G In-wall surge protector

Tight on space? In-wall surge protectors like Panamax's MIW-SURGE-1G are great for cramped spots, like behind your TV.

Component-style surge protectors

Component surge protectors are larger than other types. They offer tons of protection and most have line conditioners already inside. Given their bigger size, they have no trouble blending in with any home theater or home stereo eqipment. Not only do they offer loads of protection, but they also come with great connected equipment warranties.

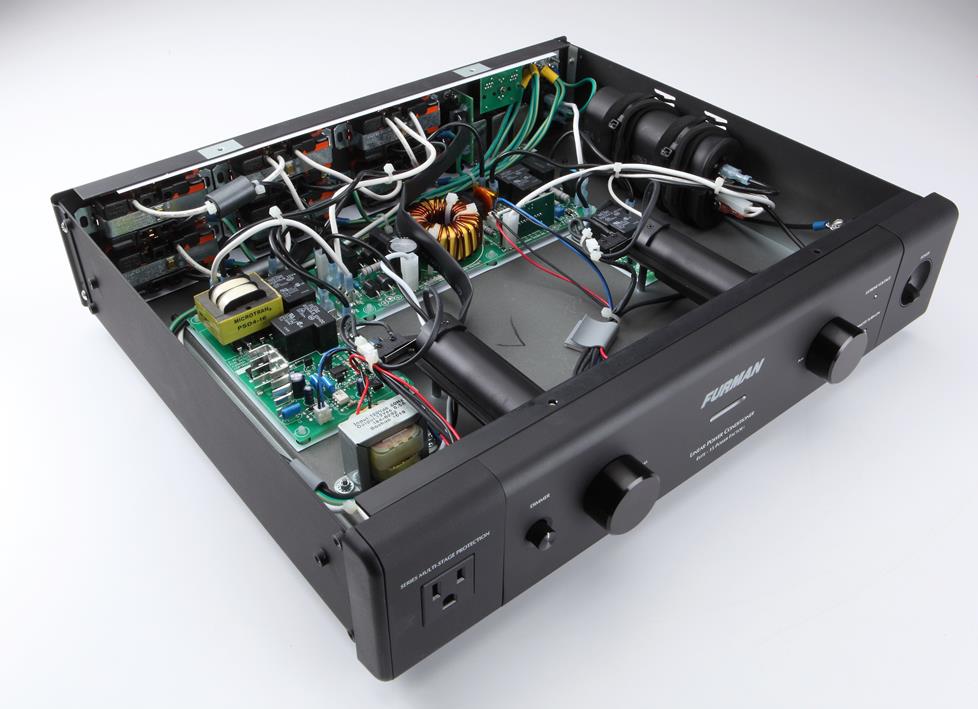

Furman Elite 15i Power line conditioner and surge protector

Component surge protectors tend to offer more protection. It's not too uncommon to see ones like Furman's Elite 15i protecting an expensive home theater system.

UPS devices

UPS (uninterruptable power supply) devices have an internal battery that keeps them and any connected devices powered up in the event of a power outage.

They give you enough time to save your game, properly shut down your computer, or send that important email you might have been working on. They’re mostly used for computers and game consoles but can be used with home theater or stereo equipment so long as the voltage/wattage output is sufficient.

You'll want to check the specs on any UPS you're considering to make sure it’s compatible with your home theater gear and won’t damage your equipment.

Panamax MB1500 Uninterruptible power supply (UPS), voltage regulator, and power conditioner

Panamax's MB1500 is a stellar UPS device that also has voltage regulation and power conditioning circuits. Three birds, one stone.

Other ways to upgrade your system for better performance

Stock power cables do a respectable job of keeping noise out, but sometimes they can act as a magnet for interference. When that interference is introduced into a video or audio signal, there’s a subtle yet notable degradation. If you're a videophile or audiophile, the quality of your signal is paramount.

I'd recommend checking out some of the upgraded power cables we offer. They tend to have better shielding, better grounds, and conductor layouts that are designed to prevent distortion.

Need help?

If you've got gear that needs protecting but aren't sure where to start, give our helpful advisors a shout. A lot of them have power protection equipment themselves and would be happy to help you make the right choices for your setup.

Last updated 9/17/2021
