4 tips for upgrading the audio in your hybrid

How to safely install an amp and sub in your hybrid car

Can I install a new stereo or an amplifier in my hybrid? Yes, as long as you do it right. Here are our tips for making your audio mileage match your gas mileage.

A

fter years of business trips in the company hybrid vehicle, a few of us decided it was finally time to perform a long overdue audio upgrade to overcome its excruciating factory sound. But first, we had to consider a few things.

Sharing our installation experience

As Anthony, Crutchfield Advisor and longtime car audio enthusiast, installed new gear in our 2010 Mercury Mariner Hybrid, we thought it would be a great opportunity to share some hybrid-installation tips.

Installing the stereo.

Tip 1: The general rule for upgrading the audio in a hybrid

Whether your hybrid is a Prius, a Fusion, or a Civic, hybrid vehicles have sophisticated electrical systems. And there’s a limit to how much you can tax the system with additional electronics.

As a general rule for hybrids, we recommend not exceeding a 30-ampere current draw on your battery, or a total output of 350 watts RMS from your audio system. Luckily, that still leaves you with lots of room for a great sound system upgrade in your ride. Since you're going to pass all those gas stations, you might as well enjoy your drive more.

Water tower example of how current draw works.

An explanation of current draw

If you’re new to car audio, don’t let the technical terms intimidate you. To understand current draw, it helps to think about a water tank, which represents your car’s battery. Voltage is the amount of available power, represented by the amount of water in the tank. Electrical current is like water flowing through a pipe — the speed at which it flows is the current draw.

Wattage is the amount of work the current can produce — represented by how forcefully the water comes out of the pipe. When you pull too much current from the battery to produce more wattage, there isn’t enough voltage left to power other vital electronics in your hybrid.

Tip 2: Install a better stereo and speakers

Replacing the factory radio usually gives you an immediate bump in audio power and cleaner sound due to improved digital-to-analog converters. And the typical new car stereo isn't going to strain your electrical system. New speakers are an easy upgrade that doesn't negatively affect electrical current draw at all.

For our new stereo, we chose a Kenwood DVD receiver with a touchscreen display (find our touchscreen receivers here) to run the show. It offers Apple CarPlay™ and Android Auto™, which the factory radio did not include. Drivers would now have a lot more music options and stereo functionality on their company trips. Anthony paired that with the iDatalink Maestro RR interface, which provided all the wiring connections, steering wheel integration, and the ability to check out the cool diagnostic gauges in the Mariner.

Anthony and I had listened to some demo music on the factory system before the installation. It was a painful listening session. I can't believe we waited this long to upgrade this sound system. Once the Kenwood car stereo was installed, we did another sound check with the factory speakers still intact. The difference was immediate and impactful. The soundstage, which had been suppressed and lowered by the factory system, was now much more open and natural. We couldn't wait to continue.

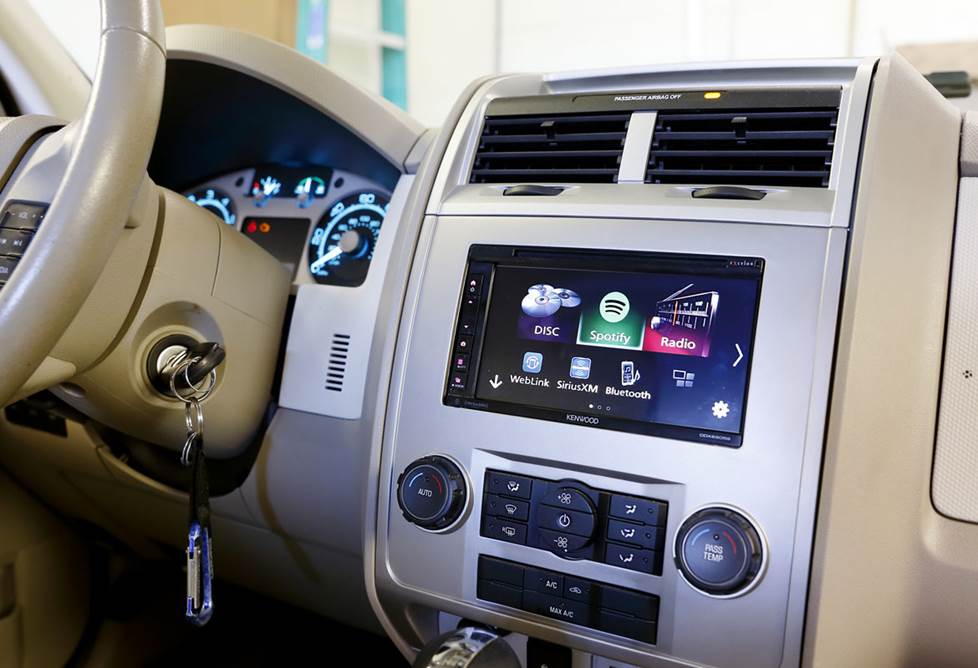

Before.

After,

Stale and boring becomes gorgeous and functional. Slide to see the "before" and "after" images of the Mariner's audio system.

For speakers, we decided on the Polk DB572 5"x7" speakers for the front and rear doors. These are hugely popular with our customers, as the reviews can attest. They also work well with a variety of music, and their efficiency complements the Kenwood stereo's power.

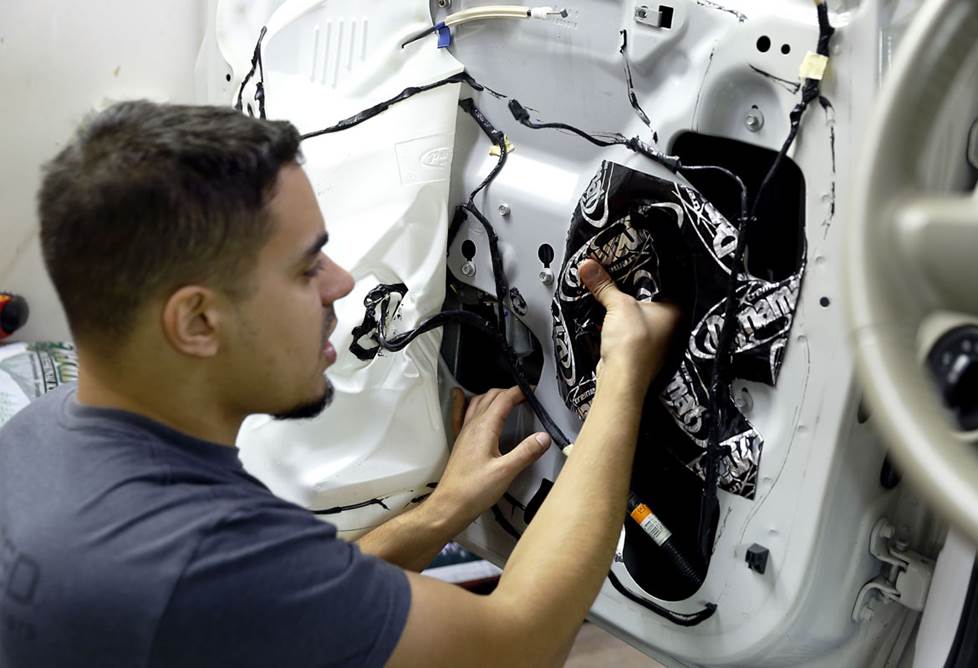

Installing Dynamat in the driver's door

Anthony applied the Dynamat directly to the door metal to eliminate unwanted vibrations.

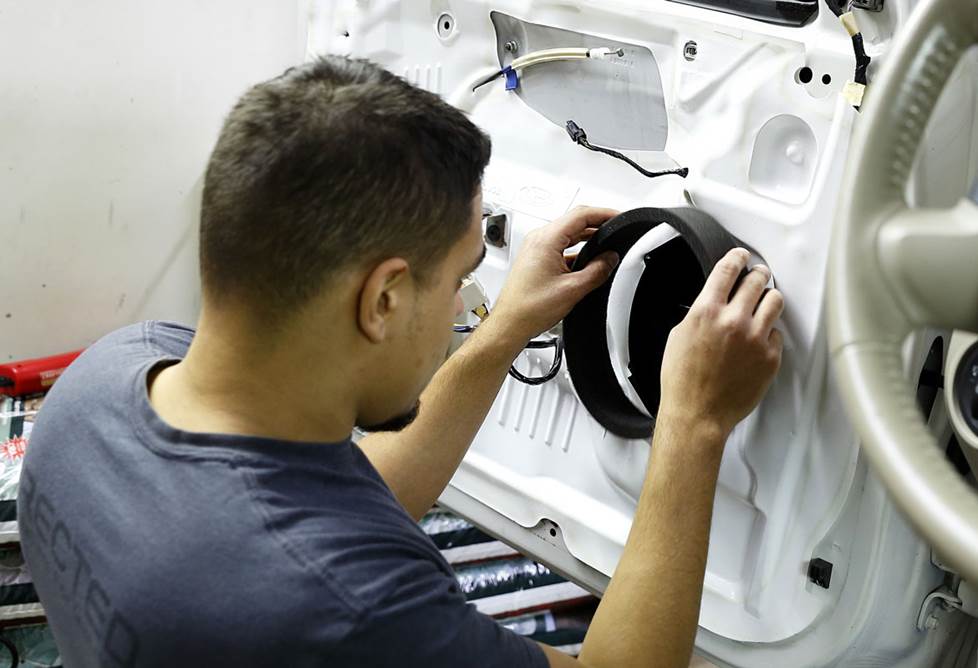

Installing Stinger Roadkill foam rings

He then installed the Stinger FAST foam rings to improve the speaker's overall sound.

In addition to the speakers, we also decided to go with a combination of Dynamat and a set of Stinger Roadkill FAST Rings to seal the speakers in the factory openings. These items also deadened unwanted noise and rattles, so we could get the best sound possible without interruptions. Anthony had experience with both, and he was very complimentary of the FAST Rings he'd used in previous vehicles. They're easy to install and can be cut to needed shapes.

Tip 3: Add the biggest amplifier you can

People always ask us, "Can I install an amplifier in my hybrid vehicle?" The answer is, Yes, you can! Since we're all music lovers here at Crutchfield, we understand the need for impact in your music.

When selecting an amplifier to install in your hybrid vehicle, check the total fuse rating of the ones you’re interested in. If the rating doesn’t exceed 30 amperes, you’re good to go. Your best option is usually a compact amplifier, because it’ll draw little current, is cost-effective, and stays out of the way.

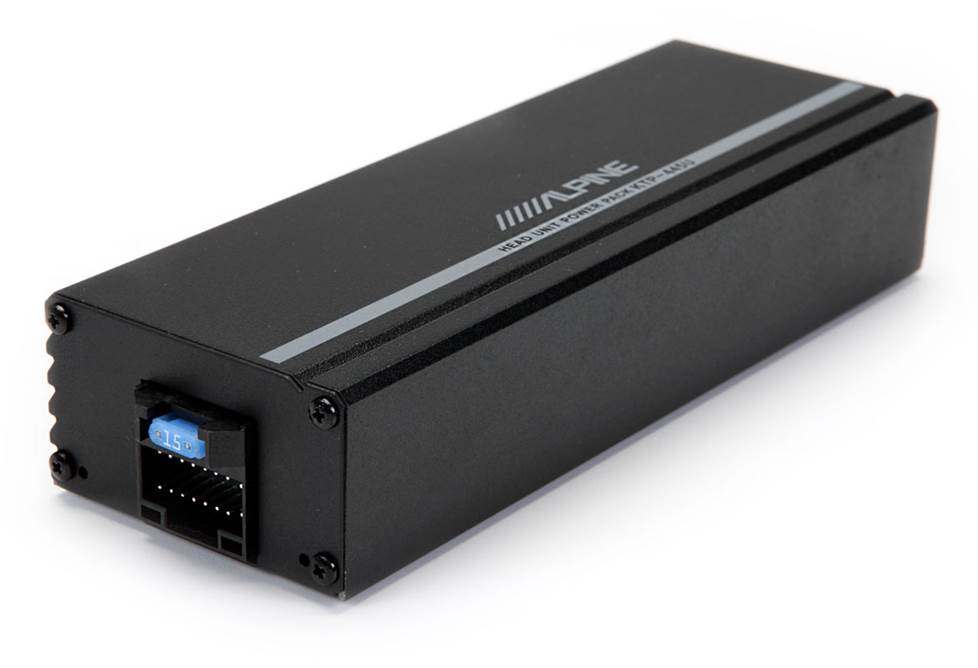

Alpine KTP-445U compact amplifier

This little Alpine KTP-445U Power Pack amp delivers 45 watts per channel, but only draws 15 amperes of current.

Yes, you can even install a subwoofer in your hybrid

If you're using stereo power for your speakers, then you can add a subwoofer to the mix and further enhance the sound. When matching an amplifier to a subwoofer, subs that are efficient (with a sensitivity rating of 90 dB or higher) and have a power handling of approximately 200 watts RMS or less work nicely in keeping current draw down. Again, make sure your amplifier's fuse rating doesn't exceed 30 amperes.

Sound ordinance amp installed.

Powered subwoofers are also a great all-in-one option to add more bass without creating problems for your system. For the Mariner, we chose the Sound Ordnance B-10AS 10" powered subwoofer. It draws only 10 amperes of current, but still delivers some solid thump. It also features a detachable plug, so the enclosure can be removed if more cargo space is needed. Super handy!

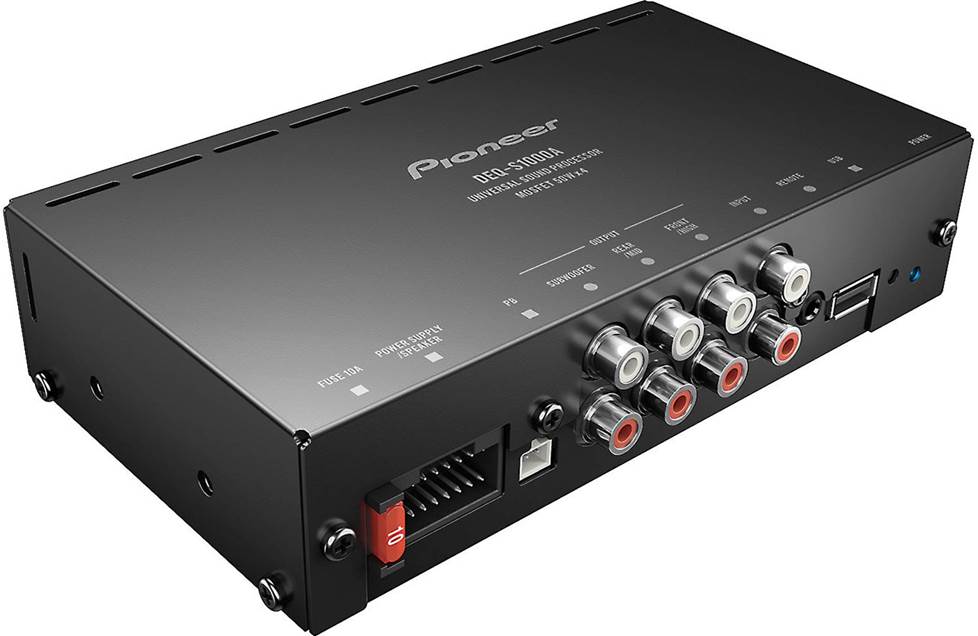

Pioneer DEQ-S1000A amp with DSP

If you're keeping the factory radio, Pioneer's DEQ-S1000A 4-channel amplifier with built-in DSP adds power and features, but only draws 10 amperes of current.

Tip 4: Dial in your sound with in-depth tone controls

Many factory systems are equalized for the original gear installed in a particular vehicle. It’s often not optimal for everyone’s ear, nor is it very adjustable. But don’t worry! We offer several digital signal processors (DSPs) to get around the factory equalization and clean up that sound, even if you’re sticking with the factory radio. While we relied on the Kenwood stereo's robust sound-shaping controls for the Mercury, these outboard DSPs can also offer up additional features to factory radios, like built-in amplifiers or preamp outputs for additional amps.

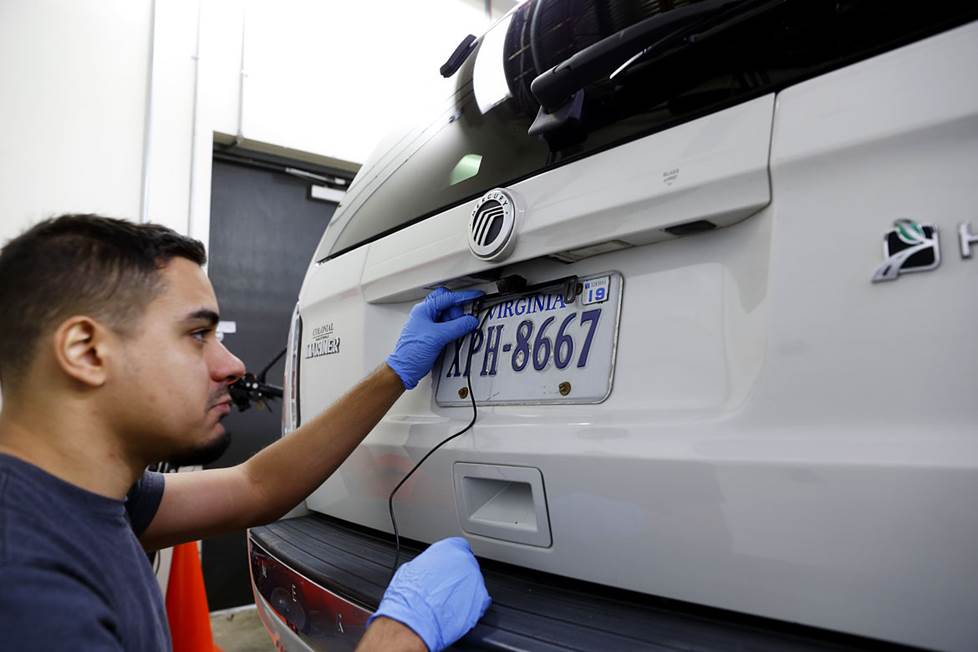

Anthony installing the backup camera.

Some extra gear for the ride

Since this was a company vehicle, we decided that a Brandmotion backup camera was a great idea for safety. Its video would show up on the Kenwood's display when the Mariner was in reverse. Anthony ran the video cable from the dash location to the back door, and he drilled a new hole behind the license plate to accommodate the camera.

Anthony modifying factory panel to accommodate new USB cable

Anthony had to modify the inside of the factory USB port opening to allow the new USB cable to fit. This way, drivers would be able to plug their smartphones directly to the Kenwood receiver.

Since the factory USB port is lost upon replacing the stock radio, Anthony fed the USB cable that Kenwood supplied with the radio from the back of the new stereo to the factory USB port location. He modified the panel and affixed the new USB input to the old USB opening, making it look just like factory. Now, any drivers can plug in their smartphone and engage Android Auto™ or Apple CarPlay™ to access music and navigation apps for their journey.

Find the right audio gear for your hybrid

When you're ready to upgrade your hybrid and add features that the factory setup may not offer, contact one of our Advisors by phone, chat, or email. They'll be glad to set up a system that sounds great and safely works with your fuel-efficient vehicle.

  • Jonathan Galea

    Posted on 9/17/2020

    Is 30 amps the max on all hybrid cars? The problem with 30 amp max and 350 watts max is that if you power the 4 door speakers with let say 50 watts per channel will leave you with just 150 Mrs for the sub. And there aren't mono amps with just 15 amps since the other 15 amps will be used by the mini 4 channel amp. Any suggestions pls on how to power 4 speakers and a sub with just 30 amps? Thanks

    Alexander H. from Crutchfield

    on 9/18/2020

    Jonathan, we have a couple solutions for you. 1) Alpine's KTA450 Power Pack (200 watts) and an 8" powered Bazooka tube (50 watts). Or this Alpine sub and 5-channel amp (20A fuse rating).
  • Graham

    Posted on 8/4/2020

    Would I be able to add capacitors so I can get a higher wattage sub?

    Alexander H. from Crutchfield

    on 8/4/2020

    Graham, I've passed your question along to our team of Advisors. Someone will contact you soon to help you decide on the best bass solution for your hybrid.
  • Jalia Burkhalter Simmons from Oakland

    Posted on 7/20/2020

    Can you install a second battery in the 2017 Camry hybrid so that you can install, 12in speakers with over 1000watt amp?

    Alexander H. from Crutchfield

    on 7/21/2020

    Jalia, we don't recommend it. The stock charging system for the 12V battery is likely too weak to support dual batteries. And even if you added a stronger alternator, you'd likely create issues with driving that stronger alternator.
  • Hayden from Lehi, UT

    Posted on 6/29/2020

    Installed a Kenwood KAC-M3001 with a 30AMP Fuse and 300 Watts RMS at 2ohms with a Kicker CompVR 43CVR124 Subwoofer wired for 2ohms as well in a 2012 Prius Hybrid. Friend is having problems with acceleration at night when the Solar panel isn't providing the extra electricity for the draw on the battery. Would a capacitor fix this problem? I didn't exceed 30 amps and nothing else in the system should be causing extra draw on the system but my friend is still experiencing the change in acceleration.

    Alexander H. from Crutchfield

    on 7/7/2020

    Hayden, give our Tech Support team a call. If your friend bought their gear from Crutchfield, you can call Tech Support for free help troubleshooting your system. If they purchased the equipment elsewhere, you can still get expert Crutchfield Tech Support - 90 days-worth for only $30. Check out our tech support page for details.
  • Brian from San Francisco

    Posted on 6/16/2020

    So what are the consequences of using a higher draw amp? Will it cause fire, drain battery, kill performance? Would a would adding a second battery fix the issue? I cant find answers to this issue anywhere. Thanks

    Alexander H. from Crutchfield

    on 6/18/2020

    Brian, we consulted with Tech Support for the best answer here. They said, "The stock charging system for the 12V battery is likely too weak to support dual batteries. On adding a stronger alternator. Then you create issues with driving the stronger alternator, i.e. taxing the ICE or electric motors."
  • David from Oregon City

    Posted on 5/7/2020

    Thank you for writing this article! I have a 2014 Honda CR-Z Hybrid with factory-everything. I've been wanting to upgrade the system for years but have been hesitant due to the Hybrid functionality of the vehicle. How *important is it to remain below a 30A fuse rating? The powered subwoofers I am interested in are from JL Audio's microsub+ line and according to their website, they each have a fuse rating of 30A... If I purchased and installed one of these JL options, would I still be okay to install a new stereo head unit, and door speakers as long as I'm not drawing more power to the door speakers or head unit?

    Alexander H. from Crutchfield

    on 5/8/2020

    David, as long as the 30A powered sub is the only thing they're adding, you should be fine. We'd also recommend staying within the 300 watts or under for the desired JL sub. Adding a receiver won't increase current draw, since the factory radio is already drawing the same amount a new one would. If you have any questions at all, give us a call and an Advisor will be able to help.
