Yamaha A-S3200

Features
Connections
Controls

Features

Low Impedance Amplifier Design: The Yamaha A-S3200 adoptins a low impedance amplifier design concept to minimize energy loss while maintaining absolute integrity in the audio signal. Preservation of the original audio results in an open, natural sound stage.

• 8-Ohm Rating: 100 watts x 2 channels @ 20 to 20,000 Hz with 0.07% THD
• 4-Ohm Rating: 150 watts x 2 channels @ 20 to 20,000 Hz with 0.07% THD

Toroidal Transformer: A large toroidal transformer has been used in the A-S3200 in the pursuit of pure musicality. With less flux leakage there is no negative impact on other sensitive audio circuits. Copper wire is directly drawn from the winded core, minimizing energy loss compared to other substitutes, allowing the full emotional energy in the music to be felt by the listener.

Fully Balanced Circuitry: The fully balanced circuitry used in the A-S3200 yields a number of listening benefits. Delivering impressively low signal-to-noise ratio allows for the perfection of silence - gaps in the music and moments between movements are a pure absence of sound. The design also adds to improved channel separation producing a sound stage that almost makes the entire system disappear, giving the listener the feeling of being in the room with the artist, not the CD or vinyl source.

Mechanical Ground Concept: The Mechanical Ground Concept achieves expressive and rhythmic bass by maximizing rigidity and reducing any unwanted vibration. The large power transformer, block capacitors and heat sink are directly bolted to the chassis delivering greater rigidity, while the feet, with bolts directly welded to the main chassis, provide further reinforcement for absolute rigidity.

High Quality Parts Selection: Acknowledged for their musical performance and use in high-end home audio products, high-quality capacitors were selected, delivering an authentically musical sound. Following an intensive forging process, the PC-Triple C speaker wire has an inherently more linear structure, allowing for smoother signal transmission to more accurately present the original musical recording. Adopting brass screws and oxygen-free copper terminals for the large block capacitors contributes to superior connectivity, superbly delivering the additional headroom available in the four large 22,000µF capacitors to produce the open soundstage.

High Rigidity Construction: The A-S3200 features Yamaha's Rigid Streamlined Construction that further suppresses vibration.Completing the rigidity of the amplifier are the heavy-duty brass feet used with either spikes or a scratch-resistant base for delicate surfaces, originally engineered exclusively for Yamaha's flagship C-5000 preamplifier and M-5000 amplifier.

Connections

Balanced & Unbalanced Analog Inputs: The Yamaha A-S3200 integrated amplifier is outfitted with both balanced & unbalanced analog inputs.

• Balanced XLR: The Yamaha A-S3200 features two sets of balanced XLR inputs for connecting high-end audio components, such as Yamaha's CD-S3200 CD player (sold separately). You can adjust the Attenuation and Phase of the XLR input.
• Unbalanced RCA: The Yamaha A-S3200 is equipped with six unbalanced analog RCA stereo inputs for connecting an external audio source such as a CD player, AM/FM tuner, Turntable, and/or cassette deck; as well a preamp or AV receiver. There is also one analog RCA stereo output for recording through the integrated amplifier.

Main Direct Input: One of the A-3200's analog inputs is labeled Main Direct Input. This input allows you to connect your preamplifier or AV receiver directly to the A-S3200 and use the Yamaha stereo amplifier as a power amplifier to drive a pair of speakers in your system.

Note: Audio signal coming into the amplifier's Main Direct Input is only output through the speaker outputs of the A-S3200. No audio signal will by output from the stereo amplifier's Pre-Out, Rec Out, or Headphone Output.

Discrete Phono Amp: The phono amp is comprised of an MC head amp and an equalizer amp, each of which are discretely configured, resulting in a rich sound with pronounced musicality, when playing vinyl records with both MC and MM phone cartridges. The unit's Phono input consists of stereo RCA jacks and a ground terminal.

Heavy-Duty Binding Post Speaker Terminals: The speaker terminals are the final link in the audio chain of this amplifier, and have also been designed with meticulous obsession. They are screw-type terminals with large handles featuring an original design, and have been crafted by cutting pure brass to enable a secure connection with no reduction in sound quality. Moreover, the shape conforms nicely to the human fingers-not only creating an elegant visual impression, but also allowing users to turn them easily and to firmly tighten them with minimal force.

Note: You can use the A & B speaker outputs to power two pair of separate speakers or you can bi-wire a single pair of speakers. If you use two sets (A and B) of speaker, the impedance of each speaker must be 8-ohm or higher. When only using one set of speakers (A or B), use speakers with an impedance of 4-ohm or higher.

Headphone Amp: The headphone amp is also equipped with fully discrete configuration, for preeminent drivability and damping properties. Included as well is a specialized level trimmer that responds to various load impedances. The unit's headphone amp uses a front-panel 1/4" headphone jack for connecting a pair of headphones (sold separately). Once a set of headphones are connected, the amplifier's speaker outputs mute automatically.

Note: The headphone amp does not function for the amplifier's Main Direct Input.

Pre-Outs: The Yamaha integrated amplifier is equipped with a stereo preamp output for connecting a powered subwoofer or to use the A-S3200 as a preamplifier and connect it to a larger power amplifier to power your speakers.

Remote Connections: The A-S3200 features a 12V trigger input (3.5mm) to synchronize power on /off with another component that features a 12V trigger output. The integrated amp also has remote input and remote output minijack terminals for use with external IR receivers and compatible Yamaha components.

Controls

Level Meters: The A-S3200 features large level meters on the front panel, giving a direct visual sense of the dynamics and pulse of the music. These beautiful meters are softly illuminated by LED, lending a warm, lamplight look. The meter indicators can, in addition to the VU display, be switched to peak display, and can be selected according to the user's preference. Moreover, the glass window of the meters is diagonally cut and precision-fit to the back surface of the front panel, leaving no gaps and using no screws for connection-lending an exceptionally elegant appearance to the unit.

Textured, Easy-to-Use Controls: Since the controls-the volume dial, switches, and so on-are the parts of the amplifier which users actually touch and feel directly, their surface texture and design were created with the strictest attention to detail. Individual controls such as the volume or input switching dials, emanate a richly elegant feel thanks to the use of cut aluminum knobs. Switches, including the power switch, were made with obsessive attention to texture in every detail; they were shaped with refined craftsmanship so that when they are raised or lowered, the gap between the switch and panel surface is impossible to see.

Electronic Volume Control: Yamaha utilized a high quality digital volume control specially designed by New Japan Radio Co., Ltd., which consists only of ladder-type resistance, removing the impact of slew-rate decline or coloring of the sound, delivering higher purity in the sound, and excellent, fast response to large volume changes and steep transients.

Tone Controls + Trim Selector: The integrated amplifier provides adjustable Bass (+/-9dB), Treble (+/-9dB), and Balance (L-R). The tone controls do not effect the amplifiers Main Direct Input or Record Output. You can also adjust the volume level when headphones are plugged in to avoid sudden changes in volume; choose from -6, 0, +6, or + 12 dB.

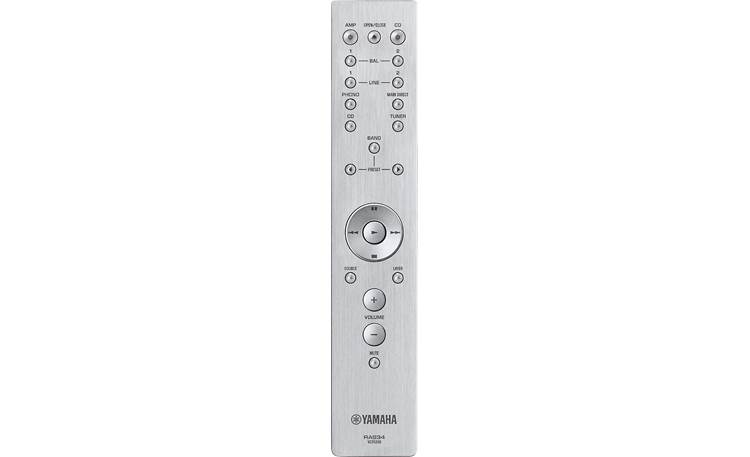

Simple Designed Remote Control: The supplied remote control features a design complementary to the aluminum panel of the amplifier itself, with a simple, easy-to-understand button layout and gorgeous metallic texture. In addition to the basic volume adjustment and input switching controls of the A-S3200, it can also be used for operation of the companion CD-S3000.

Auto Power Standby: The unit enters standby mode automatically if not operated for approximately 8 hours.
