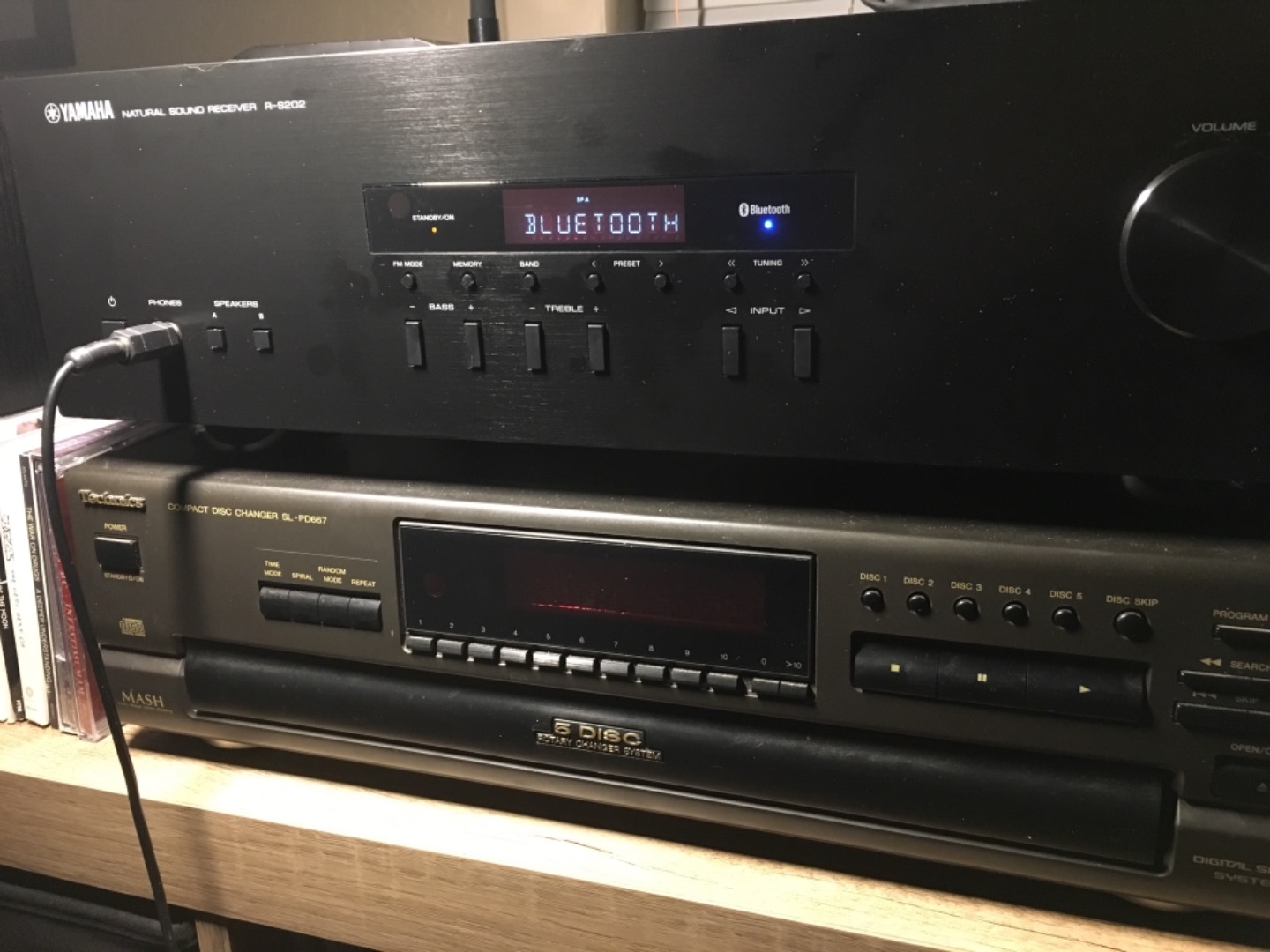

100 Watt x 2 Channel Amplifier: The Yamaha R-S202 stereo
receiver employs a 100-watt x 2-channel (40-20kHz, 8-ohms, 0.2% THD) high-drive
amplifier with a high sound quality design that minimizes the length of signal
routes and optimizes the circuit layout. Yamaha positioned the power transformer
near the power amp circuit to reduce power loss, while improving peak power
supply capacity to enable high volume output. The signal ground and power supply
ground are connected at one point, eliminating mutual interference to achieve a
higher S/N ratio. The result is sound filled with clarity and a feeling of
Built-in Bluetooth: The Yamaha R-S202 features built-in Bluetooth (ver
4.1+ EDR), allowing you to stream stored music and music apps on your
Bluetooth-enabled Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows
PC/Phone, or Mac laptop/computer to the stereo receiver. In addition to the
standard SBC Bluetooth codec, the receiver also supports the AAC codec for
higher quality sound from Apple iPod/iPhone/iPad devices. You will still control
music playback functions and view song/artist information from your
Bluetooth-enabled source device.
Analog Inputs/Output: The Yamaha R-S202 features four analog
stereo RCA inputs to connect up to four audio components, and a single stereo
RCA record output to connect to a CD-recorder or other recording device.
AM/FM Tuner: The Yamaha R-S202 stereo receiver features a
built-in AM/FM tuner with manual, seek, and preset tuning. The R-S202 lets you
store up to 40 AM/FM station presets. Auto preset lets you automatically search
for and register FM stations that can be received in your area. An indoor FM
wire antenna and AM loop antenna are included with the receiver.
A & B Speaker Terminals: The R-S202 is fitted with A & B
speaker terminals so you can power up to two pair of speakers. The speaker
selector switch on the front-panel of the receiver makes it easy to switch
between speaker outputs, allowing you to hear the sound from one speaker pair (A
or B) or from both speaker pairs (A+B). In addition, compatible speakers can be
bi-wired using the A & B speaker terminals simultaneously (they are wired in
parallel). The eight spring-clip speaker terminals that will accept bare wire
(up to 12AWG) and pin-connectors.
|Speakers A or B ||8-ohm or higher |
|Speakers A and B ||16-ohm or higher |
|Bi-wiring ||8-ohm or higher |
Headphone Jack: The stereo receiver has a standard 1/4"
headphone jack on the front panel for private listening. When headphones are
plugged in, the receiver's speaker output is not muted, so remember to turn the
A and B speakers off.
Tone Control: The Yamaha R-S202 offers Bass, Treble, and
Balance adjustment. Bass & Treble can be adjusted independently from -10dB to +
10dB. Balance can be set between Left+10 and Right+10.
Max/Initial Volume: You can set the maximum volume level of
the receiver so that its volume will not be accidentally increased above a
certain level (01-99, Max). Use the Initial Volume feature to specify the volume
level when the receiver's power is turned on. You can select 01-99, Max, Mute,
or Off. When "Off" is selected, the volume level used when the receiver was
turned off will be applied.
IR Remote: The included IR remote control provides wireless
operation of the stereo receiver and a connected Yamaha CD receiver.
Sleep Timer: Use the Sleep timer to automatically set this
unit to standby mode after a certain amount of time (30/60/90/120 mins). The
sleep timer is useful when you are going to sleep while listening to the
Power Management: A power management function automatically
cuts off the power (switches to standby mode) when the receiver has not been
operated for a long time. It can be set to two, four, eight or 12 hours, or off.
In addition, power consumption during standby is only 0.5 W, achieving good
energy saving performance.
