Denon AVR-4810CI

Home theater receiver with built-in Wi-Fi®

Item # 033AV4810C

For the most accurate home theater sound possible in your room, Denon equipped this receiver with Audyssey...

For the most accurate home theater sound possible in your room, Denon equipped this receiver with Audyssey...

Need help?
Contact our Virginia-based experts.

Item # 033AV4810C

This item is no longer available.

About the Denon AVR-4810CI

Enjoy exceptional home theater power and flexibility

For the most accurate home theater sound possible in your room, Denon equipped this receiver with Audyssey MultEQ®, a sophisticated automatic speaker calibration system that helps you get the most accurate home theater sound possible. Watch a video on how Audyssey MultiEQ improves sound in your room.

Enjoy exceptional home theater power and flexibility

Experience breathtaking performance with Denon's amazing AVR-4810CI. This feature-packed receiver's nine channels of ultra-clean, high-current power team up with leading-edge surround sound and picture processing to deliver serious home theater thrills, even in large rooms. And it boasts one of the widest arrays of entertainment options we've ever seen. You get convenient access — wired or wireless — to music and photos stored on your home computer network, extensive multi-room/multi-source playback possibilities, plus a built-in HD Radio™ tuner and hookups for your iPod®. The '4810CI's wealth of inputs and outputs will easily handle all your current gear, and leave you room for future system expansion.

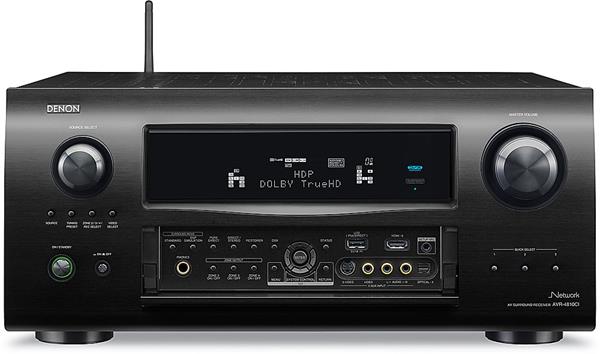

Front panel open

Precision auto setup tailors sound to your room

For the most accurate home theater sound possible in your room, Denon equipped this receiver with Audyssey MultEQ®, a sophisticated automatic speaker calibration system that helps you get the most accurate home theater sound possible. Watch a video on how Audyssey MultiEQ improves sound in your room.

The '4810CI uses the included microphone to analyze sound from up to six different listening positions, then automatically adjusts individual level, equalization, and delay settings for each of your speakers. You'll hear precise, uniform sound across a wide listening area instead of just a single "sweet spot," so everyone in the room can enjoy optimized home theater sound.

Add new dimensions to your surround sound experience

DSX logo Pro Logic IIz logo

This multi-channel powerhouse gives you the latest surround sound decoding to take full advantage of the high-resolution audio soundtracks found on many Blu-ray players and discs. The '4810CI also adds Dolby's newest surround technology — Dolby® Pro Logic® IIz. This cool feature lets you add an optional pair of front "height" speakers for a larger soundstage with an expanded vertical dimension. Denon also includes Audyssey DSX (Dynamic Surround Expansion). Like Dolby Pro Logic IIz, DSX processing allows you to add a pair of front height speakers. Or, you can choose to connect optional front "wide" speakers instead, creating a wider soundstage for greater home theater impact and realism. The '4810CI's nine channels of power can even drive both sets of optional front speakers at the same time for theater-like realism and impact.

Advanced video processing and control

Six HDMI inputs and two HDMI outputs give you plenty of connectivity for all your gear, including today's sophisticated high-def video components. The receiver's high-performance Anchor Bay VRS™ video processor delivers superior video scaling and deinterlacing — it can upconvert all your video sources to resolutions as high as 1080p. You'll see improved detail and smoother playback from all your video components. Six separate picture adjustments, including noise reduction, color saturation level, and brightness, let you fine-tune the look of each of your video input sources, then store those settings in the receiver's memory. You break free of the "one-size-fits-all" picture setting limitation of most receivers, while still enjoying the convenience of a single-cable connection to your TV.

Easy access to PC music, Internet radio, and more

The '4810CI gives you plenty of digital music options, too. Connect it to a wired or wireless PC network to access music files and JPEG photos stored on your computer. View track titles on your TV and select the tunes you want to hear using the receiver's remote. You can also enjoy Internet Radio stations over your broadband connection. A built-in HD Radio tuner pulls in the free, digital over-the-air programs that many AM and FM stations now broadcast. And the '4810CI is SIRIUS and XM Radio Ready. Just add an optional home tuner to receive your favorite satellite radio channels.

More fun with your portable music collection

Plug your iPod® directly into the '4810CI's handy front-panel USB input to enjoy the music stored on your player. The USB inputs also allow you to connect a wide range of portable MP3 players, a USB flash memory drive, or hard disk drive loaded with your favorite tunes. When you add Denon's optional control dock, your iPod becomes a fully integrated component in your A/V system. You can view its menu on your TV and select songs, photos, or videos using the receiver's remote. Switch on Denon's Compressed Audio Restorer mode to hear your MP3 collection at its best.

Multi-room flexibility

The '4810CI multi-source, multi-room output gives you flexible entertainment options throughout your home. It lets you re-assign up to four of its surround amplifier channels to power speakers in other rooms, while simultaneously enjoying a surround sound movie in your main room — no extra amplifiers needed thanks to nine-channel power. This receiver even includes a component video output for sending a second high-def video source to a TV in a remote room.

Learn about the ins and outs of HDMI connections at the Crutchfield Learning Center.
Shop our selection of HDMI cables.



    Power and Processing:
    • 140 watts x 9 into 8 ohms (20-20,000 Hz) at 0.05% THD
    • Dolby® TrueHD, DTS-HD™ Master Audio, Dolby® Digital Plus, DTS-HD™ High Resolution Audio, Dolby® Digital EX, DTS-ES™, Pro Logic® IIx, Pro Logic® IIz and DTS Neo:6 decoding
    • Audyssey Laboratories' MultEQ XT eight-point auto setup and room calibration system (microphone included)
    • Audyssey DSX processing for enhanced surround sound height and width effects using additional front speakers
    Digital Music Options:
    • built-in HD Radio tuner with multi-casting reception
    • SIRIUS satellite radio capable (requires SIRIUS subscription and optional SiriusConnect™ home tuner kit)
    • XM Satellite Radio Ready with decoding for XM's HD Surround channels (requires XM subscription and optional XM tuner kit )
    • iPod® integration:
      • USB direct connection (audio playback only)
      • optional Denon ASD-11R control dock for audio and video playback
    • audio and photo streaming on a wireless or wired PC network, plus Internet radio (broadband connection required)
    Multi-room Audio:
    • multi-room/multi-source output
      • powered and line-level stereo audio output for 2nd and 3rd room (using powered 3rd-room output allows 5.1 home theater in main room)
      • only analog sources can be played in the 2nd and 3rd room
      • 4th room: optical digital audio only (requires amplifier and only plays digital sources)
    Audio Performance Features:
    • high-current, low-impedance amplifier design
    • Pure Direct modes switch off all unused circuitry for the cleanest possible sound
    • Compressed Audio Restorer for better sound with compressed music sources
    • detachable power cord
    • conversion of optical or coaxial digital signals to analog audio output for 2nd and 3rd rooms (PCM signals only)
    • HDCD decoding
    • gold-plated input jacks and premium quality binding post speaker connectors
    • 1080p-compatible HDMI switching: 6 in, 2 out (including 1 front-panel input)
    • analog-to-HDMI video upconversion (up to 1080p/24/60 output via HDMI) with Anchor Bay Technologies VRS advanced video processing and scaling
    • HDMI version 1.3a with support for Deep Color, x.v.Color, lip-sync, 1080/24p video, 7.1 uncompressed 24/96 audio, DVD-Audio, SACD, and HDMI-CEC with compatible video sources and TVs
    • component video switching: 3 in, 1 out
    • composite and component video output for 2nd room
    • three-room/three-source output:
      • powered and line-level stereo audio output for 2nd room (using powered 2nd room stereo output allows 7.1 home theater in main room)
      • powered and line-level stereo audio output for 3rd room (using powered 2nd and 3rd room stereo output allows 5.1 home theater in main room)
    • digital audio output for 4th room via optical digital out (available only with sources input through an optical or coaxial digital connection to receiver)
    • digital audio inputs: 3 optical (including 1 front-panel), 3 coaxial
    • digital audio outputs: 2 optical
    • 7 audio/video inputs, including:
      • 1 front-panel input with composite and S-video
      • 6 rear-panel inputs with composite and S-video
    • 2 audio-only inputs (including phono)
    • 7.1-channel analog audio preamp input
    • 11.3-channel analog audio preamp output
    • front and rear USB ports for audio playback from USB flash drives, hard disk drives, and portable USB music players (including iPod)
    • Ethernet port for music and JPEG streaming from a wired PC network, and control via a PC
    • wireless LAN antenna connection (Wi-Fi antenna included)
    • Denon Link jack (4th edition) for connecting compatible Denon DVD and Blu-ray players
    • RS-232C port for automated control systems
    • 2 switched AC outlets
    • 1 set of main speaker outputs
    • back surround speaker channels re-assignable for bi-amping front left and right speakers
    General Features:
    • on-screen GUI (Graphical User Interface) superimposed on HDMI output (up to 1080p)
    • learning/multibrand touchscreen electro-luminescent remote
    • basic remote for second or third listening room (requires remote control extender system, not included)
    • Denon's free remote app lets you use your iPod touch®, iPhone® or Android™ device as a Wi-Fi® remote
    • 17-1/8"W x 7-11/16"H x 17-13/16"D
    • weight: 42 lbs.
    • warranty: 2 years
    • Our 60-day money-back guarantee
    • MFR # AVR-4810CI

    What's in the box:

    • Black AM/FM/Dolby Digital/DTS receiver
    • Audyssey DM-A409 setup microphone with attached 25' cord (has a mono mini-jack connector)
    • RC-1126 Wireless remote control with LCD
    • RC-1121 Secondary Wireless remote control
    • 2 "AA" batteries
    • 2 "AAA" batteries
    • 6' AC power cord
    • Wireless LAN antenna
    • HD Radio AM loop antenna
    • Analog AM loop antenna
    • HD Radio FM Dipole antenna
    • FM wire antenna
    • Owner's Manual
    • Getting Started connections guide
    • Warranty information
    • Denon service network sheet
    • SIRIUS Satellite Radio brochure
    • XM Satellite Radio brochure
    • Napster information
    • Rhapsody information

    Customer reviews

    Loading reviews...

    Denon AVR-4810CI reviews

    Average review:

    2 reviews

    Filter by rating

    Customer photos

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Denon AVR-4810CI

    StanN from Anderson, IN on 1/8/2012

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Great product. Needed to upgrade my Denon Avp-8000 {awesome system} to a receiver with HDMI switching. New sound is incredible and set up was extremely easy. Thanks again Crutchfield for the incredible price and support.



    Crutchfield response on

    3 of 3 found this helpful


    Mark from Williamsburg, VA on 6/10/2010

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    This was a major step up from my Yamaha 2600 in my dedicated home theater. The wifi features are an especially welcome addition, but the beefy amps are the real story here. Fantastic product. If it's in your price range and you are in the market, buy this receiver. Now.



    Crutchfield response on

    49 of 65 found this helpful

    Verified customer (What's this?)
    Verified employee purchase (What's this?)



    Crutchfield response

    << >>

    More details on the Denon AVR-4810CI

    Stacey B.

    Features & specs

    Number Of Channels 9
    Stereo RMS Power (watts) 140
    THD in Stereo 0.05 %
    Frequency Bandwidth (stereo) 20-20k Hz
    Minimum Impedance L/R 6 ohms
    Minimum Impedance Center 6 ohms
    Minimum Impedance Surround 6 ohms
    General Features
    Internet-ready Yes
    Bluetooth No
    Apple AirPlay No
    Alexa-compatible No
    Google Home-compatible No
    Chromecast built-in No
    DTS Play-Fi No
    App Remote Control No
    USB port for iPod/iPhone Yes
    FM Sensitivity 11.2 dBf
    HD Radio Tuner Y
    On-Screen Display Thru All monitor outs
    Auto Speaker Calibration Audyssey MultEQ XT
    Plays Copy-protected 4K No
    HDR-compatible No
    HDMI Standby Pass-through Yes
    4K Video Upscaling No
    HDMI to HDMI Upconversion up to 1080p
    DLNA Certified
    MHL-compatible ---
    Multibrand Remote Control Yes
    Learning Remote Yes
    LCD Remote
    Width (inches) 17-1/8
    Height (inches) 7-11/16
    Depth (inches) 17-13/16
    Weight (pounds) 42.13
    Parts Warranty 2 Years
    Labor Warranty 2 Years
    Multi-room Audio/Video
    Powered Multi-room Audio Output Yes
    Preamp Multi-room Audio Output Yes
    Multi-room HDMI Output No
    Playback from Digital Audio Inputs No
    Playback from Streaming Sources No
    Surround Processing
    Dolby Digital DD, EX, TrueHD, DD+
    Dolby Atmos N/A
    DTS DTS, ES, HD, HDMA, Neo6
    DTS:X No
    Inputs & Outputs
    Phono Input 1
    Audio-Video Inputs 7
    Audio-only Inputs 2
    Component Video Inputs 3
    Component Video Monitor Outputs 1
    Optical Digital Inputs 3
    Coaxial Digital Inputs 3
    Optical Digital Outputs 2
    Coaxial Digital Outputs None
    HDMI Inputs 6
    HDMI Monitor Outputs 2
    Subwoofer Outputs 3
    Discrete Subwoofer Outputs No
    Multi-Channel Analog Input Yes
    Multi-channel Preamp Output Yes
    Main Speaker Output Pairs 1
    Main Speaker Terminals Posts
    Ethernet Port 1
    USB Connections 2
    Removable Power Cord IEC 2-prong

    Product Research

    Audio Features
    Video Features
    PC/Network Functions
    Remote Control
    Optional Add-On Devices

    Audio Features

    9-Channel Amplifier: The Denon AVR-4810CI features a 9-channel discrete amplifier, supplying 140 watts RMS per channel. The nine amplifier channels can be used in several different configurations to accommodate your home theater setup:

    • 11.1ch Surround: standard 7.1 channel surround sound plus Front Height (L/R) and Front Wide (L/R) channels to accommodate Dolby Pro Logic IIz and Audyssey DSX (in this case the Front Wide speakers must be powered by a different amplifier)
    • 9.1ch Surround: standard 7.1 channel surround plus Front Height (L/R) or Front Wide (L/R) channels, all powered internally; you can also choose 5.1 channel surround plus Front Height (L/R) and Front Wide (L/R) channels
    • 7.1ch Surround: standard 7.1 channel surround or 5.1 channel surround plus Front Height (L/R) or Front Wide (L/R) channels, all powered internally; this setting leaves two amplifier channels available to bi-amp the front speakers or power speakers in Zone2 or Zone3
    • 5.1ch Surround: standard 5.1 channel surround; this setting leaves four amplifier channels available to bi-amp the front speakers or power speakers in Zone2 and/or Zone3
    • Front Height: Dolby Pro Logic IIz requires assigning the extra channel amplifier to power the two Front Height speakers for better front effects
    • Front Wide: Audyssey DSX processing requires assigning the extra channel amplifier(s) to power the two Front Wide and/or the two Front Height speakers
    • Bi-Amp/Bi-Wiring: extra speaker terminals on the back panel allow you to easily bi-wire or bi-amp the front speakers; bi-amping requires reassignment of the extra channel amplifier
    • Multi-Zone/Multi-Source Operation: the multi-zone/multi-source function lets you independently select different audio/video sources for listening and viewing in different locations of your home:
      • Zone2: analog audio (speaker or line level output) and analog video (component video or composite video output/no HDMI source)
      • Zone3: analog audio only (speaker or line level output)
      • Zone4: optical digital audio only (requires amplifier and only plays digital sources)

    Note: Zone2 and Zone3 feature both preamp outputs and speaker terminals, so you can use this unit or a separate amp to power speakers in another room. When using the receiver's preamp output terminals for the second and third rooms you need additional amplifiers to power those speakers. The Zone4 output has only an optical digital output and also requires another amplifier.

    Minimum Signal Path Construction: The AVR-4810CI's circuit board layout and mechanical construction is designed to minimize audio and video signal paths in order to maximize video and sound quality:

    • Direct Mechanical Ground: The receiver's heat sink and main transformer are located near feet to minimize mechanical vibration. Both the heat sink and main transformer are fixed to the bottom chassis of the receiver to reinforce Mechanical Ground. The transformer is supported by a separate transformer and plate and the receiver's center chassis is reinforced to add overall strength and durability to the unit.
    • Separate Circuit Boards: The AVR-4810CI utilizes separate circuit board to isolate each signal to achieve the highest quality of audio and video. The receiver features separate digital, analog audio and analog video circuit boards which reduces interference and lowers noise distortion.
    • Main Power Supply: A huge capacity main transformer provides separate power supplies for the receiver's Power Amp section, Digital block, Analog Audio block, Analog Video block, and HD radio block for maximum performance. The receiver also features an independent sub transformer ensuring excellent low frequency response.

    D/A Converters: The AVR-4810CI uses highly accurate Burr-Brown PCM-1791A Digital-to-Analog converters for each channel; 12 total. The 192kHz sampling rate and 24-bit word length capabilities of the DACs allows you to hear the increased clarity, detail, and dynamic range of high-resolution recordings.

    AL24 Processing Plus: Denon's AL24 Processing Plus technology dramatically improves information volume in the time axis region using high-speed signal detection and processing technology. In addition to expanding the original 16-bit data to 24 bits, AL24 Processing Plus uses data interpolation along the time axis of up-converted sampling to achieve natural interpolation without losing the original data. A digital filter is used to further expand adaptability. The result is reproduction of such spatial information as the delicate nuances in your music, the positions of the performers, and the breadth, height, and depth of the concert hall. AL24 Processing Plus is conducted for digital (PCM) input signals of 8.1 channels or less in Pure Direct, Direct, and stereo modes.

    DDSC Digital HD: The Denon AVR-4810CI is equipped with DDSC (Dynamic Discrete Surround Circuit) Digital HD, featuring three Analog Devices 32-bit floating point DSP processors. All elements of the Surround Processor are optimized to the highest standards by the use of selected high performance and discrete components, particularly the A/D and D/A converters and the sophisticated DSP surround decoder.

    HDCD Decoding: The AVR-4810CI automatically detects and decodes the digital bitstream from a CD that has been encoded through the special High Definition Compatible Digital (HDCD) process. HDCD discs use 20-bit encoding and other proprietary processing to provide improved CD listening.

    Audyssey: This receiver is equipped with an Auto Setup and Room Equalization function, to achieve the most ideal sound field for your room. The AVR-4810's Audyssey MultiEQ XT function is designed to optimize the sound quality at each listening position in the room. The included DM-A409 microphone is used to measure test tones at each listening position. This measured data is then analyzed using a program to improve acoustic characteristics in the listening area. For best results at least six positions should be measured, including a main position. The main position is given more weight in the calculations. The Audyssey EQ offers the following settings:

    • MultEQ XT: the MultiEQ XT function offers the following adjustments:
      • Audyssey: optimizes the crossover point, output level, delay time, and equalization of all speakers based on speaker frequency response, speaker location, and room acoustics
      • Audyssey Byp. L/R: optimizes all speakers except front left and right
      • Audyssey Flat: optimize frequency response of all speakers to flat
      • Manual: adjusts the tonal quality for each speaker individually using the manual equalizer settings; adjust from -20 dB to +6 dB at 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, and 16 kHz
      • Off: turns equalizer off
    • Dynamic EQ: audio engineers mix music and movie soundtracks at reference levels much louder than typical home listening levels, at lower volumes the human ear perceives sound differently; voices change, bass dissipates, and the surround effect becomes less enveloping; Dynamic EQ adjusts the frequency response curve based on volume to maintain consistent bass output, octave-to-octave balance, and surround impact, resulting in rich sound at any volume; the reference level can be set to 0 dB (film reference), 5 dB, 10 dB, or 15 dB
    • Dynamic Volume: Dynamic Volume addresses the issue of commercials that are too loud and movie soundtracks with vast differences between soft and loud passages; the results are more intelligible dialogue, loud passages maintain impact, and soft whispers are clearly heard; when the volume level changes, Dynamic EQ also adjusts the frequency response to maintain sound quality

    Note: You can also setup your speaker system manually using the receiver; adjust speaker configuration (large/small/none), bass setting (LFE/LFE+Main), low-pass crossover (80/90/100/110/120/150/200/250Hz), speaker distance (0-60'), channel level (-12 to +12dB), and high-pass crossover frequency (40/60/80/90/100/110/120/150/200/250Hz).

    Surround Modes: This receiver incorporates a wide variety of surround modes to bring you maximum enjoyment from your audio and video software. The unit can be set to store the most recently selected surround mode for each input, so it is automatically activated each time that input is chosen. The surround modes include:

    • Dolby TrueHD: Dolby TrueHD is a lossless coding technology that supports up to 8 channels of multi-channel surround sound for the next generation optical discs, the sound is true to the original source bit-for-bit
    • Dolby Digital Plus: Dolby Digital Plus is an improved Dolby Digital surround format, compatible with up to 8 channels of discrete digital sound, sound quality is improved due to extra data bit rate performance
    • Dolby Digital: 5.1 multi-channel digital surround format
    • Dolby Digital EX: 6.1 multi-channel digital surround format
    • DTS-HD Master Audio: DTS-HD Master Audio is a lossless audio format compatible with up to 96 kHz and up to 7.1-channels; the lossless audio coding technology faithfully reproduces the sound of the studio master
    • DTS-HD High Resolution: DTS-HD High Resolution Audio is an improved version of the conventional DTS, DTS-ES and DTS 96/24 signal formats that is compatible with sampling frequencies of 48 or 96 kHz and up to 7.1-channels of discrete digital sound; high data bit rate performance provides high quality sound
    • DTS Digital Surround: 5.1 multi-channel digital surround sound format used for both commercial/theatrical and consumer grade applications
    • DTS-ES Extended Surround:
      • DTS-ES Discrete 6.1: 6.1-channel discrete digital audio format adding a surround back channel to the DTS digital surround sound
      • DTS-ES Matrix 6.1: discrete 5.1 channel digital audio format, inserting a 6th surround back channel to the DTS surround sound through matrix encoding
    • DTS 96/24: DTS 96/24 is a digital audio format enabling high sound quality playback in 5.1-channels with a sampling frequency of 96 kHz and 24 bit quantization of DVD-video
    • DTS Neo:6 Surround: DTS Neo:6 is a matrix decoding technology for achieving 6.1-channel surround playback with 2-channel sources; choose between Neo:6 Cinema and Neo:6 Music
    • Dolby Pro Logic: center and mono surround information is matrixed into two stereo channels, then decoded and output in 4 channel surround sound
    • Dolby Pro Logic II: Dolby Pro Logic II technology processes any high quality stereo (two-channel) movie and music audio into five playback channels of full-bandwidth surround sound; Dolby Pro Logic II detects the directional cues that occur naturally in stereo content and uses them to create a five-channel surround sound playback experience; choose from Cinema, Music, or Game modes
    • Dolby Pro Logic IIx: Pro Logic IIx expands any existing stereo or 5.1-channel audio to 6.1- or 7.1- channel playback, creating a seamless, natural surround soundfield that immerses you in the entertainment experience; choose from Cinema, Music, or Game modes
    • Dolby Pro Logic IIz: Dolby Pro Logic IIz introduces a new dimension to home entertainment through the addition of a pair of front height channels; compatible with stereo, 5.1ch, and 7.1ch content, Dolby Pro Logic IIz provides enhanced spaciousness, depth, and dimension to movies, concert video, and videogame playback while maintaining full integrity of the source mix
    • Audyssey Dynamic (DSX): Audyssey DSX extends 5.1-channel and 7.1-channel sound sources to wider and higher dimensions; Front Height (L/R) and Front Wide (L/R) speakers are added to improve the height and width of the front stage
    • Combined Surround Modes: by combining surround modes, surround back, Front Height, and Front Wide channels can be added to discrete 5.1, 6.1, and 7.1 channel signals
    • Neural Surround: Neural Surround has been adopted by XM Satellite Radio for digital radio broadcasts of XM HD Surround recordings and live events in surround sound; Neural Surround employs psychoacoustic frequency domain processing which allows delivery of a more detailed sound stage with superior channel separation and localization of audio elements
    • Denon Original Surround (DSP) Modes: select from 10 Denon original surround modes:
      • Wide Screen: simulates the atmosphere of viewing a movie on a large screen
      • Super Stadium: suitable for viewing sports programs
      • Rock Arena: enjoy the atmosphere of a live concert in an arena
      • Jazz Club: recreate the atmosphere of a live concert in a jazz club
      • Classic Concert: designed for classical concert programs
      • Mono Movie: for playing monaural movie sources with surround sound
      • Video game: suited for achieving surround sound with video games
      • Matrix: add a sense of expansion to stereo music sources
      • Virtual: add surround effects using only the front speakers or headphones
      • Multi Channel Stereo: enjoy stereo sound from all speakers
    • Stereo: sound is output from the front left and right speakers, along with a connected subwoofer
    • Direct Playback: the audio signal bypasses the tone adjustment circuitry for higher quality sound; sound is output by the same speakers as included in the original signal
    • Pure Direct: this mode recreates the original sound most faithfully, providing extremely high quality sound

    Surround Parameters: You can adjust the following surround mode parameters:

    • CINEMA EQ (Cinema Equalizer): The Cinema EQ function gently decreases the level of the extreme high frequencies, compensating for overly-bright soundtracks recorded for playback in a theater. Select this function if the sound from the front speakers is too bright. This function works in any of the Dolby or DTS modes, Wide Screen mode, and when using the multi-channel analog inputs.
    • Dynamic Range Compression: Motion picture soundtracks have tremendous dynamic range (the contrast between very soft and very loud sounds). For listening late at night, or whenever the maximum sound level is lower than usual, compressing the dynamic range allows you to hear all of the sounds in the soundtrack with reduced dynamic range. DRC is not available when using the Direct feature or multi-channel analog inputs.
    • LFE: This setting adjusts the low-frequency effects level (LFE); adjust from -10 to 0 dB.
    • Center Width: This function assigns the center channel signal to the front left and right channels for wider sound; select from 0 to 7. This function only works in the Dolby Pro Logic II and PL IIx modes.
    • Center Image: This function assigns a center channel signal to the front left and right channels for wider sound; adjust from 0.0 to 1.0. This function only works in the DTS Neo:6 mode.
    • Panorama: This feature assigns front left and right signals to surround channels for wider sound, you can turn this feature On or Off. This function only works in the Dolby Pro Logic II and PL IIx modes.
    • Dimension: This settings shifts the sound image to the front or rear to adjust playback balance; select from 0 to 6. This function only works in the Dolby Pro Logic II and PL IIx modes.
    • Delay Time: This feature adjusts the delay time to control the sound stage size. In this menu the delay time is only adjusted for the Matrix mode.
    • Effect Level: This function adjusts the effect signal level from 1 to 15 when using the Denon Original Surround Modes.
    • Room Size: This feature allows you to set the size of your acoustic environment when using the Denon Original Surround Modes; select Small, Medium small, Medium, Medium large, or Large.
    • Surround Back: This setting selects the playback mode for the surround back channels; there are separate settings for multi-channel and 2-channel sources.

    Source Level: This function adjusts the playback level of the currently select input source's audio input. Use this feature if there are differences in the input volume levels between different sources. You can adjust the playback level of each input from -12 to +12dB.

    Restorer: This function restores compressed audio signals to pre-compression form, correcting the sense of bass and treble volume to obtain a richer sounding playback; select 64, 96, or HQ based on the compression setting of the source material.

    Auto Lip Sync (Audio Delay): This feature automatically compensates for the timing shift between the audio and video of the receiver. If needed, the audio signal can be manually delayed to match the video signal from 0 to 200ms.

    Denon Link (4th gen): This receiver features Denon Link, an RJ-45 jack on the back panel, for connection to a compatible Denon DVD player equipped with a Denon Link connector. This digital connection allows the input of Super Audio CD, DVD-Audio, or Blu-ray Audio/Video digital signals with a single balanced cable. When connected to a Denon Blu-ray compatible with 4th generation Denon Link, the clock in the AVR-4810CI is used to achieve jitter-less data transfer and ultra-low noise. In this case two cables are used, the balanced Denon Link cable and an HDMI cable.

    Volume Setting: You can set a maximum volume level of 0, -10, or -20 dB to limit the receiver's total volume output. You can also specify a turn-on volume, from -80 to +18dB or Last (same volume setting as when the receiver was turned off).

    Muting Level Adjustment: You can set the amount of attenuation for the audio muting circuit; -40dB or -20dB below current volume, or full mute (sound turned off entirely).

    Assignable Digital Inputs: The AVR-4810CI features two rear panel optical digital (Toslink) inputs and three coaxial digital inputs. Each input can be assigned to any of the input sources except Phono and Tuner. Optical Digital Input 2 also has a corresponding Optical Digital output for use with a CD, MD, or other digital recording device.

    7.1 Multi-Channel Input: The AVR-4810CI is equipped with a 7.1-channel input to accommodate present and future multi-channel formats.

    Binding Post Speaker Terminals: All of the receiver's speaker terminals are binding posts. They are not 5-way binding posts; a plastic collar prevents their use with spade lugs and they are positioned too far apart to be used with dual banana plugs.

    Multi-Channel Pre-Out: The receiver features an 11.1-channel pre-out for connection to external power amplifiers.

    HD Radio Tuner: The AVR-4810CI features a built-in HD AM/FM tuner. HD radio stations offer higher sound quality than conventional FM/AM broadcasts. HD FM stations sound similar to CD quality and HD AM sounds similar to analog FM stereo. It is also possible to receive data services and select broadcasts from among up to eight multicast programs. In addition, the AVR-4810CI receives standard analog AM/FM broadcasts. You can store up to 56 radio stations presets (8 stations each in 7 separate banks). You can name each preset with an 8 character ID. You can delete any unused tuner banks.

    Personal Memory Plus: For each input, the receiver automatically memorizes the settings for input mode, surround mode, HDMI output mode, MultEQ, Dynamic EQ, Dynamic Volume, audio delay, etc. When the input source is switched, the settings last used for that source are automatically recalled. The surround parameters, tone control settings, and playback levels for the different output channels are memorized for each surround mode.

    Back-Up Memory: The unit is equipped with a back-up memory that provides approximately one week of memory storage when the main unit's power switch is off and the power cord is disconnected.

    Sleep Timer: This function allows you to automatically set the power to standby after a predetermined amount of time has passed. You can se the sleep timer to 30, 60, 90, or 120 minutes.

    Video Features

    Noise Shaped Video (NSV): The NSV precision video feature works in the digital domain to reduce noise in the video signal frequency band in order to enhance video signal linearity, provide accurate signal representations, and enhance the picture quality. Noise shaping techniques can be combined with dynamic element matching techniques in order to reduce the matching requirements of DAC elements by converting the analog mismatch into and out of band noise. This approach of dynamic element matching and noise shaping has been shown to allow the use of sigma delta modulation at video data rates. NSV can achieve ultimate precision with 12-bit fidelity in both digital-to-analog and analog-to-digital domains.

    HDMI ver. 1.3a: This unit has five rear panel HDMI version 1.3a inputs and two HDMI version 1.3a outputs. The HDMI inputs are assignable to different input sources. The HDMI outputs are parallel so the same video signal is output through both. The HDMI jacks support HDCP copyright protection and are compatible with 30 and 36 bit Deep Color and xvYCC technology.

    High-Bit i/p Converter and Scaler: The AVR-4810CI is equipped with a flexible video switching system that converts video signals in an effort to require only one video connection from receiver to TV. The Denon AV receiver is equipped with a high-bit i/p converter and scaler (up to 1080p) featuring Anchor Bay VRS processing which provides multi-cadence detection for SD and HD video signal and offers digital noise reduction and enhancement. The 480i/480p (SD-quality) video signals of DVD programs and other materials input through receiver are scaled to a high quality 1080p signal and converted HDMI for output to your HDTV:

    • Composite Video: can be converted to S-Video, component video, or HDMI
    • S-Video: can be converted to composite video, component video, or HDMI
    • Component Video: can be converted to composite video, S-Video, or HDMI (480i signals only when down converting to composite video or S-video)

    Note: Video signals input as HDMI are only output via HDMI; they cannot be transferred to Zone2.

    Component Video Inputs/Outputs: The receiver features three component video inputs and two component video outputs (monitor outputs for the main room and Zone2). The component video inputs are assignable to different sources.

    On-Screen Display (OSD) With GUI Menus: An OSD with GUI menus can be displayed on your television for easy system setup. The OSD and GUI menus are sent through all monitor outputs (composite video, S-video, component video, and HDMI).

    Picture Adjustments: The receiver allows you to make the following picture adjustments to incoming video - Contrast, Brightness, Chroma Level, Hue, DNR (noise reduction), and Enhancer (emphasize picture contours).

    Input Name: You can change the display name of each of the receiver's inputs; up to 8 character can be assigned.

    Dimmer: The receiver features four display brightness settings; Bright, Dim, Dark, and Off.

    PC/Network Functions

    USB Terminal: USB terminals behind the door on the front panel and on the receiver's rear panel support playing music (MP3/WMA/WAV/MPEG-4 AAC/FLAC/JPEG) and still photos (JPEG) stored on a USB memory device. When a music file includes text data or album art, it can be displayed on your connected TV while playing the file. You can also play JPEG still picture files as a slideshow. The AVR-4810CI is compatible with mass storage class and MTP (Media Transfer Protocol) USB memory devices in FAT16 or FAT32 format.

    Note: You cannot use the front and rear USB ports at the same time; you must select which port you want to use - Front or Rear.

    Home Network Function: The AVR-4810CI is DLNA certified and can connect to your home network wirelessly (802.11b/g) or using the Ethernet port on the rear panel. Once you've connected to your home network, you can take advantage of these functions:

    • Media Player: The AVR-4810CI's Media Player function lets you stream audio and still image files (MP3/WMA/WAV/MPEG-4 AAC/FLAC/JPEG) stored on your PC to the receiver. This network connection uses two standard technologies: Windows Media Player Network Sharing Service or Windows Media DRM10. The AVR-4810CI also supports MP3 ID3-Tag (ver.2) and WMA META tags and plays only files that are not copyright protected. Napster and Rhapsody are supported, both of which are subscription music services.
    • Internet Radio: Internet radio refers to radio broadcasts distributed over the internet; internet radio stations from around the world can be tuned in. The AVR-4810C supports MP3 and WMA internet radio content and allows you to search for radio stations by genre or region in alphabetical order. The list of stations that the AVR-4810CI uses comes from the vTuner radio station database that has been customized for Denon. You can store up to 56 Internet radio presets and register your favorite radio stations at the web site. Broadband internet access is necessary to use internet radio.
    • Web control: This function lets you set up and control the A/V receiver over the network using an internet browser on your computer or portable device (smartphone, iPod touch, etc).
    • Network Party Mode: The same network audio (Internet Radio, Media Server, or iPod Direct) can be played on multiple Denon products (up to five) equipped with the Part Mode function and connected in the network. Neither Napster nor Rhapsody are available for the Party Mode.

    Note: A computer with the following specifications is recommended to use the network features: Operating Systems include - Windows XP (SP2 or later) and Vista; Installed Software includes - Windows Media Player ver.11 or other DLNA-compatible server software; Internet Browser - Microsoft Internet Explorer 6.0 or later; 300 MB or more free disk space.

    Remote Control

    Learning Remote Control: The receiver's main remote control (RC-1126) features a back-lit touch panel as well as hard-key buttons for operation of the AVR-4810CI. If your other audio/video devices are a different brand or if they cannot be operated with the preset memory function, the other devices' remote control signals can be programmed into the RC-1126. The remote control is equipped with System Call functions, allowing a series of remote control signals to be transmitted by pressing a single button. Up to 32 sequential signals can be stored in each of the three System Call buttons.

    Sub/Multi-Zone Remote Control: The receiver's sub remote control unit (RC-1121) is equipped with frequently used buttons, so it can be used for simple remote control unit operations. The sub remote can also be used for multi-zone, so you can use it to control the AVR-4810CI from other rooms via an optional IR repeater kit. The RC-1121 will not operate devices other than the amplifier.

    HDMI Control: When you make an HDMI connection with a TV or player compatible with the AVR-4810CI's HDMI control function, certain commands are synchronized; power, switching audio output devices, switching of audio input devices, volume, and Playback functions.

    Custom Integration: The AVR-4810CI carries the CI stamp, which is Denon's certification to custom installers that the receiver has advanced connectivity and control features often required for custom home integration and theater applications using premium control systems. These features include a RS232C jack for use with whole house control systems, remote in/out IR command control, and assignable +12-volt triggers.

    • RS-232C Port: The AVR-4810CI includes an RS-232C port for connection to external control systems, from companies such as AMX and Crestron.
    • Remote Jacks: The receiver has a mini-jack input for use with an optional IR repeater. The adjacent room-to-room output is for future use.
    • 12V Trigger Outputs: The AVR-4810CI has two mini-jack outputs to send a 12-Volt DC turn-on signal to another component that accepts a 12V trigger, such as a power amplifier. These trigger outputs can be assigned to the Main Zone, Zone2, Zone3, or Zone4.

    Optional Add-On Devices

    iPod Compatibility: Using an optional ASD-11R iPod dock, or an ASD-51N or ASD-51W iPod/Network adapter dock, you can integrate your iPod with the AVR-4810CI. Song titles appear on the receiver's display panel and the iPod can be controlled using the buttons on the main unit and the remote control.

    Sirius Satellite Radio Ready: The AVR-4810CI can be connected to the optional SiriusConnect home tuner kit (item numbers 607SCH1 or 220SCH2P, sold separately), allowing you to receive Sirius Satellite Radio through the receiver. The display shows channel name, number, category, artist, or song title. Sirius channels are stored as presets and recalled in the same way AM and FM stations are. A subscription to Sirius Satellite Radio is required.

    XM Satellite Ready: The optional XM Direct 2 Home Tuner (220XHD2H1, sold separately) lets you enjoy XM Satellite Radio through the XM-ready receiver. Simply connect the XM direct 2 Home Tuner to the XM jack on back of the receiver, place and aim the included antenna for optimum reception, and you are ready to start enjoying commercial-free music, plus live sports, new, talk, and exclusive entertainment. The channel number, channel name, artist name, and song title are listed on the receiver's display and on the connected TV monitor. XM stations are stored as presets and recalled in the same way AM and FM stations are.

    Note: In addition to the XM Direct 2 Home Tuner and the XM-ready receiver, you will need a subscription to XM Satellite Radio to receive XM programming.

    Loading accessories...

    Customer Q&A

    Loading articles...
