Stereo integrated amplifier with built-in DAC and phono preamplifier
Our take on the Denon PMA-1600NE by Crutchfield's Eric Angevine
Intelligent circuit design helps the Denon PMA-1600NE produce pristine digital sound from your favorite digital files and music streaming sources.
Treat your high-res music files right
The Denon PMA-1600NE provides good, clean power to drive your stereo speakers, and it's designed to do full justice to high-resolution music files. There are two optical inputs and one coaxial input for connecting digital sources, and an internal digital-to-analog converter that handles audio signals up to 24-bit/192 kHz resolution. The Type-B USB input on the back of the amp is even more impressive — it's compatible with streams and files up to 32-bit/384 kHz resolution.
Going the extra mile

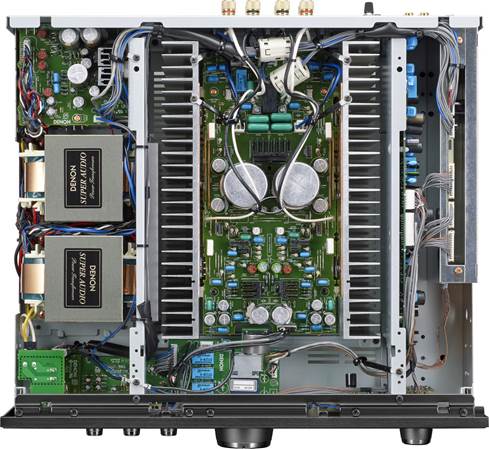

Much of what makes this amp special is out of sight inside the chassis. Internal construction begins with six separate blocks, isolating circuits to eliminate interference. An Advanced Ultra High Current single push-pull circuit provides efficient high-current power, and a DAC master clock eliminates digital jitter that can smear the subtle details in your favorite tunes.
One nice touch that is visible on the front of the amp is a fluorescent display panel that shows source and sampling rate. You'll likely get plenty of use out of the 1/4" headphone jack and included remote, too.
Special features for vinyl lovers
If you have a treasure trove of beloved records, the PMA-1600NE features a built-in phono preamplifier that's compatible with moving coil and moving magnet cartridges. Analog Mode disables the amp's digital circuitry to preserve the warmth of analog sound.
- 70 watts x 2 channels into 8 ohms (20-20,000 Hz) at 0.07% THD
- 140 watts x 2 channels into 4 ohms (20-20,000 Hz)
- 4-ohm capability allows use with a wide range of speakers
- built-in DAC supports high-resolution audio files
- DAC master clock eliminates digital jitter
- Advanced AL32 Processing Plus enhances compressed digital files
- built-in phono preamp compatible with moving coil and moving magnet cartridges
- Source Direct mode bypasses tone control circuits for cleaner sound
- Analog Mode disables digital circuitry for warm all-analog sound
- Advanced Ultra High Current single push-pull circuit power amplifier
- front-panel display shows source and sample rate
- internal chassis with six independent blocks eliminates interference between circuits
- front-panel tone controls (treble and bass)
- 2 optical and 1 coaxial digital audio inputs
- stereo RCA audio outputs for recording
- rear-panel Type-B USB supports high-resolution PCM files up to 32-bit/384kHz or 11.2 MHz DSD
- built-in headphone amplifier with full-size (1/4-inch) jack
- binding posts and front-panel A/B switching for two pairs of speakers
- signal-to-noise ratio: 108 dB (line in), 89 dB (moving magnet), 74 dB (moving coil)
- remote control included
- 17-1/8"W x 5-5/16"H x 16-5/16"D
- weight: 38.8 lbs.
- warranty: 1 year
- Our 60-day money-back guarantee
What's in the Box:
- Integrated amplifier
- 68" AC power cord
- Remote control (RC-1213)
- 2 "AAA" batteries
- Owner's Manual on CD-ROM
- Quick Start Guide
- Safety Instructions
- Warranty Information
Why Shop With Us?12 Reasons.
Features and Specs
|Watts RMS per Channel (8-ohms)||70|
|Watts RMS per Channel (6-ohms)||Not given|
|Watts RMS per Channel (4-ohms)||140|
|Frequency Bandwidth||Not given|
|Minimum Impedance||4 ohms|
|Signal to Noise Ratio||108|
|Digital Music Features|
|Built-in DAC (Digital to Analog Converter)||Yes|
|High-resolution Audio Playback||PCM, DSD|
|Total Analog Inputs||4|
|Optical Digital Inputs||2|
|Coaxial Digital Inputs||1|
|Dimensions and Warranty|
|Parts Warranty||3 Years|
|Labor Warranty||3 Years|
Advanced Ultra High Current (UHC)-MOS Single Push-Pull Circuit Power Amplifier: The amplifier features Advanced UHC (Ultra High Current)-MOS technology that utilizes a minimum number of high-current amplifier elements to balance advanced speaker drive capabilities and improved sound quality. Advanced UHC-MOS is an ideal amplifier whose power supply performance is superior to that of bipolar transistors and incorporates the sound quality advantages of MOS-FETs. The Advanced UHC-MOS is provided in a single push-pull configuration that eliminates deviations in the amplification stage and balances high power with delicate musical details. This circuit masterfully reproduces the full sonic range, from the delicate musical nuances to the powerful climaxes of rich musical expression.
Note: The Denon PMA-1600NE integrated amplifier is rated for 70 watts x 2 channel (@ 20-20kHz, into 8Ω, with 0.07% THD).
6-Block Chassis Configuration with Direct Mechanical Ground Construction: The PMA-1600NE's chassis is configured of six independent blocks that house the phono equalizer and input circuitry, volume control circuitry, USB-DAC circuitry, amplification circuitry, power section, and the control section. The chassis is constructed with 1.0mm thick steel plates to protect the signal circuits from external vibration and eliminates the adverse effects of mutual interference among the circuits. The power section has been positioned in the center of the PMA-1600NE. With heat sinks on both sides, this construction of well-balanced mass is in an ideal location to prevent unwanted vibration from affecting sound quality. In addition, the feet supporting the heavy weight of the power transformer, heat sinks, and chassis are made of ABS resin with rigid rib construction.
384kHz/32-Bit DAC: The D/A converter (PCM1795) used in the PMA-1600NE is the same 384kHz/32-bit and DSD capable top class DAC used in Denon's DCD-1600NE SACD player to deliver a clean, high-grade sound. See chart below for compatible digital audio formats.
|Digital Connector Type||Digital Audio File Format||Sampling Frequency||Bit-Length|
|USB-B||DSD (2ch)||2.8/5.6/11.2 MHz||1-bit|
|Linear PCM (2ch)||44.1/48/88.2/96/176.4/ |
|Optical/Coaxial||Linear PCM (2ch)||32/44.1/48/88.2/96/ |
Advanced AL32 Processing Plus: For the digital inputs, the PMA-1600NE employs Advanced AL32 Processing Plus, the latest version of Denon's analog waveform reproduction technology which utilizes unique data interpolation algorithms and also supports high-resolution 384kHz/32-bit PCM signal input. These algorithms interpolate points that should exist before and after the points in large quantities of data to achieve a smooth waveform that is close to that of the original signal. By carefully restoring data that was lost during digital recording, the resulting playback sound is highly detailed, free of interference, accurately localized, richly expressive in the lower range, and beautifully faithful to the original sound.
Digital Isolator: The PMA-1600NE is equipped with a high-speed digital isolator to eliminate adverse influences on sound quality caused by high-frequency noise from a USB-connected computer or from the PMA-1600NE's digital inputs. Since data is transferred magnetically via coils embedded in an IC chip, the input and output sides are electrically isolated. By isolating the signal line between digital audio circuitry and the D/A converter, adverse influences of high-frequency noise on analogue audio circuitry after the D/A converter are eliminated. The PMA-1600NE also adopted a dedicated secondary winding in power transformer for the digital circuitry to shut out noise from the power source.
Asynchronous USB-B Input: The PMA-1600NE provides a USB-B input that support high-resolution 11.2-MHz DSD and 384kHz/32-bit PCM input signals from your Windows PC or Mac computer. DSD transmission methods support ASIO native playback and DSD Audio over PCM Frames (DoP). Since asynchronous transfer is controlled by the PMA-1600NE's master clock rather than the clock of a computer the transfer is free of jitter. Computer system requirements are as follows -
- Operating System: The PMA-1600NE's USB-B input supports Windows 7, 8, 8.1 or 10. A Windows PC will require USB-driver software. Download the driver software from the Denon website. It also supports Mac OSX 10.9, 10.10, or 10.11 (no special USB-driver software is required).
- USB Specification: Your computer must be equipped with a USB 2.0 (type-A) port. Use a USB 2.0 cable (sold separately) that is less than 10' to connect between your computer and the integrated amplifier.
Optical & Coaxial Digital Inputs: The PMA-1600NE features two Optical (Toslink) digital inputs and one Coaxial (RCA) digital input that support PCM signals up to 192kHz/24-bit. Linear PCM signals (16- or 24-bit) with a sampling frequency of 32, 44.1, 48, 88.2, 96, 176.4, or 192 kHz can be input into this unit. These digital inputs help to improve sound and visual quality of your TV audio, Blu-Ray, media players and more.
Note: The optical & coaxial digital inputs do not support Dolby Digital, DTS, DSD, or AAC.
Line-Level RCA Inputs: The Denon integrated amplifier is outfitted with three line-level, stereo RCA inputs labeled "CD", "Network", and "Recorder". Use these analog line-level inputs to connect legacy devices, such as a CD player or tape deck.
MM/MC Phono Equalizer: The PMA-1600NE includes a phono input and equalizer that supports connection from turntable's with either MM or MC cartridges. This phono equalizer has high gain, and as loops in the circuit board pattern can cause adverse effects on sound quality, the "simple & straight" design represents a significant improvement. On the PMA-1600NE, the MM/MC toggle switch was changed from a push type to a relay type, which shortens the pattern on the circuit board and makes signal loops smaller, allowing delicate analogue signals to be amplified with greater purity.
A & B Binding Post Speaker Terminals: The Denon integrated amplifier provides A & B speaker terminals for connection of up to two pair of loudspeakers or bi-wiring a single pair of loudspeakers. The A & B speaker terminals consist of heavy-duty, binding-post connectors that support bare wire (up to 10AWG), pin connectors, spade-lugs, and banana plugs (single only).
- Speaker A or B: When connecting only one pair of speakers, you can use loudspeakers with a 4Ω to 16Ω impedance.
- Speaker A & B: When connecting two pair of speakers, you can use loudspeakers with an 8Ω to 16Ω impedance. The same audio source signal will be output to both pair of speakers.
- Speaker A/B Bi-Wire: When bi-wiring one set of speakers using both A & B speaker terminals, you can use loudspeakers with a 4Ω to 16Ω impedance.
Headphone Output: The Denon PMA-1600NE is equipped with a front-panel 1/4" headphone jack for connecting a set of headphone so you can enjoy your music privately. Connecting a set of headphones does not turn off the amplifier's speaker outputs automatically. You will need to manually turn of the speaker output when listening to headphones.
Line-Level Recorder Output: Audio signals input into this unit can be output to an external recording device, using the integrated amplifiers stereo line-level RCA outputs. When recording audio from a playback device connected to this unit, audio can be recorded with the playback device still connected to the integrated amp.
Front-Panel LCD: The Denon integrated amplifier's front-panel low noise FL display indicates source and sample rate. The display does not provide song/artist/album information. The brightness of the display can be adjusted to one of 4 levels.
Remote Control: The included IR remote control can be used to operate not only PMA-1600NE integrated amplifier, but Denon CD players and network audio players as well. The remote provides Power, Input, and Volume control for the integrated amplifier; as well as playback control for select Denon CD players and network audio players. In addition, there is a 3.5mm IR Control input and output for connecting Denon CD players and network audio players with an IR controller.
Analog Mode: During analog audio playback, the Analog Mode can be used to turn off power to the dedicated digital power source and completely stop operation of the digital input circuitry to avoid any high frequency influence to the analog section. Analog Mode also turns off the fluorescent display, allowing the PMA-1600NE to operate as a purely analog amp. During Analog Mode, USB-B, coaxial digital, and optical digital inputs are all disabled.
Tone Controls: The Denon PMA-1600NE offers Bass, Treble, & Balance control. Bass (100Hz) and Treble (10kHz) can be adjusted from -8dB to +8dB. The Balance knob allows you to adjust the volume output from the left and right speakers. The Bass, Treble, and Balance control knobs are found on the unit's front-panel only (not on remote).
Source Direct: When Source Direct is activated, the audio signal does not pass through the tone adjustment circuitry (Bass/Treble/Balance), resulting in playback of higher sound quality.
Auto Standby: When there is no input signal and no operation for approximately 30 minutes, this unit automatically enters Standby mode to conserve power and energy.
Protection Circuitry: This is a function to prevent damage to devices within the power supply when an abnormality such as an overload, excess voltage, or over temperature occurs for any reason.
Our Product Research Team
At Crutchfield, you'll get detailed, accurate information that's hard to find elsewhere. That's because we have our own in-house Product Research team. They verify what’s in the box, check the owner's manual, and record dimensions, features and specs. We stay on top of new products and technologies to help people make informed choices.
