MB Quart MA1-440.4

4-channel marine amplifier — 75 watts RMS x 4

Item # 049MA14404

MB Quart's MA1-440.4 M-Line amplifier packs a lot of power into a small package that's perfect for boating or...

MB Quart's MA1-440.4 M-Line amplifier packs a lot of power into a small package that's perfect for boating or...

Need help?
Contact our Virginia-based experts.
1-888-955-6000
5 advisors available
Top Seller

Item # 049MA14404

Ships free

In Stock
$199.99

Other options

Add to wishlist

About the MB Quart MA1-440.4

For boating or backwoods riding

MB Quart's MA1-440.4 M-Line amplifier packs a lot of power into a small package that's perfect for boating or powersports applications. It's small enough to fit almost anywhere, and tough enough to take almost anything. This rugged amp delivers 75 watts RMS per channel in 4-channel mode, or 220 watts per channel when bridged to 2-channel operation.

For boating or backwoods riding

MB Quart's MA1-440.4 M-Line amplifier packs a lot of power into a small package that's perfect for boating or powersports applications. It's small enough to fit almost anywhere, and tough enough to take almost anything. This rugged amp delivers 75 watts RMS per channel in 4-channel mode, or 220 watts per channel when bridged to 2-channel operation.

Runs speakers and/or subs

This versatile Class D amp can run almost any speaker combination — from multiple speakers (including tower and roll bar-mounted speakers) to thumpin' subwoofers. With high-pass and low-pass filters plus bass boost, you'll be able to tune your system to get the sound you want.

Marine-rated

MB Quart takes their marine-rated amps seriously, so they build their amps to last. Conformal coating protects the internal circuits from water and dirt, while stainless steel hardware resists corrosion in even the saltiest environments.

More about MB Quart

Three decades of marine and powersports audio expertise goes into MB Quart marine amplifiers. These rugged, high-quality amps provide great sound and rugged, all-weather reliability. The MB Quart "Life Shield" badge means your gear has been designed and tested to stand up to the toughest conditions on the water or off the beaten path.

READ LESS

Product highlights:

  • 4-channel marine/powersports amplifier
  • 75 watts RMS x 4 at 4 ohms (110 watts RMS x 4 at 2 ohms)
  • 220 watts x 2 bridged at 4 ohms
  • Class D amp technology
  • conformal-coated circuit board — suitable for power sports and marine applications
  • variable high- and low-pass filters
    • channels 1 and 2: high-pass 50-300 Hz, 24 dB/octave
    • channels 3 and 4: low-pass 50-3000 Hz, 24 dB/octave
    • channels 3 and 4: high-pass 10-1000 Hz, 24 dB/octave
  • 2 pairs of preamp inputs; one set of preamp outputs
  • variable bass boost
  • frequency response: 20-20,000 Hz
  • 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • dimensions: 8-5/16"W x 2"H x 6-15/16"D
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # MA1-440.4
KEEP READINGREAD LESS

What's in the box:

  • 4-Channel amplifier
  • Two 25A ATO fuses (installed)
  • 2 Plastic terminal covers
  • 3mm Allen wrench
  • 1.5mm Allen wrench
  • 4 Self-tapping screws (Length 5/8")
  • Installation Manual

Customer reviews

Loading reviews...

MB Quart MA1-440.4 reviews

Average review:

41 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

MB Quart MA1-440.4

Crutchfield customer from Jacksonville, NC on 7/30/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great amp

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Glenville, WV on 7/11/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Sounds great, small compact,good amp for price perfect for boats

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Angola, IN on 5/20/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Awesome performance with stereo and speakers purchased for our boat!

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

Great Amp

Crutchfield customer from Milton, WI on 5/16/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Installed in my boat to push more power to the factory 75W speakers. I'm far from an amp expert but after reading the manual and with a little playing around my system sounds awesome.

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

Great for Topless Tunes

Crutchfield customer from Coos Bay, OR on 5/7/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Perfect size for hiding under the seat of my Jeep TJ Wrangler... has plenty of kick to power up my Polk Soeakers and enjoy Topless Times

Pros: Perfect size and power for a Jeep Wrangler

Cons: None.

Crutchfield response on

0 of 0 found this helpful

Did not stand up in a marine environment

Jerry from Catonsville on 4/29/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

I was very pleased with the sound quality from this amp except I could here a slight whining noise in the background at low volumes. I can't blame this 100% on the amp because it was likely interference that may be present with other amps. I was not pleased with the tiny posts for making speaker connections. Besides being difficult to work with, the minuscule hex head set screws strip out very easily. I gave this amp 2 stars mostly because it failed after a year and a half due to corrosion on a switch that selects 2 or 4 channels. The amp was installed in a protected cabin area and never exposed to water or weather, I expected it to last at least twice as long as it did.

Pros: Good sound

Cons: Not durable. Poor post connections for speakers.

Crutchfield response on

2 of 2 found this helpful

MB Quart MA1-440.4

Gregory from Leavenworth, KS on 4/5/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Installed this amp on 2018 Yamaha SX210 jet boat with infinity head unit along with the mbquart nautic led cone speakers. By far the best combo I've ever had. Loud, powerful, extremely clean at all levels of volume.. the leds on speakers are subtle and clean, back to the amp.. solid true power for an amp. I didn't install it, I just listen :)

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

John from Seguin, TX on 2/10/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great sound from this little amp. I'm using it to power a WetSounds stealth 6 core soundbar on my boat, and everything comes out super clear and powerfully.

Pros: Compact size, ease of installation, low power draw

Cons: None so far

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Bay Minette, AL on 10/20/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Couldn't ask for better sound quality. They are a perfect match for the Infinity 822ML speakers that I have them pushing. Highly impressed!

Pros: Excellent sound quality Compact design

Cons: None

Crutchfield response on

0 of 0 found this helpful

Tedious install

Dean from Maumelle, AR on 10/4/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

I have not had a chance to listen to the music yet because of the difficulty in booking up the wiring to the amp. The hex head screws and the method for wiring this is not user friendlj.

Pros: Unsure of any pros due to the difficulty in attaching the wires.

Cons: Screws and wiring attachments is difficult.

Crutchfield response on 10/8/2018
Dean, we're sorry you're having issues with your installation. If you need our help again, please just reach back out to our Tech Support team. They can help you solve the problem or set up a return within 60 days of purchase. Lifetime tech support comes with every Crutchfield purchase.

0 of 4 found this helpful

Works Great While it Lasts :-(

Hector from Miami, FL on 9/18/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

I purchased 2 of them a few months ago, installation was easy and sound quality when paired with JL audio speakers was excellent, however only after a couple of months of having them mounted inside my cuddy cabin away from the elements i am already seeing issues. Adjustment buttons are stuck shut with visible corrosion on both amps and one of them has internal connection problems. I am disappointed since i took all precautions to keep them safe yet they do not hold up to the minimum amount of humidity that is present. I recommend spending a bit more and buying better quality.

Pros: Cheap price, good sound quality

Cons: Wont last more than a few months

Crutchfield response on

2 of 4 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Amityville, NY on 5/27/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Excellent. Easy to install. Sound is excellent

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Crowley, TX on 5/25/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Couldn't believe how much watts it pushes and actually does it with ease.

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Akron, OH on 5/20/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Sounds great. Drives speakers well

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

David from Texarkana, AR on 5/16/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Should give it one star didn't last one year! Warranty is great from Crutchfield but a total hassle from the factory. If you plan on using in a damp environment it won't last long.

Pros: Great sound

Cons: Horrible warranty

Crutchfield response on

2 of 4 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Pinson, AL on 5/8/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great power. I have it with 4 wet sounds and sounds great

Pros:

Cons:

Crutchfield response on

1 of 1 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Wentzville, MO on 5/3/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Nice amp!

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Union, KY on 2/19/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great sound for the price!

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

Crutchfield customer from New Mexico on 9/8/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Nice amp with a small footprint. Clean sound.

Pros:

Cons:

Crutchfield response on

1 of 1 found this helpful

Very nice amp

Crutchfield customer from Atlanta, GA on 9/5/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Installed 3 weeks ago. Easy to install and sounds great. Installed in a Yamaha AR210 to the factory speakers. Plenty of sound for me to hear over noisy engines at top speed.

Pros: Easy install Nice power

Cons:

Crutchfield response on

1 of 1 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Huntington, NY on 8/23/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great amp for the money. Easy hookup, flexible configuration and plenty of power.

Pros:

Cons:

Crutchfield response on

1 of 1 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Pottstown, PA on 8/13/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

installed this on my 18' bow rider boat to power 4 wetsounds 6.5s and it gives them the power they need. The price and reviews sold me on this amp and so far I have no regrets.

Pros:

Cons:

Crutchfield response on

2 of 2 found this helpful

MB Quart MA1-440.4

Michael from Spring, TX on 7/19/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

2 thumbs up for power and size. I have this in a river cooler radio. Gets warm/hot but so far no issues. Once I adjusted the amp it woke the speakers up!! Thanks Nate for the recommendation

Pros: Small in size. A lot of adjustability. Solid connections.

Cons: Gets warm to hot but what amp doesn't especially in the sun.

Crutchfield response on

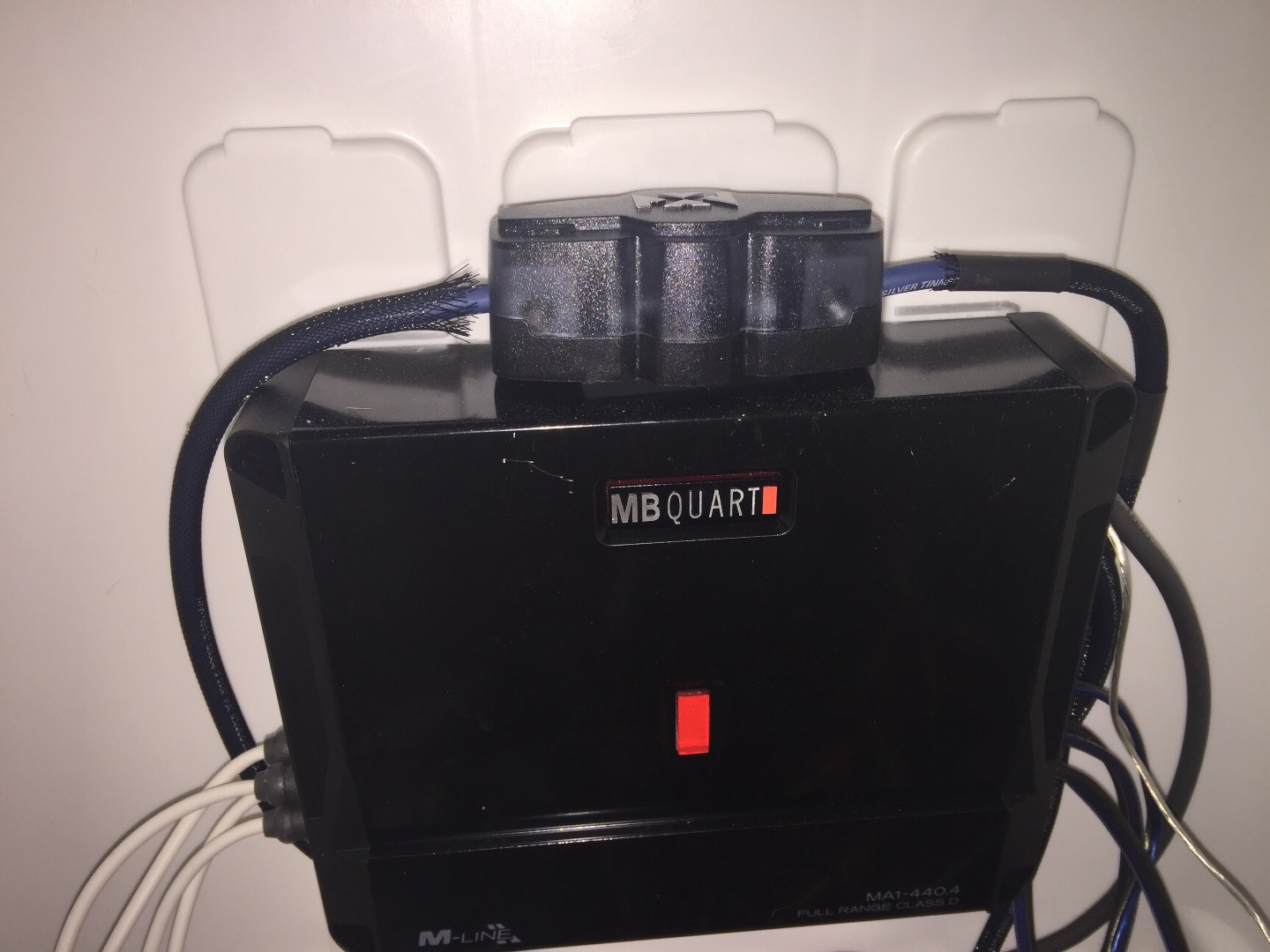

Customer review photo

1 of 1 found this helpful

Crystal Clear AMP

Alex from Monroe Township, NJ on 7/6/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Let me start by saying, my first job 26years ago was installing custom sound systems in Brooklyn NY. (Not saying I'm a professional in any sense as my following jobs had nothing to do with this field) But my whole life I've been found of music and can appreciate a good quality sonically accurate sound system. After closely reviewing the specs of this amp, I was impressed and purchased it. Note: most people will look at the rated wattage of an amp, what you should really look for is the RMS rated wattage and "THD" at rated RMS power, this amp has a rating of 0.02% which is excellent. It is also rated down to 2ohms and can also be bridged. I have it connected to 4 x 4ohm kicker marine speaker which are rated to 65 watts RMS, (running the amp to about 50watts in order to keep the sound clean and clear of any clipping.) I can honestly say this amp sounds Awesome! Crystal clear and Sonically correct with 0-distortion and runs cool. Everyone at the Marina are constantly complementing me for the sou d quality, they can't believe how load and clear it is for 4x6.5" speakers. If your like me and appreciate good sound, I can definitely recommend this amp. Pair it with a good set of speaker, take your time dialing it in for your particular setup. I'm sure like me - you will be very impressed.

Pros: Clear Sonically correct Clean power Well built Runs cool Small

Cons: NONE!

Crutchfield response on

13 of 13 found this helpful

So far , great

Crutchfield customer from Ocala, Fl on 7/4/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

5 stars so far! Sounds great , only used it 4 times. Some reviews online switched me from buying a different one. Happy so far

Pros: Great amp for $, more than I needed . Would buy again as of now !

Cons: Nothing yet !

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

M. from Denver, CO on 6/4/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great power for the price. Ran new wiring to handle the power.

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

Nick from Chicago, IL on 4/3/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

I was looking for a clean 4-channel amp to power my speakers, that would also fit under my passenger front seat... this amp fit the bill perfectly. Great price and value. Works flawlessly for my setup in my 2010 Toyota Corolla S.

Pros: Compact Size, essentially distortion-free, bery clean class-D amp, fit under my front passenger seat very nicely

Cons: None

Crutchfield response on

1 of 1 found this helpful

MB Quart MA1-440.4

Mark from NE on 3/26/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great amp

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

MB Quart MA1-440.4

Crutchfield customer from Phoenix, AZ on 3/2/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Super easy install. I can't believe this small amp did so much for my system! I'm using it to power four 6.5 Wetsounds speakers in my boat.

Pros:

Cons:

Crutchfield response on

2 of 2 found this helpful

Nice amp

Crutchfield customer from Eldersburg, MD on 1/28/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

This mb quart amp is a nice small amp that looks and sounds good. Ive used boston acoustics, rockford fosgate and mtx amps in the past. This amp is comparable. It has plenty of headroom to turn the volume up and stays free of any distortion. Im using it to power my factory door speakers and a 10" boston acoustics sub.

Pros: Compact, efficient, good sound

Cons: None

Crutchfield response on

2 of 2 found this helpful

Excellent amp

Keith from San Diego, CA on 12/12/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

Very nice amp. Power is extremely clean and proficient. I'm happy with this product. It's installed in my jeep wrangler. Now the real test will be to see how it stands up to the weather and the bumps in the trails. =)

Pros: Small, easy to install, clean sound

Cons: None yet

Crutchfield response on

1 of 1 found this helpful

Worth the money!

Brian from Detroit, MI on 9/24/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great amp, compact, lots of power. Sounds great! Would definitely recommend....

Pros: Compact for easy mounting/installation. Larger connections for power and ground wires. Lots of power and great sound

Cons: None so far!

Crutchfield response on

1 of 1 found this helpful

Great Clatiry `

Jeep CJ7 from Ft Worth, TX on 8/23/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

First amp I ever installed and it could not have been simpler. Great sound with no distortion. I have it pushing two 5 1/4" dash speakers and two 6x9. Thanks to the Cruthfield team for recommending!

Pros: Size versus power. Easy install.

Cons: None

Crutchfield response on

1 of 1 found this helpful

Excellent amplifier

Chris from Tampa, FL on 8/15/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

The power and size of this amp is impressive. I have been into car audio since the early 90's and the MB Quart brand has been one of my favorites for its reliability and performance.

Pros: Size and power

Cons: None

Crutchfield response on

0 of 0 found this helpful

MB Quart

BJake from Windsor Heights, IA on 8/9/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

Had to replace a marine amp in my boat, the Crutchfield agent recommended this when I called in with questions. This was not the unit I was looking at, but it installed easily, setup was simple, and it is much smaller than what I replaced. It has all channels in the boat cranking out music again and sounds great.

Pros: Class D, smaller size made it much easier to mount.

Cons: Instructions could have been clearer on what the adjustments did, but it was still easy to set up.

Crutchfield response on

0 of 0 found this helpful

Great buy

DJK from Dunlap, IA on 8/9/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

I'm very impressed with my amp, it's installed in my 2012 Polaris Ranger. I have it running 2-Polk MOMO wake board speakers right now. I might add a sub later just because a have the extra channels. Plenty of volume knob left, even when riding in backwoods or hill climbing.

Pros: Small, fits behind dash (2 feet of power cable used) All stainless connectors Power is great Versital, can run about any configuration I can think of Great install instructions

Cons: It would be nice if it was a sealed unit it, but amps gotta breathe

Crutchfield response on

0 of 0 found this helpful

Works great

James from Arizona on 8/2/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

Really do like this amp. It's running four component focal door speaks. Amp doesn't get very warm at all. My speakers are 60 watt RMS a piece so the amp shouldn't be working too hard to keep up. I put this under my rear seat of my 2001 F250 7.3L diesel, along with a kicker 600 amp mono for my two sound stream stealth 13.5 subs in the factory enclosures from soundstream. Power wise, I rebuilt all my battery cables, added grounds and a power cable, all with 3/0 welding lead, off the alternator along with a DC power 300 amp alternator.

Pros:

Cons:

Crutchfield response on

0 of 1 found this helpful

Configurable, powerful and low distortion

Gordon S from Waterford, MI on 7/31/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

The MB Quart MA1-440.4 is one component of a complete system replacement for a JVC CD/receiver in my 2001, 21 foot Malibu. I replaced the JVC with a Kenwood KMR-D365BT (reviewed elsewhere) and decided that 18 watts RMS is not a good match for the 100 watt (max) JVC coaxial speakers that are pre-installed. The 75 watt RMS per channel of the MB Quart produces a much richer and fuller sound. Wiring between the Kenwood KMR-D365BT and the MB Quart was straight forward and worked properly the first time I powered up the entire system. For my application, I found that, by far, the most useful feature is the sensitivity level control between the front and rear channels. In my boat, the front speakers are in the dashboard and the rear speakers are near the floor. Previously, I could never hear the rear speakers. Front-to-rear balancing of the receiver would usually diminish the overall sonic quality of the front speakers. However, the sensitivy level controls of the MA1-440.4 enhances the rear speakers to perform nearly as well as the front speakers (which are closer to ear level) because it can increase the input sensitivity to a level which is more in balance with the front speakers. The MB Quart MA1-440.4 is an excellent, cost effective solution for achieving higher output levels with a very low THD. The front/rear level settings can greatly enhance the sonic experience of very difficult environments.

Pros: Cost effective, low THD, front/rear sensitivity levels. easy to wire, configurable.

Cons: None - so far

Crutchfield response on

1 of 1 found this helpful

Great performance. easy to install

William from Vidalia, GA on 7/18/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

My biggest shout out goes to the Crutchfield Tech Support Team. They are fantastic and there when you need them. They answered all my questions about the MB Quart amp and made my installation process simple and easy.

Pros: All Good Crutchfield Tech Support is the BOMB !

Cons: none Keep it that way !

Crutchfield response on

0 of 0 found this helpful

Check the THD

Frank from Rocky Ford, CO on 7/7/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

I had an audio engineer tell me back in the 1980's to always look at two things when buying an amp, and to ignore one thing. The one thing to ignore is the power rating. He showed me a 1,000 watt amp hooked to a system. It was crap. THD was 20%. He showed me it only went to a 8 ohm load and 1,000 watts was INPUT power rated. Then he showed me a 100 watt Alphsonic amp he had. It was 100 watt OUTPUT power rated at 8 ohms... He had it running at a 1/4 Ohm load. He showed me how the amp would handle the 1/4 load even though the power rating was listed under 8 ohms. Every time you cut the load in half the output power doubles. Thus, at 4 ohms the 100 watt amp ran at 200 watts. At 2 ohms it ran at 400 watts. At 1 Ohm it ran at 800 watts, etc... Needless to say the 100 watt Alphasonic moved the front windshield at 1/4 ohm load. And because of the 0.01% THD rating (distortion) the sound was crystal clear. This guy was winning audio contests all over the place with a Toyota Corrola. The other amp would burn up even if you tried to go to 4 ohms with it, and the distortion was aweful even at 8 ohms... Junk With this 30 year old info in mind I wanted to replace my Rockford Fosgate amp in the truck I just bought. Now Rockford Fosgate is not junk mind you but, it does have 1% THD. It can only go down to 2 Ohms and is rated at 4 ohms power rating. Mine did have a little hiss at 0 volume which also bugged me. Remember you can hear 0.1% THD or higher as distortion

Pros: Ran out of room above. Sorry got too carried away. Long story short. This amp is 0.02% THD rated for 75 Watts into 4 ohms and can go down into 2 ohms. Crystal clear highs (THD doesn't matter on subs) More power than Fosgate and MOST Crutchfield amps. and THD is WAY better than 99% of Crutchfield amps. At $160 vrs others up to $500. Moral of Story CHECK THD must be below 0.01%. Pricer isn't always better. This is a GOOD clean amp for cheap.

Cons: The wire covers are cheap plastic. The little allen head set screws are really sharp. If you tighten them down too tight it severs the speaker wires and cuts them. GO easy on tightening. Also strange allen head size (they give you a wrench, but I thinking about future) would have preferred phillips heads.

Crutchfield response on

27 of 29 found this helpful

MB Quart MA1-440.4

power from st thomas, usvi on 6/21/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

added power

Pros:

Cons:

Crutchfield response on

4 of 16 found this helpful

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

Product Research

Features

Overview: The MB Quart MA1-440.4 is a 4-channel amplifier from the M-Line of Class D full-range amps. The amps are small and powerful, and can be mounted in areas where space is at a premium. The M-Line amplifiers feature a new "marinized" design, with conformal coating and stainless hardware, that make them perfect for marine or powersports applications.

Power Output: The MA1-440.4 has the following power output:

  • 75 watts RMS x 4 at 4Ω
  • 110 watts RMS x 4 at 2Ω
  • 220 watts RMS x 2 at 4Ω bridged

Controls: The amp's controls are located on one side of the amplifier. The rotary controls require a flat-head screwdriver (not included) for making adjustments. There are independent controls for the front (channels 1&2) and rear (channels 3&4).

  • Input Level: The rotary Input Level controls let you match the amplifier to the output of the connected source unit. If the source unit has a strong signal, you can keep the input level turned down. The Input Level control can be set between 0.2V and 6.0V.
  • Input Mode: The Input Mode can be set to 2CH or 4CH via a 2-way switch. If you connect two pairs of RCA inputs from the source unit, you should set the amp to 4CH mode. If you only have one pair of RCA outputs, the amp should be set to 2CH mode, and all four channels will be fed signals from the single pair of inputs.
  • Crossovers: The MA1-440.4 has selectable low-pass and high-pass crossovers for both channel pairs. You can also configure the amplifier for "bandpass" operation, setting the high-pass frequency below the low-pass frequency. In this case, the high-pass crossover can be used as a subsonic filter for driving subwoofers. The 3-way Crossover Mode switch for Channels 3&4 lets you select LP/BP, HP, or Full. For Channels 1&2, you can select Full, HP, or Dupe CH3-4 (which duplicates the settings for Channels 3&4). The frequency controls range from the following:
    • Channels 1&2: High Pass 50Hz to 300Hz (24dB/octave)
    • Channels 3&4: High Pass 10Hz to 1000Hz (24dB/octave)
    • Channels 3&4: Low Pass 50Hz to 3000Hz (24dB/octave)
  • Bass EQ: The Bass EQ circuit boosts the bass response, centered at 45Hz, from 0dB to 9dB.

Connections: The MA1-440.4 has stainless connections that are resistant to corrosion when used in harsh environments. Set-screw terminals are used for power and speaker output connections. The set screws can be tightened/loosened with the included 3mm or 1.5mm Allen wrenches. The amp has the following connections:

  • RCA Inputs: Two pairs of RCA inputs are provided for connecting the amp to the source unit via RCA cables. With two pairs of inputs connected, fader control is possible from the source unit. If only one pair is connected, the Input Mode can be set to 2CH, and Channels 3&4 will be fed the signal from Channels 1&2, and fader control is lost.
  • RCA Output: This pair of RCA line outputs allows you to send a full range signal to another amplifier or a powered subwoofer. This allows you to daisy-chain another amp without having to run an RCA cable from the source unit to the second amplifier.
  • Power/Ground: These set-screw terminals for power and ground will accept up to 8-gauge power and ground wire. With a 50A fuse rating, it is recommended that a 50A fuse be placed on the power wire within 18" of the battery.
  • Remote Turn-on: The remote turn-on terminal will accept up to 16-gauge wire. Typically an 18-gauge wire is included in an amp wiring kit.
  • Speaker Outputs: Like the remote turn-on lead, the speaker output set-screw terminal will accept up to 16-gauge wire. Markings on the amp (+ and -) are provided for connecting four speakers, and for bridging the channel pairs.

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
I purchased this based on the specs listed and what I was looking for. [ Charles  Feb 05, 2019 ]
A
This amplifier is going in a Jeep Wrangler so I needed a marine amp that can survive the punishment I am going to put it through. [ Parker  Jan 11, 2019 ]
A
Reviews [ jose  Aug 31, 2018 ]
A
Proven brand & RMS Power available is perfect for application. Thanks Crutchfield! [ Robert  Aug 27, 2018 ]
A
After talking with Lee he made me feel like this would be my best bet for the speakers I have. Looking forward to seeing what this amp can do. [ james  May 22, 2018 ]
A
Price and wattage per channel at 4 ohms [ Daniel  May 22, 2018 ]
A
marine grade and price and recommendation from Ember [ Paul  May 14, 2018 ]
A
Replacing a failed 100W x 4 channel Planet Audio amp. Wanted a quality marine amp with similar specs and a small footprint to fit in same location to drive four 6.5" coaxial JL audio speakers. Reviews were strong and personally I've had good experiences with MB Quart back in the mid 1990's. [ Jimmy  May 10, 2018 ]
A
Great reviews and a great price point. [ DAVID  May 08, 2018 ]
A
What happened to 3 day shipping that would mean delivery on the 4th? [ Bucky  May 02, 2018 ]
A
Past experience with this brand, RMS power per channel at 4ohm and size. [ Marcos  Apr 24, 2018 ]
A
Hogan recommended it, and after my own research I understood why he did it [ ciprian  Apr 07, 2018 ]
A
direct recommendation by Crutchfield expert [ eric  Mar 19, 2018 ]
A
Hi, This amp was recommended by Shawn and Hunter. I tried to buy more items but it turns out Crutchfield won't ship to a freight fowarder. I had to cancel the order, but I did re-order the amp and am having it sent to a friend. I didn't feel comfortable shipping all of the other items to my friend, so I have to get those other items elsewhere. [ Beth  Jan 13, 2018 ]
A
Suggested by Crutchfield and Grillo [ Floyd Wm  Jan 05, 2018 ]
A
good specs good price. mb quart has made quality products for years [ shawn  Nov 25, 2017 ]
A
This amp has very good specs (THD, power and SN ratio), good reviews and reasonably priced. [ Richard  Aug 13, 2017 ]
A
Looked like a good amp for the price, worth a try [ Cliff  Jul 07, 2017 ]
A
Mick recommend it for price and quality. [ Russell  Jul 06, 2017 ]
A
Reviews [ jack  Jun 04, 2017 ]
A
A combination of the specifications, reviewsand the price! [ Michael  May 07, 2017 ]
A
Strong reviews. [ Chad  Apr 07, 2017 ]
A
Small, compact with clean sound. Just what I needed for marine application! [ Alan  Mar 03, 2017 ]
A
Small size, good power, good SNR and THD, good reviews. [ Rodney  Feb 28, 2017 ]
A
marine unit [ David J.  Jan 21, 2017 ]
A
i know it wont be a piece of junk because crutchfield sells it [ phil  Dec 16, 2016 ]
A
Compact size [ MATTHEW  Aug 06, 2016 ]
A
Salesperson Brooke recommended it and I took her advice. Brooke's Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=128 [ RONALD  Jul 27, 2016 ]
A
Top of the ratings with best price and warranty. [ Brian  Apr 15, 2016 ]
SHOW MORESHOW LESS

3 questions already asked

Q
What is the voltage of the preamp (mono) outputs on this amp?
[ Bryan  Mar 07, 2017 ]
1 answer
A
There is no listed voltage for the amplifier's pre-amp output. It can vary based on the signal strength provided to the amplifier's pre-amp inputs. I hope that helps. My Bio: https://www.crutchfield.com/Support/Bio.aspx?bio=5
[ Ryan  Mar 17, 2017 ]  Staff
Q
The manual for this amp sounds like it is recommending a 4 gauge wire, yet crutchfield says 8. Which is correct?
[ Joe  Jan 05, 2017 ]
3 answers
A
I used 8 gauge wire since I'm running four 6.5 mids. Being a 300 watt Class d amp 4 gauge would be over kill. If you're nervous us 6 gauge.
[ JASON  Jan 07, 2017 ]
A
In my opinion, it depends on the wire length. I run 25ft from battery to amp and use 8 guage. No problem.
[ MARC  Jan 07, 2017 ]
A
The input on the amp is for an 8 gauge wire. A 4 gauge will not fit in the holes for the power or ground wires.
[ William  Jan 06, 2017 ]

Loading articles...

TOP
