About the MB Quart PS1-216
The best of MB Quart
The best of MB Quart
MB Quart's Premium Series car speakers provide the best possible sound from an audio industry mainstay. The MB Quart PS1-316 6-1/2" 2-way component system features two woofers, two 1" tweeters, and two external crossovers. The paper/mica hybrid woofer cone uses a unique design and responsive construction for a natural-sounding midrange and impactful bass response. The 1" magnesium dome tweeter handles the highs with precision and power, while MB Quart's WideSphere™ technology expands the tweeter's dispersion pattern for a wider, more lively soundstage.
Grilles included
MB Quart makes wiring easy with stainless-steel push-and-insert connectors, and grilles are included if you're doing a custom installation.
Product highlights:
- component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
- 6-1/2" paper/mica woofer
- 1" magnesium dome tweeter
- external crossover network
- special-design frame virtually eliminates resonance
- handles up to 60 watts RMS (120 watts peak power)
- frequency range: 55-22,000 Hz
- sensitivity: 88.9 dB
- woofer top-mount depth: 2-5/8"
- crossover dimensions: 2.8"W x 4.9"L x 1.25"H
- impedance: 4 ohms
- grilles included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # PS1-216
What's in the box:
MB Quart PS1-216 owner's manual
- 2 Woofers
- 2 Woofer grilles
- 2 Tweeters (each has 9" wire attached)
- 2 Flush-mount cups
- 2 Metal flush-mount clamps
- 2 Surface-mount bases
- 2 Crossovers
- Eight 1-1/8" Screws
- Two M4x8mm Machine screws
- Four 1/2" Screws
- 8 Large speed clips
- 4 Small speed clips
- 2 MB Quart crossover badges
- 2 Adhesive backed hook and loop crossover mounts
- Installation guide
- Template
- 2 MB Quart stickers
Reviews
Customer reviews
Loading reviews...
MB Quart PS1-216 reviews
Average review:
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the MB Quart PS1-216
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 2-way | |
| Tweeter Design | 1" Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Magnesium | |
| Woofer Composition | Paper/Mica | |
| Woofer Surround | Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 88.9 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 55 - 22k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 60 | |
| Peak Power Handling (Watts) | 120 | |
| Top-mount Depth (Inches) | 2 5/8 | |
| Bottom-mount Depth (Inches) | 2 3/4 | |
| Cutout Diameter or Length (inches) | 5 5/8 | |
| Mounting Height (Inches) | 0.265 | |
Product Research
Features
Size Classification Note: Some manufacturers, including MB Quart, call this size woofer a 6½". Because it requires a larger cutout than a standard 6½" speaker, Crutchfield has traditionally referred to this size as a 6¾". Please enter your vehicle information to confirm fit.
Woofer Basket: The speakers feature PA66 composite (plastic) baskets, reinforced with 30% glass fiber.
Woofer Terminals: The input terminals are spring posts that will accept up to 14 gauge bare wire.
Magnet Cover: The cover on the woofer magnet can be removed to slightly decrease the depth (by 0.05") and the magnet diameter (by 0.33").
Tweeter Mounting: The supplied mounting hardware allows you to surface-mount or flush-mount the tweeters.
Tweeter Mounting Dimensions:
| Surface Mount | Flush Mount | |
| Mounting Height | 1.04" | 0.425" |
| Depth | 0.5" (screw depth) | 0.75" |
| Frame Diameter | 1.92" | 2.36" |
| Cutout Diameter | N/A | 2.01" |
Tweeter Phase Lens: The phase lens can be removed from the front of the tweeter, narrowing its dispersion pattern. This is useful when the tweeter is pointed directly at the listener.

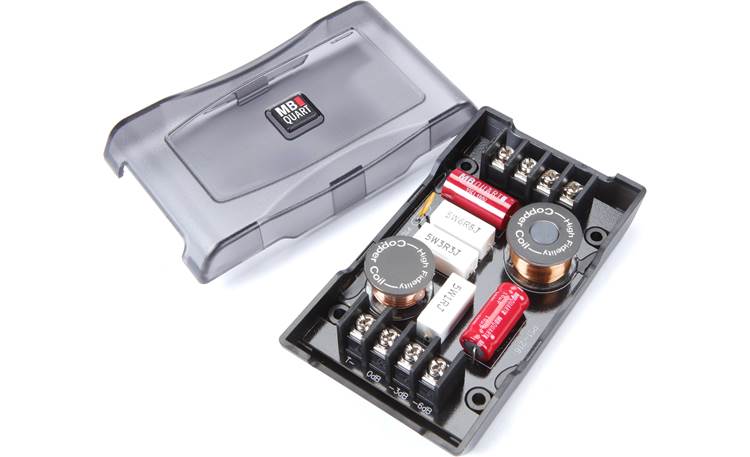

Crossovers: Each outboard 2-way crossover has a 12dB/octave slope. Depending on which positive terminal is used, the tweeter has three attenuation settings; choose 0 dB (flat), -3 dB, or -6 dB. The inputs and outputs are screw terminals that will accommodate bare wire or spade connectors up to 0.3" wide. There are four screw holes in the base of each crossover for mounting.
Crossover Dimensions:
- Width: 2.80"
- Length: 4.92"
- Height: 1.25"
