About the MB Quart RVM2.0
One vehicle, two zones
One vehicle, two zones
Your home on wheels is a great way to take the crew on the road. With MB Quart's RVM2.0 digital entertainment system, the trip gets even better. Two zones means you can listen to your favorite music up front, while the crew in the back enjoys their tunes. A variety of A/V sources, including AM/FM, USB, and Bluetooth® means that you've got lots of choices. And if you want to check out some video when you're at camp or at a tailgate, a set of HDMI inputs and outputs let you route video and audio from sources like satellite TV, DVD player, or other digital sources to your television location.
More ways to connect
In addition to HDMI, the RVM2.0 boasts a pair of auxiliary inputs, analog video inputs and output, and a front-panel USB input. You can tailor the sound output by choosing from six different EQ presets. A built-in sleep timer and alarm ensures you'll rise on time for that gorgeous sunrise on the beach.
Product highlights:
- digital media receiver with AM/FM tuner for RVs (does not play CDs)
- built-in amplifier (17 watts RMS /40 peak x 4 channels)
- dual-zone output
- Bluetooth audio streaming
- 6 preset EQ curves
- alarm clock and sleep timer functions
- inputs: front auxiliary input (minijack), rear auxiliary input (RCA), rear video input (RCA), front USB input (media), front HDMI input
- outputs: front headphone output (minijack), rear RCA video output, rear HDMI output, 5-channel preamp output (front/rear/sub)
- chassis dimensions: 3-7/8"W x 4"H x 2"D
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # RVM2.0
What's in the box:
MB Quart RVM2.0 owner's manual
- RV digital media receiver (10A fuse)
- Power harness
- Speaker harness
- 2 Endcaps (pre-installed)
- 4 Screws
- User Manual
Reviews
Customer reviews
Loading reviews...
MB Quart RVM2.0 reviews
Average review:
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the MB Quart RVM2.0
Product Research
Display & Installation Features
Variety Of Sources
Audio Section
Display & Installation Features
Front-Panel Display: The front-panel display indicates source, audio, and menu selections; as well as song/artist/album information for connected Bluetooth, USB, and iPod/iPhone devices. The display features four dimmer settings - High, Medium, Low, or Off.
Note: The unit's front-panel LCD screen does offer video playback, nor does it display album art.
Alarm & Sleep Timer: The integrated alarm function turns on the unit for playback at a specific time. The integrated sleep timer allows you to set a specific time period (from 1-59 minutes) for the unit to turn off automatically.
Mounting Options: The MB Quart RVM2.0 is the perfect multimedia solution for tight installations in an RV. Its compact design allows the mounting in a dash, console, cabinet, or other shallow cavity of an RV. The RVM2.0 requires a rectangular cutout and secures in the opening with the four supplied mounting screws.
- Cutout Dimensions: 3.875" (w) x 3.9375" (h) x 3.0" (d)
- Front-Panel Dimensions: 5.125" (w) x 4.375" x 1.125" (d)
- Screw-Hole Spacing: 4.5625" (w) x 1.875" (h) x 1.0" (d)
Notes:
- The RVM2.0 is not designed to work in standard Single-DIN or Double-DIN automotive installations.
- The RVM2.0 is not marine rated or water resistant.

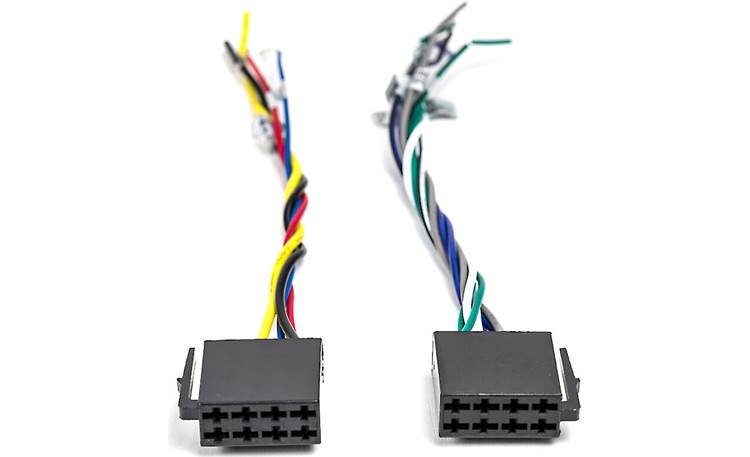

Wiring: The MB Quart RVM2.0 comes with two wiring harnesses that will need to hardwired to power, ground and speakers.
| Power Harness | ||
|---|---|---|
| Pin # | Color | Function |
| 1 | Black | Ground |
| 2 | Open | None |
| 3 | Yellow | +12V Constant Battery |
| 4 | Open | None |
| 5 | Red | +12V Switched Accessory |
| 6 | Blue | Amp Turn-On |
| 7 | Open | None |
| 8 | Open | None |
| Speaker Harness | ||
| Pin # | Color | Function |
| 1 | Green/Black | Left Rear Speaker (-) |
| 2 | White/Black | Left Front Speaker (-) |
| 3 | Gray/Black | Right Front Speaker (-) |
| 4 | Purple/Black | Right Rear Speaker (-) |
| 5 | Green | Left Rear Speaker (+) |
| 6 | White | Left Front Speaker (+) |
| 7 | Gray | Right Front Speaker (+) |
| 8 | Purple | Right Rear Speaker (+) |
Variety Of Sources
Bluetooth Audio Streaming: The MB Quart RVM2.0 features built-in Bluetooth 4.0 with support for wireless audio playback (AD2P) and control (AVRCP). You'll be able to wirelessly stream stored music, music apps, and other audio content on your Bluetooth device to the RVM2.0receiver. You can operate basic playback functions, such as Play/Pause & Skip Next/Previous, from the unit's front-panel controls (advanced music control will still need be done from your Bluetooth-enabled source device). The unit will also display song/artist/album information (no album art) of your Bluetooth streaming music. The unit offers quick and easy wireless connection to your Bluetooth enabled device thanks to Simple Secure Pairing (SSP). When the unit powers up, it immediately connects to the last device connected. The unit has a Bluetooth wirelessly range of approximately 32'.
Notes: This unit does not support Bluetooth hands-free communication for making and answering phone calls.
Video Inputs/Outputs: The RVM2.0 is equipped with HDMI and Composite video inputs and outputs. Utilizing an HDMI input on the front-panel, the audio/video signal passes through to the the HDMI output on the rear-panel of the RVM2.0 for audio/video playback on a connected external monitor and speaker system (sold separately). The HDMI input/output support up to 1080i video and 2ch PCM audio (not compatible with Dolby Digital/DTS). Video from the composite video input can be passed through to the receiver's composite video output and then out to an external monitor (sold separately). The composite video input/output supports 480i video only.
Note: The RVM2.0's LCD screen does not support the display of video. The unit's HDMI and composite video inputs are output to a connected external monitor for video playback.
USB Port: The MB Quart RVM2.0is equipped with a front-panel USB (type-A) port that allows you to connect a USB MSC (mass storage class) device, like a USB thumbdrive. The unit supports audio playback & control of MP3 and WMA audio files stored on a compatible USB thumbdrive or other MSC device. The unit offers File/Folder Search, Play/Pause & Previous/Next Track functions. This unit will also display song/artist/album information (no album art). The unit also charges your connected USB device (up to 0.5A).
Note: The unit's USB port does not support Android devices, USB hubs, card-readers, and computers/laptops.
iPhone Direct Connect: The unit's rear-panel USB port can be used to connect your Lightning-connector or 30-pin dock connector iPod/iPhone with the cable that came with your Apple device. The RVM2.0supports audio playback, basic control (Play/Pause & Previous/Next Track), song/artist/album display (no album art), and charging of your compatible Apple device. You will continue to use your iPod/iPhone for advanced music browsing.
| Apple Device | Generation | Tested Version | Media Type | Control Type | Display Type | Bluetooth | Charge | ||||
| Audio | Video | Head Unit | iPod/iPhone | Artist/Song Text | Track Info | Phone | Audio | ||||
| iPhone | |||||||||||
| 4 | 7.1.2 | Y | N | Y | Y | N | N | N | Y | Y | |
| 4S | 9.3.5 | Y | N | Y | Y | N | N | N | Y | Y | |
| 5/5C | 10.3.3 | Y | N | Y | Y | N | N | N | Y | Y | |
| 5S/6/6+ | 12.4.1 | Y | N | Y | Y | N | N | N | Y | Y | |
| SE/6S/6S+ | 13.1.1 | Y | N | Y | Y | N | N | N | Y | Y | |
| 7/7+/8/8+ | 13.1.1 | Y | N | Y | Y | N | N | N | Y | Y | |
| X/XR/XS/XSMax | 13.1.1 | Y | N | Y | Y | N | N | N | Y | Y | |
| 11/11Pro/11ProMax | 13.1.1 | Y | N | Y | Y | N | N | N | Y | Y | |
| touch | |||||||||||
| 4th | 6.1.6 | Y | N | Y | Y | N | N | N | Y | Y | |
| 5th | 9.3.5 | Y | N | Y | Y | N | N | N | Y | Y | |
| 6th | 12.2 | Y | N | Y | Y | N | N | N | Y | Y | |
| nano | |||||||||||
| 5th | 1.0.2 | Y | N | Y | Y | N | N | N | N | Y | |
| 6th | 1.2 PC | Y | N | Y | Y | N | N | N | N | Y | |
| 7th | 1.02PC | Y | N | Y | Y | N | N | N | Y | Y | |
| classic | 80GB | 1.1.2 | Y | N | Y | Y | N | N | N | N | Y |
| 120GB | 2.0.1 | Y | N | Y | Y | N | N | N | N | Y | |
| 160GB | 2.0.4 | Y | N | Y | Y | N | N | N | N | Y | |
Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.
Dual Aux Inputs: The RVM2.0 features a front and rear mounted Aux input. The front-panel Aux input consists of a stereo minijack for temporary connection of a portable audio source device. The rear-panel Aux input consists of stereo RCA Jacks for permanent connection of an external 12-volt audio source.
AM/FM Radio: The MB Quart RVM2.0 digital media receiver features an AM/FM radio that utilizes a PLL Synthesized crystal for strong reception. The built-in AM/FM radio offers manual, seek, and preset tuning. You can store up to 18 FM and 12 AM presets for a total of 30 AM/FM radio station presets. There are no physical preset button on the front-panel of the receiver. To access your presets, you will need to navigate the digital media receiver's menu. You can select between USA and European tuning.
Audio Section
17W x 4ch Amplifier: The MB Quart RVM2.0 is equipped with a built-in 17 watt (RMS) / 40 watt (Peak) x 4 channel amplifier that can drive up to two pair of 4-ohm loudspeakers (one pair in Zone 1 and another pair in Zone 2).
5Ch/2V Pre-Outs: The RVM2.0 digital media receiver is also outfitted with 5-channels of 2-volt preamp outputs (Zone 1, Zone 2, Sub) for connection of external power amplifiers and speakers in separate zones. The sub output is linked to the Zone 1 speaker and preamp outputs of the receiver.
Dual Zone: The RVM2.0 offers dual zone control with independent volume level of each zone. The same source will be played back in each zone. You can turn a zone completely off.
EQ: You can choose between six EQ Preset modes - Classical, Rock, Pop, Flat, Jazz, Off. The Off mode allows you to manually adjust the receiver's Bass (100Hz) & Treble (10kHz) from -10dB to +10dB.
Program Volume: This function allows you to set the volume level at which the unit powers up again depending on what the volume level was when the unit was last turned off.
Headphone Output: The MB Quart RVM2.0 is equipped with a front-panel 3.5mm headphone output jack for private listening. When a set of headphones are plugged into the headphone jack, the unit's connected speakers are muted.
Beep Tone: Every time a button is pressed, the unit will output a beep tone (this can be turned off).
