A professional-grade mount

The Chief TS318SU THINSTALL was made for businesses that need a display mount that can withstand constant use. Its two folding arms can support a display weighing up to 75 lbs., with a screen size from 32" to 65". The mount holds your display a mere 1-5/16” from the wall when not in use. It can extend out to 18", and it lets you swivel the display up to 90° in either direction. Hollow channels in the arms keep your display's cables out of sight and tangle-free.

Product highlights:

adjustable folding arms hold display 1-5/16" to 18" from wall
for displays 32"-65" in screen size
integrated cable management with tool-free cable covers for an uncluttered appearance
swivel range: ±90°
tilt range: -15°
manual height adjustment: 1"
stud mounting required
mounting hardware included
weight capacity: 75 lbs.
overall dimensions: 24-1/2"W x 16-3/4"H x 1-5/16"D
weight: 23 lbs.
warranty: 10 years
Our 60-day money-back guarantee
MFR # TS318SU

What's in the box:

Chief TS318SU THINSTALL™ owner's manual

Wall-mount TV bracket with articulating arm
2 Upright brackets
2 Support brackets
Six M4x10mm screws
Six M4x16mm screws
Six M4x25mm screws
Six M5x10mm screws
Six M5x16mm screws
Six M5x25mm screws
Six M6x10mm screws
Six M6x16mm screws
Six M6x25mm screws
Four M8x10mm screws
Four M8x20mm screws
Four M8x30mm screws
Four M5 washers
Four M4 washers
4 Shoulder washers
6 Universal washers
Six 1/4" spacers
Six 1/2" spacers
Two 5/15" x 2-1/2" lag-bolts
2 Concrete anchors
#10-24 x 1-1/4" Screw
Eight #10-24 x 1/2" screws
Two 1/4"-20 nuts
Screw cover
Latch-spacer
Bumper
2 Self-adhesive strips
3 Hex-keys
Installation Instructions

Reviews

Submit a review and then enter to win a $350 gift card.

Be the first to review this product

Loading reviews...

Thanks for submitting your review

Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.

Filter by rating

Customer photos

Verified customer

Verified employee review

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Have questions for

Crutchfield response

Helpful?

Yes

<< >>

Details

Researched by Crutchfield's Stacey B.

Features & specs

Features
Mount Type	Wall Mount
Motion
Tilt	Yes
Swivel	Yes
Extend/Retract	No
Fixed	No
Roll (Level) Adjustment	No
Mounting Details
Wood Stud (Single)	Yes
Wood Stud (Dual, 16-inch)	No
Wood Stud (Dual, 24-inch)	No
Concrete Block-compatible	Yes
Recessed Housing	No
Outdoor-rated	No
Motorized	No

Product Research

Features

TV Compatibility: The CHIEF TS318SU full-motion wall-mount bracket supports 32" to 65" TVs, monitors, and displays that weigh up to 75 lbs. The TV, monitor, or display must have a VESA mounting pattern ranging fromm 100-600mm (h) x 100-400mm (v). The TV's mounting holes must support M4, M5, M6, or M8 hardware.

Note: Additional hardware may be required for your specific model of TV or monitor. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.

Heavy-Duty Construction: The CHIEF TS318SU is constructed of heavy-gauge steel with a durable powder-coated black finish, and is UL Listed.

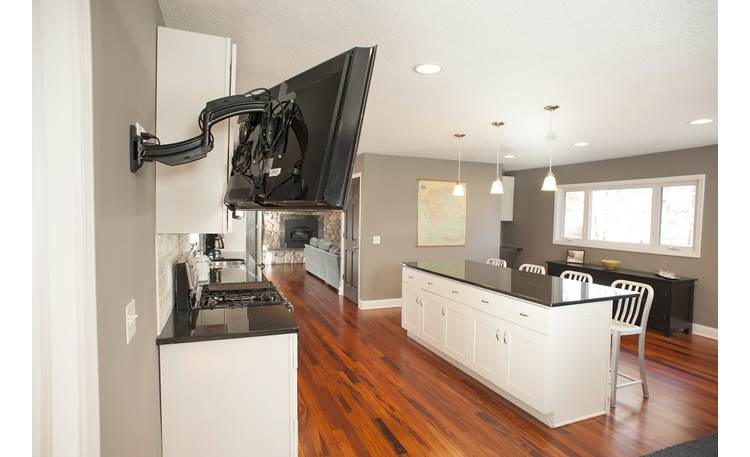

Full-Motion Design: The CHIEF TS318SU features a full-motion design with an articulating arm that allows the mount to extend your TV or monitor 1.3" to 18" from the wall, swivel the display 90° left or right (depending on screen size), and tilt the screen downward 15°.

Integrated Cable Management: Integrated cable management with tool-free cable covers and a wide-open wall plate make it easy to route power and signal cables from the wall through the wall-bracket's articulating arm to your TV for a seamless installation.

Installation: The CHIEF TS318SU full-motion wall-mount bracket can be mounted to a single 2"x4" wood stud or 8" concrete block wall. A total of 1" post installation height adjustment allows for perfect screen placement and alignment. The following tools are required -
