About the Sanus VLF728
A stylish mount for your TV
A stylish mount for your TV

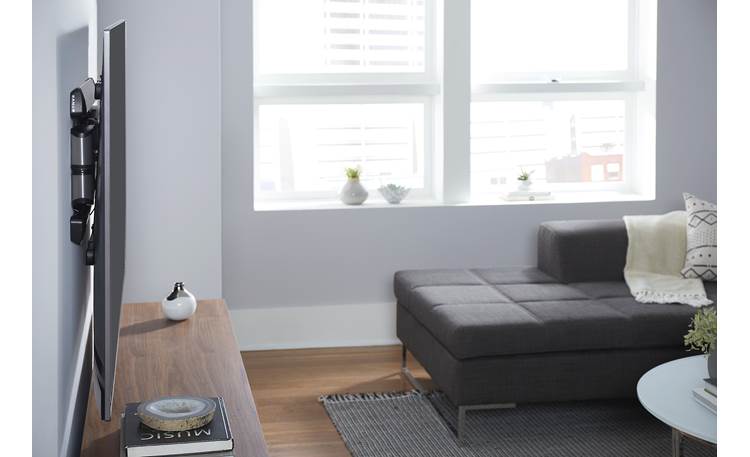

The Sanus VisionMount® VLF728-B2 adds a bit of style to your TV's wall-mount installation. Its design is inspired by high-end kitchen appliances, with smooth, rounded lines and a brushed metal finish. This stylish mount hold your TV just 2-1/4" from the wall when fully retracted. Just pull on the mount and it smoothly extends outward up to 28".
An integrated cable management system keeps wires organized and out of sight without interfering with the motion of the extending arm.
This durable heavy-gauge steel mount supports a TV with a screen size up to 90" and weighing up to 125 lbs. The mount's brackets can easily be shifted to the right or left, in case the wall studs are a little off-center. And you can make fine adjustments after installation to keep your TV leveled.
Will this mount work with my TV?
Use the Sanus MountFinder™ to see a list of mounts that work with your specific TV.
Where do I drill the holes?
Tell the Sanus HeightFinder™ Installation Assistant how high you want your TV, and it tells you exactly where to drill.
- fits most flat-panel TVs with screen sizes from 42"-90"
- heavy-gauge steel construction with brushed metal finish
- supports up to 125 lbs.
- mount holds TV approximately 2-1/4"-28" from wall
- swivel range: ±57°
- tilt range: +5°/-15°
- covered channels in arms and mount keep cables hidden
- stud-mounting required
- post-install leveling adjustments
- includes all necessary hardware
- 33-7/8"W x 17-11/16"H x 2-3/16"D
- warranty: 10 years
- Our 60-day money-back guarantee
- MFR # VLF728S2
What's in the box:
- Wall bracket
- Articulating arm assembly
- Vertical TV bracket
- 2 Horizontal TV brackets
- Four M5x10mm screws
- Four M6x12mm botls
- Four M6x35mm bolts
- Four M8x16mm bolts
- Four M8x25mm bolts
- Four M8x35mm bolts
- Four M8x50mm bolts
- Four M6/M8 washers
- Four 2.5mm spacers
- Four 5mm spacers
- Four 22mm spacers
- Four 5/16" x 3-1/2" lag bolts
- 4 Concrete anchors
- 10-32 x 3/8" Securement screw
- 2 Cover plates
- 3/32" Hex-key
- 5/32" Hex-key
- Instruction Manual
See the difference between "Open Box" and "Scratch & Dent" Outlet items
Sanus VLF728 reviews
Thanks for submitting your review
This review was collected as part of a promotion
More details on the Sanus VLF728
Features & specs
|Mount Type||Wall Mount|
|Roll (Level) Adjustment||Yes|
|Wood Stud (Single)||No|
|Wood Stud (Dual, 16-inch)||Yes|
|Wood Stud (Dual, 24-inch)||No|
TV Compatibility: The Sanus Premium Series VLF728 full-motion wall-mount bracket supports 42" to 90" flat-panel TVs that weigh up to 125 lbs. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 100mm x 200mm to 600mm x 400mm
- Screw Size: M6 or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
Solid Steel Frame: The Sanus Premium Series VLF728 features an ultra-strong, solid steel frame that provides maximum support to ensure your wall-mounted flat-panel TV stays securely in place. Once properly installed your wall-mounted flat-panel TV will stay exactly where you want it with no drifting or unwanted movement.
Full-Motion Design: Thanks to its full-motion design, the Sanus VLF728 wall-mount bracket lets you enjoy a great picture on your TV no matter where you watch it. You'll be able to tilt, swivel, extend, center, and level your wall-mounted TV without the need for tools.
- Extend: The VLF728 lets you extend your TV 2.1875" to 28.0" from the wall to give you greater flexibility with your TV's viewing angle and to provide easier access to the TV's rear-panel connections
- Tilt: If your has to be TV mounted low below a structure or high above a mantle or fireplace, you can tilt it 5° up or 15° down for the perfect viewing angle. The maximum tilt range will depend on size of TV.
- Swivel: You are able to swivel your mounted TV to left 57° or to the right 57°, so you can have the perfect view of the screen no matter where you sit in the room. The maximum swivel range will depend on size of TV.
- Lateral Shift: Your TV can slide from side-to-side on the VLF728 bracket for perfect center positioning on the wall.
- Roll: You can also raise and lower the the sides of the TV from -2° to +2° to make sure the TV is level once it is mounted on the wall.
Dual-Stud Installation: The wall plate must be mounted to two wall studs (16" on-center) or anchored to a solid concrete or concrete block wall using the supplied lag bolts (and wall-anchors). Plastic snap-on covers are included to hide the mounting holes for a clean, neat installation.
- Drywall & Wood Stud Notes: Wood studs should measure at least 2" x 4" (nominal) or 1.5" x 3.5" (actual). The wood studs should be spaced apart 16" on-center. The VLF728 does not support 24" on-center wall studs. Drywall covering thickness should not exceed 5/8".
- Concrete Block Wall Notes: Minimum concrete block size of 8" x 8" x 16" is required. Minimum solid concrete thickness of 8" is a requirement.
Cable Management: An in-arm cable management channel protects and conceals cables the length of the arm for a clean appearance, while a decorative cover conceals assembly and mounting hardware of the wall-plate for a finished appearance.
Installation Tools: The following tools are recommended for installing the VLF728 wall-mount TV bracket -
- Tape measure
- Stud finder
- Drill bit (7/32" bit for wood or 3/8" bit for masonry)
- 1/2" Socket wrench
- Screw driver
UL Certification: The Sanus VLF728 wall-mount TV bracket has been Safety Tested and UL Certified.
