About the Sanus VSF716
A finished look for your TV installation
A finished look for your TV installation

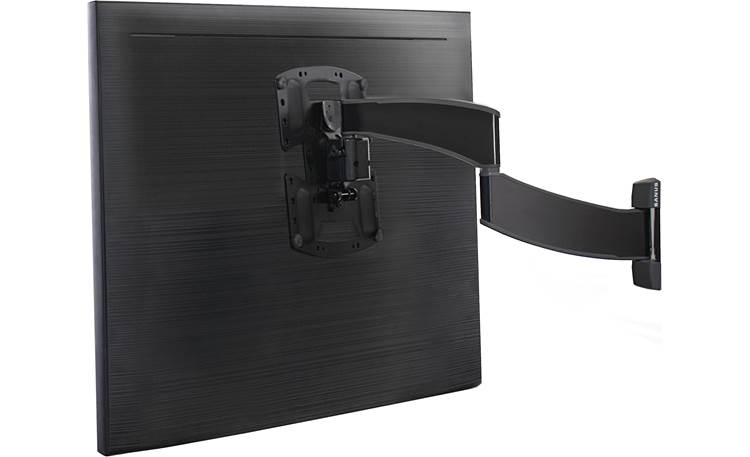

The Sanus VSF716 adds style to your wall-mounted TV installation. Its design is inspired by high-end kitchen appliances, with smooth, rounded lines and a brushed metal finish. This stylish-yet-durable mount mount supports TVs up to 40" in screen size and weighing up to 35 lbs.
This Sanus mount attaches to a single wall stud and holds your TV just 1-13/16" from the wall when fully retracted. Just give your screen a gentle pull and it smoothly extends outward up to 16". An integrated cable management system keeps wires organized and out of sight without interfering with the motion of the extending arm.
Will this mount work with my TV?
Use the Sanus MountFinder™ to see a list of mounts that work with your specific TV.
Where do I drill the holes?
Tell the Sanus HeightFinder™ Installation Assistant how high you want your TV, and it tells you exactly where to drill.
Product highlights:
- fits most flat-panel TVs with screen sizes from 19"-40"
- heavy-gauge steel construction with brushed metal finish
- supports up to 35 lbs.
- holds TV as close as 1-13/16" from wall and extends out to 16" away
- swivel range: ±90°
- tilt range: +5°/-15°
- covered channels in arms and mount keep cables hidden
- mounts on a single wall stud
- post-install leveling adjustments
- includes all necessary hardware
- 12-1/16"W x 11-11/16"H x 1-13/16"D
- warranty: 10 years
- Our 60-day money-back guarantee
- MFR # VSF716B2
What's in the box:
- Wall-bracket with arm assembly
- TV bracket
- Four M4x12mm bolts
- Four M4x35mm bolts
- Four M6x12mm bolts
- Four M6x35mm bolts
- Four M8x16mm bolts
- Four M8x20mm bolts
- Four M8x35mm bolts
- Four M4 washers
- Four M6/M8 washers
- Four 22mm spacers
- Two 1/4" x 2-7/5" lag-bolts
- Two 1/4" washers
- 2 Concrete anchors
- Drill Template
- Instruction Manual
Reviews
Customer reviews
Loading reviews...
Sanus VSF716 reviews
Average review:
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Sanus VSF716
Features & specs
| Features | ||
|---|---|---|
| Mount Type | Wall Mount | |
| Motion | ||
| Tilt | Yes | |
| Swivel | Yes | |
| Extend/Retract | Yes | |
| Fixed | No | |
| Roll (Level) Adjustment | Yes | |
| Mounting Details | ||
| Wood Stud (Single) | Yes | |
| Wood Stud (Dual, 16-inch) | No | |
| Wood Stud (Dual, 24-inch) | No | |
| Concrete Block-compatible | Yes | |
| Recessed Housing | No | |
| Outdoor-rated | No | |
| Motorized | No | |
Product Research
Features
TV Compatibility: The Sanus Premium Series VSF716 full-motion wall-mount bracket supports 19" to 40" flat-panel TVs that weigh up to 35 lbs. The TV must also meet the following VESA and screw size requirements.
- VESA Sizes: 75mm x 75mm, 100mm x 100mm, 200mm x 100mm, or 200mm x 200mm
- Screw Size: M4, M6, or M8
Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.
Solid Steel Frame: The Sanus Premium Series VSF716 features an ultra-strong, solid steel frame that provides maximum support to ensure your wall-mounted flat-panel TV stays securely in place. Once properly installed your wall-mounted flat-panel TV will stay exactly where you want it with no drifting or unwanted movement.
Full-Motion Design: Thanks to its full-motion design, the Sanus VSF716 wall-mount bracket lets you enjoy a great picture on your TV no matter where you watch it. You'll be able to tilt, swivel, extend, and level your wall-mounted TV without the need for tools.
- Extend: The VSF716 lets you extend your TV 1.8125" to 16.0625" from the wall to give you greater flexibility with your TV's viewing angle and to provide easier access to the TV's rear-panel connections
- Tilt: If your has to be TV mounted low below a structure or high above a mantle or fireplace, you can tilt it 5° up or 15° down for the perfect viewing angle. The maximum tilt range will depend on size of TV.
- Swivel: You are able to swivel your mounted TV to left 90° or to the right 90°, so you can have the perfect view of the screen no matter where you sit in the room. The maximum swivel range will depend on size of TV.
- Roll: You can also raise and lower the the sides of the TV from -2° to +2° to make sure the TV is level once it is mounted on the wall.
Single-Stud Installation: The wall bracket can be mounted to a single wooden wall stud or anchored to a solid concrete or concrete block wall using the supplied lag bolts (and wall-anchors). Plastic snap-on covers are included to hide the mounting holes for a clean, neat installation.
- Drywall & Wood Stud Notes: Wood studs should measure at least 2" x 4" (nominal) or 1.5" x 3.5" (actual). Drywall covering thickness should not exceed 5/8".
- Concrete Block Wall Notes: Minimum concrete block size of 8" x 8" x 16" is required. Minimum solid concrete thickness of 8" is a requirement.
Cable Management: An in-arm cable management channel protects and conceals cables the length of the arm for a clean appearance, while a decorative cover conceals assembly and mounting hardware of the wall-plate for a finished appearance.
Installation Tools: The following tools are recommended for installing the VSF716 wall-mount TV bracket -
- Tape measure
- Tape
- Stud finder
- Level
- Drill
- Drill bit (1/8" bit for wood or 3/8" bit for masonry)
- 7/16" Socket wrench
- Awl
- Screw driver
- Hammer
- Pencil
UL Certification: The Sanus VSF716 wall-mount TV bracket has been Safety Tested and UL Certified.
