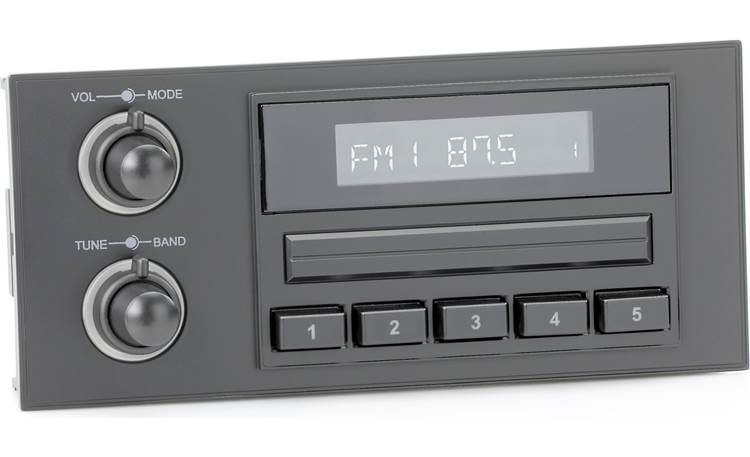

About the RetroSound Newport M2A
Factory look, modern tech
Factory look, modern tech
Got a factory radio in a vintage GM, Ford, Dodge, Chrysler, or Plymouth vehicle that's seen better days? RetroSound's Newport M2A digital media receiver matches that classic look and fit of the odd-sized factory radio, yet provides Bluetooth® for hands-free calling and audio streaming, a USB port for digital media, and inputs for other portable music players in your classic ride. This receiver's made specifically for the original radio layout in many vehicles, so it'll give you that look of yesteryear while delivering modern features.
Hands-free calling and digital sound
You can use built-in Bluetooth to talk hands-free or stream audio programming from your smartphone to the receiver, and you can also plug a USB thumb drive into the rear USB port for listening to your digital music. You'll find two auxiliary inputs on the rear of the receiver for other sources, like a portable satellite radio or hi-res audio player.
Added goodies
The Newport M2A receiver features two sets of preamp outputs that make it easier to add amps and subs to stand out at the next car show. For some customization, you can choose from 32,000 backlight colors so the LCD display will look just right in your dash. This RetroSound receiver also offers excellent AM/FM reception, as well as three EQ presets and a loudness control to tweak your sound.
Make it a complete RetroSound system
Wanna add some serious power to your ride? RetroSound offers strong amplifiers to get the most impact out of your speakers and subwoofer. They also make low-profile car speakers that fit into a wide range of older cars and trucks, so you can be sure that your sound system will do justice to your vintage vehicle.
Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.
This digital media receiver will not play CDs.
Product highlights:
General Features:
- digital media receiver designed for select 1980-2000 GM, Ford, and Mopar vehicles (no built-in CD player)
- includes faceplate and knobs to match the layout in your classic vehicle
- built-in Bluetooth for hands-free calling and audio streaming
- LCD display with 32,000 backlight color choices
Audio Features:
- plays MP3, WMA, and FLAC music files from USB drive
- AM/FM tuner with 18 FM/12 AM presets
- 3-band EQ (bass, midrange, treble)
- 3 EQ presets plus loudness adjustment
Expandability:
- inputs: dual rear auxiliary inputs; one rear USB port
- outputs: 4-channel preamp outputs (2.85-volt front, rear)
Other Features and Specs:
- built-in amplifier (25 watts RMS/45 peak x 4 channels)
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # NEW-M2A
What's in the box:
- 1.5-DIN digital media receiver (M2A body)
- Main harness
- Power/ground harness
- Speaker harness
- Microphone w/ integrated bracket (attached 8' cable terminated by 3.5mm connector)
- 4 Pan-head bolts
- 4 Hex/Lock-nuts
- Hex-nut
- 2 Split-washers
- Self-tapping screw
- Self-drilling screw
- Rear-support screw
- Rubber boot
- Metal backstrap
- Installation/Owner's Manual
- "STOP!" note
Reviews
Customer reviews
Loading reviews...
RetroSound Newport M2A reviews
Average review:
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the RetroSound Newport M2A
Product Research
Installation & Display Features
Built-In Bluetooth
USB/Aux Integration
Audio & Tuner Section
Installation & Display Features
1.5-DIN Compatible: The RetroSound Newport (M2A) is a direct-fit solution for GM, Chrysler, Ford and Jeep vehicles with 1.5 DIN dash openings. Until now, the only solution for these vehicles was to install a standard DIN-sized radio; an installation that looks out of place and awkward. The Newport (M1A) closely mimics the original radio for an attractive factory-like look.
Variable-Color LCD: The RetroSound Newport (M2A) features variable color illumination display with over 32,000 of color variations. Choose from a selection of preset colors, have the unit scan through all preset color continuously, or customize your own color to better match your vehicle's interior lights. You can also adjust the brightness of the display from High, Medium, or Low. The LCD will display clock, audio settings, tuner stations, and song/artist information from USB devices.
Built-In Bluetooth
Bluetooth Technology: The RetroSound Newport (M2A) is equipped with built-in Bluetooth allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your Bluetooth-enabled smartphone to the head unit. The Newport (M2A) is compatible with most Bluetooth enabled mobile phones, including the Apple iPhone & Android smartphones.
Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the RetroSound Newport (M2A).
Pairing: Before using your Bluetooth enabled device, it must be paired to the Newport (M2A). You can only pair one device at a time with this unit. Once paired, when your Bluetooth device is in close proximity to the RetroSound receiver, the auto connection function automatically connects the two units.
Hands-Free Communication (HFP): The Newport (M2A) allows for wireless communication between the head unit and your Bluetooth enabled cell-phone. You can answer an incoming call from the head unit's front-panel control knobs. Incoming phone call information will be displayed on the unit's front-panel LCD and your music will be pause or muted. You will still use your phone to dial a phone number and then the call will transfer to the RetroSound radio. Use the included external microphone to speak into during your phone conversation, while the other party will be heard through your vehicle's speakers.
Wireless Audio Streaming (AD2P/AVRCP): The Newport (M2A) also allows you to play back stored music and music apps from your Bluetooth-enabled phone or personal music player using a paired Bluetooth connection. Playback controls included Play/Pause, Stop, & Next/Previous Track. This unit does not display song/artist information from Bluetooth audio devices.
USB/Aux Integration
USB Port: The RetroSound Newport (M2A) features a USB (type-A) port connected to its rear chassis by a 20" pigtail. The USB port enables connection of a portable USB mass-storage class (MSC) devices, such as a portable digital audio player or USB thumbdrive. Once you've connected your compatible USB device, the Newport (M2A) will find your songs instantly and automatically start playing them. This unit supports MP3 (128 kbps +), WMA (64 kbps +), and FLAC music files in format FAT and FAT32. The unit can recognize a maximum of 999 songs/files (files will be read in order of creation and not alphabetically or numerically).
- Controls: You will be able to control basic playback functions of your music files such as Play, Pause, Skip Track, Intro Scan, Repeat Track, and Random.
- Display: The Newport (M2A) also supports ID3-tags/WMA-tags for song/artist information.
- Charging: USB portable audio players that can be charged via USB will be charged when plugged into the receiver's USB port (max. 0.5A), and the vehicle's ignition switch is set to ACC or On.
Notes:
- Not compatible with Apple iOS or Android mobile devices.
- You cannot connect a USB device via a USB hub or Multi-Card Reader to this unit.
Dual Auxiliary Inputs: The in-dash receiver features two 3.5mm auxiliary inputs connected to the rear chassis by 7" pigtails. The Aux inputs provide a connection for portable external audio sources such as a MP3 player or CD player.
Audio & Tuner Section
MOSFET Amplifier: The Newport (M2A) is equipped with a 25 watts x 4-channel (RMS)/45 watts x 4-channel (Peak) MOSFET amplifier.
4Ch/2.85V RCA Outputs: The universal shaft-style receiver features front & rear 2.85-volt RCA outputs. The front & rear speaker RCA outputs are balance and fade adjustable.
Equalizer: The Newport (M2A) features the following preset EQ curves (Classic, Pop, Rock, or Off) to customize your music listening. The Off mode activates a 3-Band EQ which lets you adjust Bass, Midrange, & Treble manually.
| 3-Band EQ | ||
| Frequency | Level | |
| Bass | 60, 80, 100, 200 Hz | -7 to +7 |
| Midrange | 0.5, 1.0, 1.5, 2.5 kHz | -7 to +7 |
| Treble | 10.0, 12.5, 15.0, 17.5 kHz | -7 to +7 |
XBAS: This function boosts bass & treble at low listening volumes, and should be turned off at higher listening levels.
Balance & Fader Control: The Balance adjustment function allows you to adjust or pan the stereo sound from the left or right; this is helpful to compensate for the position of the driver in relation to the speaker locations. Adjustment range is 0 to 12. The Fader Control allows you to fade the sound from the front pair of speaker to your rear pair of speakers. Adjustment range is 0 to 12.
Turn-On Volume: You can set the Newport (M2A) to power-on to the same volume level (0-46) every time, or let it default to the last volume when turned off.
RDS AM/FM Tuner: The Retrosound head unit features a built-in RDS AM/FM tuner. The unit's tuner features 3 FM bands and 2 AM bands. A total of 30 AM/FM presets can be stored manually or automatically. Select between Local and Distant settings can aid in listening to weak FM radio stations or compensate for stations that have too strong of a signal. This unit's tuner can be set to USA or European tuning.
Key Beep: When this function is enabled, every knob turn or button press will output a beep tone.
