Dual XDMA350

CD receiver

Item # 070XDMA350

They say that self-knowledge is the key to happiness, and I think that applies to finding the right car stereo as well.

Read more from Crutchfield writer, Ken N.

Find what Fits your car

Ships free

About the Dual XDMA350

Know thyself

They say that self-knowledge is the key to happiness, and I think that applies to finding the right car stereo as well. Dual's XDMA350 CD receiver may not have as many features to brag about as some of the more expensive models, but it could have everything you actually need. Let's take a look.

Know thyself

They say that self-knowledge is the key to happiness, and I think that applies to finding the right car stereo as well. Dual's XDMA350 CD receiver may not have as many features to brag about as some of the more expensive models, but it could have everything you actually need. Let's take a look.

Plug in and more

The handy front-panel USB input is perfect for plugging in thumb drives loaded with MP3 and WMA music files, and it also supports iPhones® and iPods®. Plug in and you'll have easy access to your favorite playlists, artists, podcasts, and more. And if you're not an iOS user, the auxiliary input handles the audio output from other phones or music players. Of course, you can slide in your favorite storebought CDs or home-burned discs loaded with MP3 or WMA files.

Enjoy the extras

The face of the XDMA350 detaches for security, and the included remote control gives you a handy control option. The built-in amplifier puts out an honest 18 watts per channel to your speakers, so you can count on a big jump in sound quality over a factory radio. Seven preset EQ curves make it easy to adjust the sound, while a pair of preamp outputs lets you hook up an amp or powered sub.

Smartphone note: If you're going to use your smartphone with this receiver, be sure to check "Details" for compatibility information.

READ LESS

Product highlights:

    General Features:
    • CD receiver with AM/FM tuner
    • detachable face with LCD display
    • remote control
    Smartphone Features (see Details for info on compatibility):
    • iPhone control through USB
    Audio Features:
    • plays MP3 and WMA files from CDs and USB memory devices
    • bass and treble controls with seven preset tone settings
    Expandability:
    • inputs: front (minijack) auxiliary input, front USB input
    • outputs: 2-channel preamp outputs (2-volt rear/subwoofer)
    Other Info:
    KEEP READINGREAD LESS

    What's in the box:

    • CD receiver
    • Detachable face-plate (attached)
    • Wiring harness
    • Two 10A fuses (one installed in wiring harness)
    • Sleeve (installed)
    • Trim ring
    • Remote control (CR2025 battery installed)
    • 2 Removal tools
    • 4 ISO-mount screws
    • Rear-support bolt
    • Lock washer
    • Hex-nut
    • Face-fixing screw
    • Installation/Owner's Manual

    Featured video:

    Customer reviews

    Loading reviews...

    Dual XDMA350 Reviews

    Average Customer Review(s):

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Pros:

    Cons:

    Crutchfield response

    More details on the Dual XDMA350

    Features & specs

    Expandability
    AUX Input Front
    Audio/video Input ---
    USB Input Front
    Backup Camera Input No
    Second Camera Input No
    CarPlay No
    Android Auto No
    Siri Control No
    Android Control No
    Memory Card Slot USB
    Bluetooth Compatible No
    Satellite Radio Ready No
    HD Radio No
    Navigation ---
    iPod Compatibility
    Full size Classic
    Nano 7/6/5/4
    Touch 7/6/5/4/3/2
    iPhone XSMax/XS/XR/X/8/8+/7/7+/6S+/6S
    General
    RMS Power (CTA-2006) 18 watts
    RMS Power (Manufacturer) 18 watts
    Peak Output 60 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 2-channel
    Sub Preamp Outputs No
    Switchable Rear Preamp Outputs No
    Video Screen No
    Preamp Voltage 2 volts
    Screen Size ---
    Display Color White/Black
    Key Button Color White
    EQ Bands None
    Wireless Remote Yes
    Steering Wheel Control Compatible No
    Parts Warranty 1 Year
    Labor Warranty 1 Year
    Tuner
    FM Sensitivity 8.5 dBf
    European Tuning Yes
    Seek/Scan Seek
    Radio Data System No
    High-res Playback No

    Product Research

    Disc & USB Playback
    iPod/Aux Integration
    Audio & Tuner Section
    Display & Remote Features

    Disc & USB Playback

    CD Compatibility: The Dual XDMA350 head unit supports CD-Audio, CD-Text, CD-R, and CD-RW disc playback. The head unit supports playback of MP3/WMA music files recorded onto CD-R and CD-RW discs.

    • Off Insert/Eject: A CD disc can be inserted or ejected with the power off. When a disc is inserted with the power off, the unit will automatically power up and begin playback.
    • Auto-Reload: If a disc is ejected and not removed within 10 seconds, the unit will reload the disc.

    USB Port: The Dual XDMA350 is equipped with front-panel USB (type-A) which enables connection of a portable USB mass-storage class (MSC) device; such as a USB thumbdrive. The head unit supports playback of MP3/WMA  music files stored on a compatible USB mass storage device. The unit's USB port will also charge (max. 0.5A) a USB enabled electronic device, such as your smartphone.

    Music File Compatibility: The Dual XDMA350 supports the following types of music recorded onto a disc or loaded onto a USB mass storage class device.

    Media Type Disc (CD-R/RW or DVD-R/RW, DVD+R/RW) USB (MSC)
    File System ISO9660 Level 1/2, Yellow Book Mode 1/Mode 2, Multi-Sessions FAT/FAT32
    Playable File Types Audio MP3: sampling frequency of 8-48kHz with bit-rate of 32-320kbps
    WMA: sampling frequency of 32-48kHz with bit-rate of 32-192kbps
    Maximum # of Folders/Files 255 folders/999 files 255 folders/50,000 files
    Tags MP3 ID3 Tags, WMA Tags

    Playback Features: The XDMA350 offers playback features such as Repeat, Random and Intro scan.

    • Repeat: You can repeat a single track, a specific folder, or an entire disc.
    • Random: You can shuffle the playback order of all your songs or only the songs in a specific folder.
    • Intro Scan: You can scan the first 10 seconds of each track or the first 10 seconds of each track in a folder.

    File/Folder Search: This search function allows navigation through compressed music files' folders to find a specific file or for playback.

    iPod/Aux Integration

    USB 1-Wire iPod/iPhone Control: The Dual XDMA350's front-panel USB port allows you to connect your iPod/iPhone via the included Dock- or Lightning-to-USB cable that comes with your iPod/iPhone (not included with the head unit). This USB 1-Wire for iPod/iPhone connection provides audio playback (for both stored music & music apps), metadata display, control, and charging of select iPod/iPhones through the Dual CD receiver.

    • Control: You can choose to control the iPod/iPhone from the head unit or from your iPod/iPhone's clickwheel or touchscreen. The head unit allows you to browse your iPod/iPhone's stored music by Artist, Album, Song, Playlist, Podcast, or Audiobook (music content listed alphabetically). The unit also provides Fast Forward/Reverse, Previous/Next Track, Repeat/Random, and Intro Scan for your connected iPod/iPhone. In addition, music apps can be accessed directly from your iPhone's touchscreen.
    • Display: The head unit will display your iPod/iPhone's music file information; including Track #, Elapsed playing time, Song title, Artist name, and Album title.
    • Charging: While connected and the ignition switch is set to ACC or ON, the head unit's USB connection will power and charge (0.5A max) your iPod/iPhone. If your iPod/iPhone has no initial battery charge, then this unit will not recognize it.

    iPod/iPhone Compatibility Chart: The Dual XDMA350 is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 12/18/2018):

    iPod/iPhone Generation Tested Version Media Type Control Type Display Type Charge
    Audio Video Head Unit iPod/iPhone Song/Artist Text Track Info
    classic 80GB 1.1.2 Y N Y Y Y Y Y
    120GB 2.0.1 Y N Y Y Y Y Y
    160GB 2.0.4 Y N Y Y Y Y Y
    nano
    4th 1.0.4 Y N Y Y Y Y Y
    5th 1.0.2 Y N Y Y Y Y Y
    6th 1.2 PC Y N Y Y Y Y Y
    7th 1.02 PC Y N Y Y Y Y Y
    touch
    2nd 4.2.1 Y N Y Y Y Y Y
    3rd 4.3.5 Y N Y Y Y Y Y
    4th 5.0.1 Y N Y Y Y Y Y
    5th 9.3.5 Y N Y Y Y Y Y
    6th 12.1 Y N Y Y Y Y Y
    iPhone 2 3.1.3 Y N Y Y Y Y Y
    3G 4.2.1 Y N Y Y Y Y Y
    3GS 4.3.5 Y N Y Y Y Y Y
    4 5.0.1 Y N Y Y Y Y Y
    4S 10.3.3 Y N Y Y Y Y Y
    5/5C 10.3.3 Y N Y Y Y Y Y
    5S 12.1 Y N Y Y Y Y Y
    SE 12.1 Y N Y Y Y Y Y
    6/6+/6S/6S+ 12.1 Y N Y Y Y Y Y
    7/7+ 12.1 Y N Y Y Y Y Y
    8/8+ 12.1 Y N Y Y Y Y Y
    X/XR/XS/XS-Max 12.1 Y N Y Y Y Y Y
    Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

    Aux Input: There is a front-panel 3.5mm auxiliary input for connecting a temporary external portable audio device, such as a portable MP3 player.

    Audio & Tuner Section

    MOSFET Amplifier: The Dual XDMA350 is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit.

    CTA2006 Compliant: The power specifications for the XDMA350 are compliant with the CTA2006 Mobile Amplifier Power Testing and Measurement standards from the Consumer Technology Association (CTA). These standards were developed as a way to equitably compare power specs from model to model and between manufacturers. The power output specs for the XDMA350 are as follows:

    • CTA2006 Specs: 18 watts RMS x 4 channels (at 4 ohms, 20Hz-20kHz, 1% THD-N)
    • Maximum Power Output: 60 watts x 4 channels (240 watts total)

    2V/2Ch Preamp Outputs: The head unit is equipped with a set of 2-channel, 2-volt preamp outputs for adding an external amplifier. The preamp outputs are full-range and fade with the front speakers.

    Equalizer: The Dual CD Receiver features the following preset EQ curves (Flat, Pop, Jazz, Classic, Beat, Rock, or User) to customize your music listening. The User mode allows you to manually adjust the receiver's Bass & Treble. EQ settings are stored for each source.

    Source Volume Level: The Source Volume Level control allows a gain adjustment for each audio source (Tuner, CD, Aux, USB, iPod). You can set the source volume level (+/-6dB) for each mode, depending on the relative volume of each audio source.

    Program Volume: You can set the XDMA350 to power-on to the same volume level (1-46) every time.

    Key Beep: When this function is enabled, every button press will output a beep tone.

    AM/FM Tuner: The Dual XDMA350 features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 FM station presets and 12 AM station presets (manually or automatically). The Local function allows only strong radio stations to be received, blocking stations with weaker signals. You can even switch the tuner between USA or European tuning.

    Display & Remote Features

    Detachable Face-Plate: The head unit's face-plate is detachable to deter theft. An optional soft face case (142DFC1X, sold separately) can be purchased for this unit. An included face-fixing screw prevents the unit's face-plate from detaching.

    Text Scroll: You can change the scrolling style used for displayed information on the LCD screen. Choose from Off (no scrolling), Once (scrolls once), 15 Secs (scrolls once per 15 seconds), and On (constantly scrolls).

    12/24 Hour Clock: The unit's built-in clock can be set to 12-hour or 24-hour mode.

    Demo Mode: You can enable or disable the  units demonstration mode.

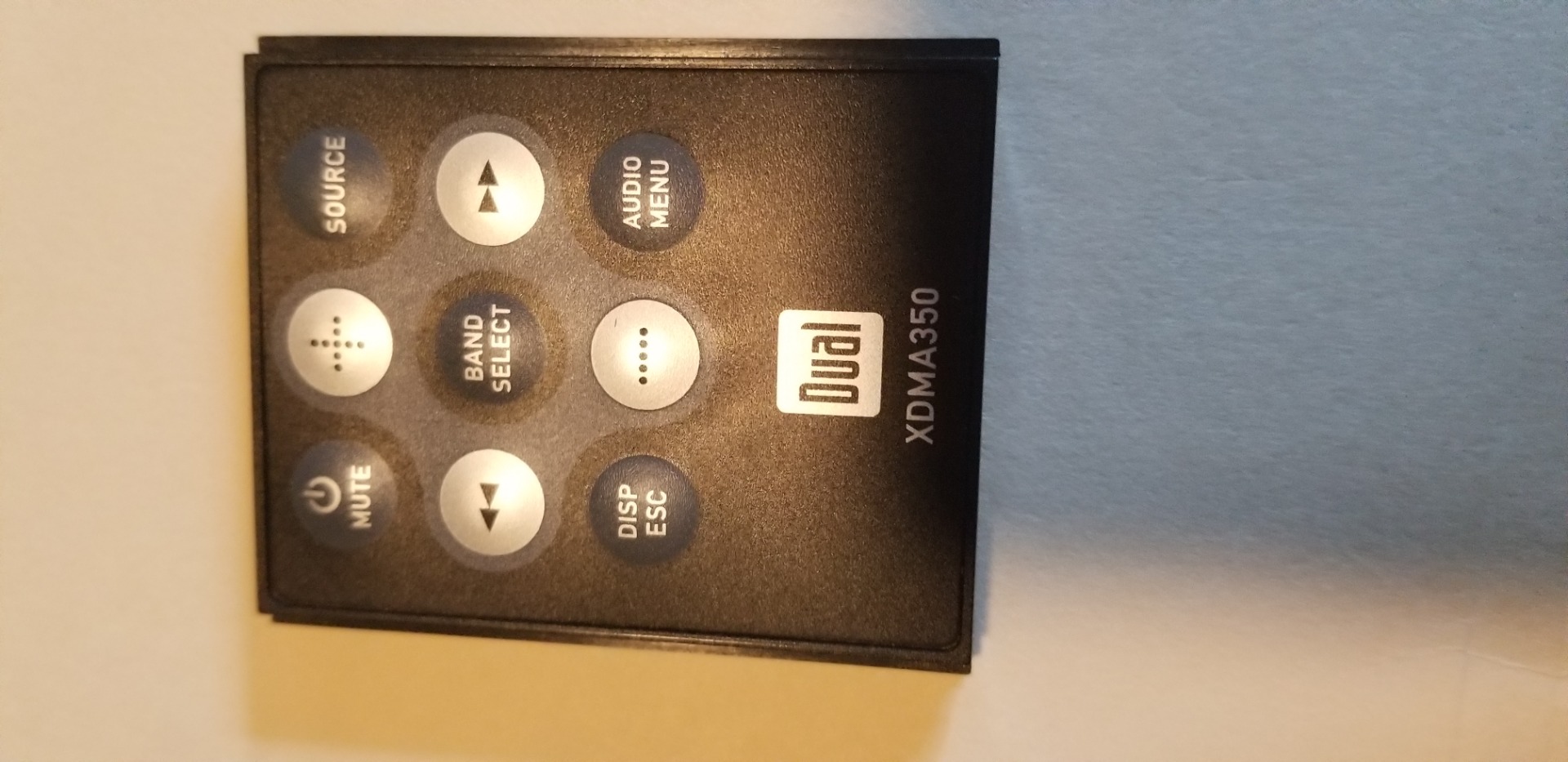

    Wireless Remote Control: The XDMA350 comes supplied with an 9-button IR wireless remote control which provides complete control of the Dual CD Receiver.
