About the Focal Littora OD Sat 5
A versatile outdoor speaker
Focal OD 5 landscape speakers (sold singly) can be surface-mounted or stake-mounted with included hardware.
A versatile outdoor speaker
The Focal OD 5 landscape speaker offers flexible configuration options, so it can play a starring role in your outdoor sound system. It features a 5" midbass driver with Iris IP cone and 1" M-shaped aluminum inverted dome tweeter in a rugged housing.
The speaker's IP55 rating certifies it resistant to dust and damp weather. It's voice-matched to blend seamlessly with Focal's other Littora 200 Series speakers: the OD Stone 8 landscape speaker and OD Sub 12 in-ground subwoofer.
Built-in transformer for commercial audio applications
The speaker is equipped with a transformer tap, which allows you to drive multiple speakers with a single amplifier in a commercial distributed audio system. There's also an 8-ohm bypass for powering the speaker with a standard receiver or amplifier.
Flexible installation options

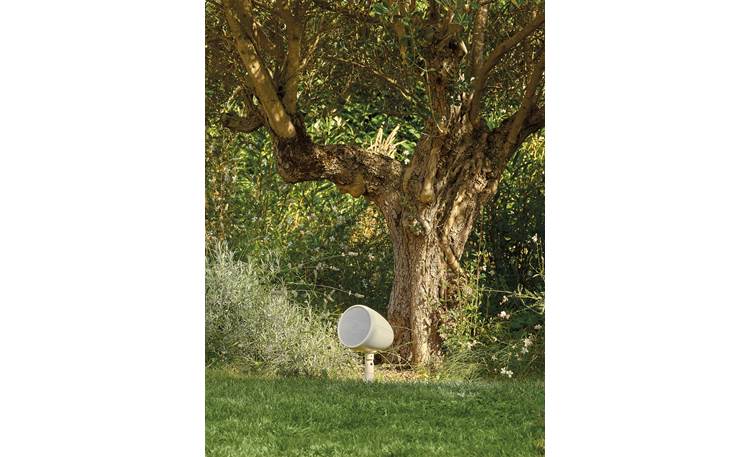

A threaded stake is included for in-ground placement. There's also an articulated surface mount that lets you aim the speaker toward your seating location.
Use the right wire
Outdoor speakers need wire that's ready to stand up to the elements, too. Check out our selection of direct burial-rated speaker wire.
Product highlights:
- 2-way outdoor landscape speaker
- 5" midbass driver with Iris IP cone and 1" M-shaped aluminum inverted dome tweeter
- built-in 70V/100V transformer tap:
- 70-volt tap settings: 5, 10, 20, and 40 watts
- 100-volt tap settings: 10, 20, and 40 watts
- 8-ohm bypass
- handles up to 50 watts RMS (100 watts peak) at 8 ohms
- frequency response: 90-28,000 Hz
- sensitivity: 88 dB
- 90° dispersion angle
- certified IP55: resistant to water and dust
- surface mount bracket and in-ground mounting stake included
Dimensions and warranty:
- 6-3/8"W x 10-1/4"H x 8-7/16"D
- weight: 5.5 lbs.
- warranty: 5 years
- Our 60-day money-back guarantee
- MFR # FODSAT5L
What's in the box:
Focal Littora OD Sat 5 owner's manual
- One 5" 2-Way outdoor speaker (Light) with attached 27" speaker wire
- Mounting bracket
- 12" Ground stake
- 10mm Set-screw
- 6mm Set-screw
- 4mm Allen key
- 2.5mm Allen key
- Installation guide
- Product brochure
Reviews
Customer reviews
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Focal Littora OD Sat 5
Features & specs
| Type | Landscape | |
| Bluetooth | No | |
| Enclosure | Sealed | |
| Tweeter Type | "M"-shaped | |
| Tweeter Size (inches) | 1 | |
| Midrange Size (inches) | --- | |
| Woofer Size (inches) | 5 | |
| Woofer Composition | Iris IP | |
| Woofer Surround | Not given | |
| Power Range (watts) | 50 | |
| Sensitivity | 88 dB | |
| Impedance (ohms) | 8 | |
| Frequency Response | 90Hz-28k Hz | |
| Connector Type | Bare-ended wire | |
| Height (inches) | 10-1/4 | |
| Width (inches) | 6-3/8 | |
| Depth (inches) | 8-7/16 | |
| Weight (pounds) | 5.5 | |
| Wall-mountable | Yes | |
| Bracket Included | Adjustable bracket | |
| Parts Warranty | 5 Years | |
| Labor Warranty | 5 Years | |
Product Research
Features
OD 5 Outdoor Speaker: The Focal OD SAT 5 Outdoor Speaker lets you add rich, clear audio to your outdoor living area or entertainment space.The 2-way speaker is comprised of a 5" midrange/bass driver, with an Iris IP cone, and a 1" "M"-shaped aluminum tweeter. The OD SAT 5 speaker features a built-in 70/100V for commercial installations, and an 8-ohm bypass setting for "standard" operation. The satellite speaker carries an IP55 weather-proof rating. OD 5 Satellite speaker power handling:
- 70V: 5W, 10W, 20W, 40W
- 100V: 10W, 20W, 40W
- 8Ω: 50W RMS (100W peak)
Speaker Mounting: The OD 5 satellite speaker features an integrated mounting arm with a threaded base, designed to attach to the included mounting bracket or 12" ground stake. The adjustable mounting arm offers approximately 160° of swivel and approximately 180° of tilt. Both adjustments are made using the included 4mm and 2.5mm Allen keys. The mounting bracket allows the speaker to be mounted to a wall, deck, or patio surface. The 12" ground stake lets you mount the speaker in a yard or garden area.
Speaker Wire: Burial-rated speaker wire (sold separately) should be used for installing the Focal OD SAT 5 Outdoor Speaker, and can be found here.
Dimensions:
- Height: 10.23"
- Height (w/ground stake): 21.0"
- Height (w/mounting bracket): 11.63"
- Depth: 8.40"
- Width: 6.32"
- Ground Stake Height: 12.0"
- Ground Stake Diameter: 2.25"
- Mounting Bracket Height: 2.50"
- Mounting Bracket Diameter (base): 3.13"
- Wire Length: 27"
- Weight: 5.5 lbs.
