Boss BV755BLC

Built-in Bluetooth
Disc/SD/USB Playback
Audio & Tuner Section
AV Connections + Camera
Touchscreen & Remote Control

Built-in Bluetooth

Bluetooth Technology: The Boss BV755B DVD receiver is equipped with built-in Bluetooth, providing hands-free communication and audio streaming for added convenience and safety in the vehicle. Before using the unit's Bluetooth functions, you must pair your Bluetooth enabled mobile phone or audio device to the BV755B. Due to the differences in Bluetooth technology, some mobile devices may be incompatible, function improperly, or may not support all features when used with the Boss BV755B.

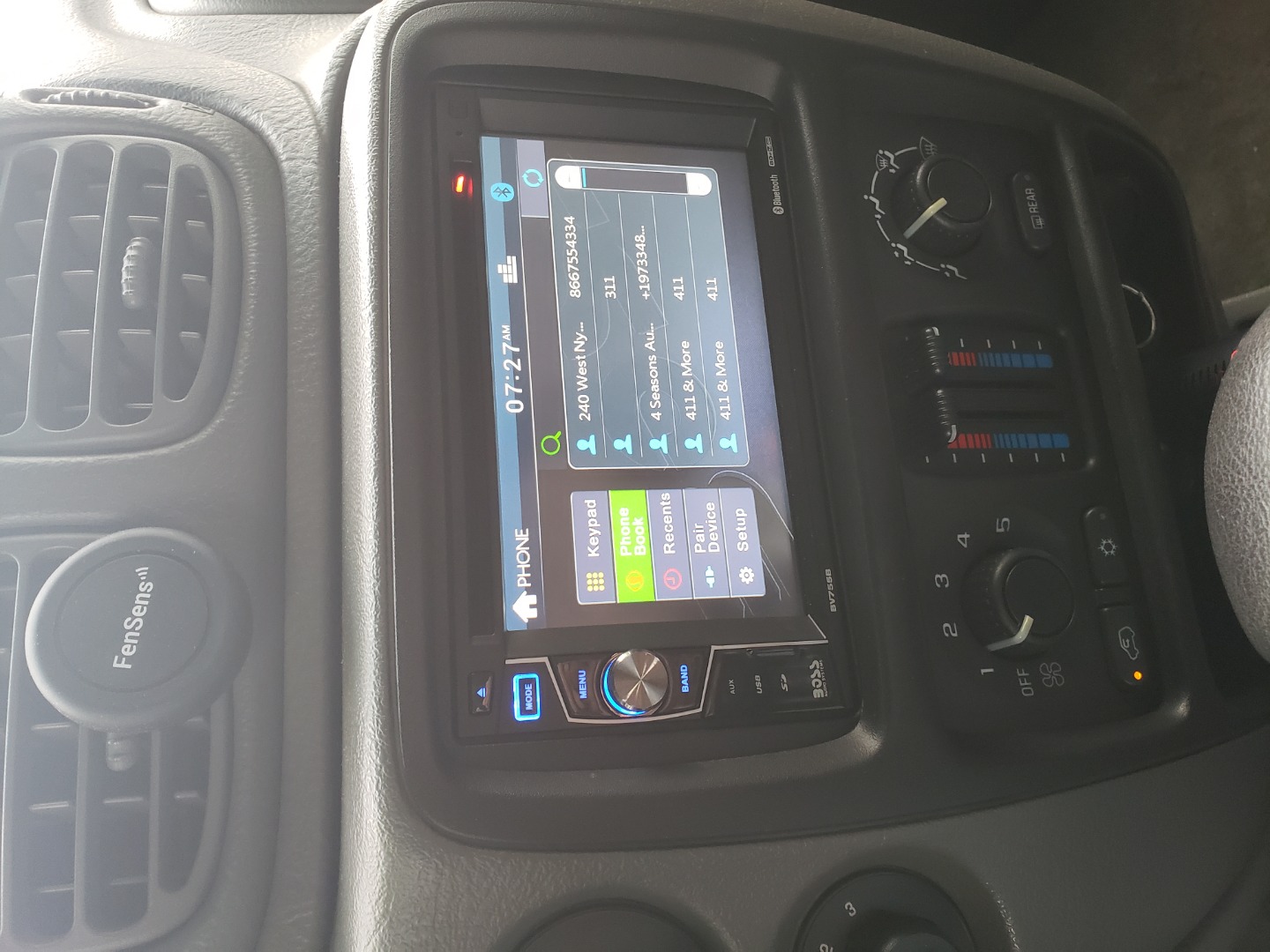

Hands-Free Communication (w/ Integrated Mic): The Boss BV755B allows for wireless communication between the head unit and your Bluetooth enabled smartphone. The head unit will display the caller's phone number and an audible ring tone will be heard through your vehicle's speaker during an incoming call. You can manually answer or end a call through the head unit's front-panel controls. The BV755B allows you to carry on the phone conversation using the head unit's integrated microphone and your car audio speakers. Your music will mute automatically during a call. You can make a call using the the Boss receiver's LCD touchscreen via its on-screen keypad, your phone's transferred phonebook, or list of your most recent calls.

Note: This unit does not support the connection of external microphone.

Wireless Audio Streaming: The Boss BV755B also allows you to play back stored music and music apps from your Bluetooth enabled smartphone, tablet, or other device using a Bluetooth connection. You can control basic music playback functions, like Play/Pause & Previous/Next Track from the Boss head unit. Advance music navigation and song/artist information will still need to be handled through the Bluetooth mobile device. This unit also displays song/artist information (no album art) from Bluetooth audio devices.

Disc/SD/USB Playback

Disc Compatibility: The Boss BV755B features a single disc player that will playback DVD-video, DVD-R/RW, DVD+R/RW, CD-audio, and CD-R/RW discs. The unit supports a variety of music, video, and photo files via DVD or CD.

• Off Insert/Eject: You can load and eject a disc with the unit off. Playback will automatically start when inserting a disc.
• Auto Reload: When a disc is ejected and left sticking out of the disc slot for 10 seconds, the unit automatically reloads the disc to protect if from damage.

ESP (Electronic Skip Protection): ESP is a feature that buffers the CD while playing, storing 5 seconds of music. If disc reading is interrupted, the player momentarily uses the stored data, while the tracking circuitry finds the passage prior to the interruption on the CD for continuous performance.

SD-Card Slot: The Boss DVD receiver features a front-panel SD-card slot for playback of a variety of music, video, and photo files recorded onto a SD/SDHC memory card (up to 32GB).

USB Port: The BV755B is equipped with a front-panel USB (type-A) port for connection of a USB mass storage class device; such as a USB thumbdrive (up to 32GB). The unit supports playback of a variety of music, video, and photo files loaded onto a compatible USB msc device. USB portable devices that can be charged via USB will be charged when plugged into the DVD receiver's USB port (5V/1A), and the vehicle's ignition switch is set to ACC or On.

Note: The unit's USB port is not compatible with Apple iOS or Android OS devices.

Media File Compatibility: The Boss BV755B supports the following types of audio, video, and photo files recorded onto a disc or loaded onto a USB mass storage class device or SD memory card.

• Audio: MP3, WAV
• Video: AVI, MPEG-1, MPEG-2, MPEG-4
• Photo: JPEG, BMP

Song/Artist/Album Display: The receiver will display song/artist information along with album art for MP3 music files on a USB memory device or SD card.

Playback & Search Control: The head unit offers Play/Pause, Fast Forward/Rewind, Previous/Next Track, Repeat (all/folder/track) and Random (all/folder). It also provides direct track entry from the touchscreen or remote for quicker access, and a folder/track list so you can you scroll through your music files.

Audio & Tuner Section

20W x 4Ch Amp: The Boss BV755B DVD receiver is equipped with a 20 watt (RMS) x 4 channel amplifier.

6Ch/2V Pre-outs: The Boss BV755B features front, rear and subwoofer 2.0-volt pre-outs. The front and rear speaker pre-outs are balance and fade adjustable. The subwoofer pre-outs output are non-fading

Low Pass Crossover: The head unit's subwoofer pre-out utilizes its own low pass crossover which can be set to 80Hz, 120Hz, 160Hz, or Off.

EQ: You can choose between 6 EQ presets - User, Jazz, Pop, Classic, Rock, or Electric. The User preset allows you to manually adjust the the head unit's 8-band EQ (60Hz, 150Hz, 400Hz, 1kHz, 3kHz, 7kHz, 15kHz, 20kHz) from -8 to +8.

Loudness: The Loudness feature enhances high & low frequencies at lower volume levels.

Source Level: You can independently adjust the output level of each source (including Tuner, Disc, USB, SD, Aux, AV, & Bluetooth) from -7 to +7.

Turn-On Level: You can set a dedicated turn-on volume level for the AM/FM Tuner, Disc, or USB. This can be set from 0 to 50.

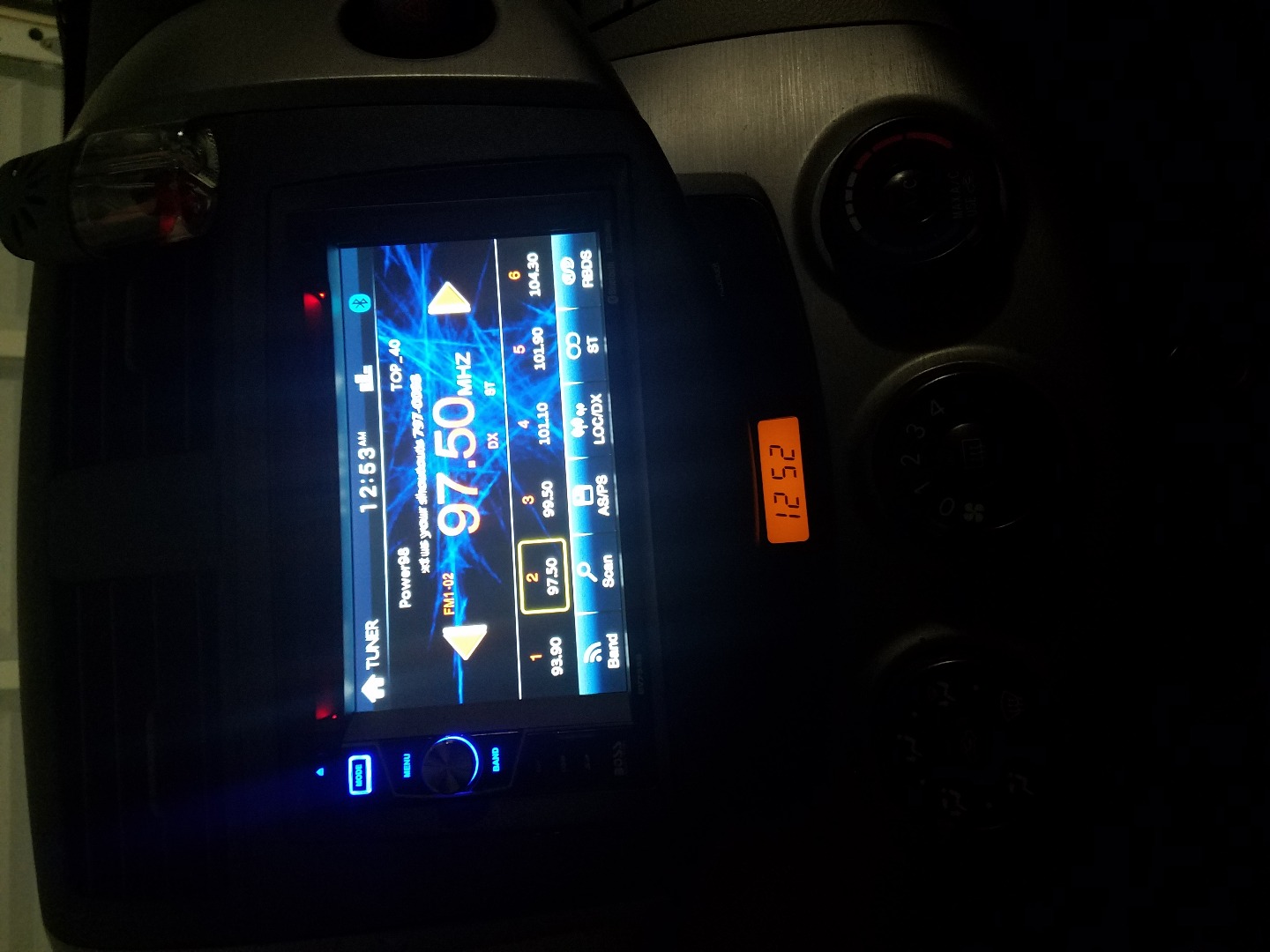

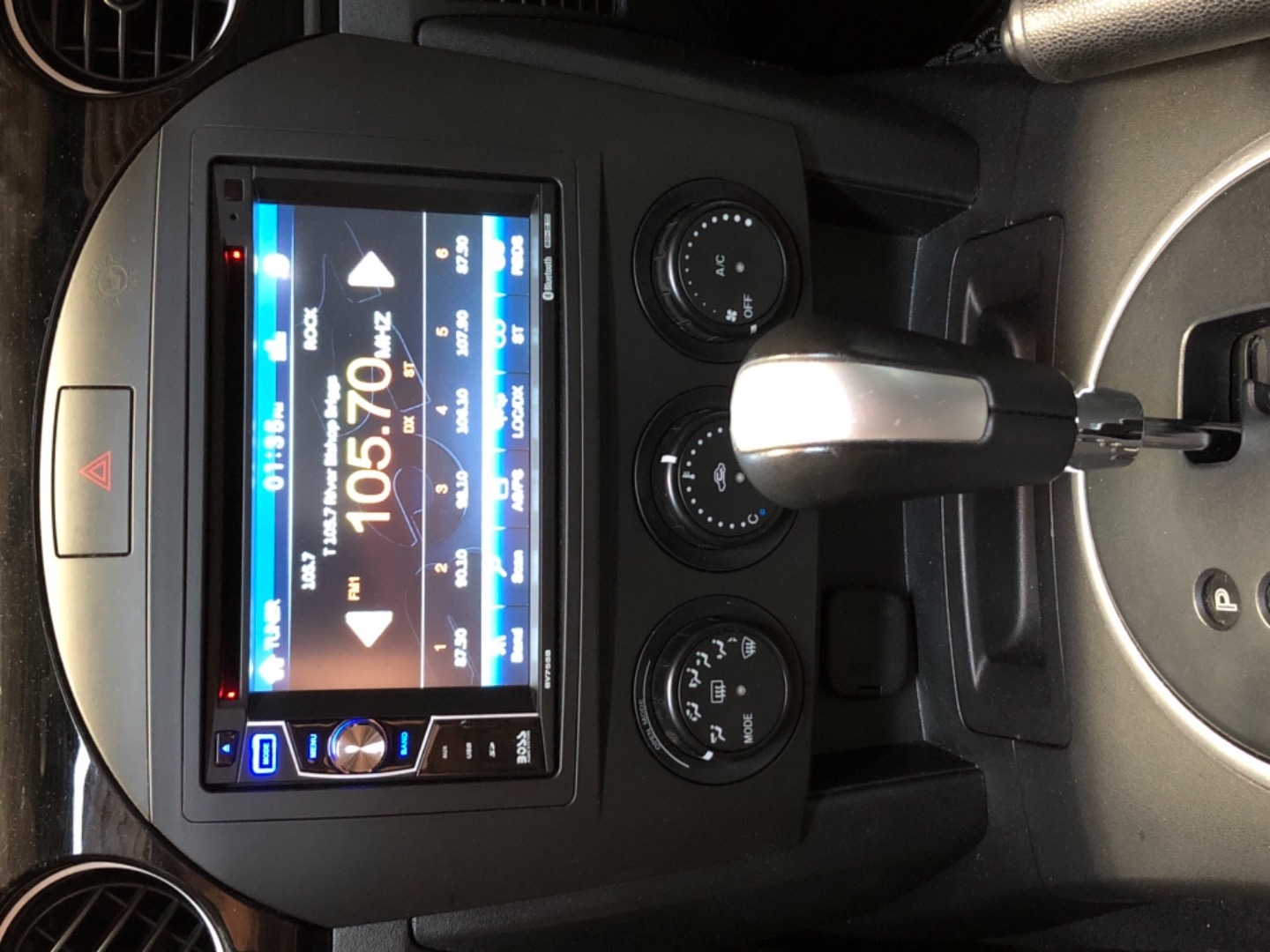

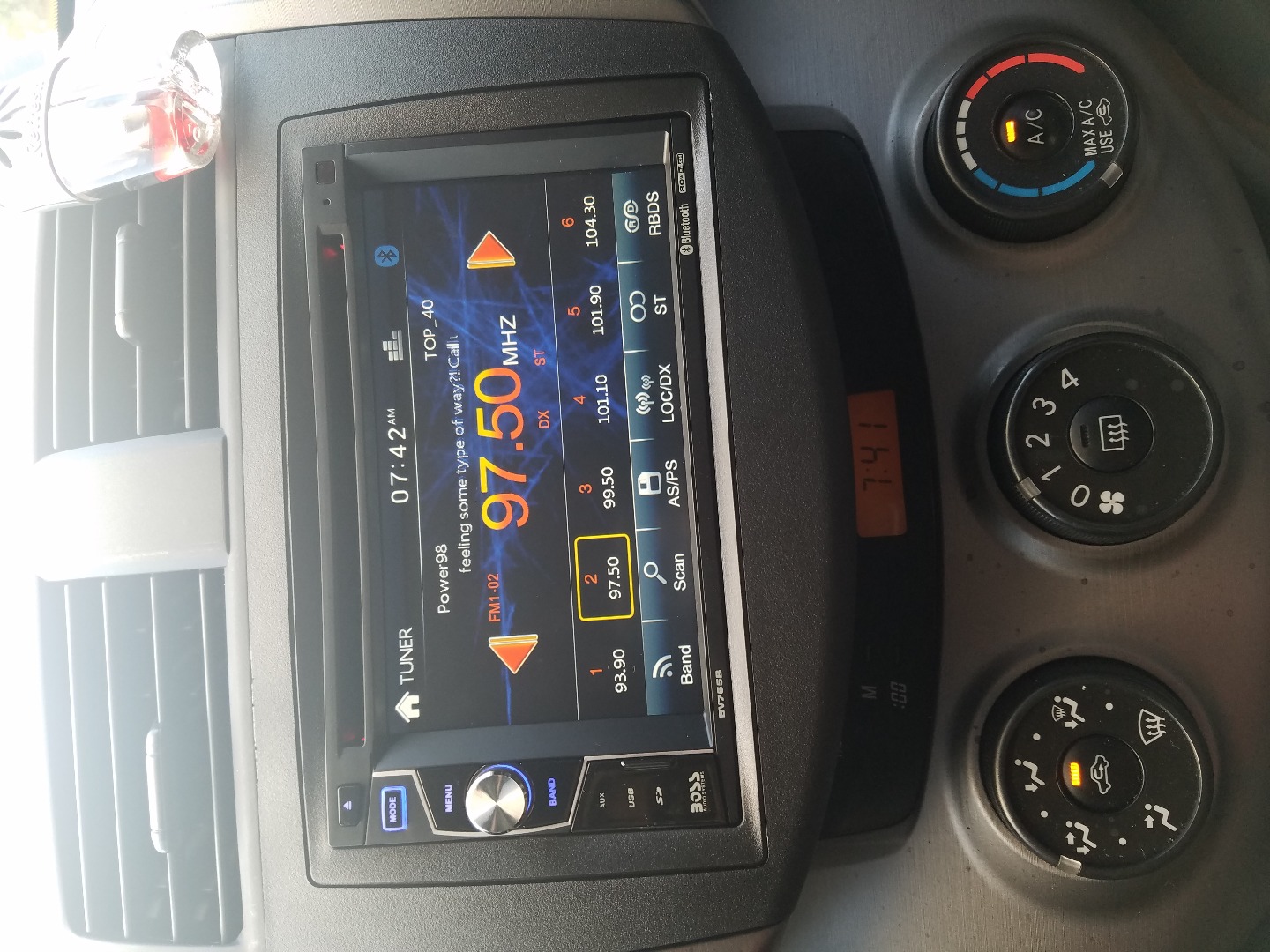

AM/FM Tuner: The Boss BV755B features a built-in AM/FM tuner. The BV755B features 3 FM banks and 2 AM banks for storing presets (automatically or manually). You can store 6 presets for each AM/FM bank giving you a total of 18 FM presets and 12 AM presets (total of 30). Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception. You can also switch between Stereo/Mono modes for better reception.

• RDS: The Radio Data System (RDS) feature displays radio broadcast information such as artist, title, and album when listening to compatible FM stations. FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.
• US/Euro Tuning: The tuner features selectable North America and European tuning.

Beep Tone: The in-dash receiver provides an audible beep to confirm operation This function can be turned On or Off.

AV Connections + Camera

Front-Panel Aux Input: The Boss BV755B is fitted with a front-panel stereo minijack (3.5mm) Aux input for connecting a portable audio device.

AV Input: The Boss BV755B features a rear-panel AV input which consists of a composite video jack and stereo RCA jacks for connecting an external portable audio/video source.

Dual Video Outputs: Dual composite video output jacks allow you to add external monitors, such as rear headrest monitors (sold separately). The video outputs can display a DVD, USB, SD, or AV-input video signal when its selected as the receiver's source, regardless if the vehicle's parking brake is engaged or not.

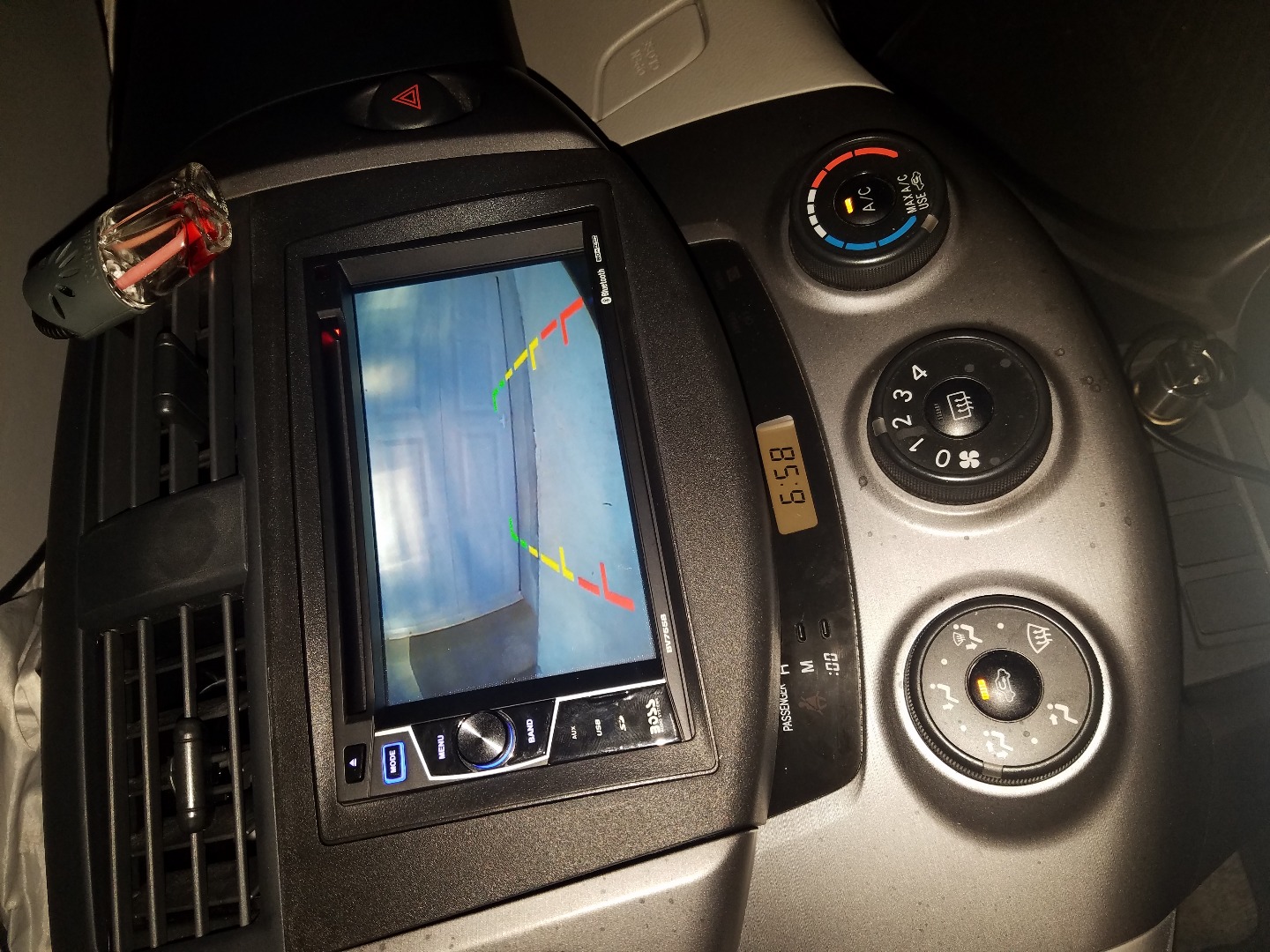

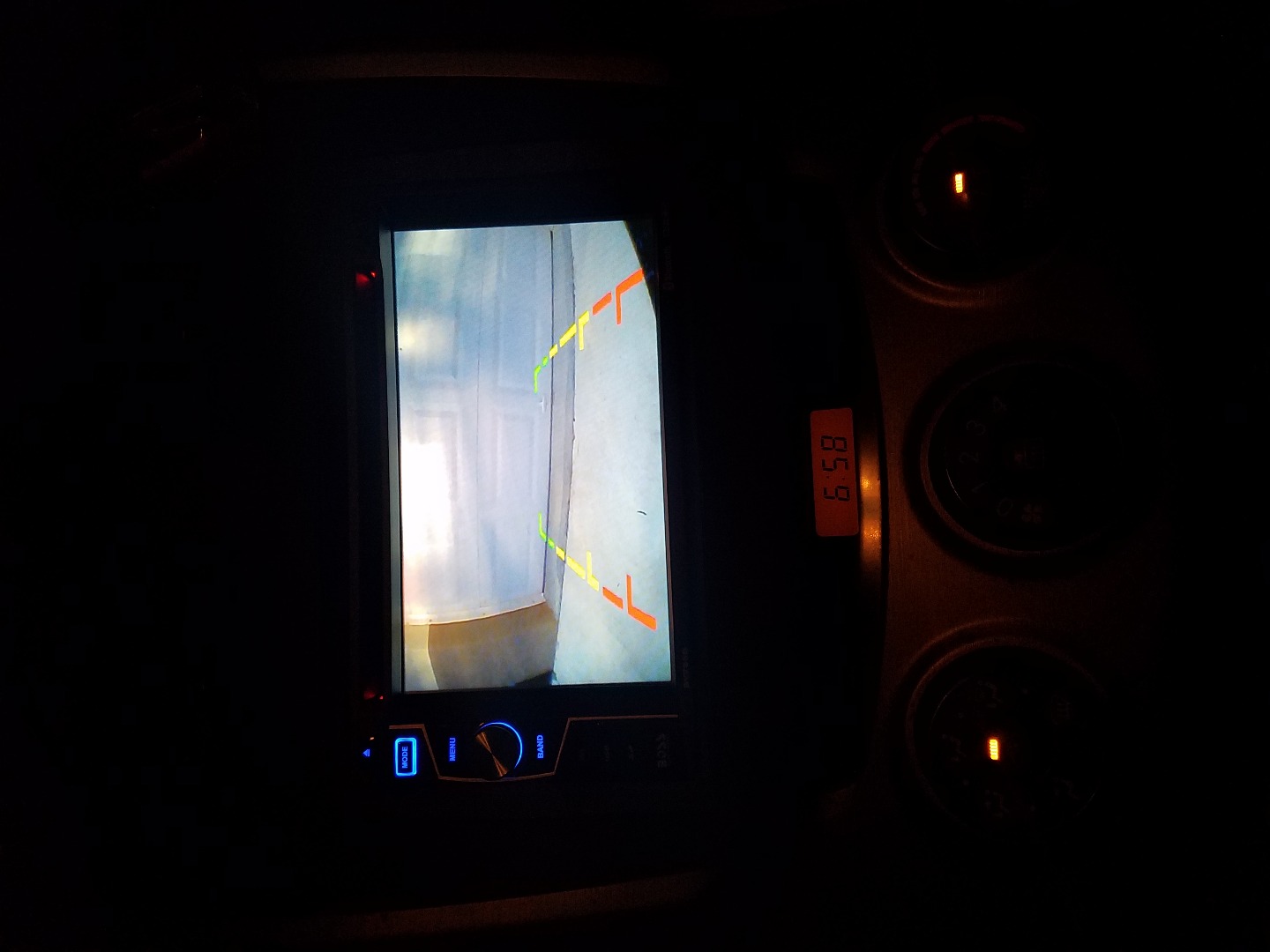

Included Backup Camera w/ Parking Guidelines: The Boss BV755B is equipped with a composite video camera input for connecting the included backup camera with license plate bracket. When the included camera is connected to the BV755B, the backup image is displayed on the integrated 6.2" LCD screen when your vehicle is placed in reverse gear (purple/white wire within harness must be connected to vehicle's backup lights). The rearview camera also provides Parking Guidelines (not defeatable). The included backup camera features an integrated bracket which attaches directly behind your vehicle's existing license plate frame.

• Effective pixels = 628 x 586 (368,008 total)
• Wide viewing angle = 170° (horizontal)
• Minimum illumination = 0.5 lux
• Automatic video switching speed = 1.5 seconds
• Total Cable Length = 20.5'

Note: The included camera is meant as a visual aid only; never solely rely on the camera. In addition to using the camera, always physically look to make sure everything is clear around your vehicle.

Front Camera Input: The Boss BV755B also features a front camera input that consists of a composite video jack that allows you to connect a front camera or dash cam (sold separately). You can manuall switch to the front camera input (no auto switching).

Touchscreen & Remote Control

6.2" LCD Touchscreen: Boss BV755B DVD receiver features a fixed 6.2" widescreen touchscreen LCD monitor. The screen has a resolution of 800 RGB x 480 with 1,152,000 total pixels. This unit has touchscreen controls with interactive video graphics, making menu navigation easy.

• Wallpaper/Backgrounds: You switch between 3 preset wallpaper or backgrounds.
• 12/24 Hour Clock: You can set the unit to display a 12 or 24 hour clock. The clock is visible from any source.

Note: For safety reasons, you cannot view a video source on the built-in LCD screen as long as the vehicle is in motion. In order to display video, the light green wire of the harness must be hardwired into the vehicle's parking brake light circuit, and the vehicle's parking brake must be engaged.

Hard-Key Controls: In addition to the unit's LCD touchscreen controls, the BV755B also features hard-key controls on the left edge of the screen, including a 3-way rotary audio control.

IR Remote: The Boss BV755B includes a 38-button IR remote control for complete wireless operation of the DVD receiver.

Optional Steering Wheel Control: The unit features a SWC (steering wheel control) input which lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional Metra, PAC, or Maestro steering wheel control adapter (sold separately).
