DRVN Series 6-3/4" component speaker system

Item # 105CSDR700

Find what Fits your vehicle

Free custom vehicle instructions

Installation help for your car, from our experts.

Car-specific installation packages

Deep discounts on the essential accessories that help your new gear work with your car.

Since 1974

Years of experience making people happy.

About the JVC CS-DR1700C

Alexander H.

Step up with components

How long have you been driving around listening to subpar factory speakers, or even blown speakers? JVC designed the CS-DR17100C component speaker system to be an affordable solution that provides a serious sonic upgrade. Built to weather the extreme temperatures of life in your car doors, the slim-profile 6-3/4" woofers offer strong audio performance with good power handling. Additionally, you can mount the separate tweeters up higher in your vehicle, giving you great stereo separation so you can enjoy your favorite songs like never before in your car.

Solid boost in sound quality

The system includes a lightweight yet durable carbon mica woofer that offers smooth, consistent performance, along with a 1" balanced dome polypropylene tweeter that'll increase your music's clarity. These speakers will give you a solid boost in sound quality when powered by your vehicle's radio, but they'll really shine when powered by an outboard amp. Grilles are included.

Product highlights:

  • package includes two 6-3/4" woofers, two tweeters, and two crossovers
  • carbon mica woofer with cloth and rubber hybrid surround
  • 1" polypropylene balanced dome tweeter
  • 2-way crossover network
  • power range: 2-55 watts RMS (360 watts peak power)
  • frequency response: 66-23,800 Hz
  • sensitivity: 88 dB
  • woofer top-mount depth: 1-3/4"
  • grilles included
  • warranty: 2 years
  • Our 60-day money-back guarantee
  • MFR # CS-DR1700C

What's in the box:

  • 2 Woofers
  • 2 Woofer grilles
  • 2 Tweeters (each fixed in a surface mount housing with 4" Wire attached)
  • 2 Angled surface mount tweeter housings
  • 2 Speaker wires with 50" Tweeter leg (including in-line tweeter crossover) and 13.25' input leg
  • Eight 1" Self-tapping screws
  • 8 Speed clips
  • Four M3 x 5mm Machine screws
  • Two M3 x 15mm Stud bolts
  • Two M3 x 30mm Stud bolts
  • Four M3 Nuts
  • Two M3 Wing nuts
  • 2 Split lock washers
  • 2 Small flat washers
  • 2 Large flat washers
  • Safety instructions
  • Template and specifications on packaging

Customer reviews

Loading reviews...

JVC CS-DR1700C reviews

Average review:

73 reviews

Thanks for submitting your review

Filter by rating

Customer photos

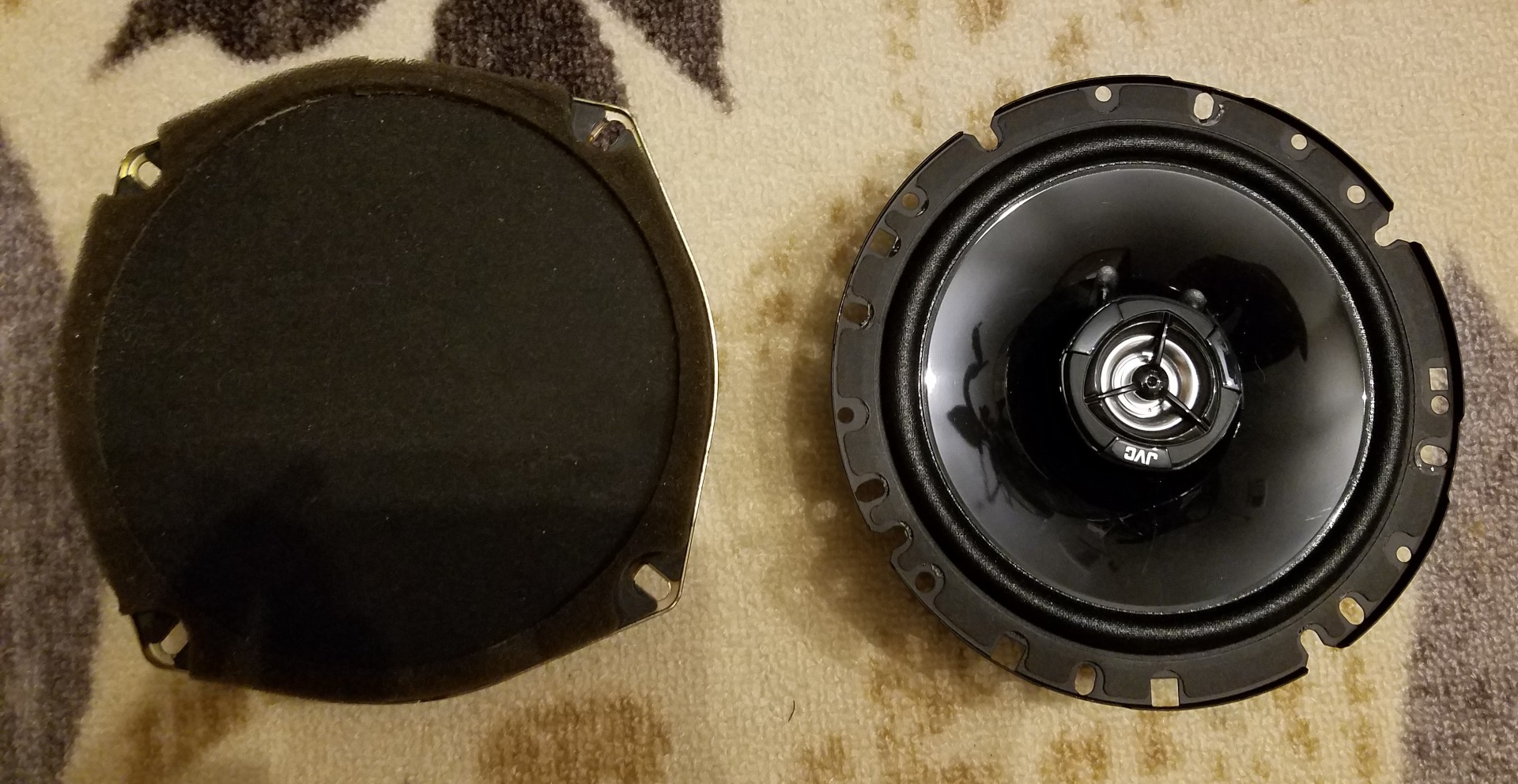

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.

<< >>

More details on the JVC CS-DR1700C

Pat M.

Features & specs

Speaker Size 6 3/4
Design 2-way
Tweeter Design 1" Balanced Dome
Impedance (Ohms) 4
Tweeter Composition PEI
Woofer Composition Carbon Mica
Woofer Surround Cloth/Rubber Hybrid
Parts Warranty 1 Year
Labor Warranty 1 Year
Sensitivity (1W at 1 meter) 88
Sensitivity at 2.83 volts N/A
Frequency Response 66 - 23.8k Hz
Minimum RMS Wattage ---
Maximum RMS Wattage 55
Peak Power Handling (Watts) 360
Top-mount Depth (Inches) 1 13/16
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 5 1/2
Mounting Height (Inches) 0.191

Product Research


Tweeters: The tweeters are PEI (Poly-Ether-Imide) balanced-domes; PEI is a polymer film that produces a wide soundstage for superior imaging. A semi-dome tweeter has a dome placed inside a cone. Balanced dome tweeters are semi-dome tweeters with equal reproduction area given the cone and dome portions of the tweeter.

Tweeter Mounting Options: The tweeters can be surface mounted without adding anything to their fixed housings. Brackets are also included to allow angled surface mounting (approximately 30°).

Tweeter Dimensions:

  Surface Mount Angled Surface Mount
Mounting Height 0.643" 1.47"
Mounting Depth 0.15" (minimum) 0.15" (minimum)
Frame Diameter 1.82" N/A
Cutout Diameter N/A N/A
Frame Width N/A 1.822"
Frame Depth N/A 1.860"

Tweeter Crossovers: The tweeter crossovers are wired in-line with the included speaker wire. The input end  is bare wire and the woofer end has female quick slides to connect to the woofer terminal. The 50" tweeter section of the wire is shorted to the woofer quick slides, and also has quick slides on the tweeter end, which plug into the wire attached to the tweeter.

Loading accessories...

Customer Q&A

4 questions already asked

Whatâ??s the inner depth of the speaker?
[ DAVID  Dec 14, 2021 ]
1 answer
I had downloaded the PDF from the KENWOOD site for these speakers. On the 2nd page, it shows 5.4mm (7/32") + 45mm (1-25/32") of overall depth. That adds up to 49.4mm or 2" and does not include the depth/thickness of the Kenwood grill. Mine are mounted behind the RAV4 grill that is part of the door upholstery.
[ HECTOR JULIO  Dec 15, 2021 ]
Can thes take a small amplifier?
[ LAMONT  Dec 05, 2021 ]
1 answer
They sure can work with an amp that outputs up to 55 watts RMS at 4 ohms!
[ JASON  Dec 11, 2021 ]  Staff
Can I use the stock speaker wire for or do I need to buy some? Does it come with wires for the woofers?
[ JOSEPH  Oct 23, 2020 ]
3 answers
This does come with a crossover that has built-in wiring that connects to the woofer, has a 50" long leg of wire to connect to the tweeter, and a 13.5' input leg. The input leg can be connected to the stock wiring for the times that works with the radio in the vehicle
[ JASON  Nov 21, 2020 ]  Staff
Yes you can use the factory or existing speaker wiring to connect, just be careful to watch the polarity and make it is consistent for each speaker in the system. You may need to adapt or splice the existing vehicle wiring to match the speaker terminals on the actual\speaker. I believe that these speakers come with a short or maybe long, wiring assembly with the correct speaker terminals installed. You then need to splice to your factory wiring as mentioned above. Good luck.
[ Dustin  Nov 19, 2020 ]
Yes you can use stock wires and mo wires for woofers
[ DOUG E  Nov 19, 2020 ]
Does it have dual voice coil?
[ Stephen  Jun 06, 2019 ]
3 answers
No, only one set of terminals on the woofer.
[ HECTOR JULIO  Dec 15, 2021 ]
No only single
[ Dustin  Nov 19, 2020 ]
[ Clay  Jun 06, 2019 ]
